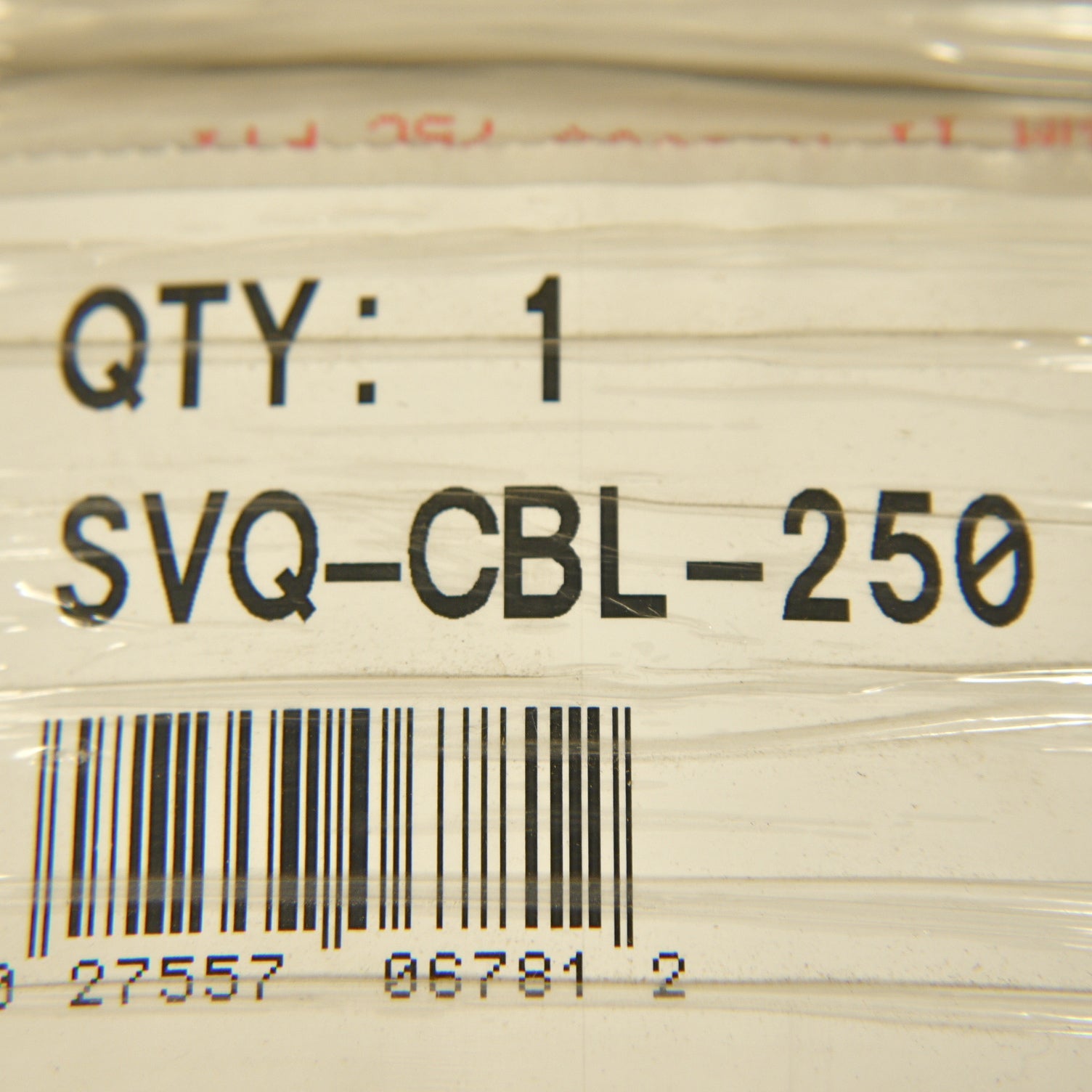

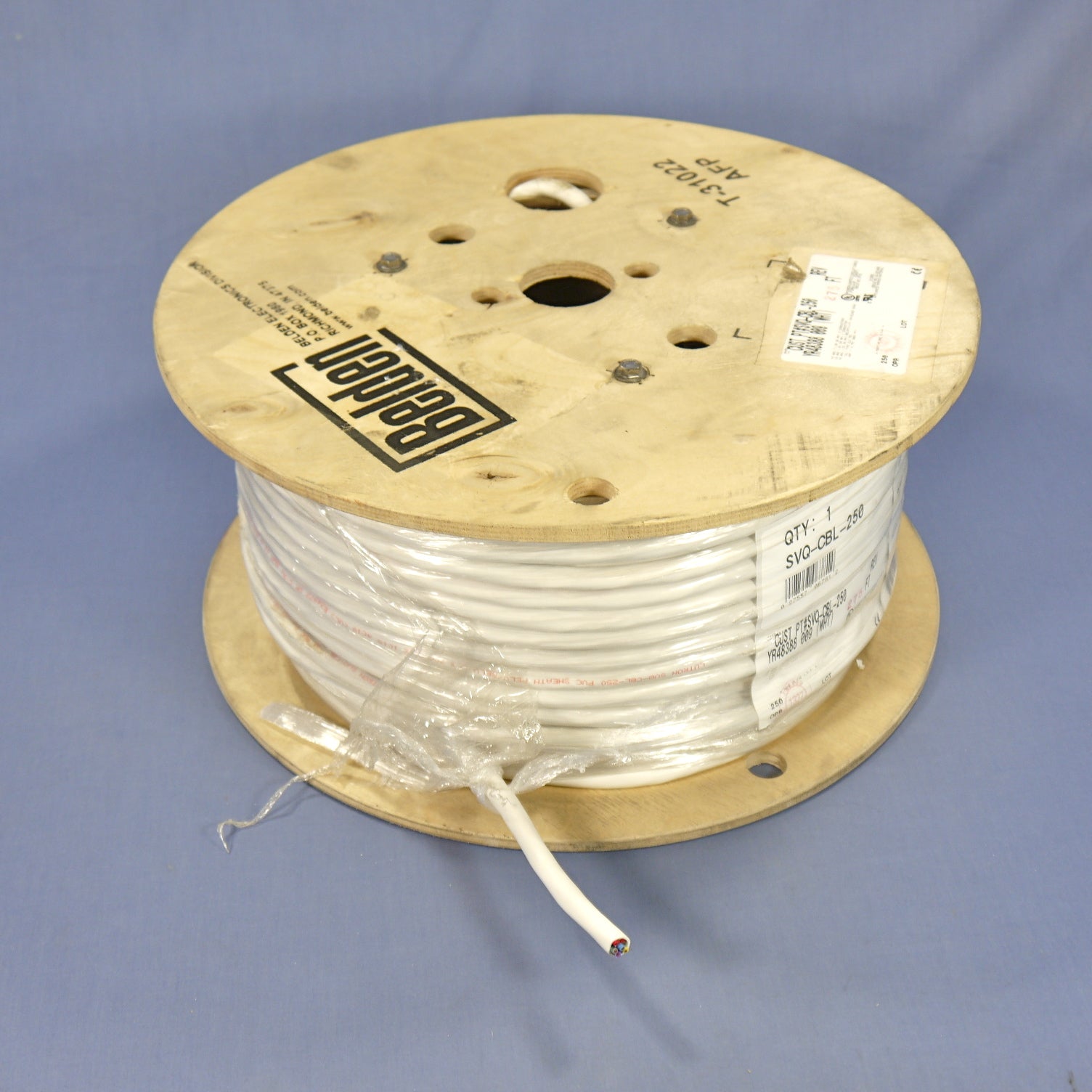

Lutron 7-Conductor 3-Element Cable Wire 250-Foot Spool 16/18 AWG SVQ-CBL-250

Lutron 250-Foot SVQ-CBL-250 7-conductor cable. This is a 3 element composite cable: 2 conductors 16 AWG unshielded, 4 conductors 18 AWG shielded and 1 conductor 18 AWG unshielded, constructed with stranded bare copper, plenum-rated polyvinylchloride (SGPVC) insulation and an overall plenum-rated polyvinylchloride (SGPVC) jacket for data/communications and controls applications, manufactured in the USA. (UL) listed CL3P or CMP c(UL)us 75?C. Features include:

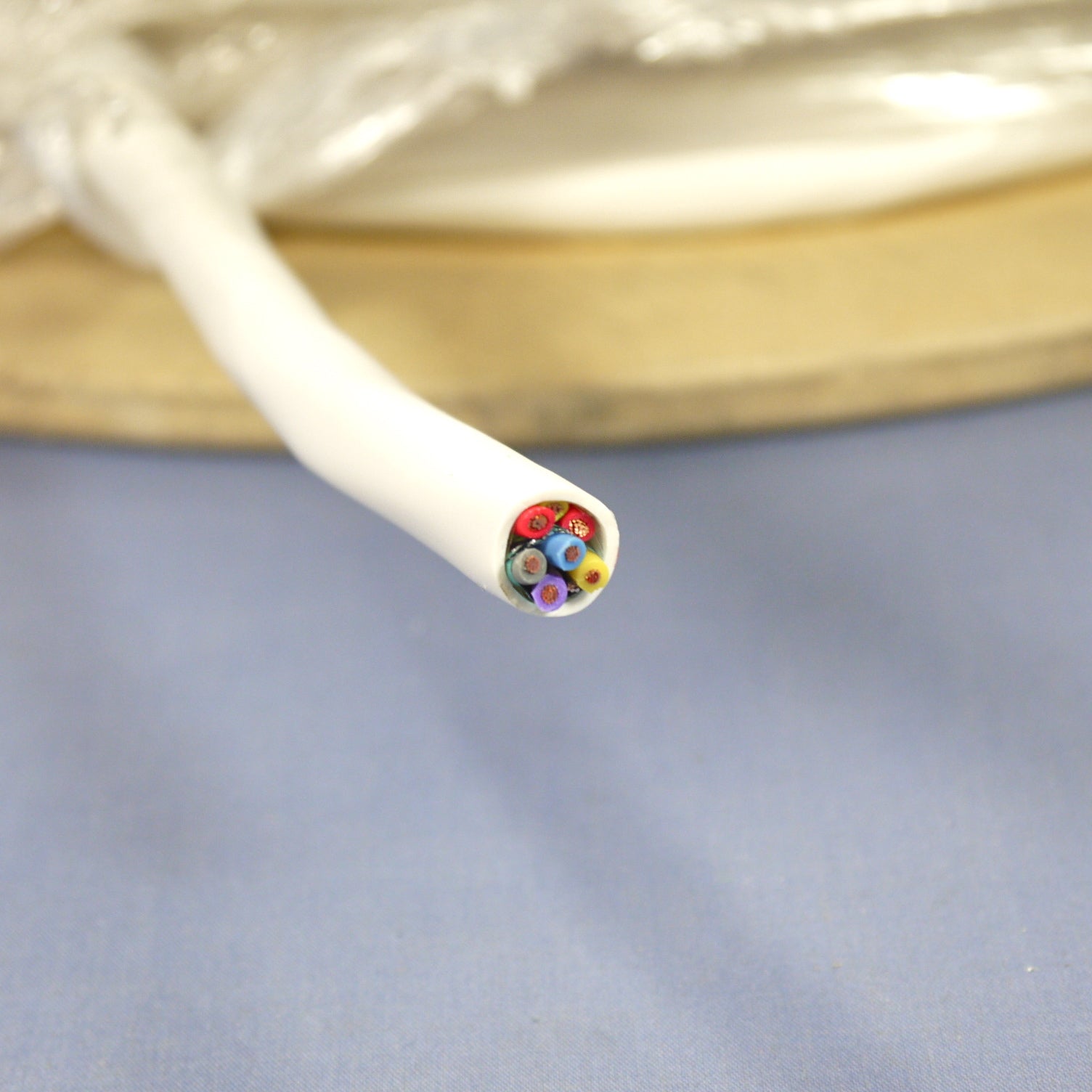

• Lutron Element 1 - Power/Control (16 AWG, 2 Unshielded Conductors):

• - Conductor: 6 AWG (26 Strands Class K), Stranded Bare Copper

• - Insulation: Plenum-Rated Polyvinylchloride (SGPVC), 0.010" wall thickness

• - Color Code: Red, Red/White

• - Assembly: Pair Lay Length: 1.975" LHL, Nominal
• Lutron Element 2 - Data/Communications (18 AWG, Shielded Quad):

• - Conductor: 18 AWG (16 Strands Class K), Stranded Bare Copper

• - Insulation: Foamed Fluorinated Ethylene Propylene (FEP), 0.008" wall thickness

• - Capacitance: 25 pF/ft Conductor to Conductor

• - Color Code: Violet, Yellow, Gray, Blue

• - Assembly: Quad Shield: Aluminum Mylar Tape - 100% Coverage; Quad Drain Wire: 22 AWG, Stranded Tinned Copper
• Lutron Element 3 - Ground Wire (18 AWG, 1 Unshielded Conductor):

• - Conductor: 18 AWG (16 Strands Class K), Stranded Bare Copper

• - Insulation: Plenum-Rated Polyvinylchloride (SGPVC), 0.010" wall thickness
• - Color Code: Green/Yellow
