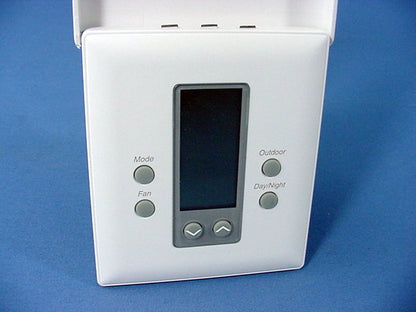

Leviton White Thermostat Control Heat Pump for Heating/Cooling System A/C 6327-2

Leviton 6327-2 white DHC (Decora Home Control) thermostat for a heat pump driven heating/cooling system. Designed to provide enhanced energy management and climate control capabilities in any residence or vacation home. This is not a timer; it is turned on and off by controllers or transponders in a home network (see below). Features include:

• Intended for heat pump driven heating/cooling system only (not intended for non-heat pump driven systems)
• Responds to commands from programmable controllers, manual controllers, or Leviton's DHC Telephone Transponder
• Stores two heating temperatures settings and 1 cooling temperature setting selected by the user. For example, a ski lodge can be kept at 45 degrees to prevent pipes from freezing when unoccupied. Using a Cat. No. 6325 DHC Telephone Transponder, the owners can have the DHC thermostat switch to a temperature setting of 72 degrees so the lodge is warm and comfortable when they arrive for a weekend
• Integrated into the home's DHC network using a Cat. No. 6337 Universal Low-Voltage Receiver Module (sold separately)

Specifications:

• Voltage: 20-30 VAC, 24 nominal
• AC current: 0.050-0.75 Amps continuous per output with surges to 3 Amps max
• DC current: 0.0-0.75 Amps continuous per output with surges to 3 Amps max
• Heating range: 38-88�F in 1� steps; 5-30�C in 1� steps
• Cooling range: 60-108�F in 1� steps; 16-40�C in 1� steps
• Thermostat measurement: 28-124�F or 0-48�C
• ODT measurement: -50� to 24�F or -48� to 48�C
• Control: +/- 0.5�C at 20�C
• Accuracy: +/-1�F at 68�F
