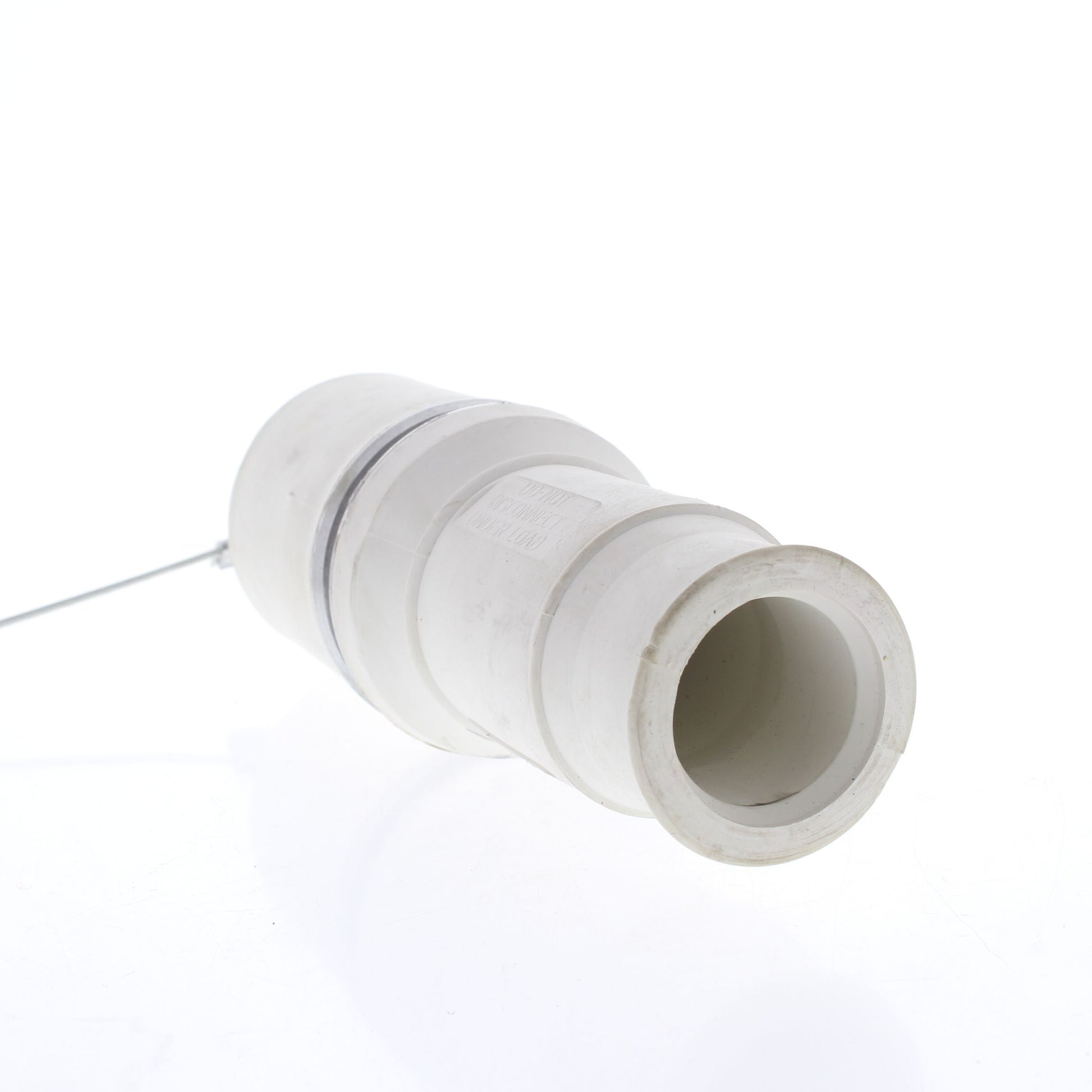

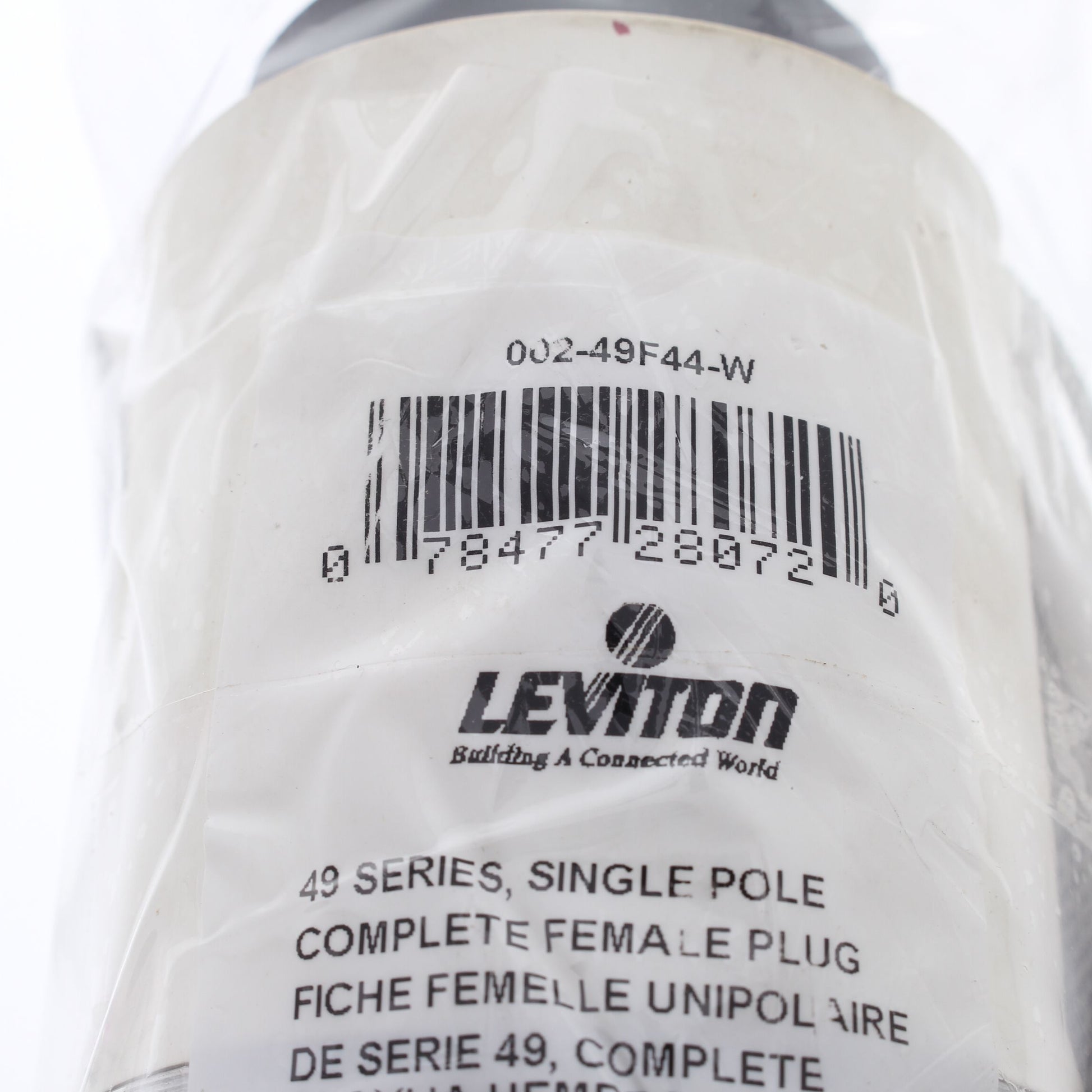

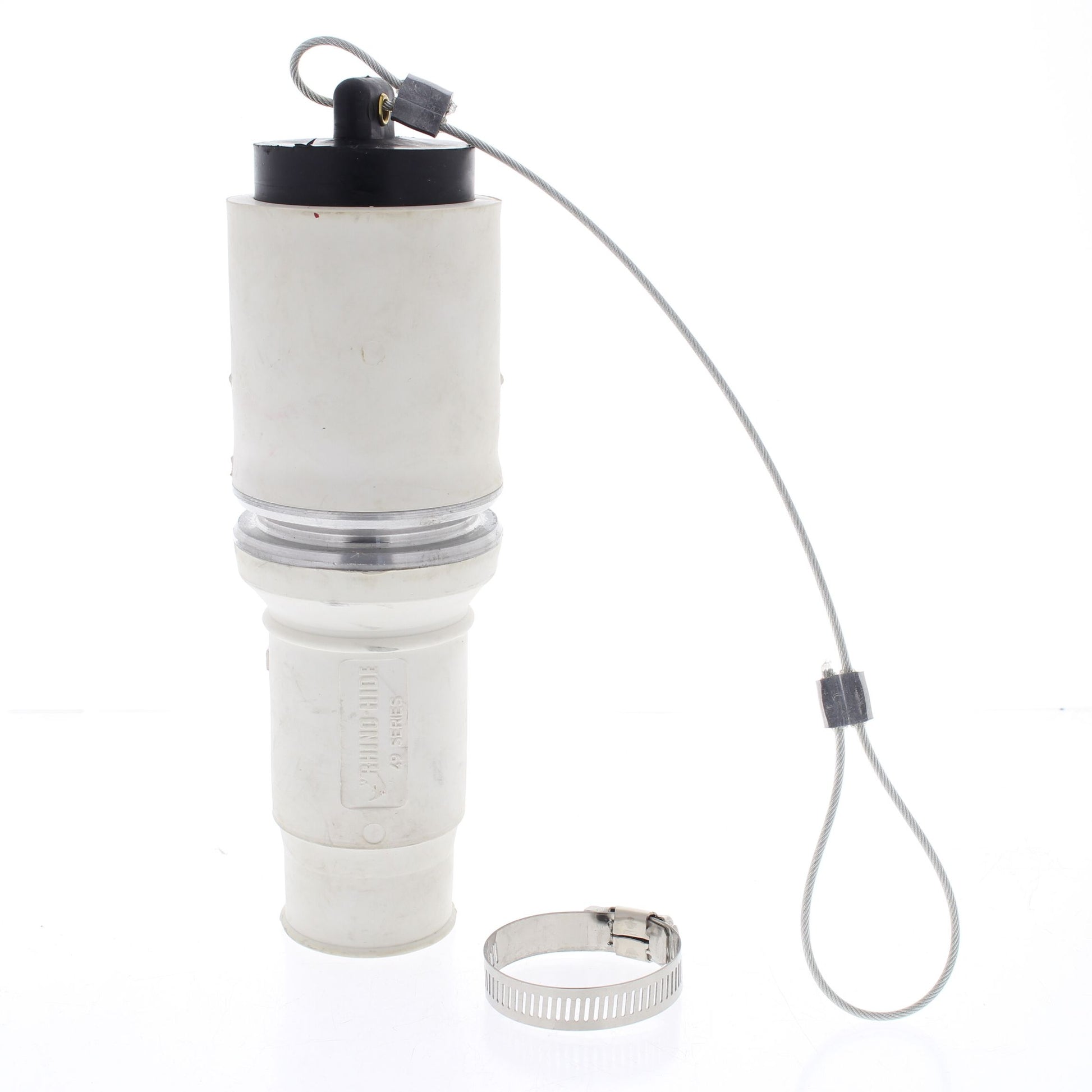

Leviton 49F44-W white Rhino-Hide female plug. Accepts 444 MCM cable, rated 796 Amps @ 125�C wire temperature (40�C ambient temperature). Designed to mate with other manufacturers' high-amperage single pole connectors and receptacles, Rhino-Hide single pole devices can be installed on both existing silicon-controlled rectifiers (SCR's) and generator stations or on new oil and gas rig construction. Features include:
Color-coded connector housing for quick, visual identification of circuit and phase connections
UV stable, polyolefin-based Santoprene TPV housings resist fading and cracking for greater service life
Contacts machined from a high conductivity copper alloy and silver-plated for corrosion resistance and superior conductivity

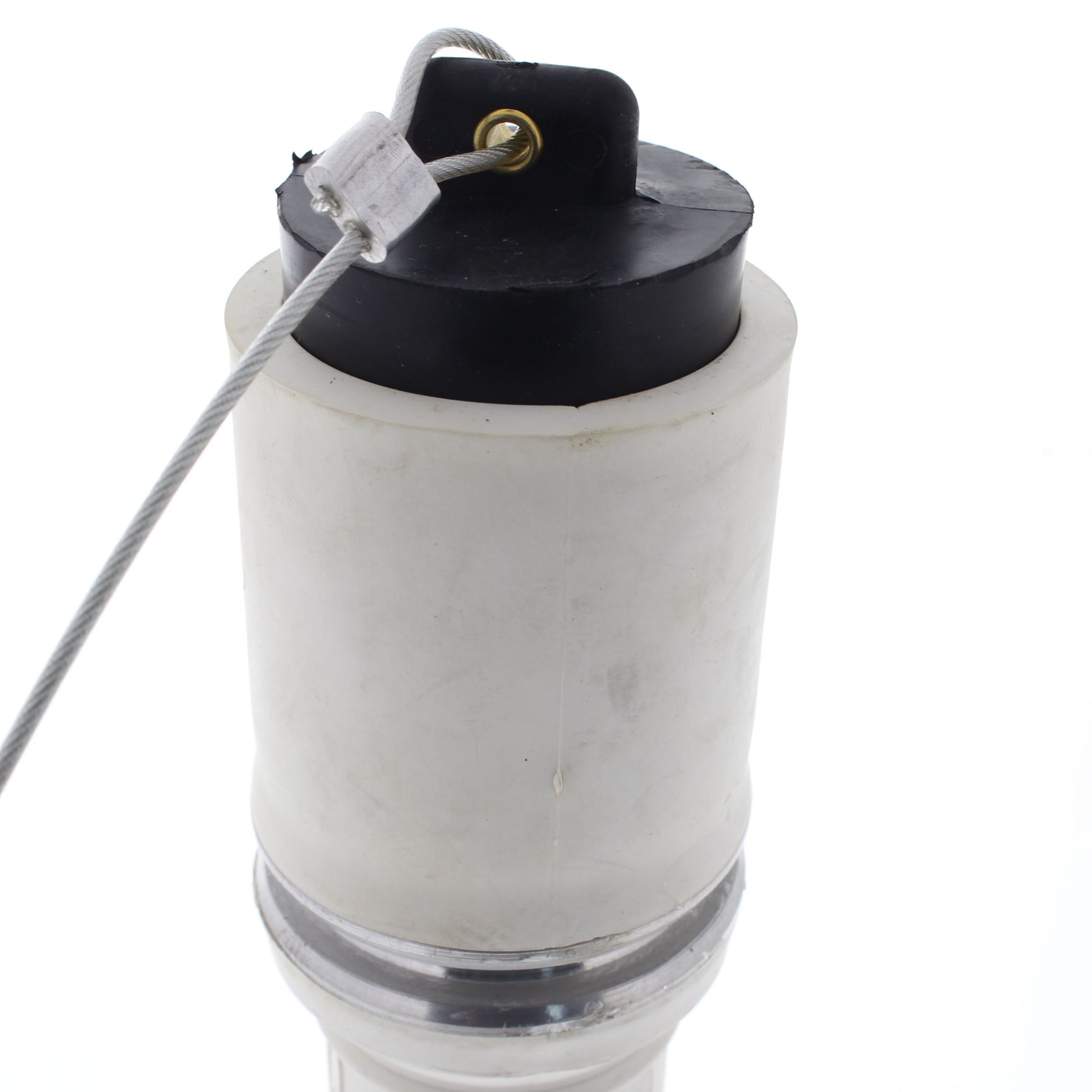

Santoprene TPV dust cap protects contacts when disconnected
Attach stripped cable to male or female contact with standard crimp tools from manufacturers such as FCI/Burndy and Thomas & Betts
Ideal for replacement, connectors mate with other manufacturers' high-amperage single pole connectors and receptacles for fast, easy change-out
