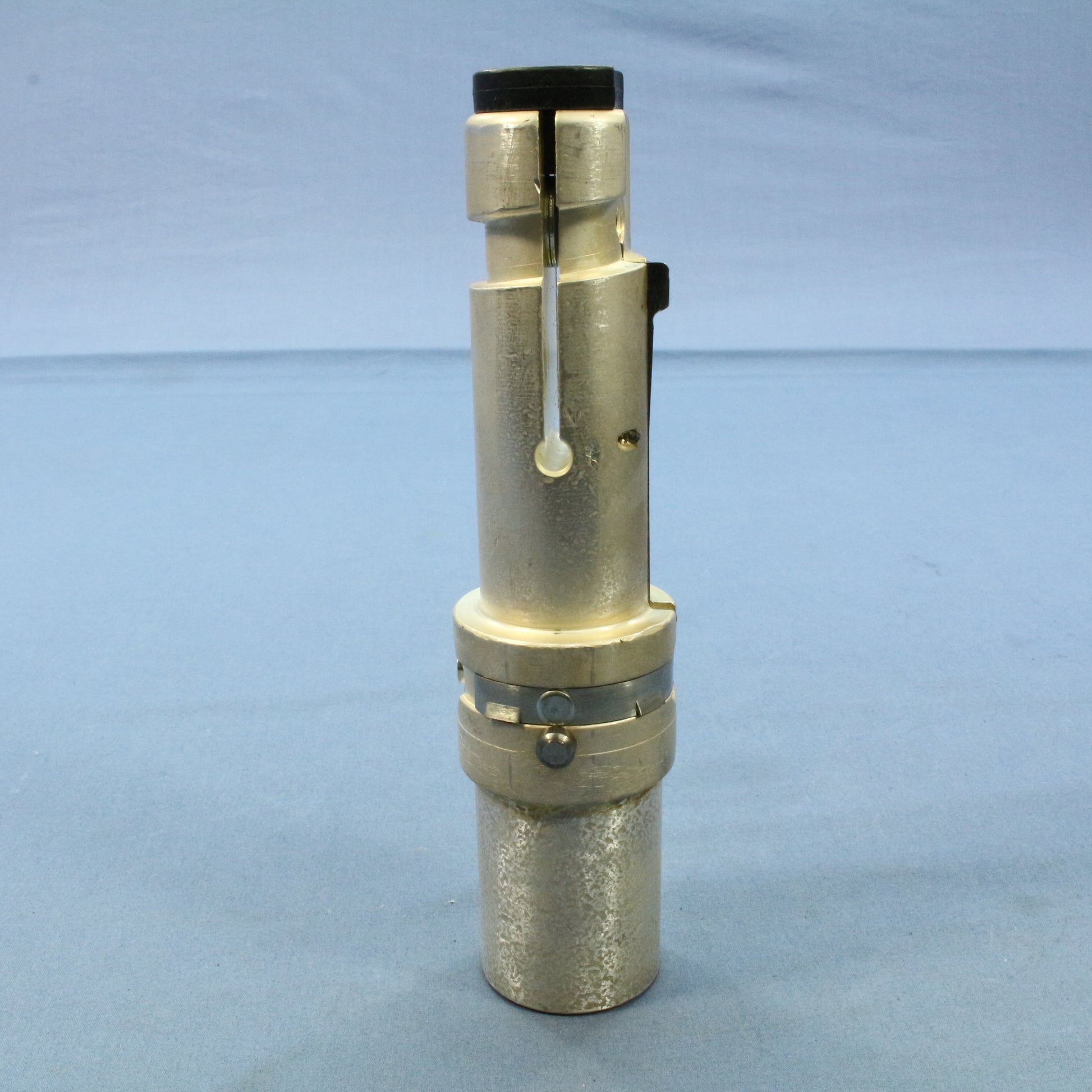

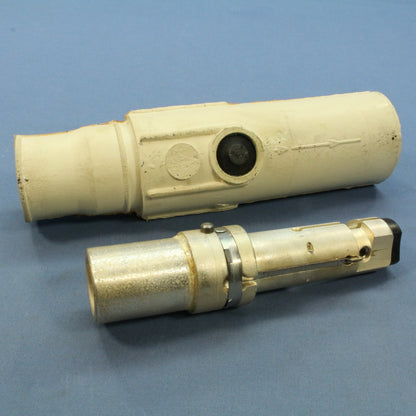

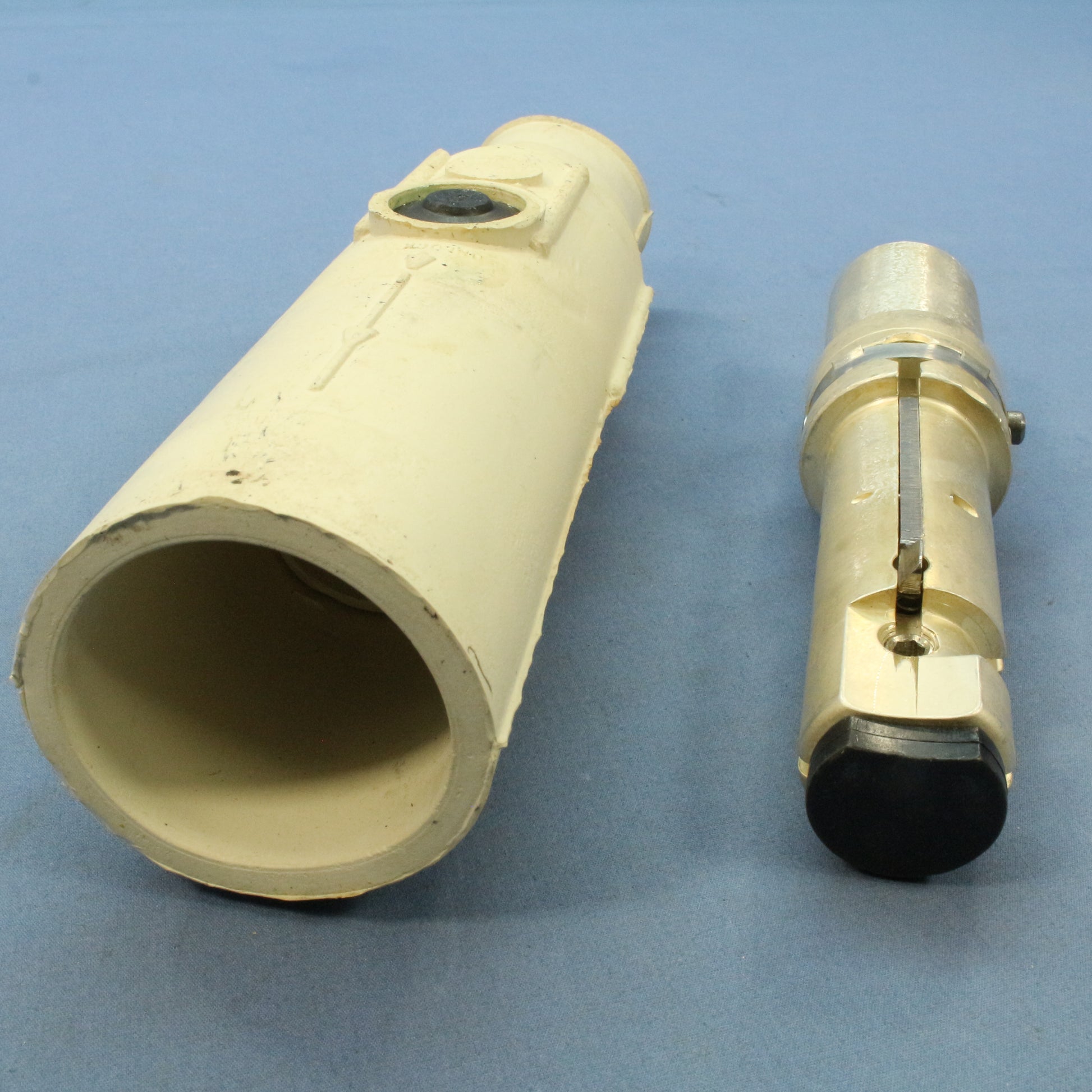

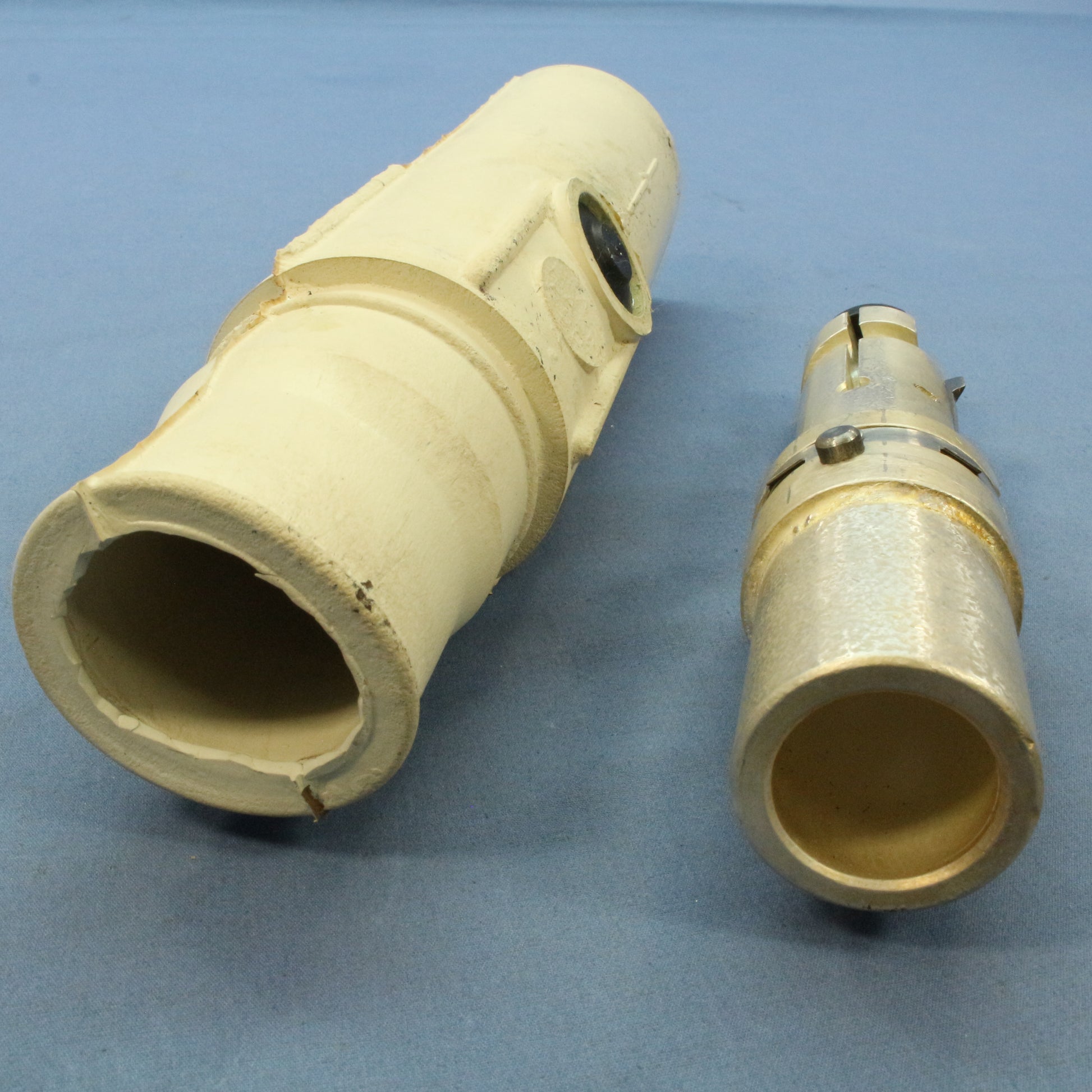

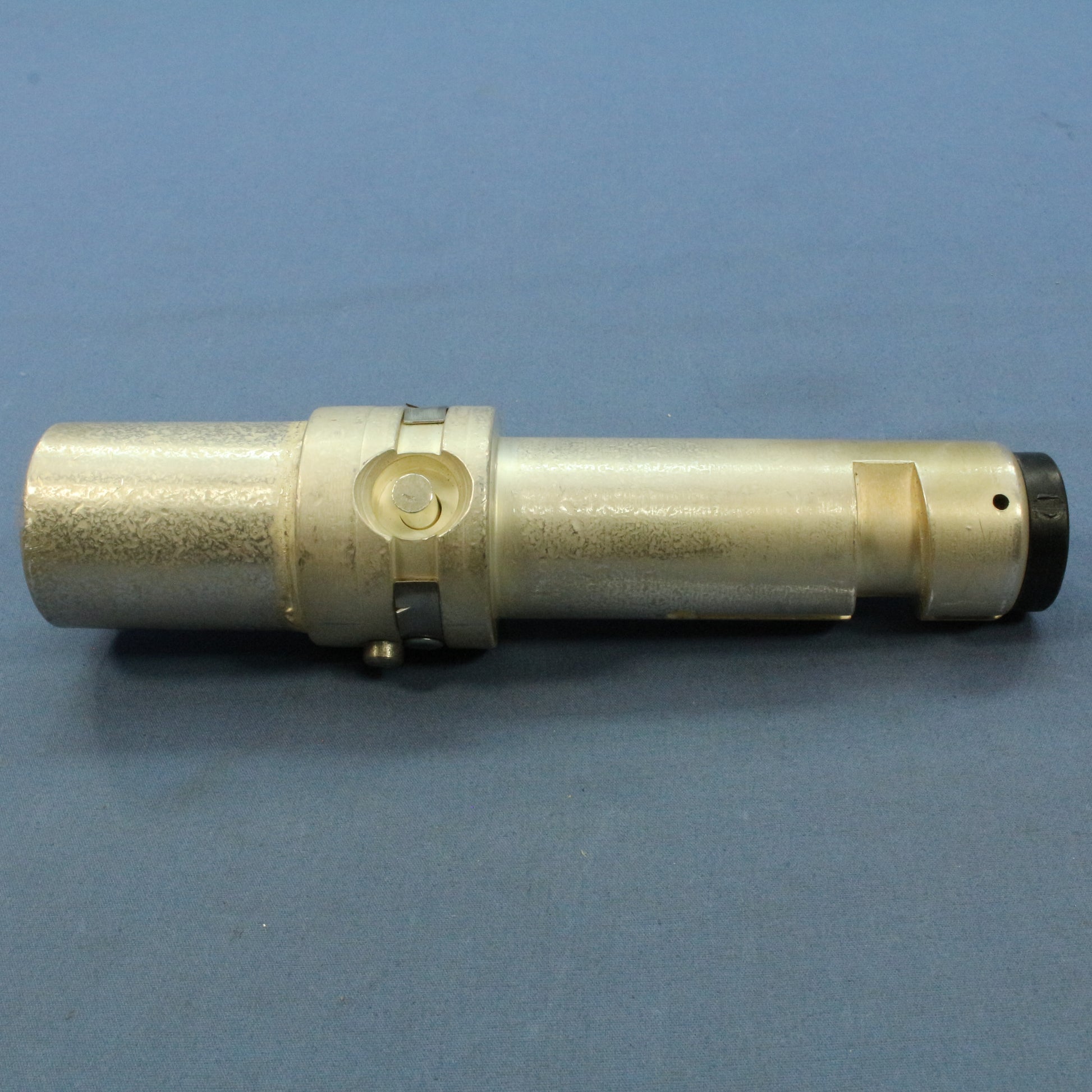

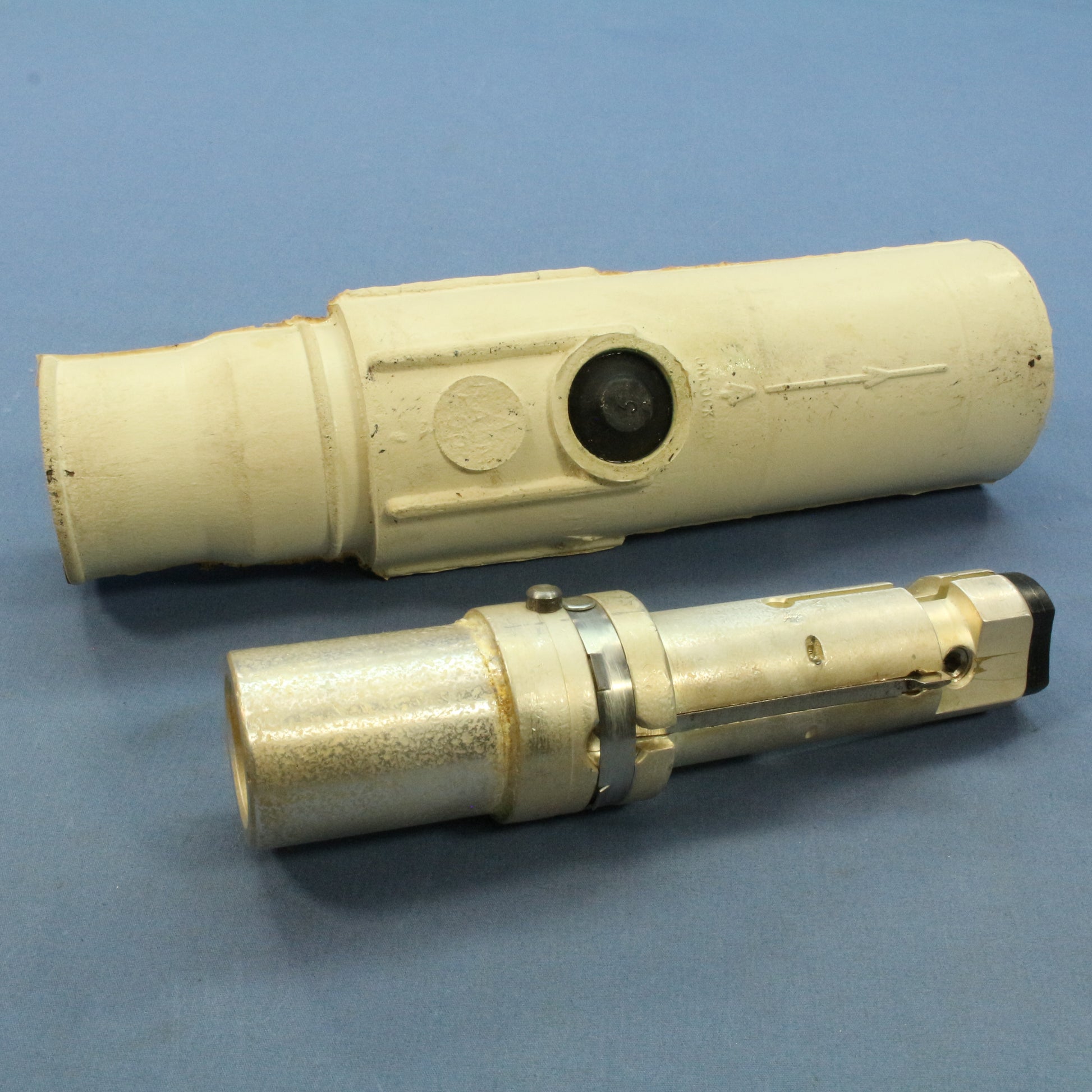

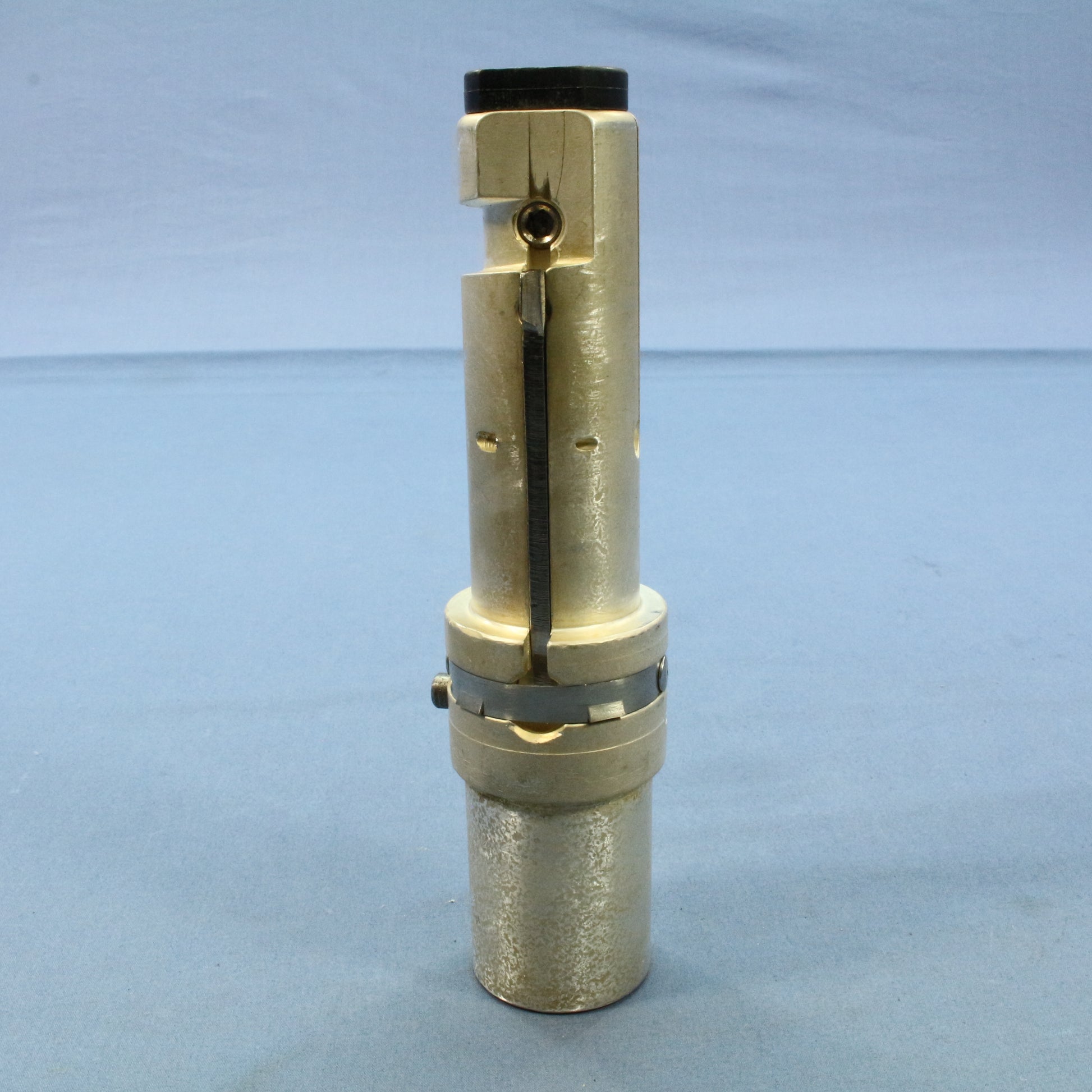

Leviton 23L22-W white male cam-type in-line latching male connector - crimped style. For use with 23 Series latching taper nose connectors. Leviton's Cam-Type positive latching connectors and receptacles are the standard used by Navy bases and shipyards in supplying 480 volts AC 3-phase power to ships at dockside. Features include:
Rated up to 690A 600V (with proper cabling)
Cable capacity: 350 to 500 MCM
Intermateable and completely compatible with competitive cam-type products - can be retrofitted to existing locations and power distribution systems
Locking and reinforcing ring won't melt, break or crack
Shatter and crack proof - high durometer thermoplastic elastomer(TPE) or neoprene rubber
Color coded insulating sleeves - fast and easy phase identification
Prevents arcing or burning - no movement of contact surfaces
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity - positive vibration-proof connection provided by double cam design
