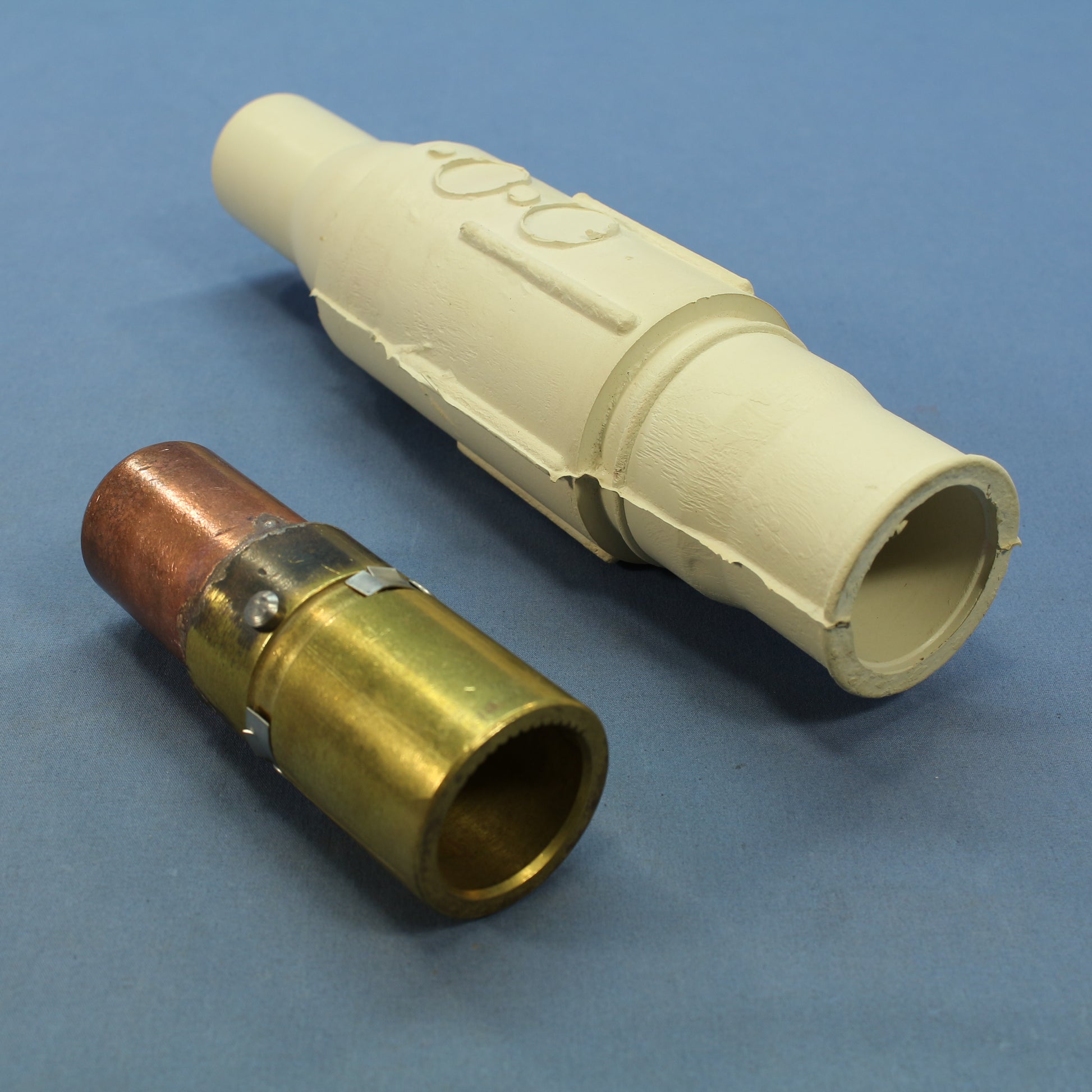

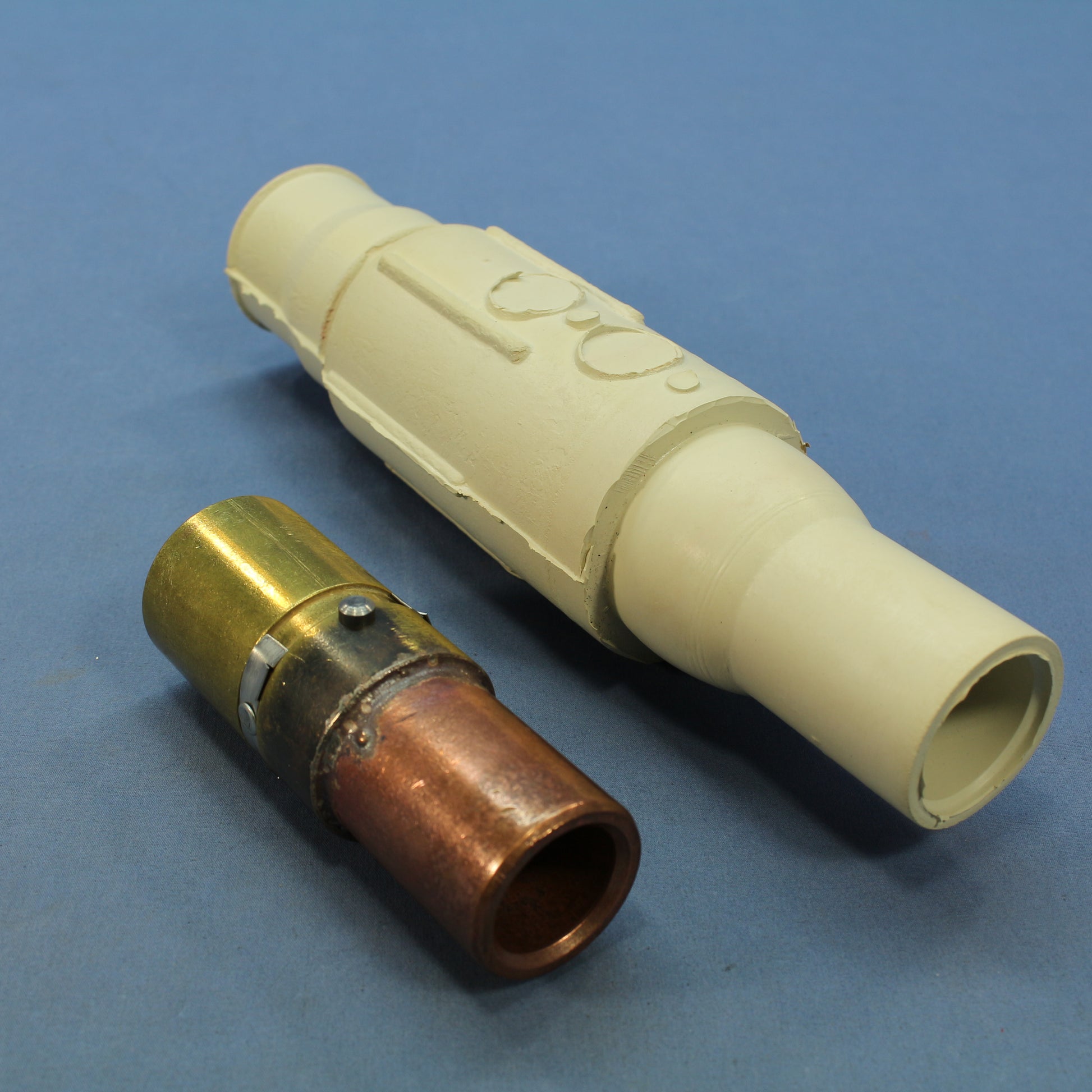

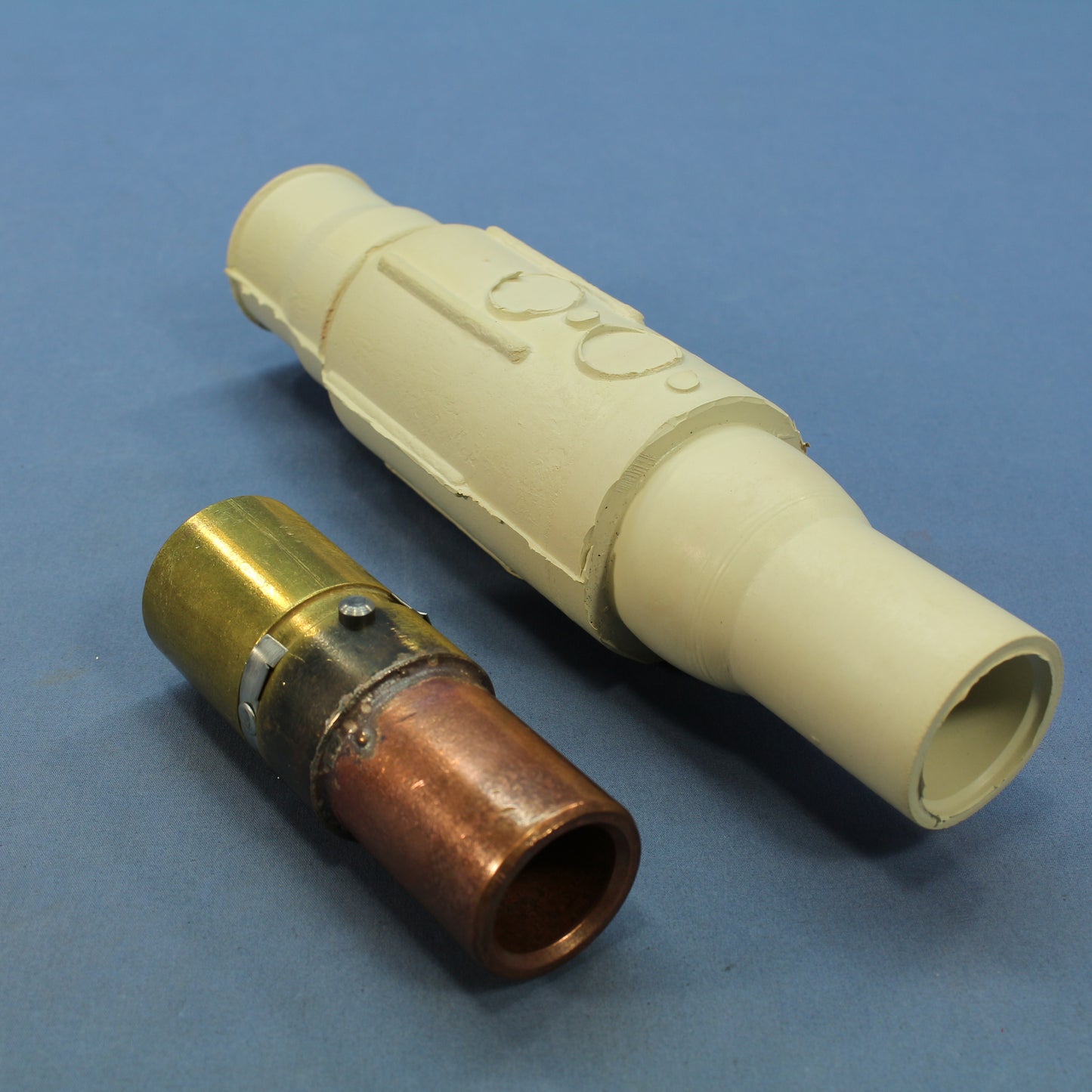

Leviton White 22L25-W 22 Series Female Latching Cam-Type Connector Plug 690A

Leviton 22L25-W white female cam-type in-line latching male connectors. For use with 22 Series latching ball nose connectors. Leviton's Cam-Type positive latching connectors and receptacles are the standard used by Navy bases and shipyards in supplying 480 volts AC 3-phase power to ships at dockside. Features include:

• Rated up to 690A 600V (with proper cabling)
• Cable capacity: 350 to 500 MCM
• Intermateable and completely compatible with competitive cam-type products - can be retrofitted to existing locations and power distribution systems
• Locking and reinforcing ring won't melt, break or crack
• Shatter and crack proof - high durometer thermoplastic elastomer(TPE) or neoprene rubber
• Color coded insulating sleeves - fast and easy phase identification
• Prevents arcing or burning - no movement of contact surfaces
• Self compensating for wear - slit and cam in male contact provides spring action for longer usage
• Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
• High conductivity - positive vibration-proof connection provided by double cam design
