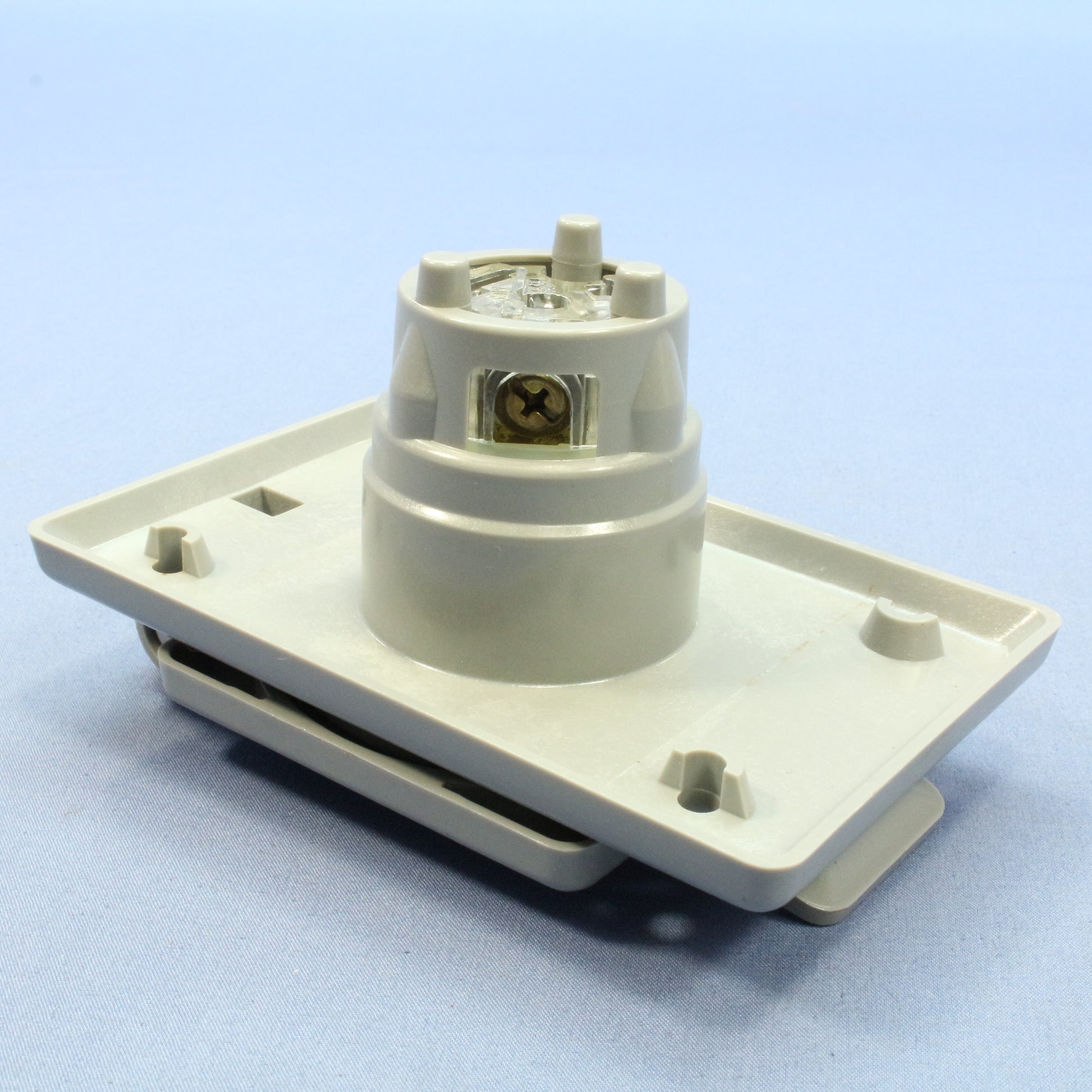

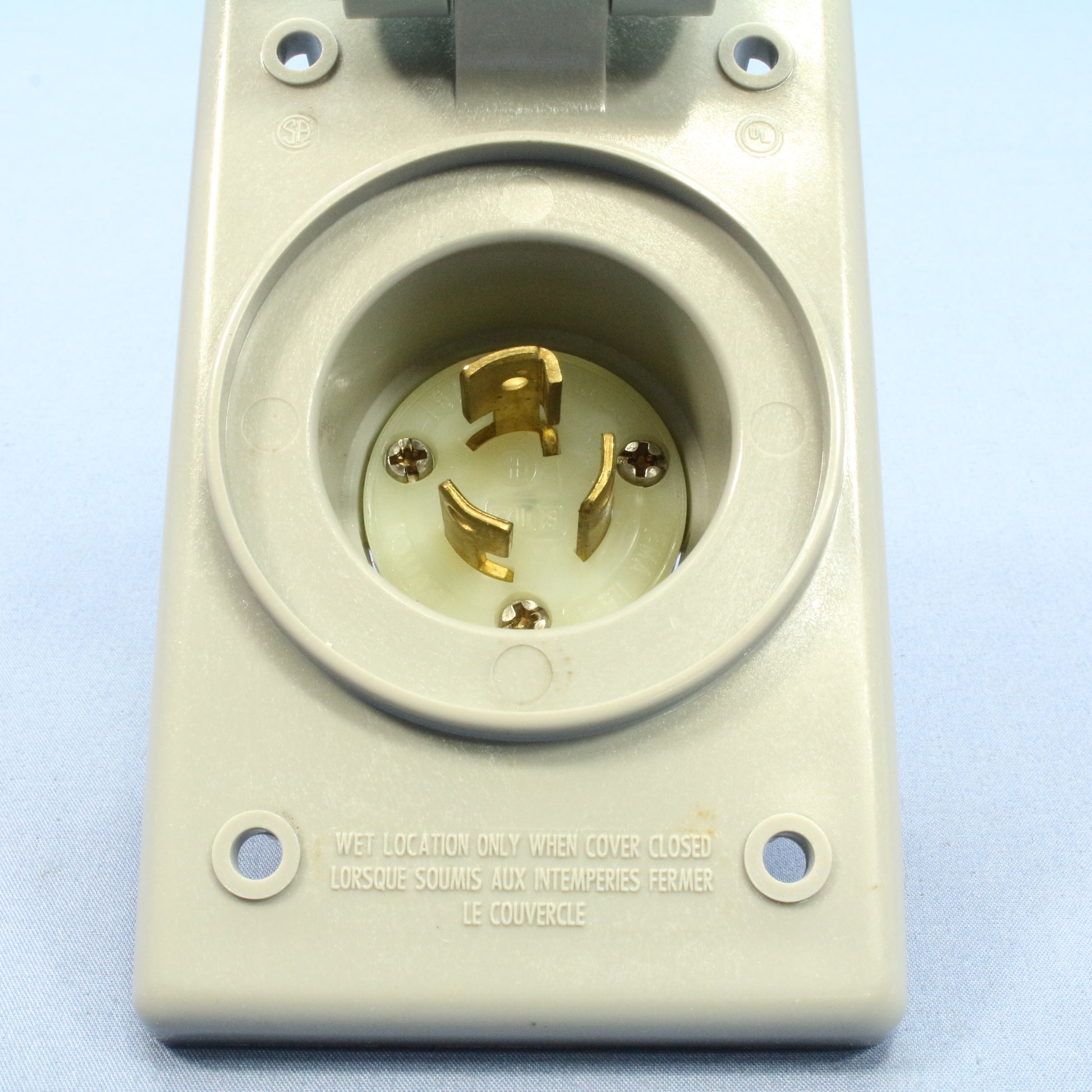

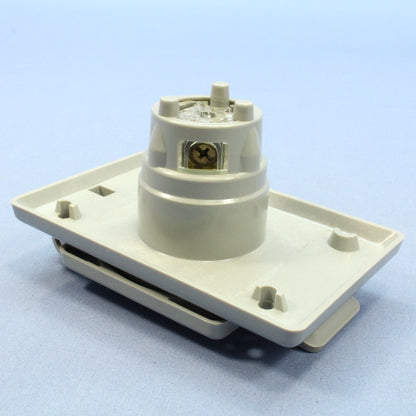

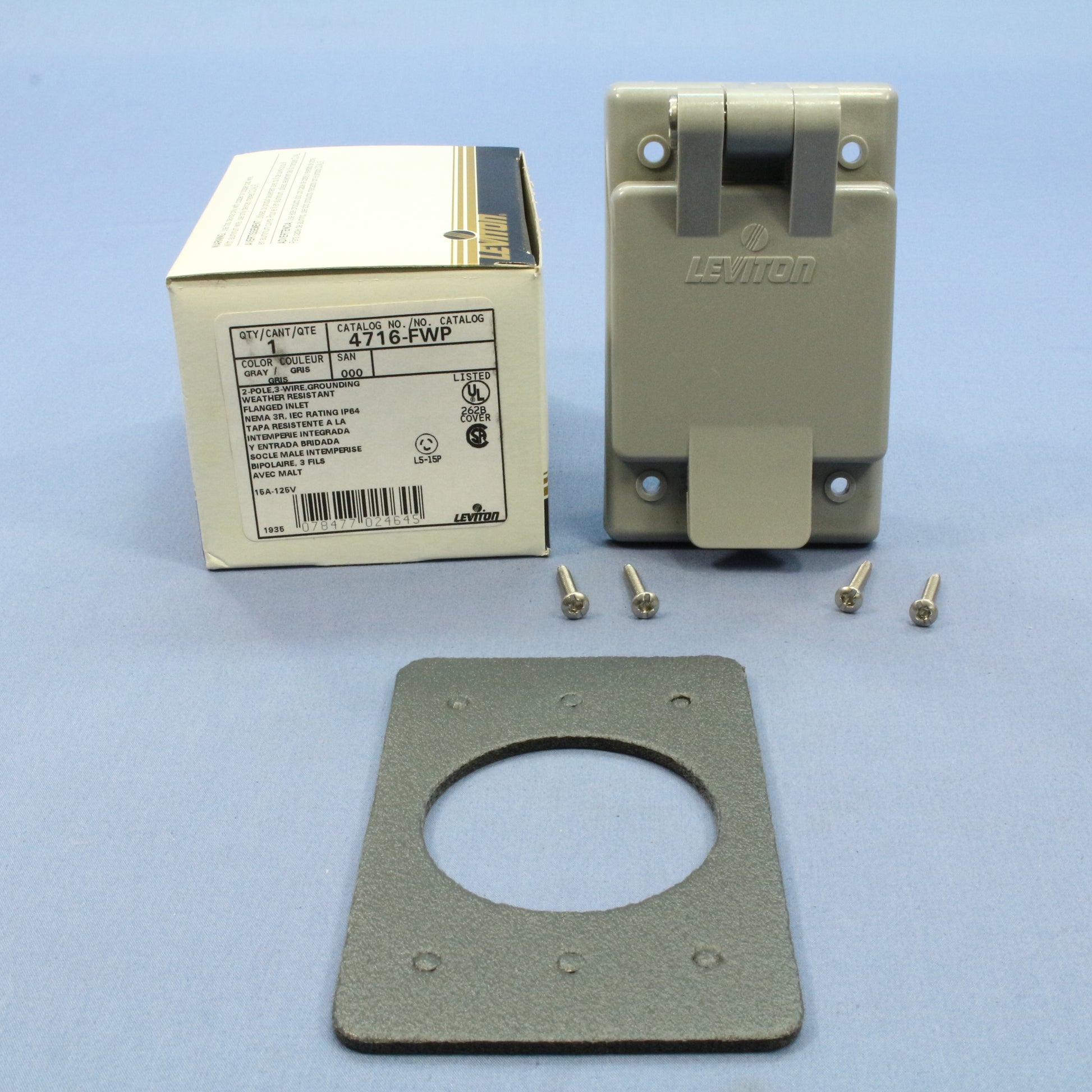

Leviton 4716-FWP locking flanged inlet with integrated wallplate and weather-resistant cover. Suitable for indoor and outdoor use. Industrial Grade, NEMA L5-15P, 2-pole, 3-wire, grounding, rated 15A 125V. Each is individually packaged with mounting screws. Features include:
Glass-filled thermoplastic cover and wallplate provides outstanding impact resistance and durability
IP 64 Suitability rating protects against dust particles and splashing water
NEMA Type-3R enclosure Rating (when properly installed) ensures protection against rain, sleet and damage from external ice formations

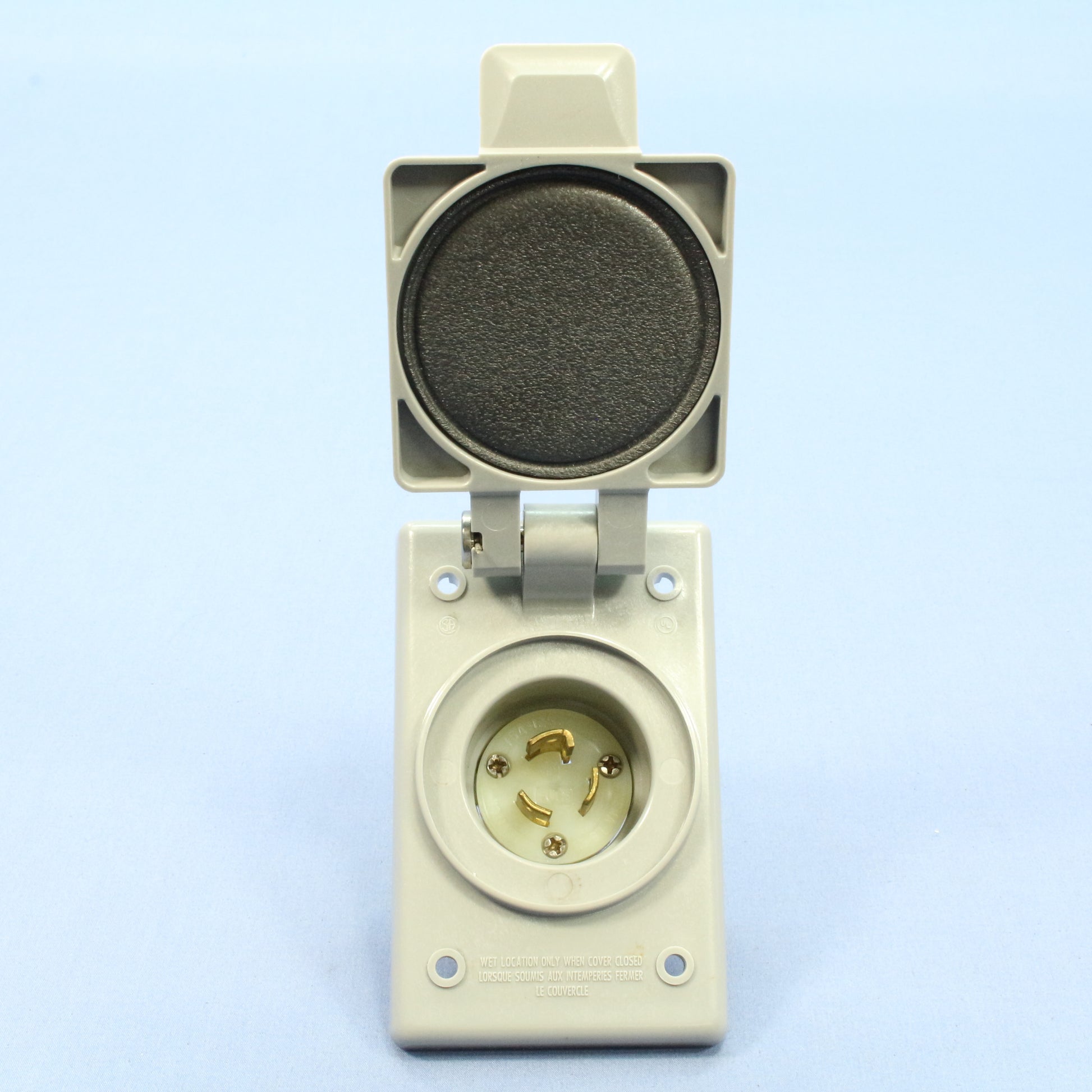

Dual gaskets, one under plate and one under lid, for weather-resistant fit
Stainless steel external hardware resists corrosive effects of moisture

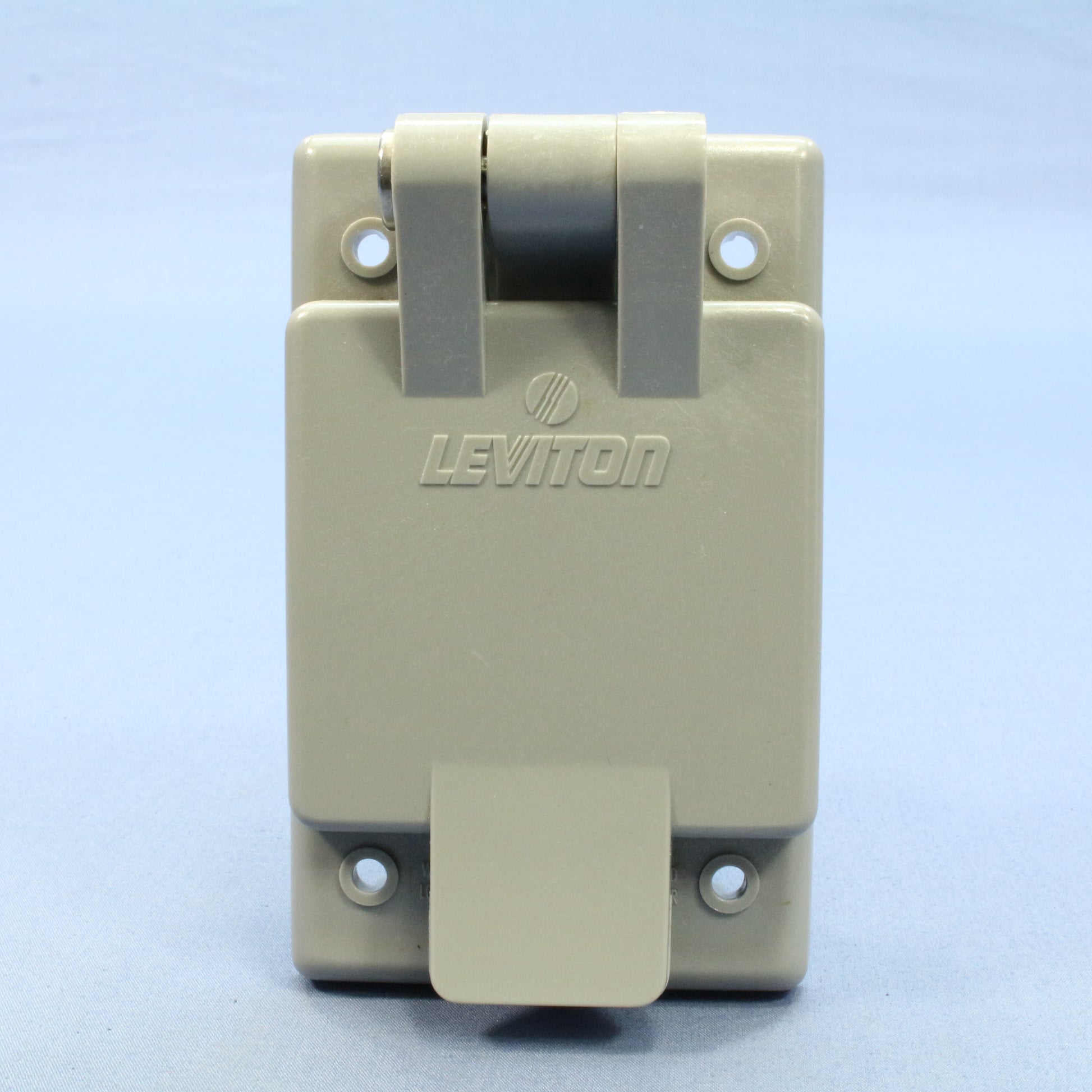

Large thumb-tab makes it easy to open cover with gloved hand
Mounts to panels or FS/FD boxes
Solid brass blades are fitted and held tightly and securely in place
Individual wire wells accept wire or fork terminals. Clear housing allows inspection of wire termination and provides molded-in wire strip gauge
Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire

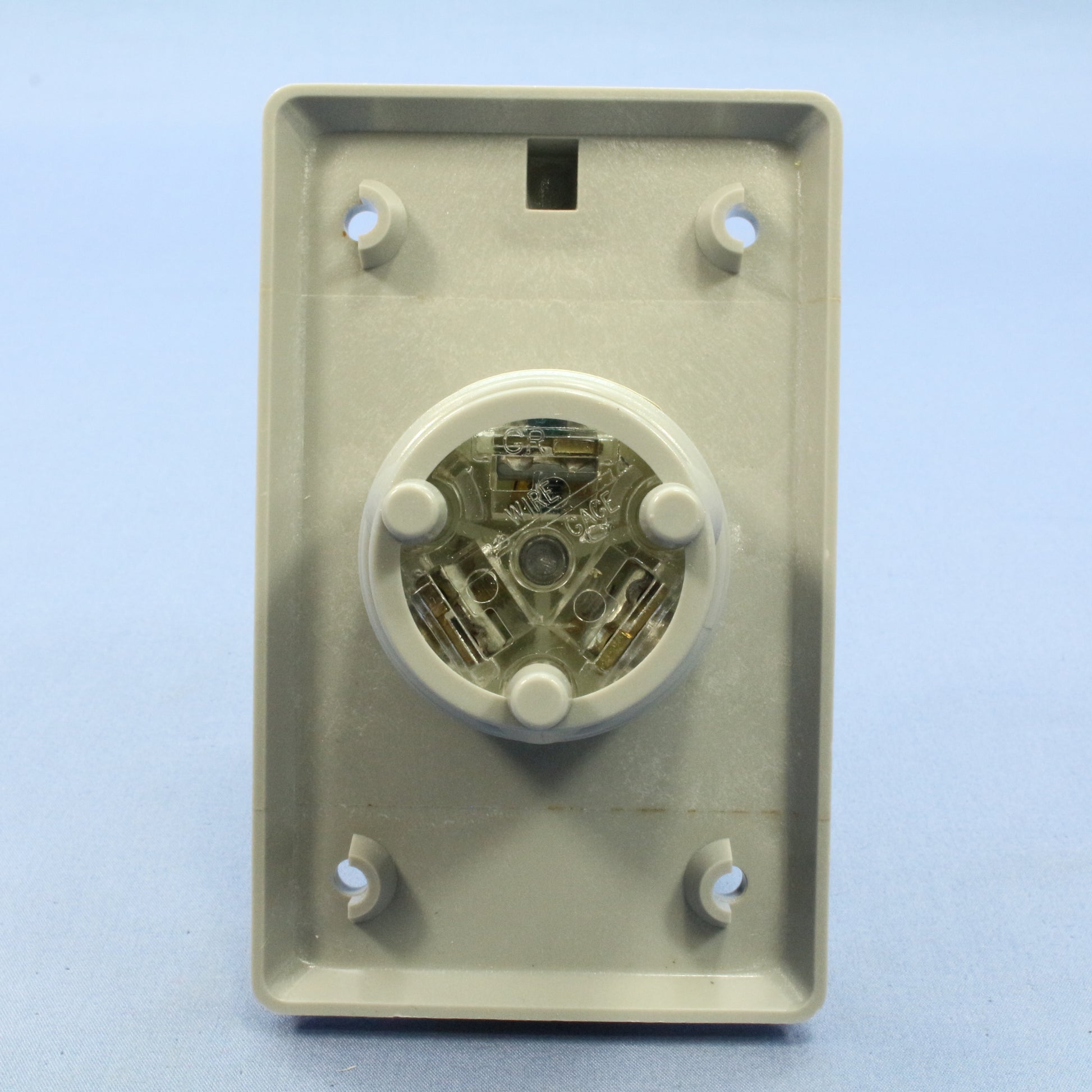

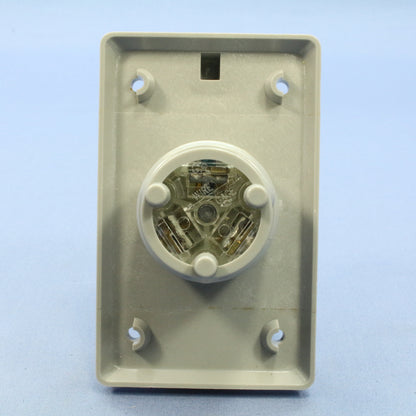

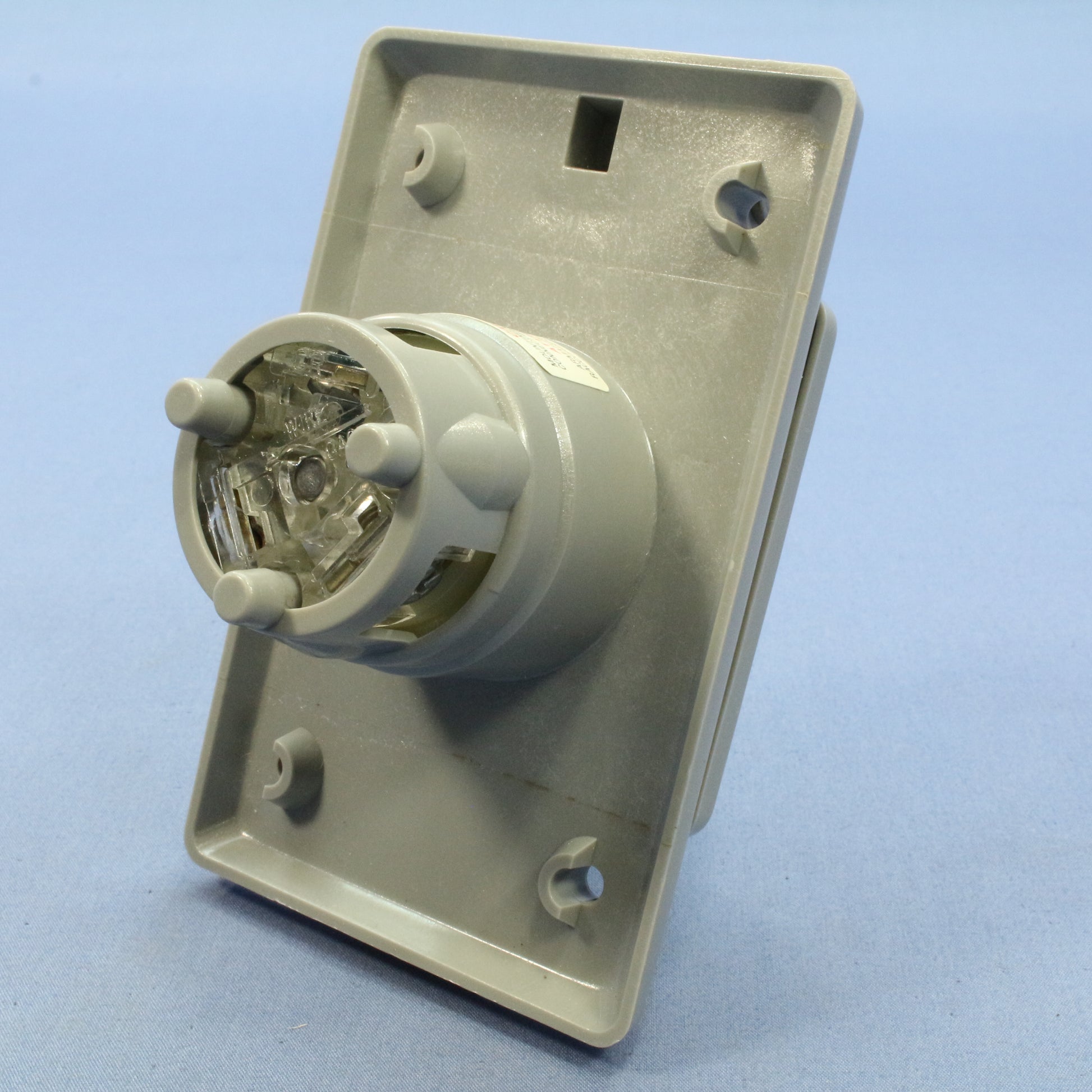

Transparent wiring chambers provide a means of visual inspection of conductors and terminals
Wire clamps move in individual chamber provide positive crimp lock without cutting wire strand
Captive, color-coded brass #8 terminal screws
Captive terminal screws eliminate nuisance dropping and searching for missing screws
Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
Molded-in strip gage provides correct measurement for proper strip length of conductor
