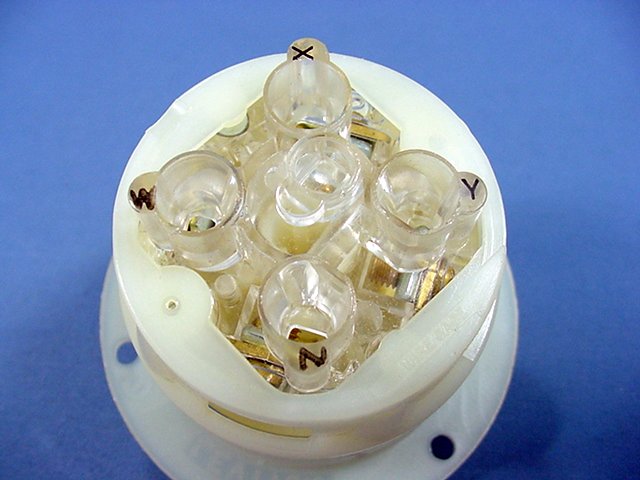

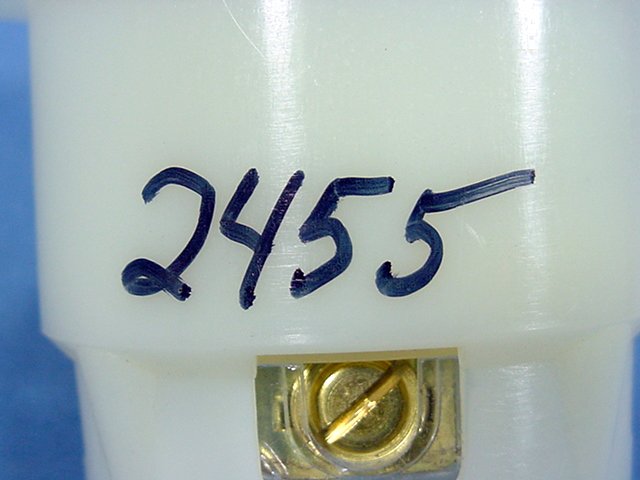

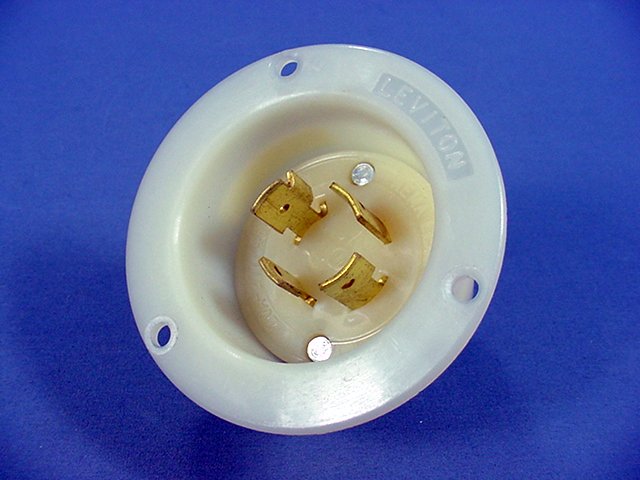

Leviton Twist Turn Locking Flanged Inlet Plug L19-20P 20A 277/480V 3�Y Bulk 2455

Leviton 2455 locking flanged inlet. Industrial Specification Grade, NEMA L19-20P, 4-pole, 4-wire, non-grounding, rated 20A 277/480V 3-Phase Y. Bulk packed loose with no individual packaging; as a result some may have minor dings. ITEM PICTURED IS FOR REFERENCE ONLY: SCRATCHES, SCUFFS, DINGS, and BLEMISHES WILL VARY FOR EACH INDIVIDUAL ITEM. Terminals accommodate #18-#10 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:

• Solid brass blades are fitted and held tightly and securely in place
• Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
• Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
• Transparent wiring chambers provide a means of visual inspection of conductors and terminals
• Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
• Color-coded terminal screws
• Molded-in strip gage provides correct measurement for proper strip length of conductor
• Terminal identification letters on back cover ensure quick and accurate termination
• Captive terminal screws eliminate nuisance dropping and searching for missing screws
• Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
• Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
• Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
• NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
