Leviton Satellite 4-Channel Portable Relay Pack Micro-Plex 600W N3600-20

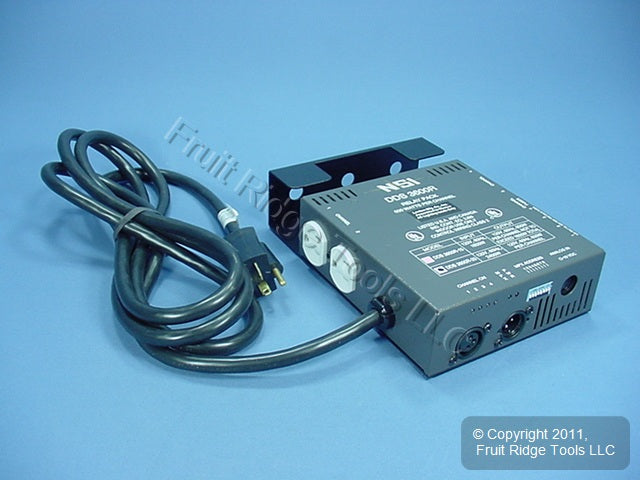

Leviton N3600-20 120V 20A satellite relay pack (manufactured by NSI for Leviton): also known by part number DDS 3600R-20. Features include:

• 4 channels @ 600 watts
• 120V 20 amp/2400 watt rating with NEMA 5-20 perpendicular blade power cord connector
• 4 individual relay channels
• 2400 watts maximum output
• Zero-crossing relay
• 512 channel address capable
• User selectable soft start operation to increase lamp life
• User selectable 8 auto sequence control programs
• User selectable 8 auto sequence control programs
• Sequence rate adjustable from 1 to 60 seconds
• Toroidal noise filtering
• Dual SCR circuit design ensures reliable operation
• Control status indicator LED
• Power on LED indicator
• Individual channel function LEDs
• External fusing for each individual channel

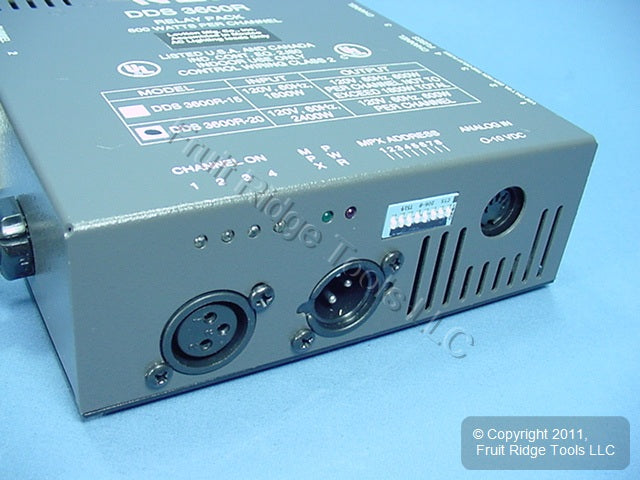

• NSI 128 channel Micro-Plex (3-pin XLR male and female)
• 0 to 10 volt analog input (5-pin DIN)
• Reversible back cover allows packs to be truss or pipe mounted
