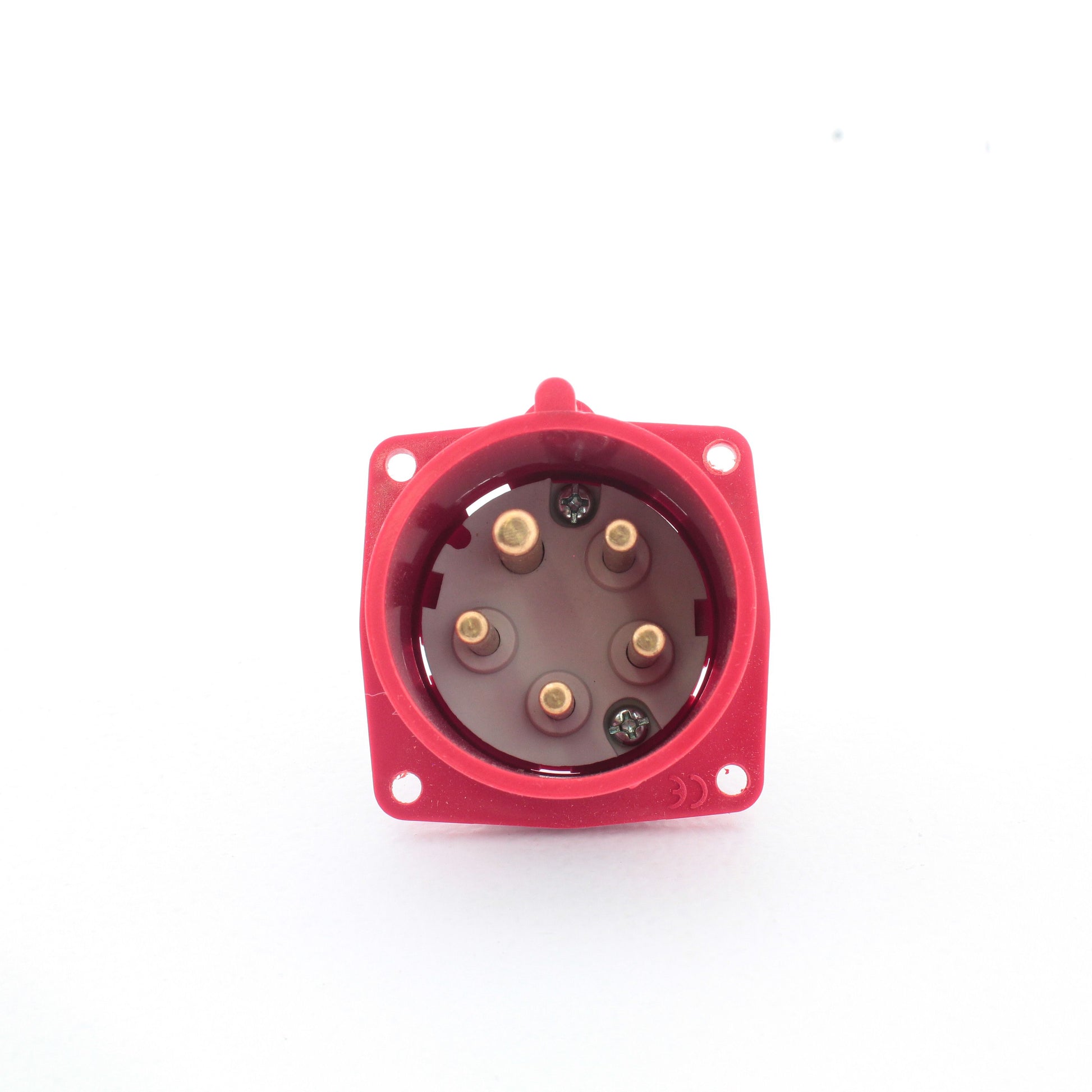

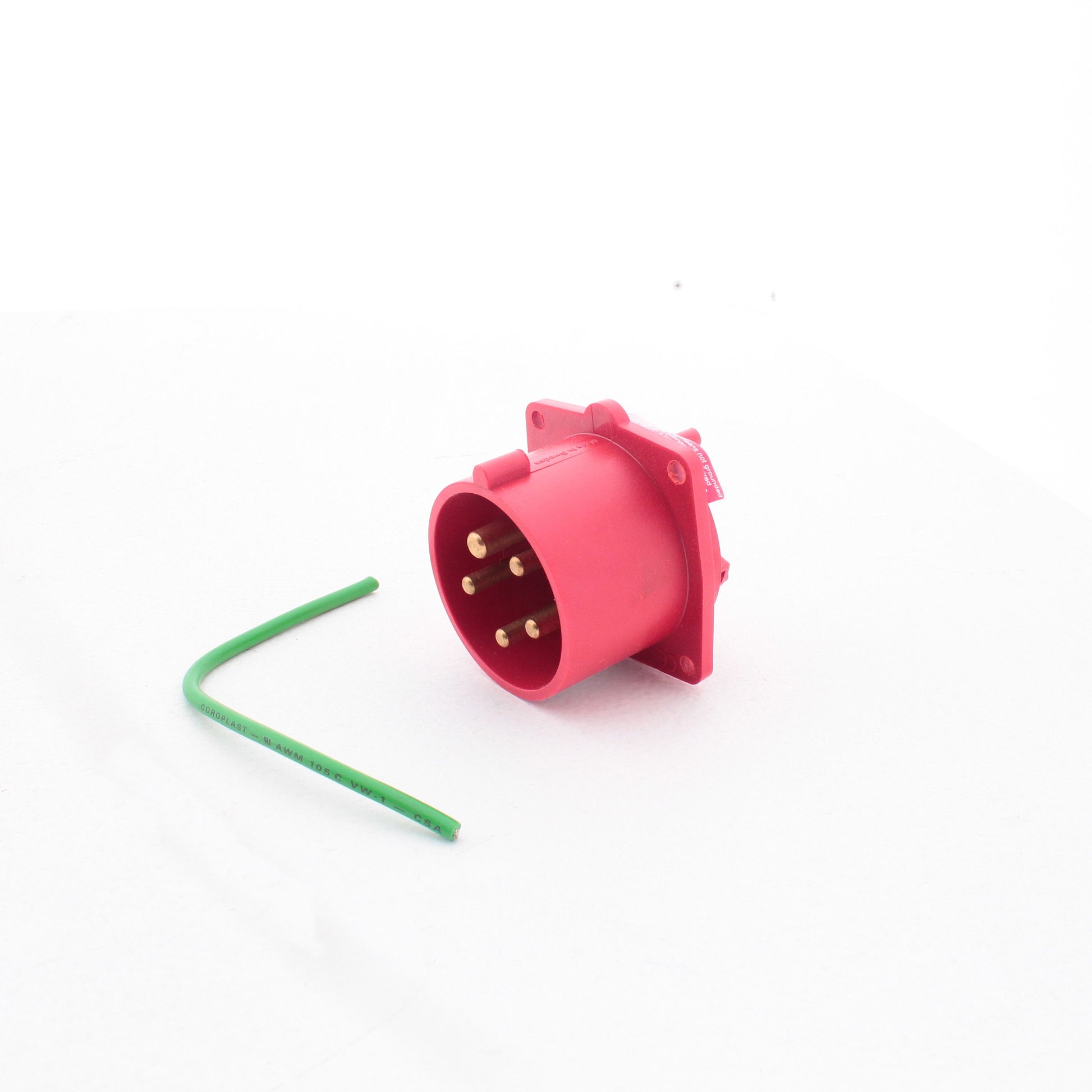

Leviton Pin & Sleeve Splashproof Plug Inlet 20A 277/480VAC 3ØY SP520B7

Leviton SP520B7 pin & sleeve splashproof inlet. Industrial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 20A 277/480VAC 3 Phase Y. Features include:

• Rugged housing, made of superior performance Valox 357, provides maximum corrosion protection and makes the device resistant to impact and abuse; greater resistance to temperature extremes, V-0 flame rated and superior UV stability
• Contact carrier resists arcing and internal heat build-up
• Multiple contact points assure a continuously reliable electrical connection
• Clean brass pin construction resists corrosion, provides superior contact and low electrical resistance
• Pins are designed for manageable insertion/withdrawal force
• Rounded pin tips reduce insertion force and decrease wear on the contact surface area
• Solid brass terminal screws provide maximum clamping pressure
• Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front & back side
• Rated for both 50 and 60 Hz applications
