Leviton N3302 Motor Starter Switch DPST Double-Pole Single Throw w/Lockout 30A

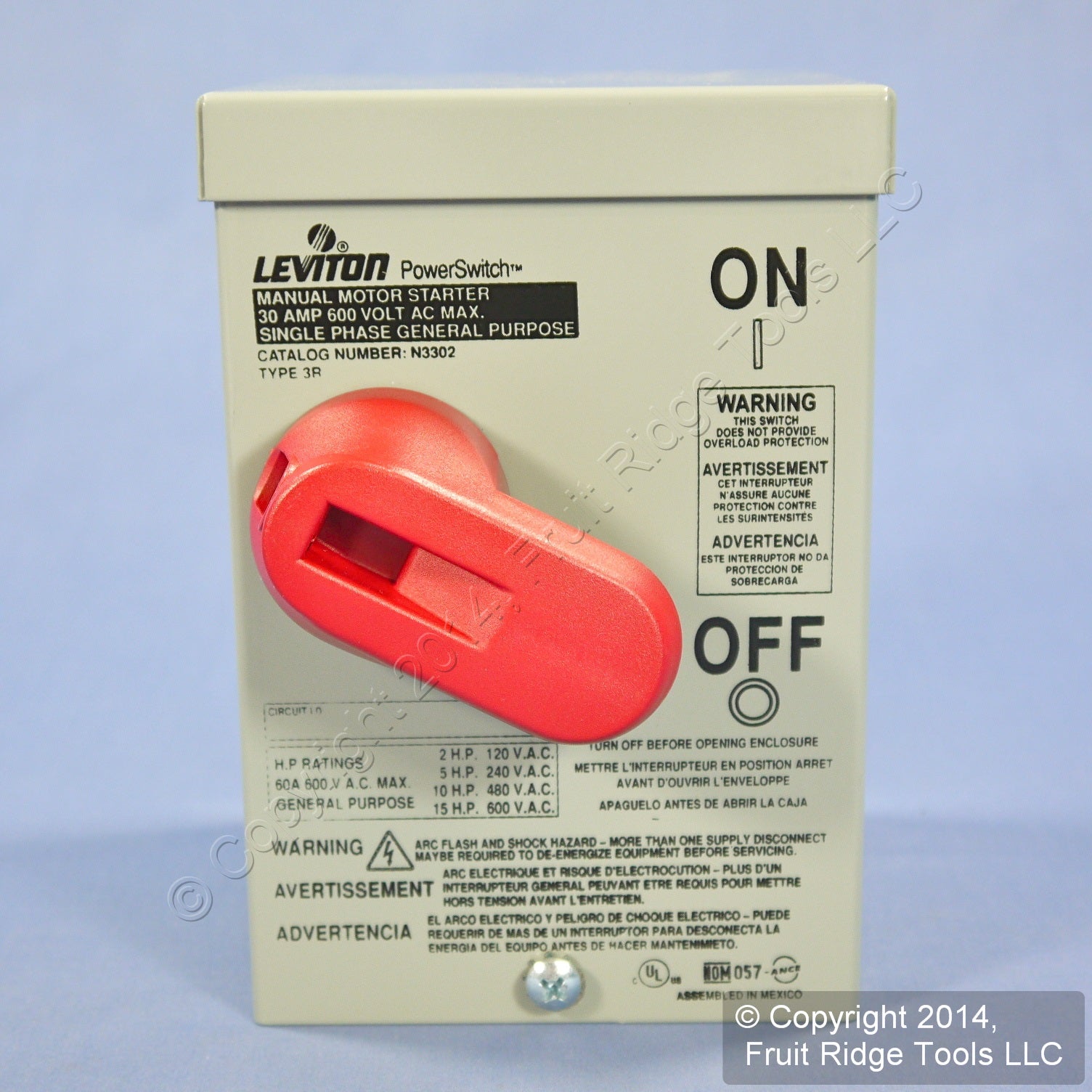

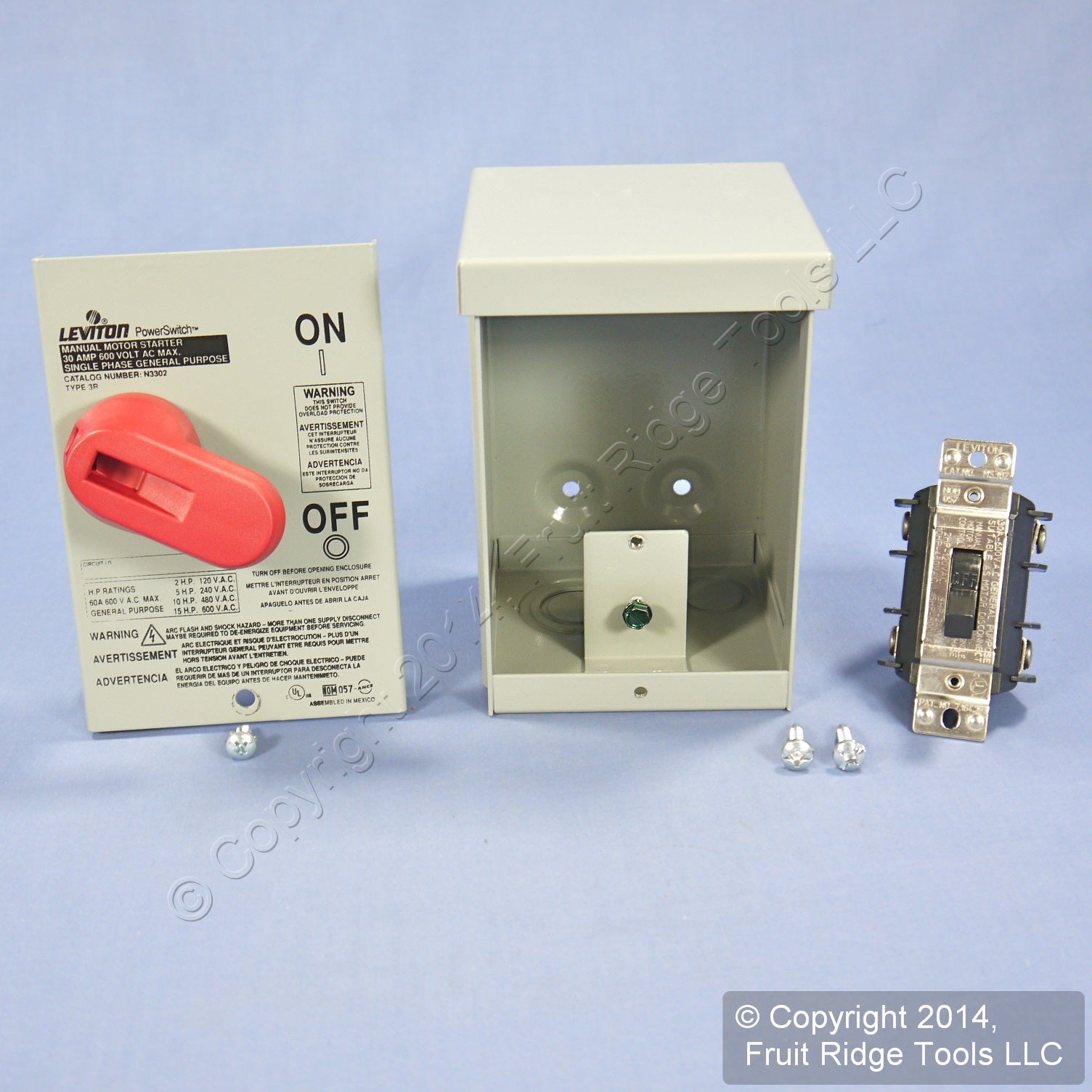

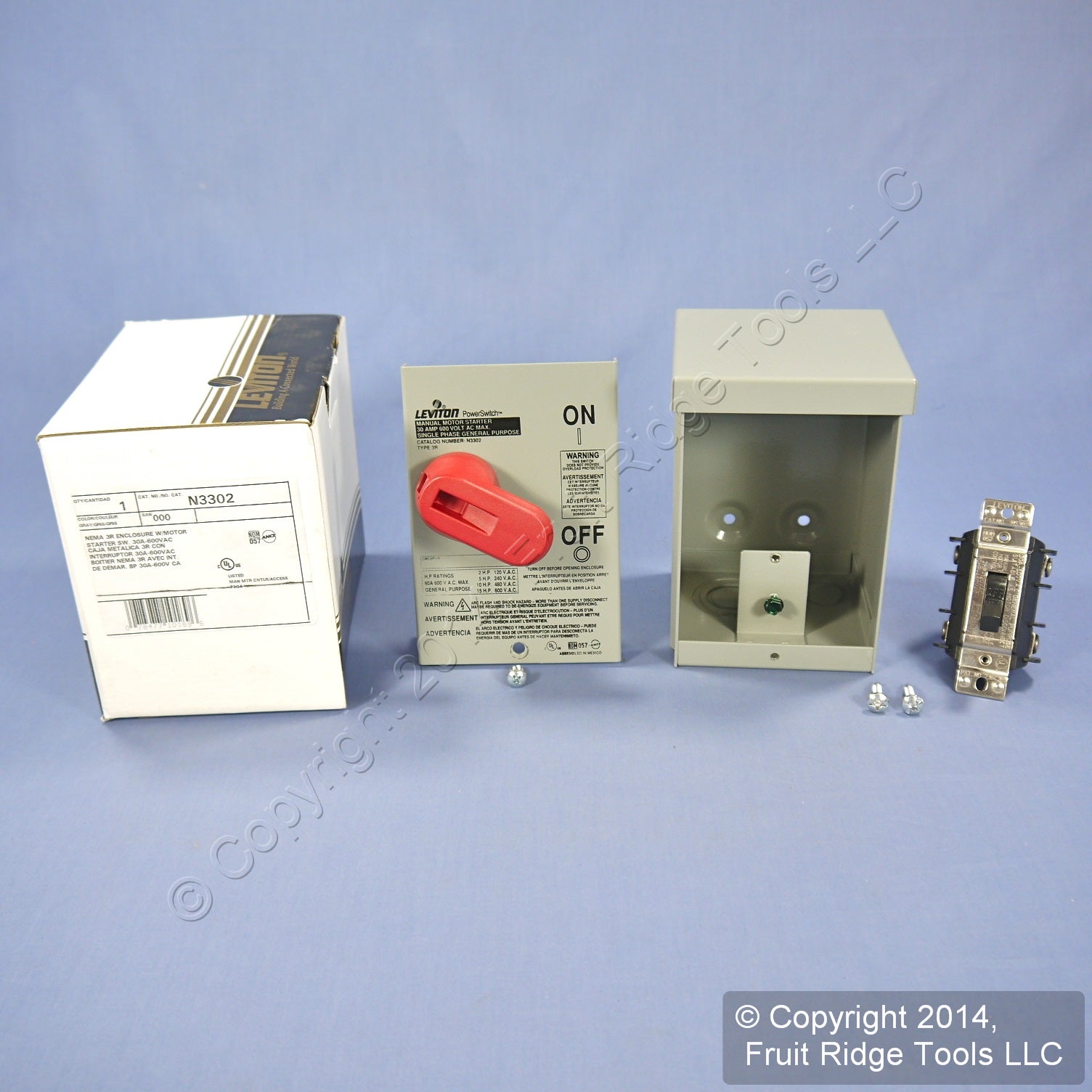

Leviton N3302 enclosed manual motor starting switch without overload protection. Industrial Specification Grade, back & side wired, double-pole, single throw, grounded to enclosure, 30A 3-phase 600V Max. It is rated: 2HP @ 120VAC; 5HP @ 240VAC; 10HP @ 480VAC; and 15HP @ 600VAC. Each is individually packaged with instructions. Features include:

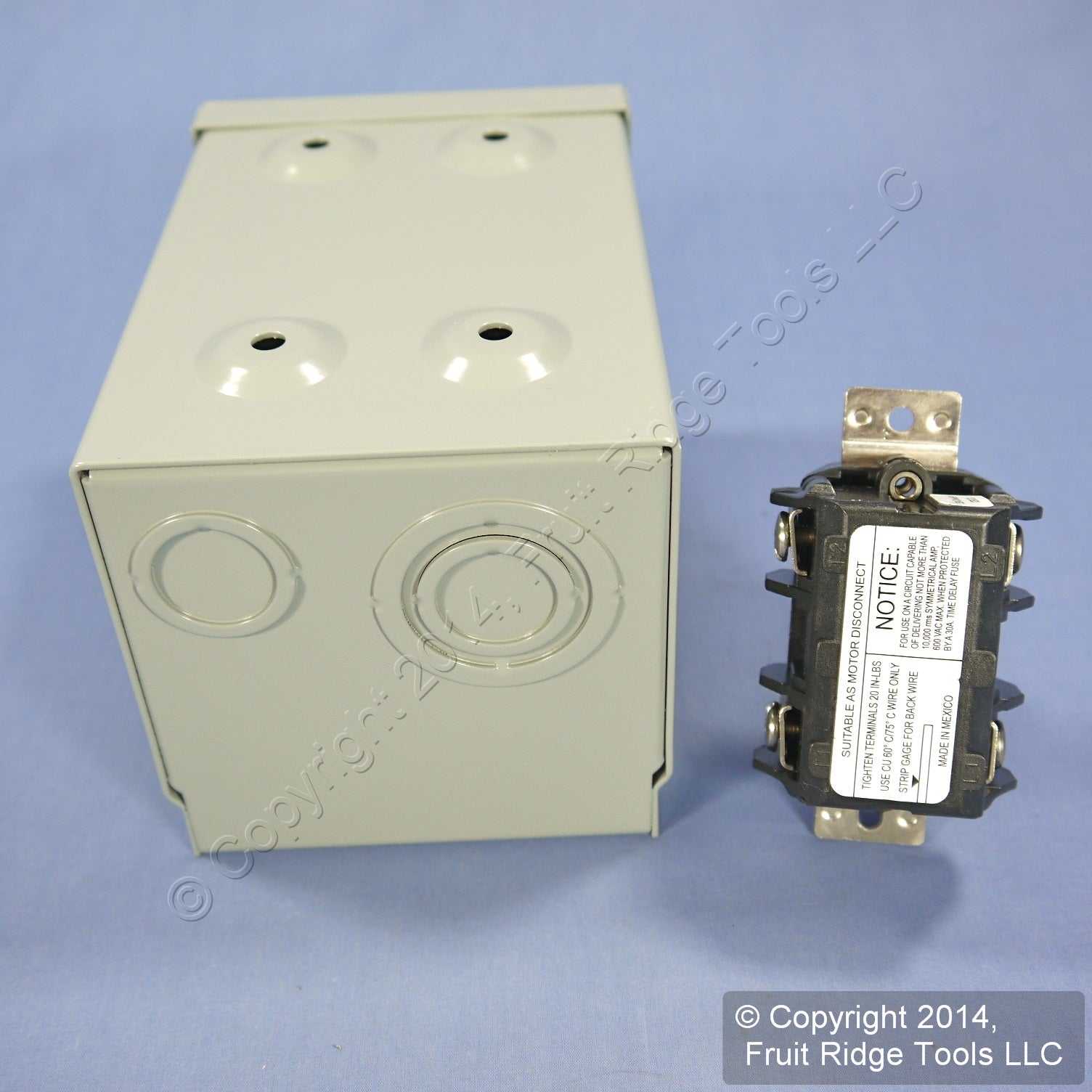

• NEMA Type 3 metal enclosure with lockout slot
• Positive-contact design enhances fast-make/slow-break
• Silver-alloy contacts for maximum conductivity and service life

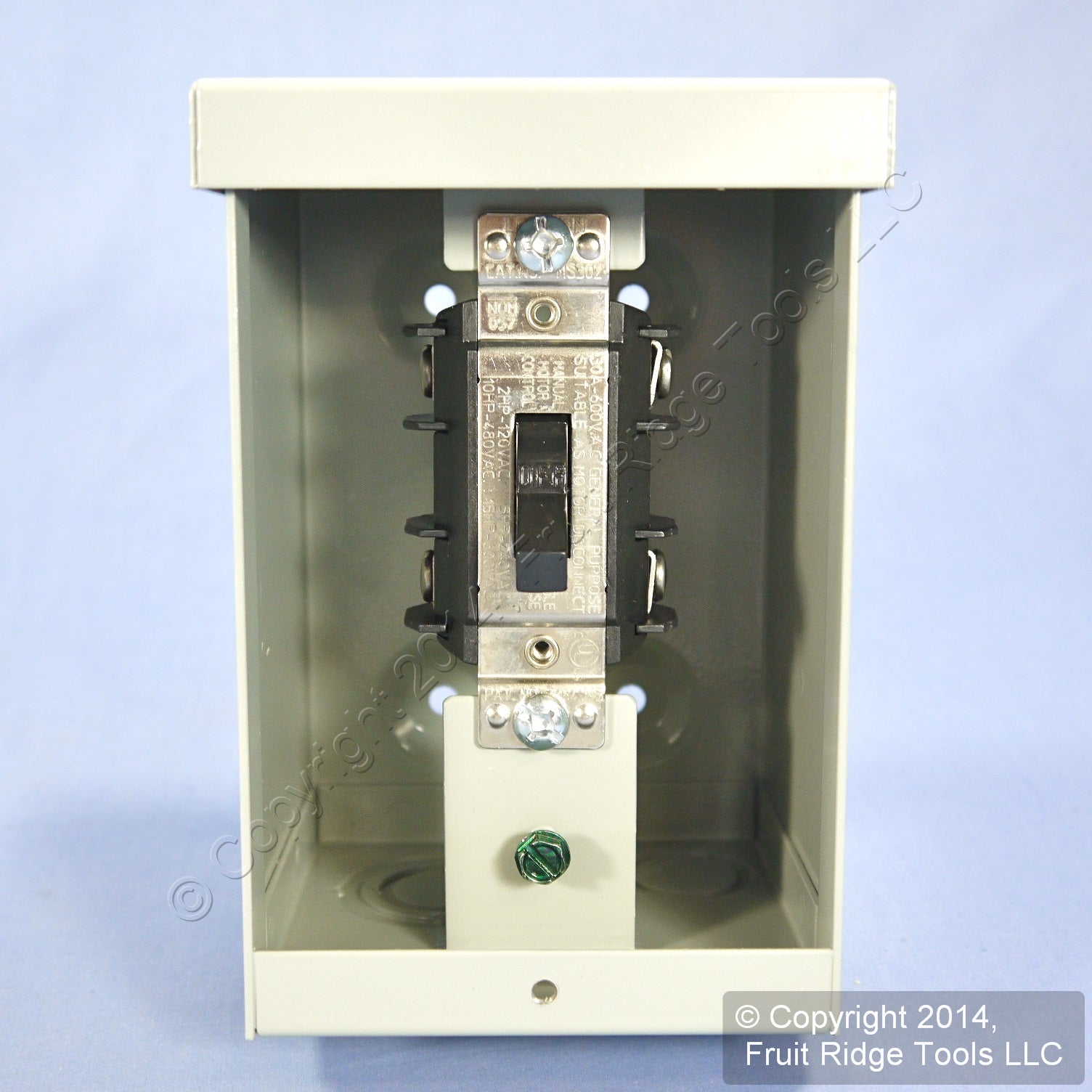

• Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal
• Oversized #10 triple-combination terminal screws are vibration resistant
• All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
• Insulating barrier between terminals provide isolation from each phase
• Nickel-plated brass mounting yoke for superior corrosion resistance
• Measures: 4.33"w x 6.15"h x 4.13"d
