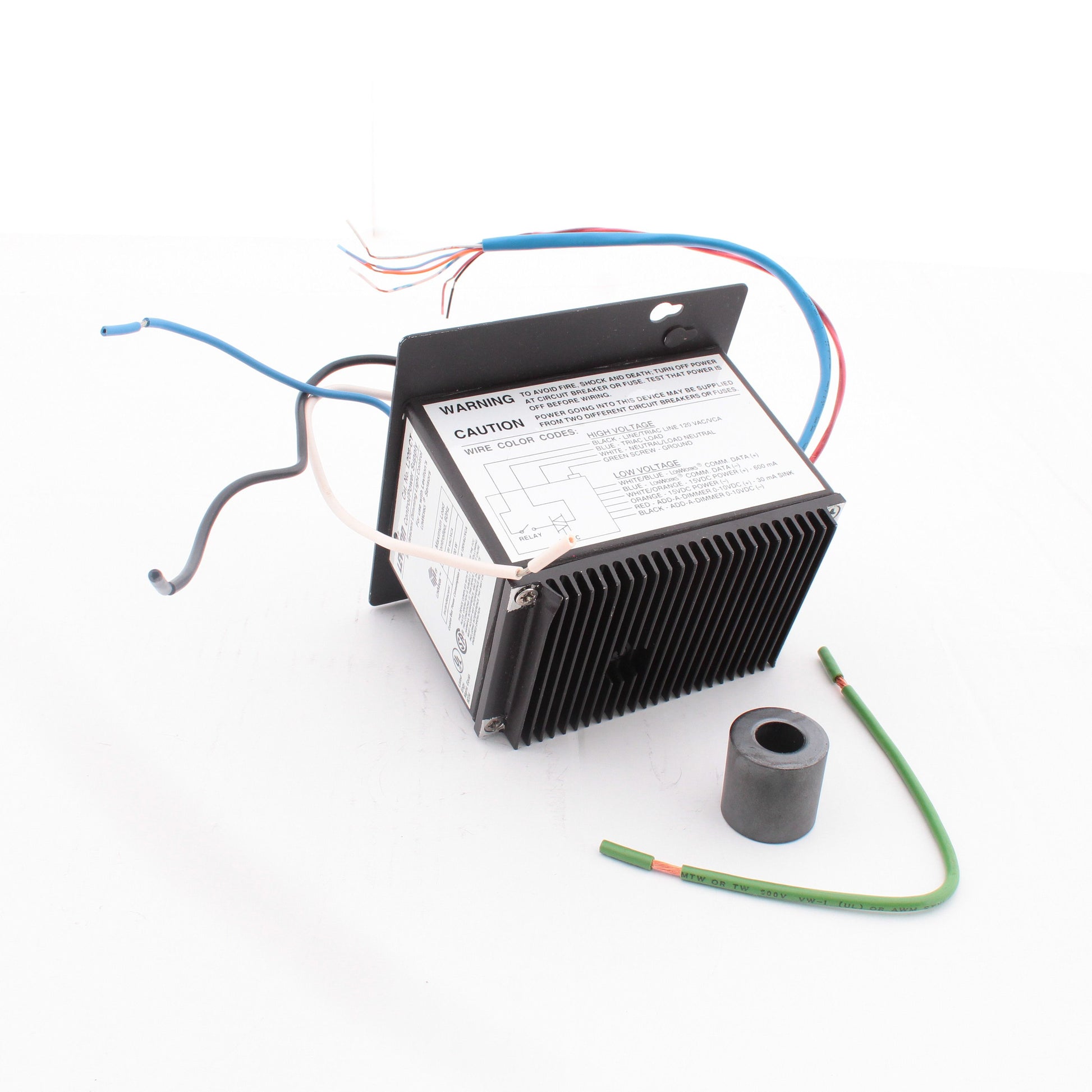

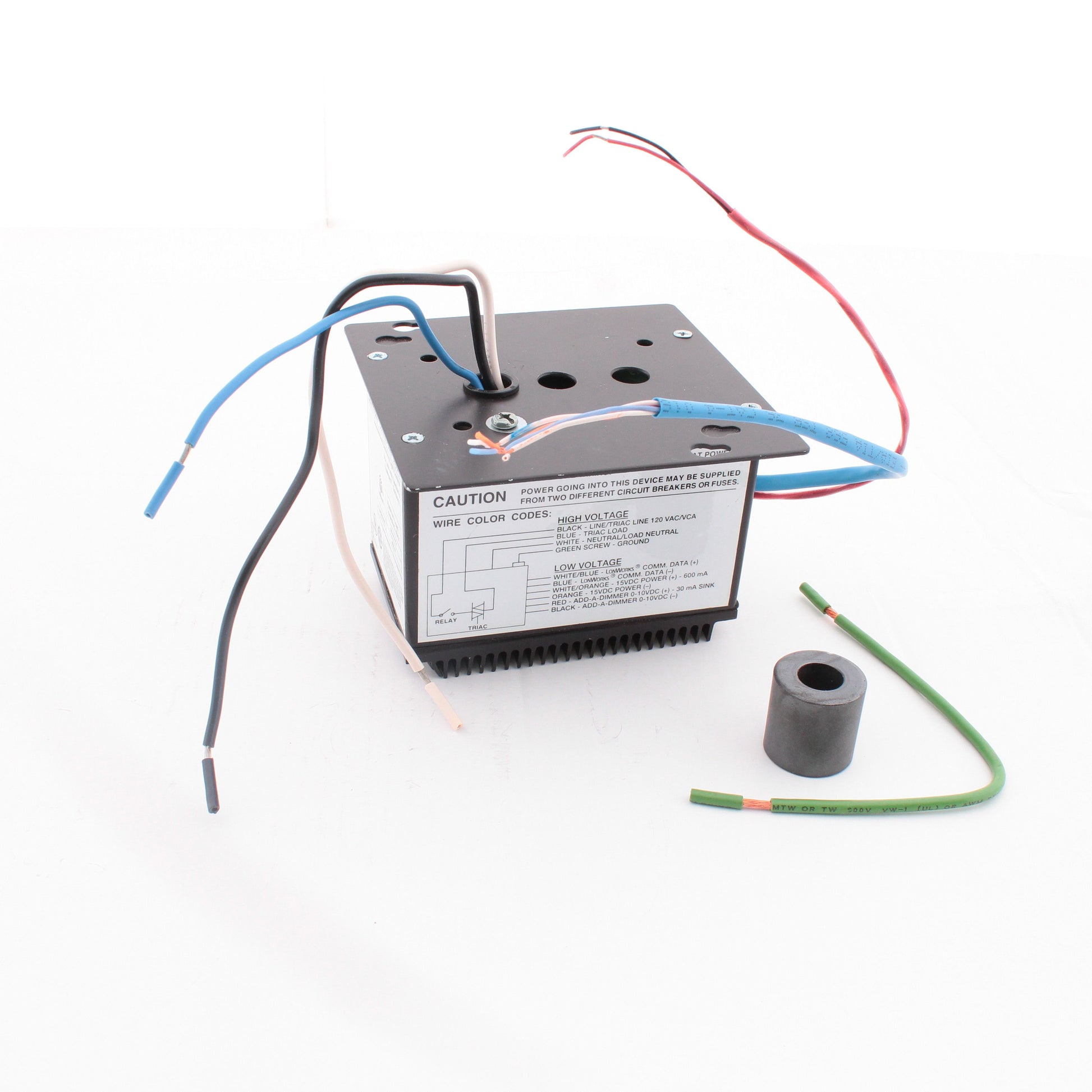

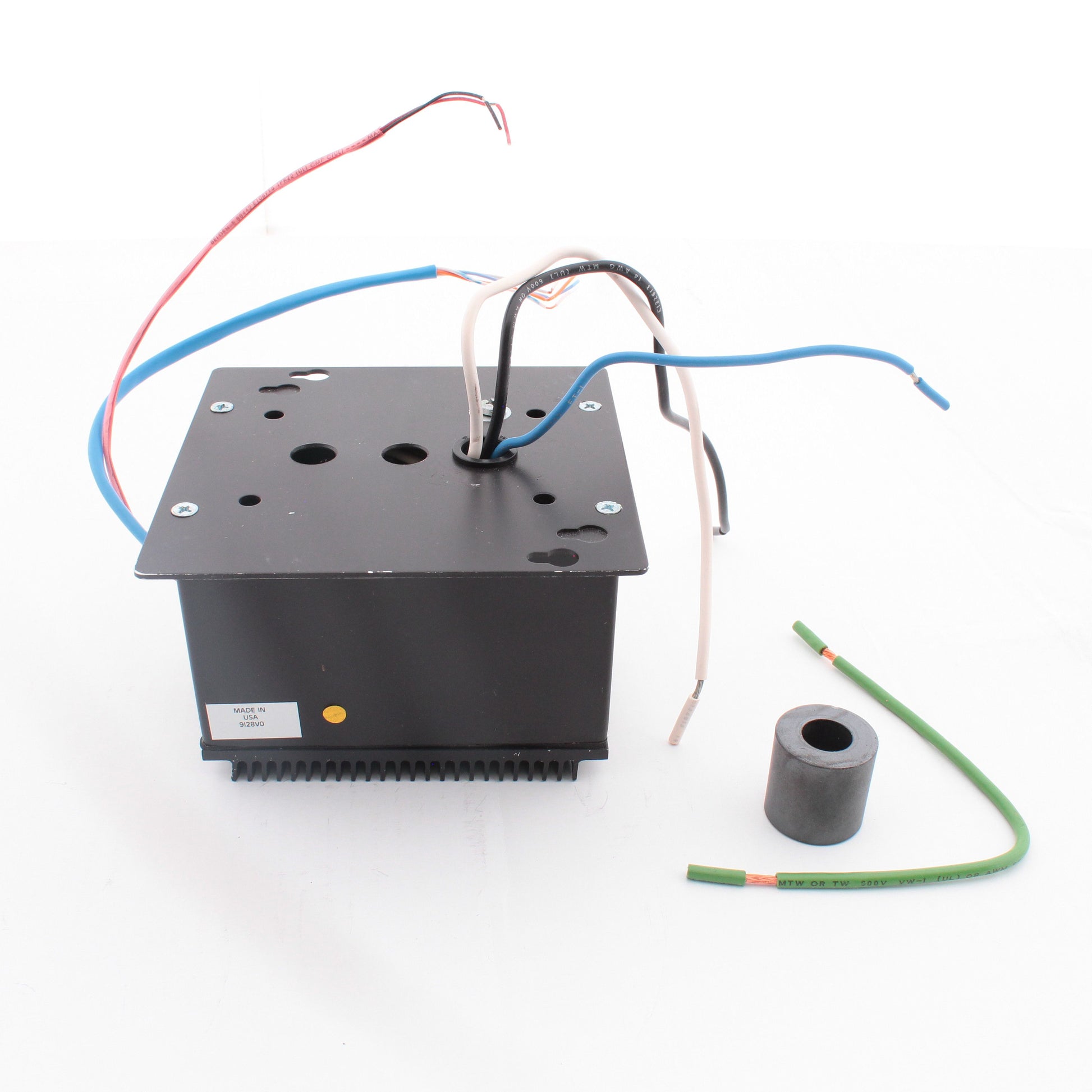

Leviton L206-CT 600W incandescent dimming light control. To be used in a network with Leviton Lonworks occupancy sensors and control units. Features include:
Designed for use in a Leviton Lonworks lighting control network for the ultimate in facility control and energy savings
May control as many as 5 (in any combination) sensor units, switch units, and dimming units including: L291-T, L482-T, L775-T, L776-T, L777-T, L778-T, L779-T, L780-T, L781-T, and L979-T (should be compatible with other Lonworks devices not listed)
Light harvesting capable
Network output variables: node object status output, triac feedback, triac device override feedback, low voltage control feedback, low voltage control device override feedback
Network input variables: node object mode input, scene mode input, triac input, triac occupancy state, triac ambient light level, triac maintain lux level, triac device override, triac manual override-on, low voltage control input, low voltage control occupancy state, low voltage control ambient light level, and low voltage control maintain lux level
Maximum load controlled: 600W 120VAC incandescent
Control box power consumption: 15VA @ 120VAC
Two control buttons: one for node and 15VDC reset; one for service request/go unconfigured
2 status LED's: node status indicator; relay #1 (relay #2 LED is not used on this unit)
