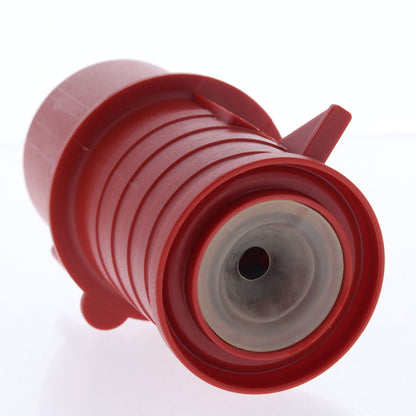

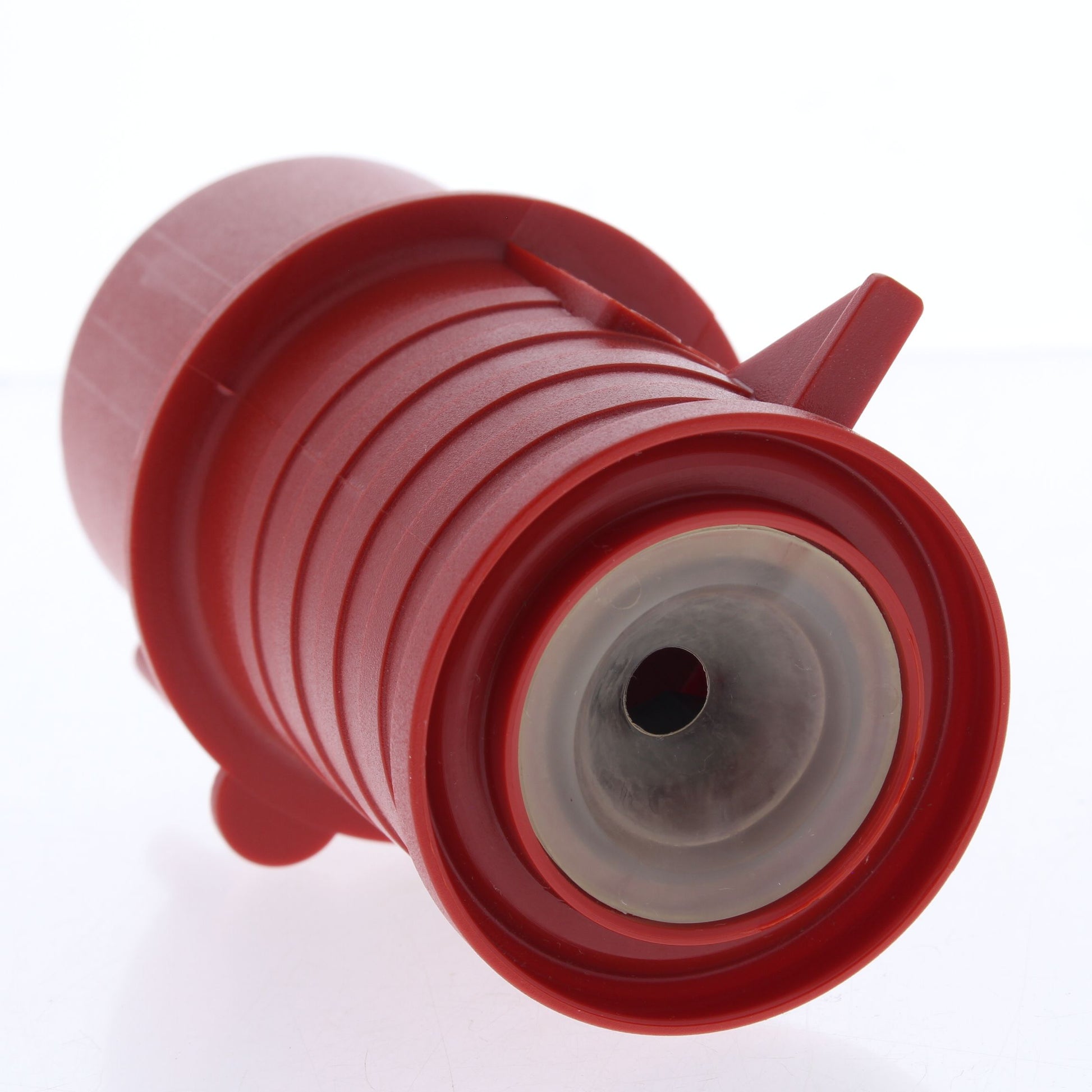

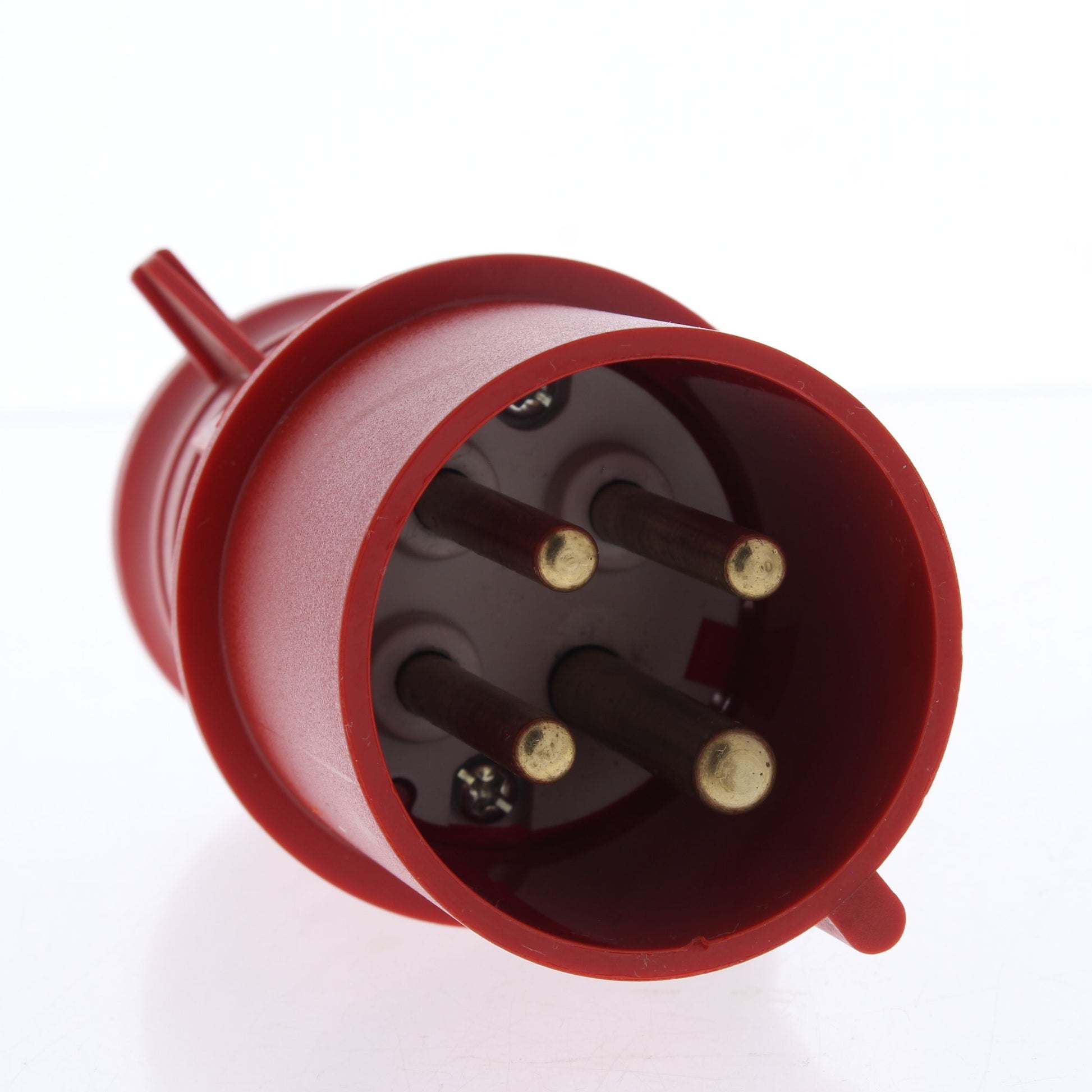

Leviton Industrial Grade Pin & Sleeve Splashproof Plug 32A 380/415V SP432P6

Leviton SP432P6 splashproof pin and sleeve plug. Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 32A 380/415VAC. Features include:

• Rugged nylon housing
• Contact carrier resists arcing and internal heat build-up
• Multiple contact points assure a continuously reliable electrical connection
• Clean brass pin construction resists corrosion, provides superior contact and low electrical resistance
• Pins are designed for manageable insertion/withdrawal force
• Rounded pin tips reduce insertion force and decrease wear on the contact surface area
• Solid brass terminal screws provide maximum clamping pressure
• Locking ring secures plug to connector or receptacle
• EPDM rubber grommet provides a precise, reliable seal at the cable entry point
• Large diameter combination head terminal screws are aligned on a single plane for easier access
• Internal hinged cord clamp adds strain relief and swings aside when wiring terminals
• Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front & back side
• Rated for both 50 and 60 Hz applications
