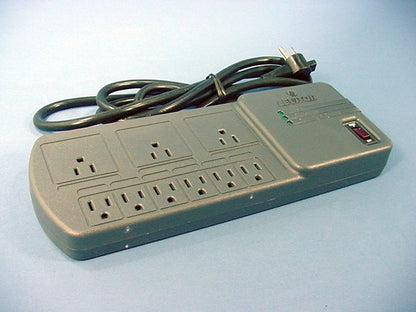

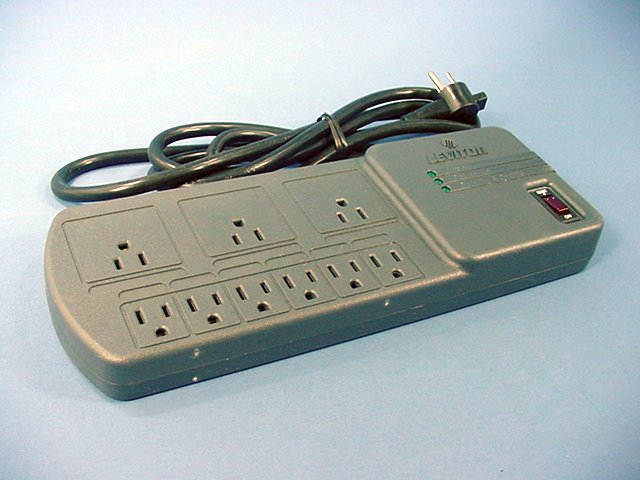

Leviton Gray MODULAR Surge Protector Power Strip Plus Cable Module 15A 5950-SCG

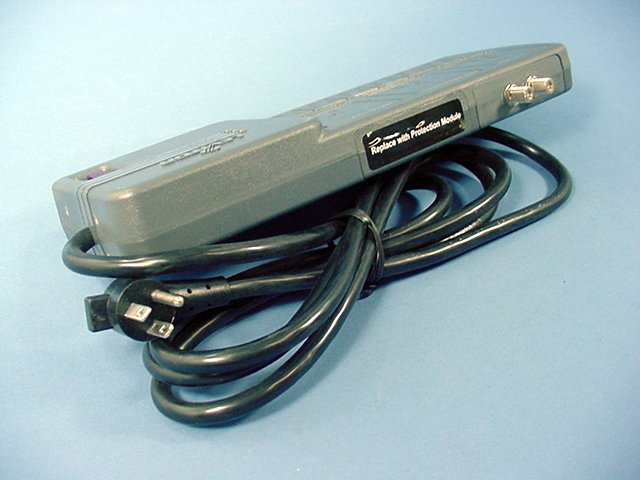

Leviton 5950-SCG gray surge suppressor power strip. This is a configurable power strip with two data/media expansion ports in it. One expansion port comes prefilled with a coax cable protection module: 2 pairs of IN/OUT F-connectors to protect CATV or DSS coax lines. The other expansion port is left empty for your future needs; just plug in the type of module you need to customize it for your particular installation. Features include:

• Six standard and three transformer-pad surge protected outlets, rated 15A 125V AC
• Expandable modular design accepts a variety of plug-in modules to meet surge protection requirements as equipment changes
• Easy-to-use with six standard and three transformer-pad surge protected AC outlets
• Diagnostic indicators for Power, Protection, Polarity & Ground
• Audible alarm sounds when surge suppressor needs to be replaced
• Recessed ON/OFF switch avoids accidental turn-off
• Overload circuit breaker
• 7-1/2 ft cord with convenient right angle plug

Specifications:

• Line voltage: 120VAC
• Operating frequency: 60HZ
• Max. continuous operating voltage: 150V (RMS)
• Max. single-pulse transient current (8 x 20?sec, Amps peak): 92kA
• Rated single-pulse transient energy (10 x 1000?sec,Joules): 1520 Joules
• EMI/RFI Noise Rejection @50 Ohms 5kHz?100MHz: -60dB
• UL 1449 2nd Edition Clamping Rating (8 x 20?sec @ 3kA): 330V L-N, L-G, N-G
• Response time: instantaneous (<5 nanoseconds)

Compatible Expansion Modules (sold separately)

• 5951 - Coax and Satellite Module (2 pairs of In/Out F-connectors for satellite and cable TV systems)
• 5952 - Category 3 Ethernet/Networking Module (2 RJ45 connectors with ground pin for ethernet)
• 5953 - Coax Module (1 pair of In/Out F-connectors for cable TV systems)
• 5954 - Telephone Module (1 input, 2 ouput connectors for phone/fax/modem, also acts as splitter)
• 5955 - DSL/ADSL Module(1 input, 2 ouput connectors for DSL/ADSL line, also acts as splitter)
• 5957 - Category 5 Ethernet/Networking Module (2 RJ45 connectors with ground pin for ethernet)
• 5958 - 2-Line Telephone Module (1 input, 1 output RJ45 connector for 4-wire telephone)
• 5959 - 4-Line Telephone Module (1 input, 1 output RJ45 connector for 8-wire telephone)
