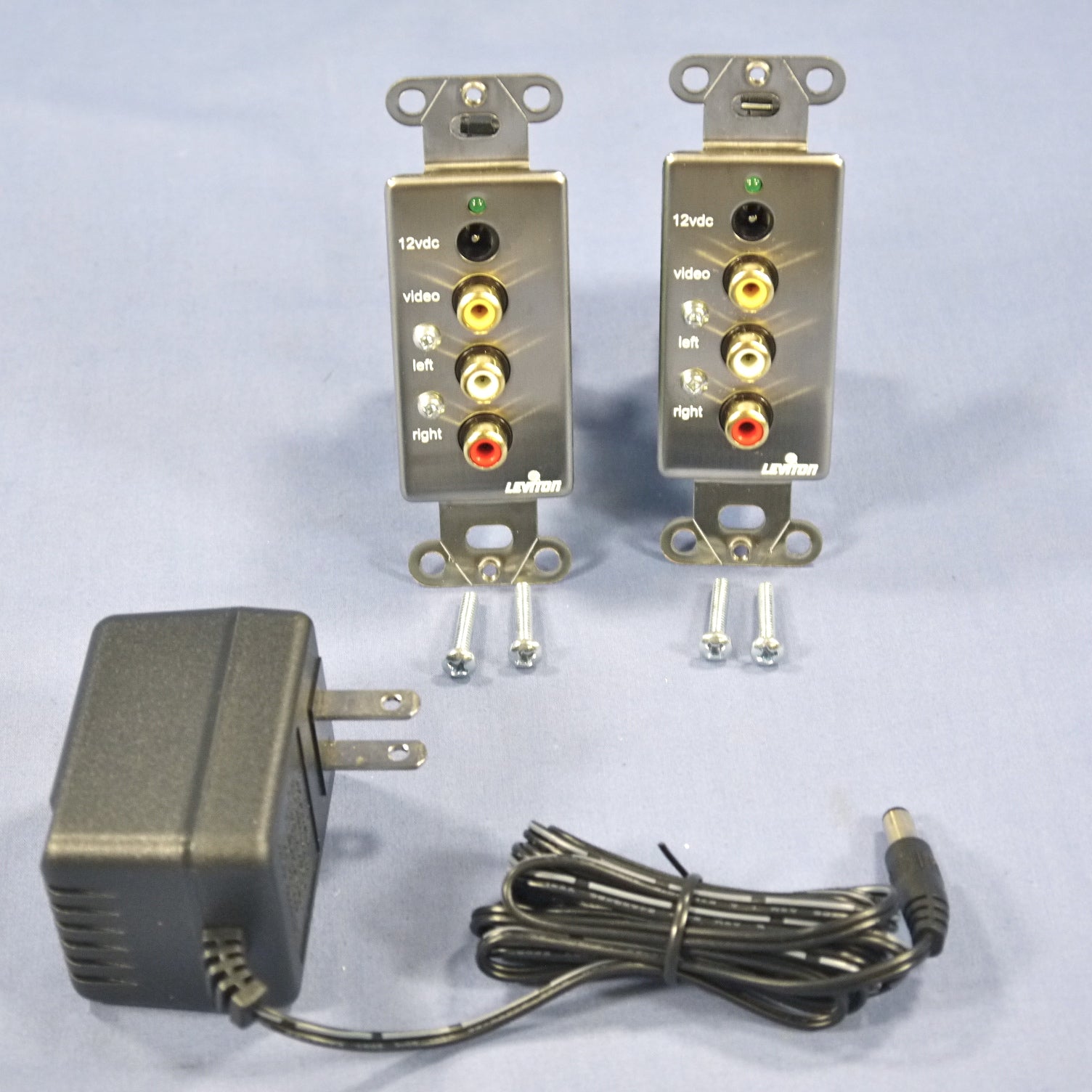

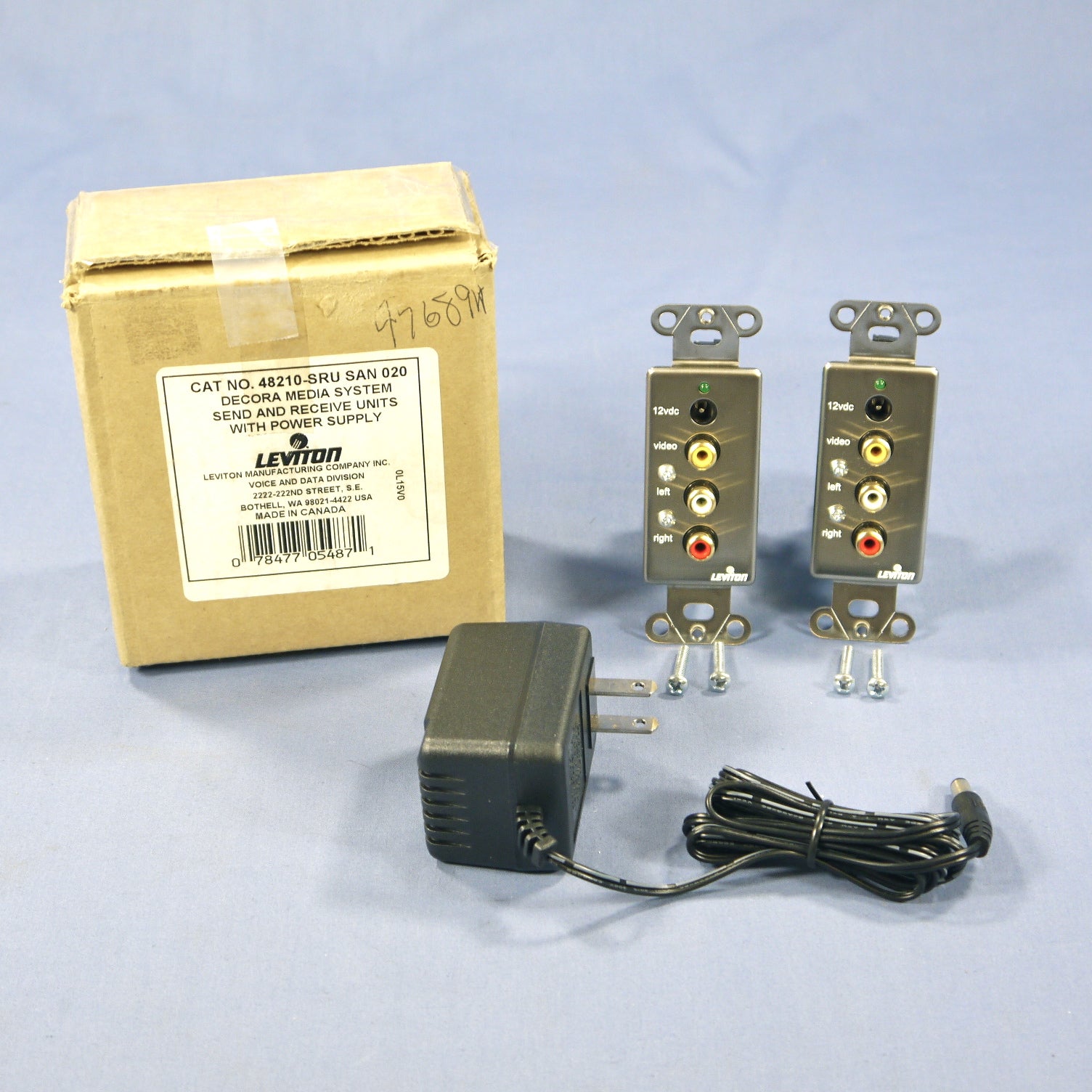

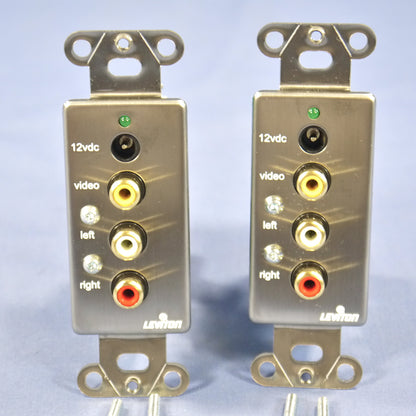

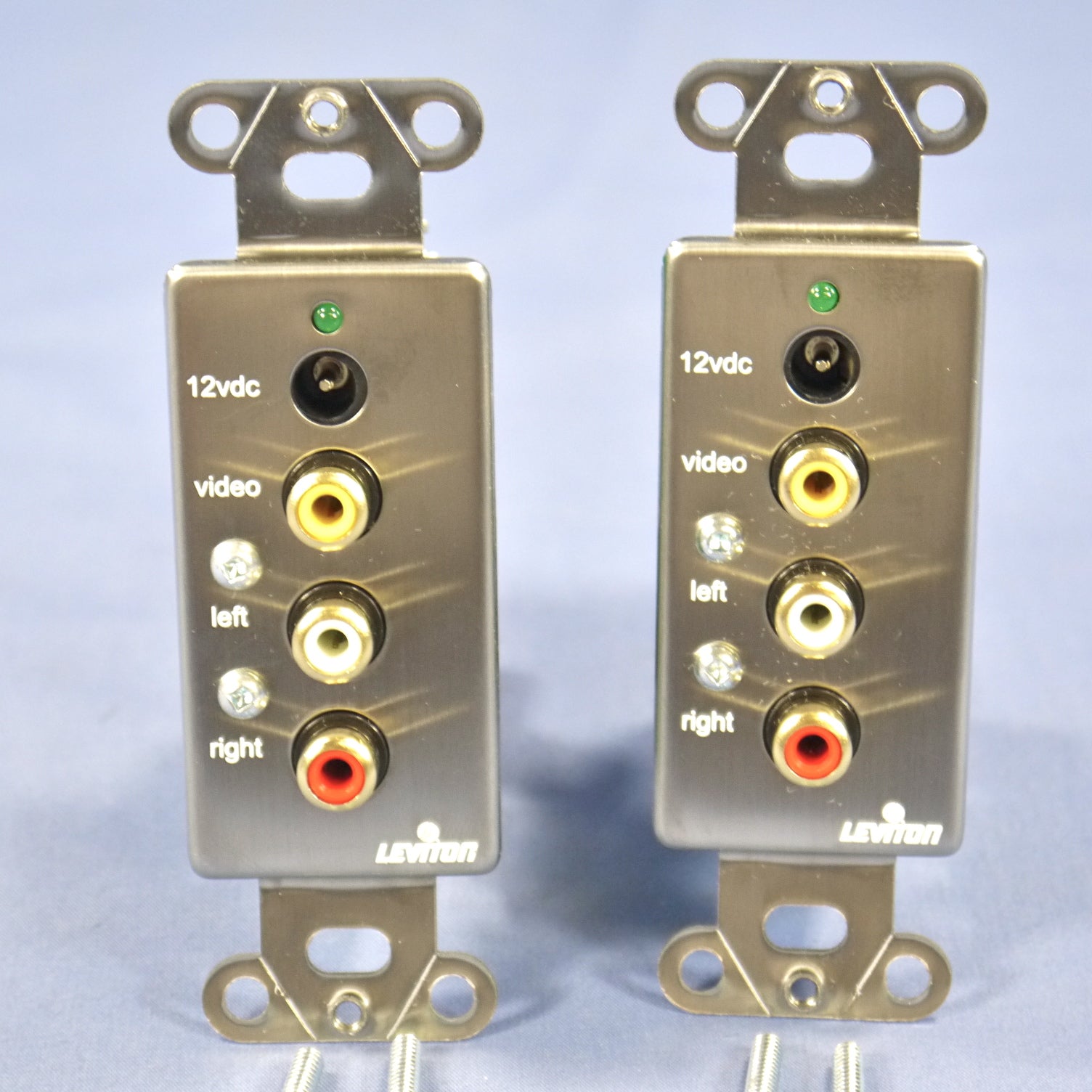

Leviton Decora Media System SEnd Receive Unit Cat5 +Power Supply 50MHz 48210-SRU

Leviton 48210-SRU Decora media system send and receive unit with power supply. Includes both send and receive unit. Designed to send music, VCR, DVD, cable TV, satellite and security camera signals through Cat 5, Cat 5e, or Cat 6 cable. The pair can be used with each other in a simple point-to-point installation or in a larger sophisticated network with the use of a Leviton 48210-MCH Media System hub and additional send/receive units (sold separately). Specifications include:

• Sends VCR,DVD, cable TV,satellite and security camera signals through Category 5, 5e, or 6 cable
• RJ-45 jacks and 110 punchdowns for maximum installation flexibility
• RCA inputs for direct connectivity to A/V source
• Fits standard wallboxes and uses Decora wallplates
• Advanced circuitry with automatic equalization streams analog audio and video signals over long distances with less distortion
• Stereo input/output handles Dolby ProLogic surround signals
• RJ-45 input from send unit or security camera

Features include:

Specifications:

• Video Bandwidth: 50 M Hz @-3 dB
• Video THD: 75 dBc
• Video Input/Output: 0.5V to 2V composite
• Slew Rate: 800/Vus
• Audio Input/Output Impedance: 20k Ohms,max (receive unit); 51 Ohms,max 2Vp-p (send unit)
• Audio Freq.Response: 5 Hz-100k Hz, 3 dB
• Audio THD: 0.002% 20 Hz-20k Hz (send unit); 0.004% 20 Hz-20k Hz (receive unit)
• Audio S/N Ratio: 100 dB typical,80 dB min 20 Hz-20k Hz
• Input Noise: 4.5nV/(Hz),1/2 typical @1k Hz (send unit); 6nV/(Hz),1/2 typical @1k Hz (receive unit)
• Input and Outputs: (3) RCA input jacks; (1) set RJ-45 input jack; (1) 110 punchdown out; (1) DC power input
• Power: 12VDC
