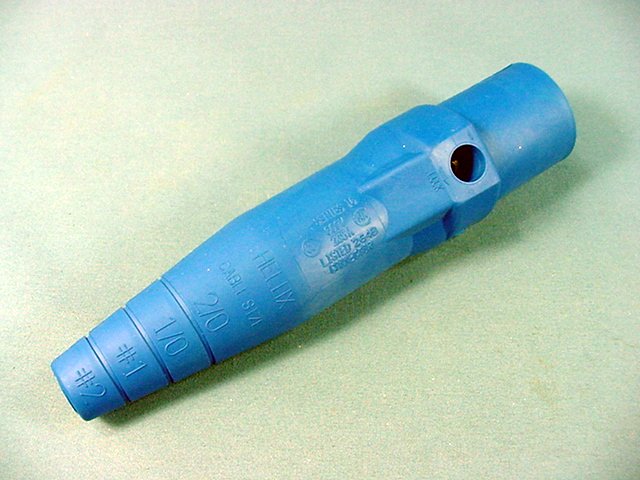

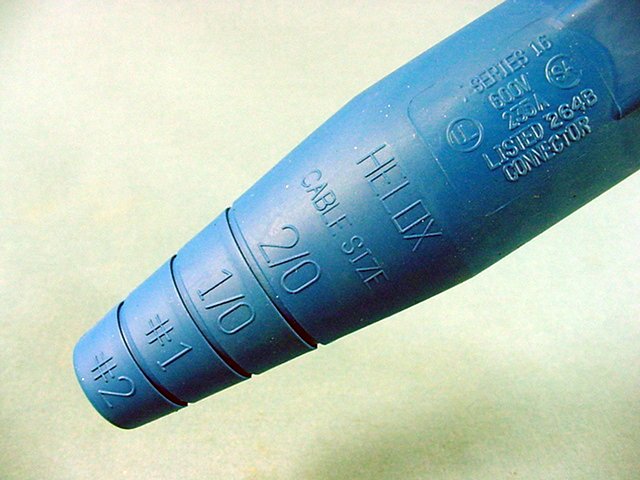

Leviton 16SDM-22B blue male cam-type plug insulating sleeve. For use with ECT 16 Series male plugs including: single set screw, double set screw, and crimped styles. Fit male plugs with 235A rating and 1/0 to 4/0 cable capacity including Leviton 16D21, 16D22, 16D25, and 16D26 cam plug lines. Great for replacing worn sleeves or changing your color code scheme. Can be paired with Leviton 16D21-C, 16D22-C, 16D25-C, or 16D26-C contacts for a custom color scheme. Please note that these are the replacement insulating sleeves only and do not include the internal brass contacts. Features of Leviton's ECT 16 Series line of cam plugs include:
Connectors of choice for concerts, sounds stages, movie making, television production, sporting events and conventions
Intermateable and completely compatible with competitive cam-type products - can be retrofitted to existing locations and power distribution systems
Locking and reinforcing ring won't melt, break or crack
Shatter and crack proof - high durometer thermoplastic elastomer(TPE) or neoprene rubber
Color coded insulating sleeves - fast and easy phase identification
Prevents arcing or burning - no movement of contact surfaces
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity - positive vibration-proof connection provided by double cam design
