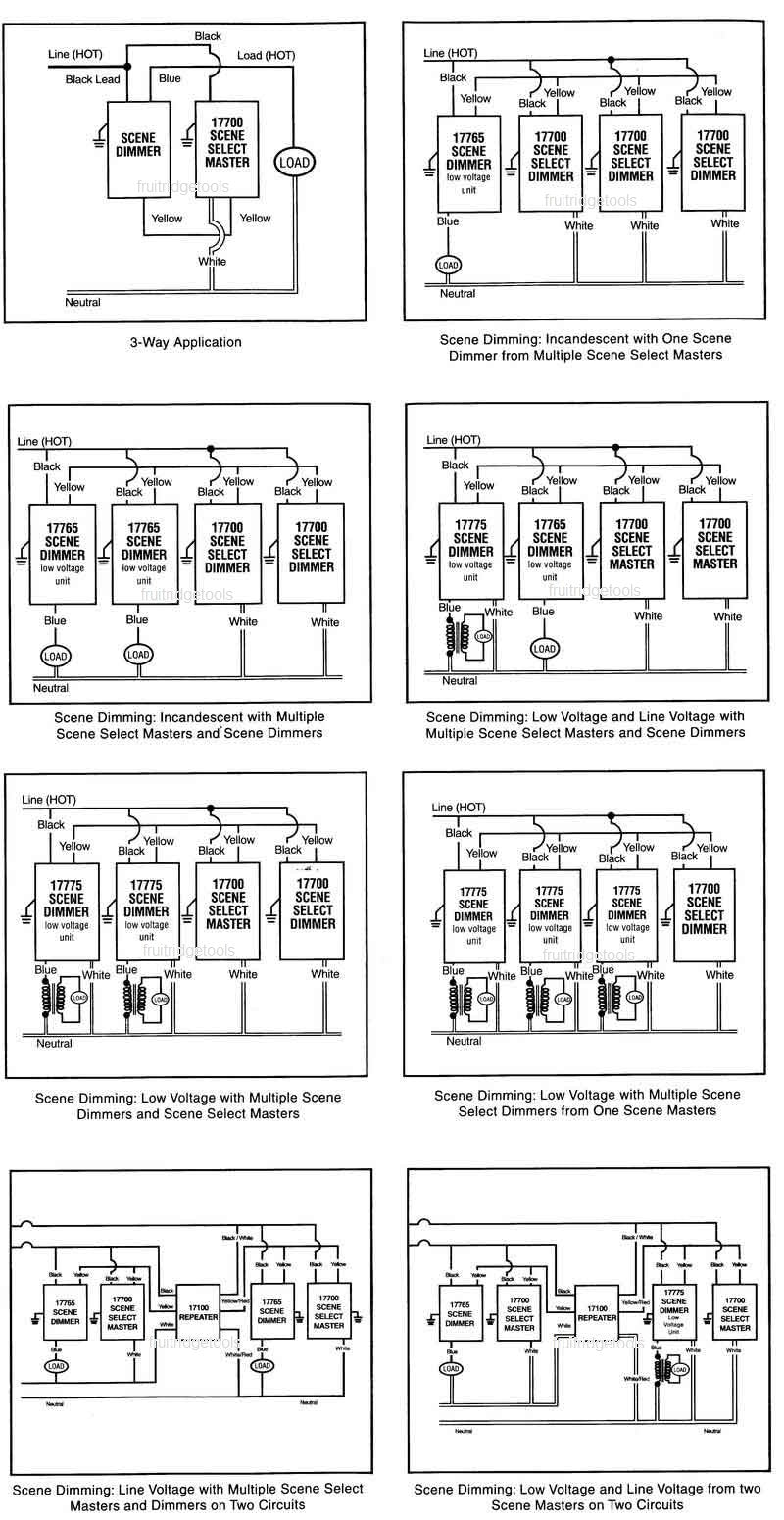

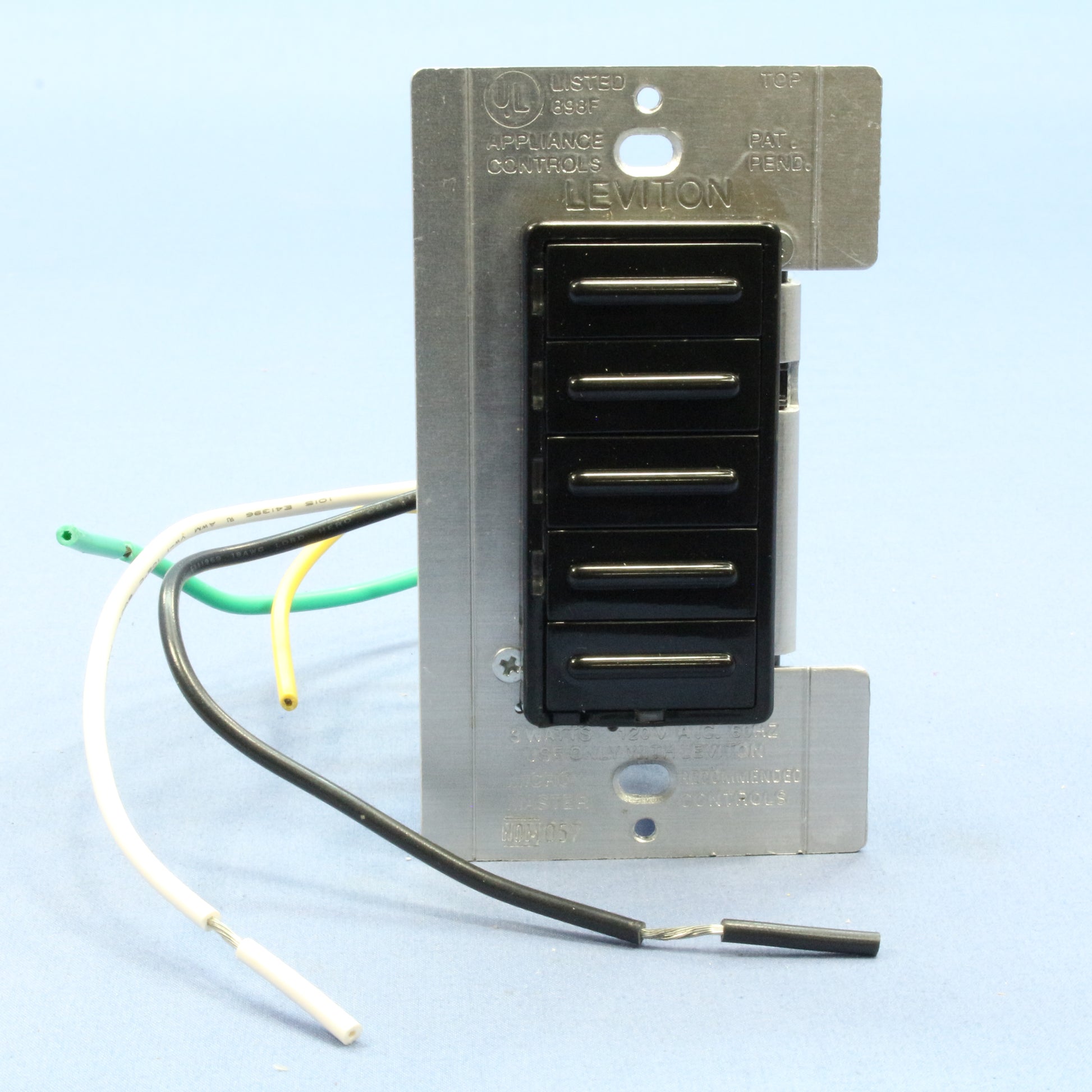

Leviton 17700-E black Decora MicroDim Scene Selector controller. Four scene buttons with LED scene indicators and separate ON/OFF preset button. Check the additional photos to see wiring diagrams of typical network installations. For use with Leviton MicroDim devices including the following:
Leviton 17765 incandescent scene dimmer
Leviton 17775 low-voltage scene dimmer
Leviton 17100 signal repeater
Leviton 177BI building interface
Leviton 177OC occupancy sensor
Leviton 177IR-IWA infrared receiver
Features include:
Scene Selector provides control of up to four lighting "scenes" without the need to install low-voltage wiring
Provides multi-location control of one or more Scene Dimmers to four different brightness levels, plus ON/OFF
Up to twenty Scene Dimmers can be used with a Scene Controller, accommodating sophisticated scene lighting designs
Digital circuitry in scene dimmers provides Soft-ON/Fade-OFF switching for an eye-pleasing effect and extended lamp life
Locator LED illuminated when lights are OFF to make it easier to find switch in the dark
Protected memory and voltage compensation maintain light levels after power outages and during minor power fluctuations
LED display alongside keypad buttons indicates scene selection
Encapsulated, gold-surfaced touch contacts resist humidity and wear
Wraparound mounting strap provides efficient heat dissipation and ease of installation
Superior RFI filtering coil
ON/OFF AC air gap switch completely disconnects power to unit for bulb changing or removal from service
