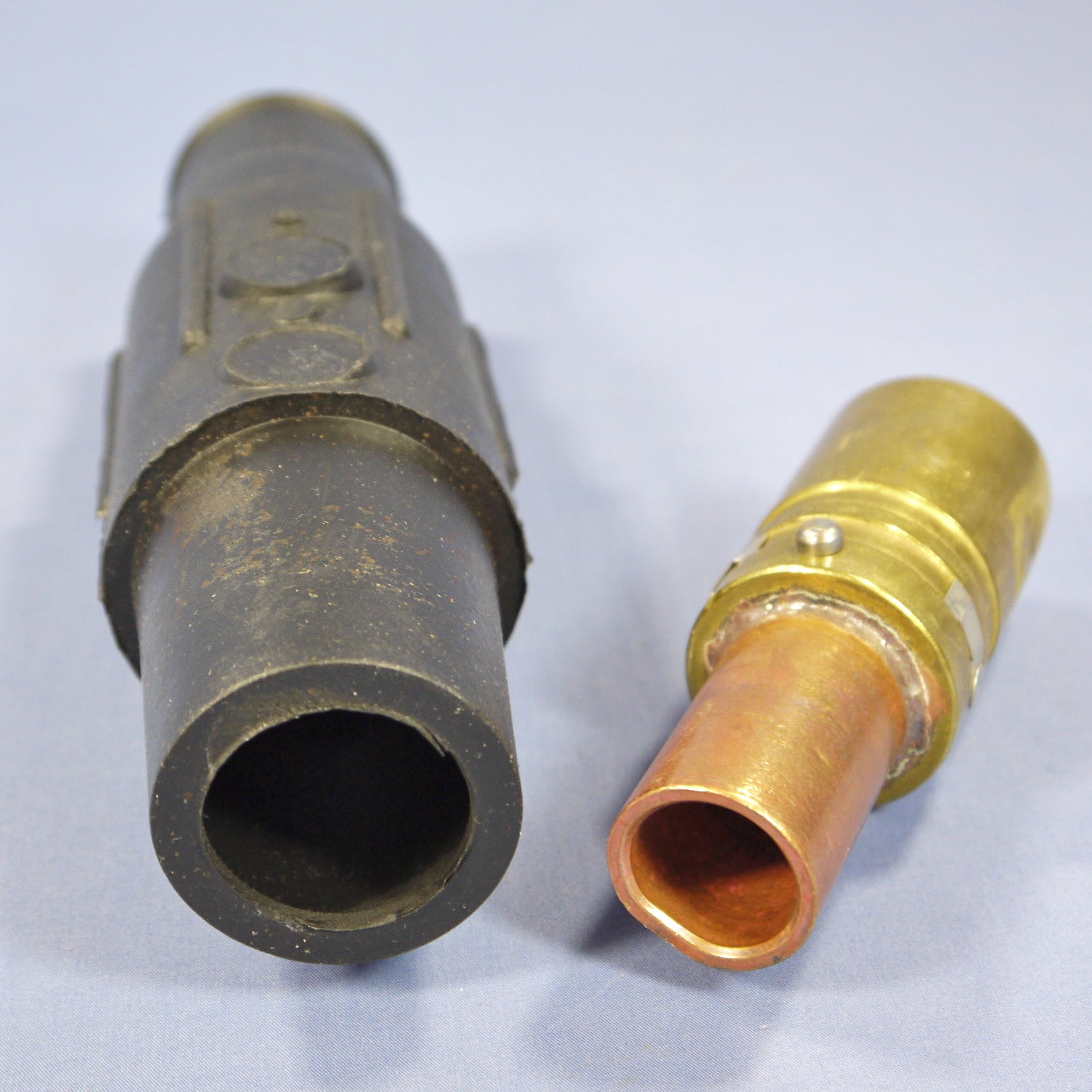

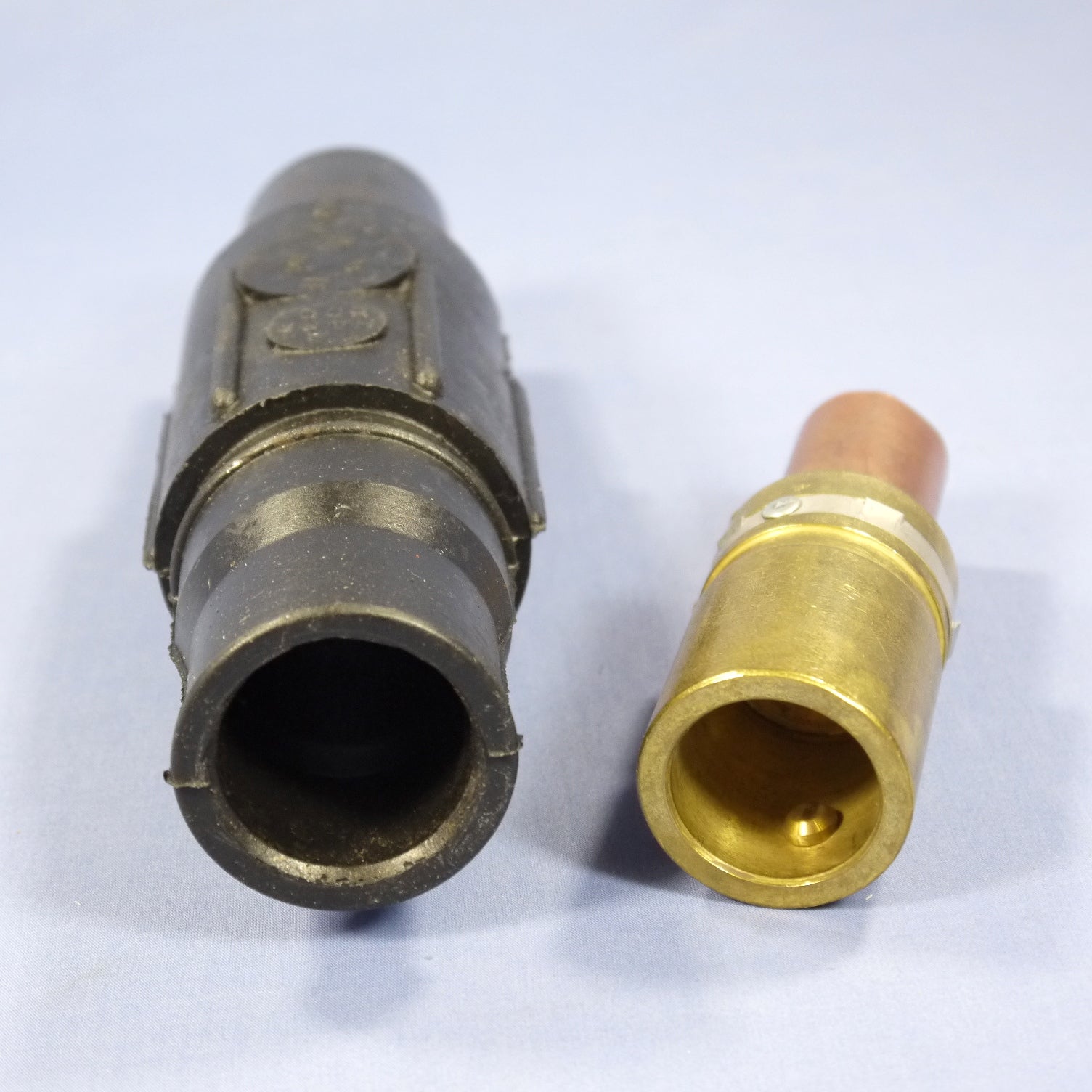

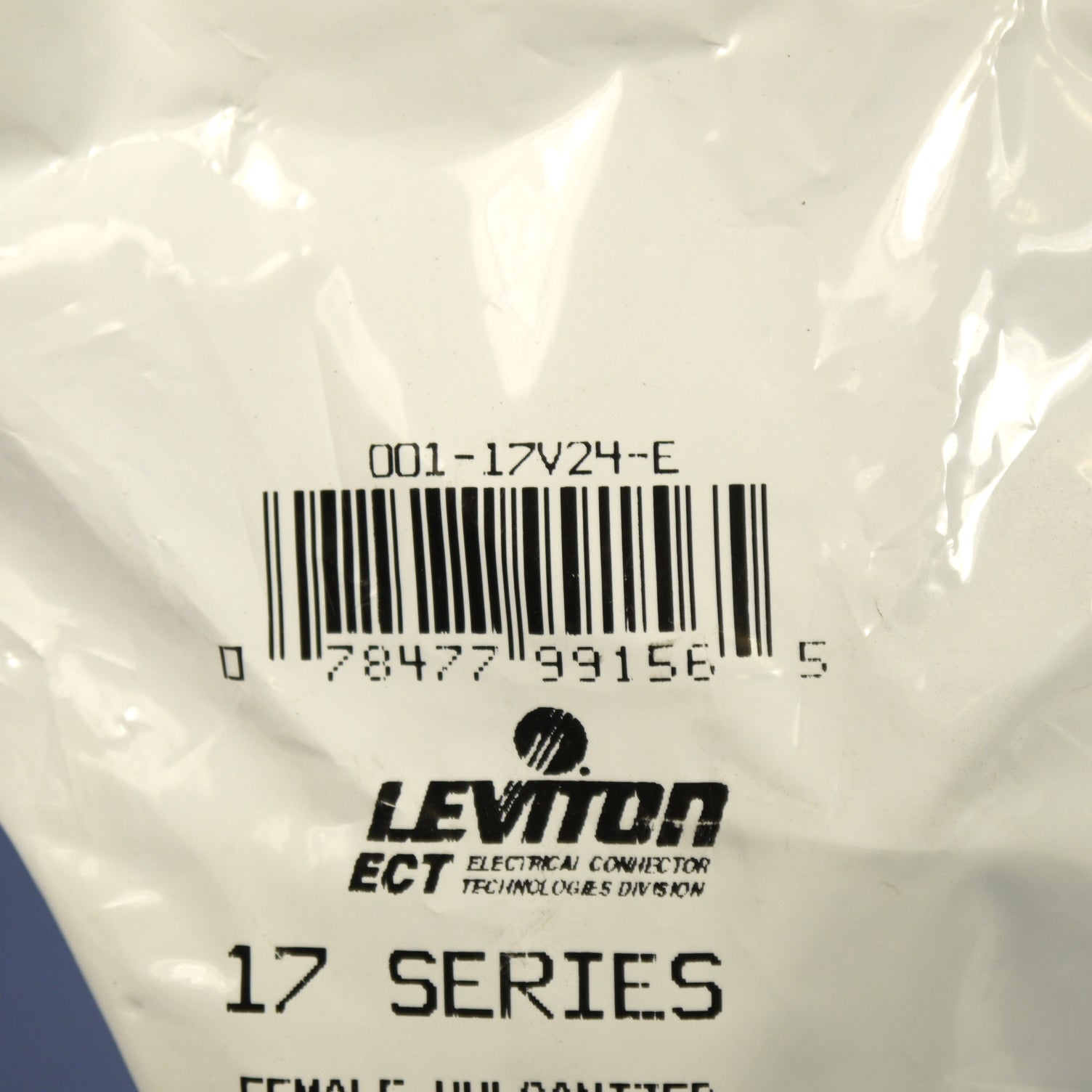

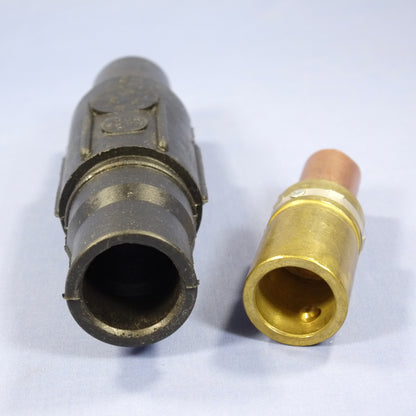

Leviton 17V24-E black female vulcanized cam-type plug -crimped style. For use with 17 Series taper nose connectors. Features include:
Rated up to 690A 600V (with proper cabling)
Cable capacity: 250 to 350 AWG
Series 17 -
Designed to withstand grueling, heavy duty industrial use. Applications include: generator test stations, water purification plants, electrochemical machining equipment, and other general industrial uses
Intermateable and completely compatible with competitive cam-type products - can be retrofitted to existing locations and power distribution systems
Locking and reinforcing ring won't melt, break or crack
Shatter and crack proof - high durometer thermoplastic elastomer(TPE) or neoprene rubber
Color coded insulating sleeves - fast and easy phase identification
Prevents arcing or burning - no movement of contact surfaces
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity - positive vibration-proof connection provided by double cam design
