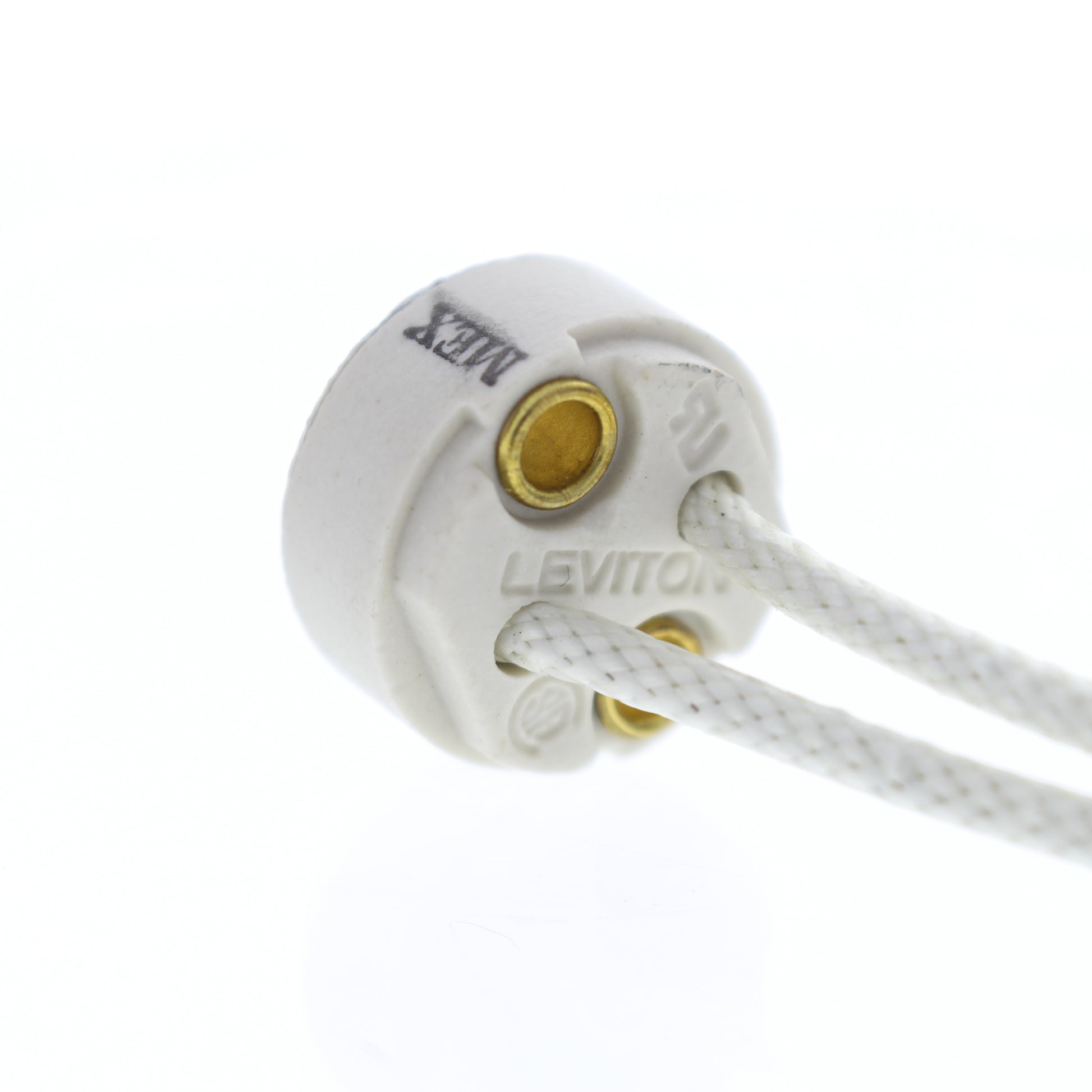

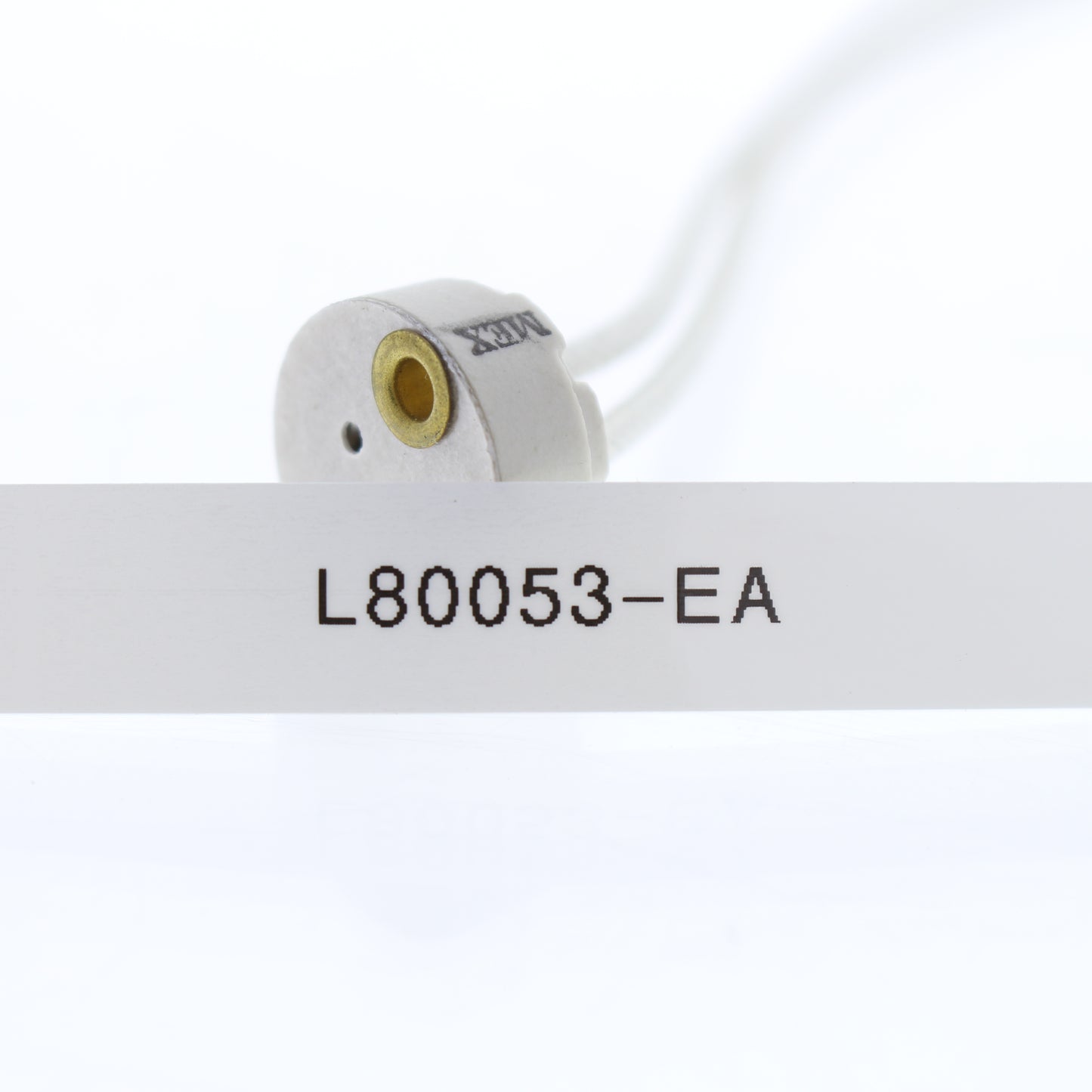

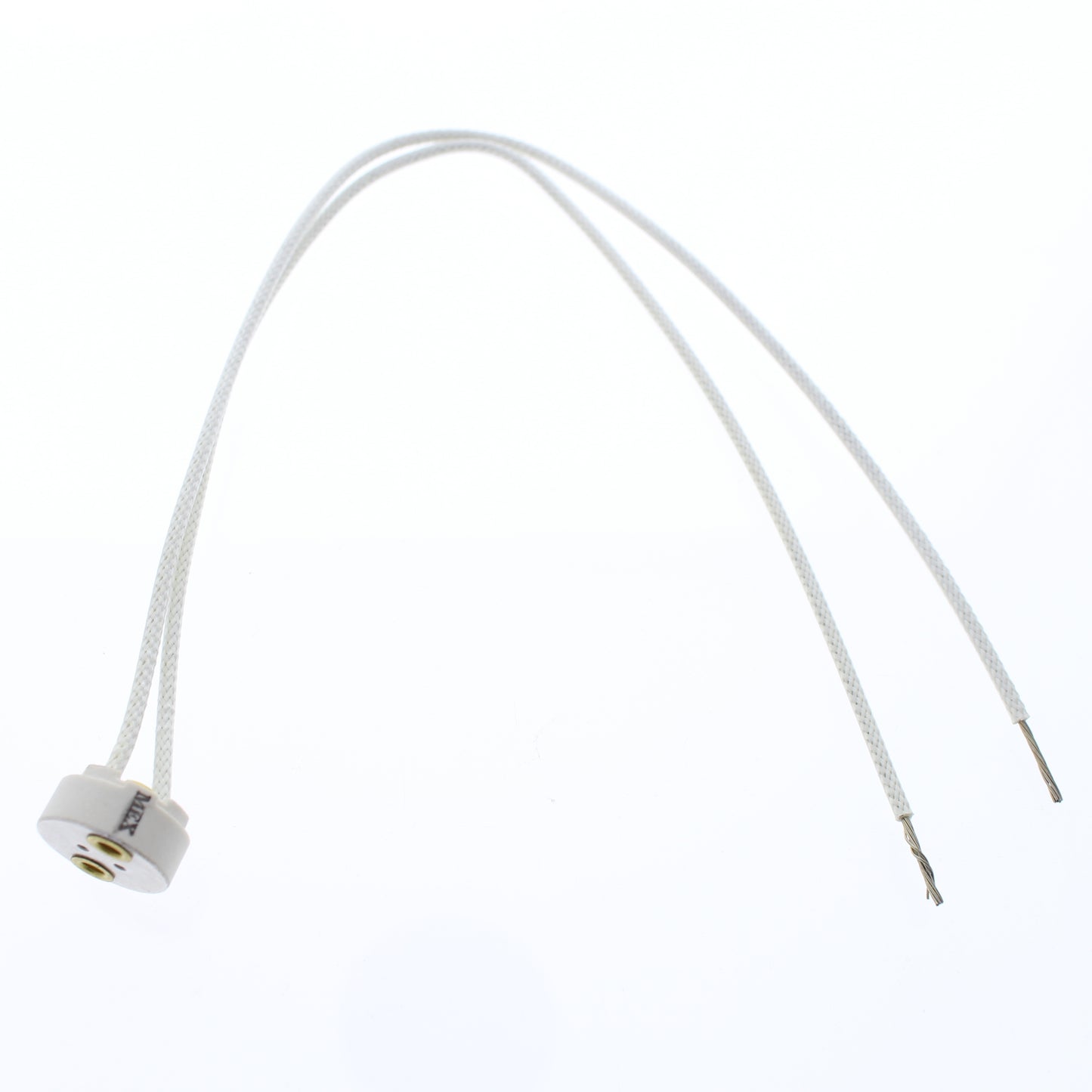

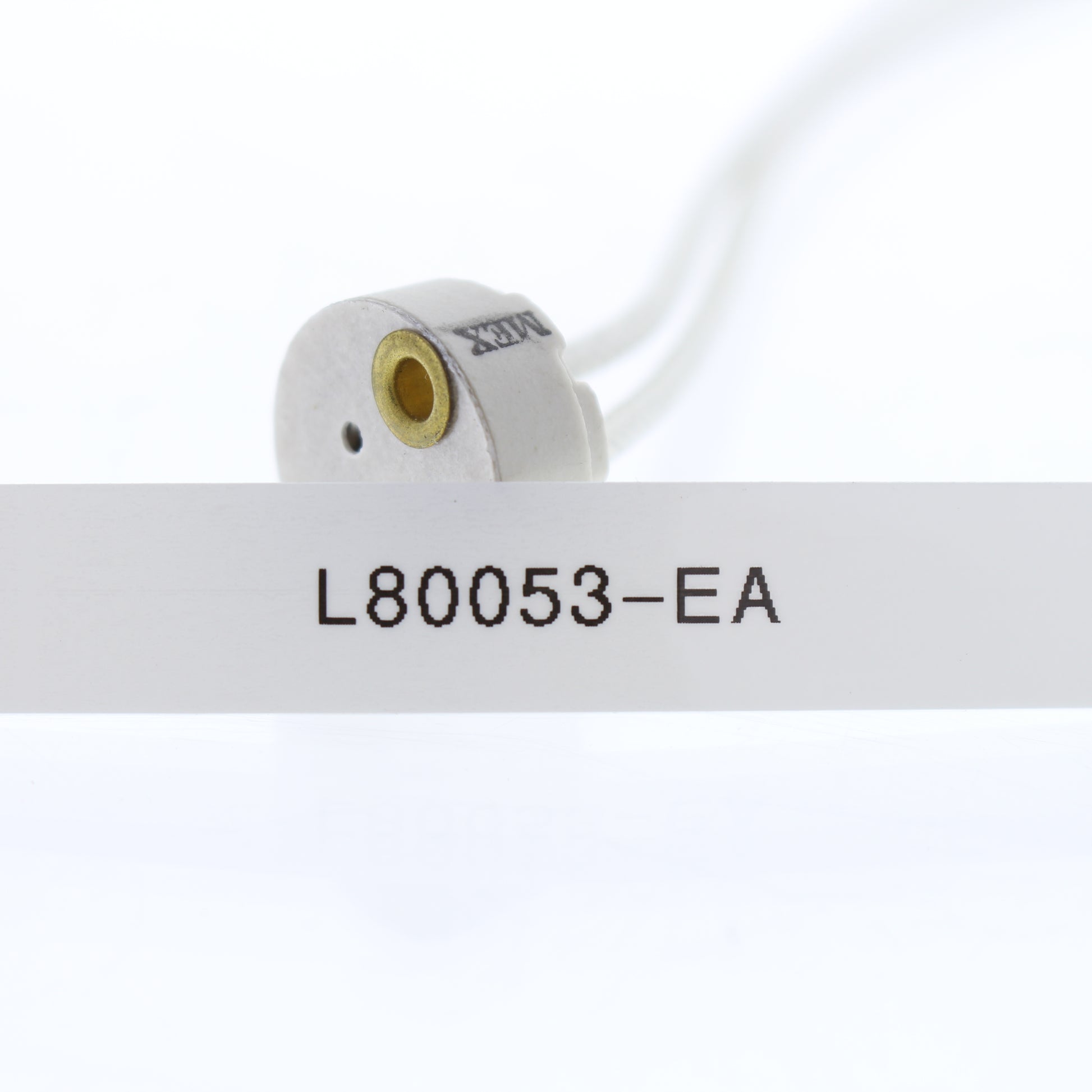

Leviton 80053 Quartz Lampholder Light Socket Miniature Bi-Pin Single End GY6.35

Leviton 80053 lampholder for miniature bi-pin quartz lamps. Miniature bi-pin quartz lampholder with quick-connect tabs accepts single-ended miniature quartz lamps, For lamps with ANSI designation GY6.35. Features include:

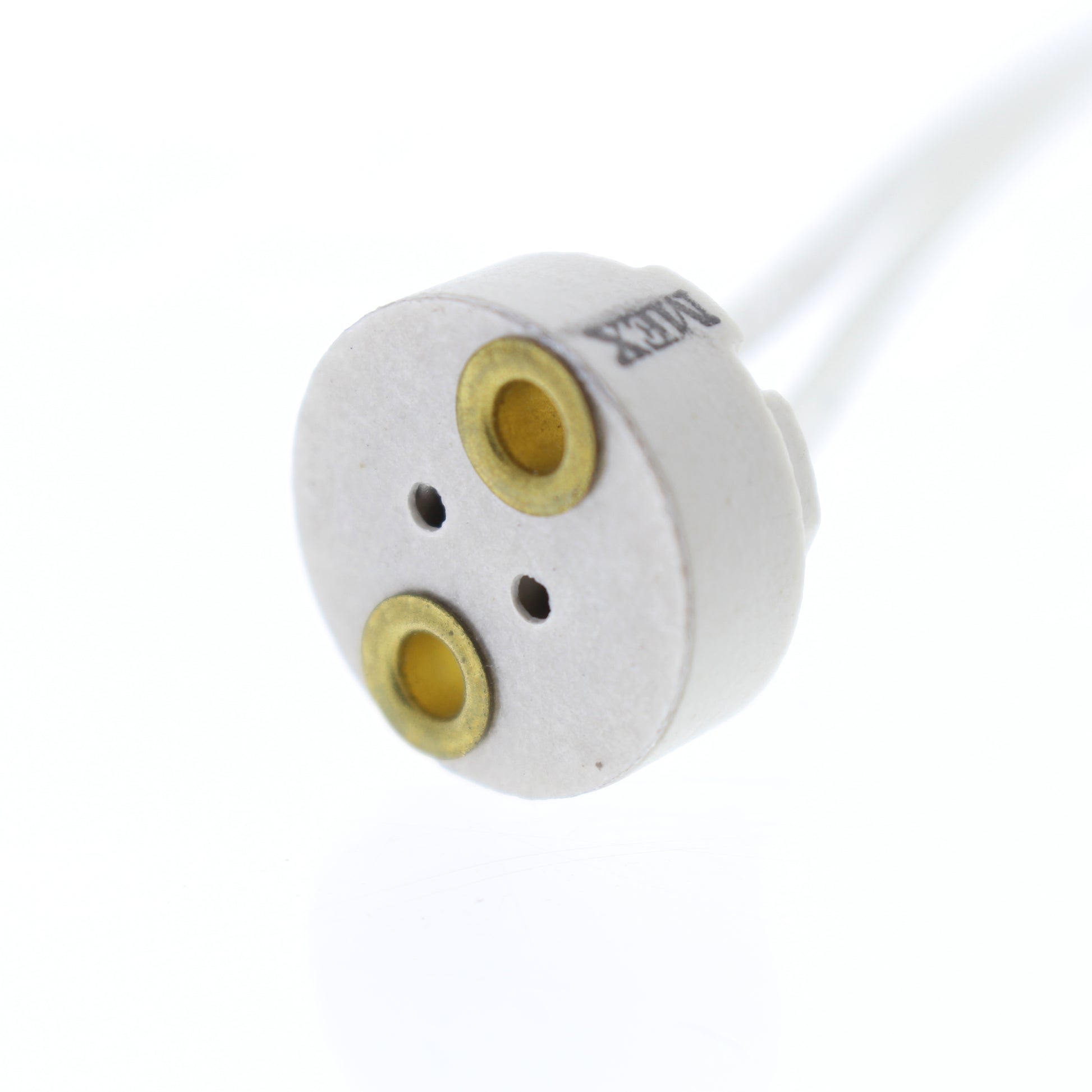

• Accepts GY6.35 single-ended miniature quartz lamps
• Ceramic body with mica cover
• 250V maximum voltage; 12A maximum amperage; 750W maximum wattage

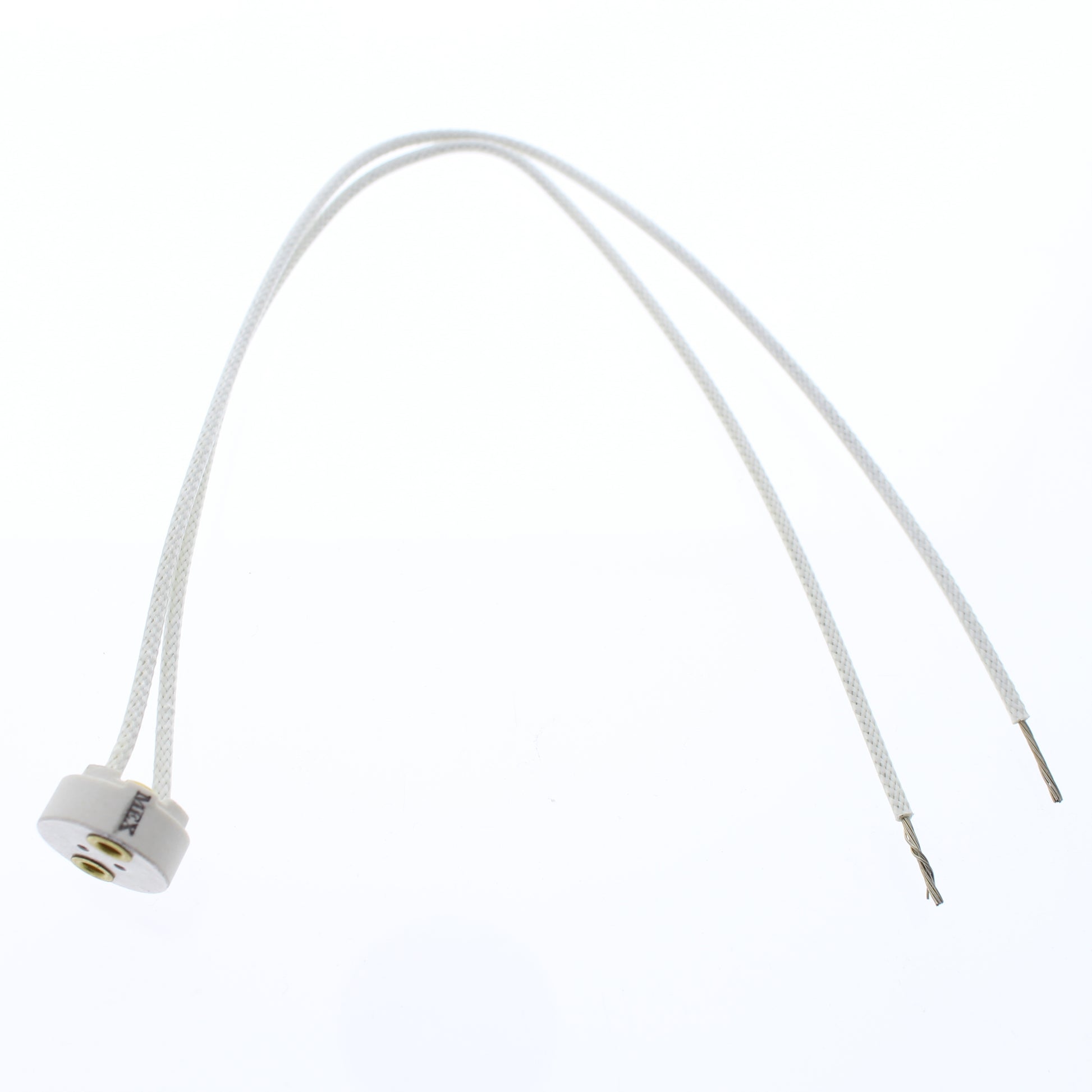

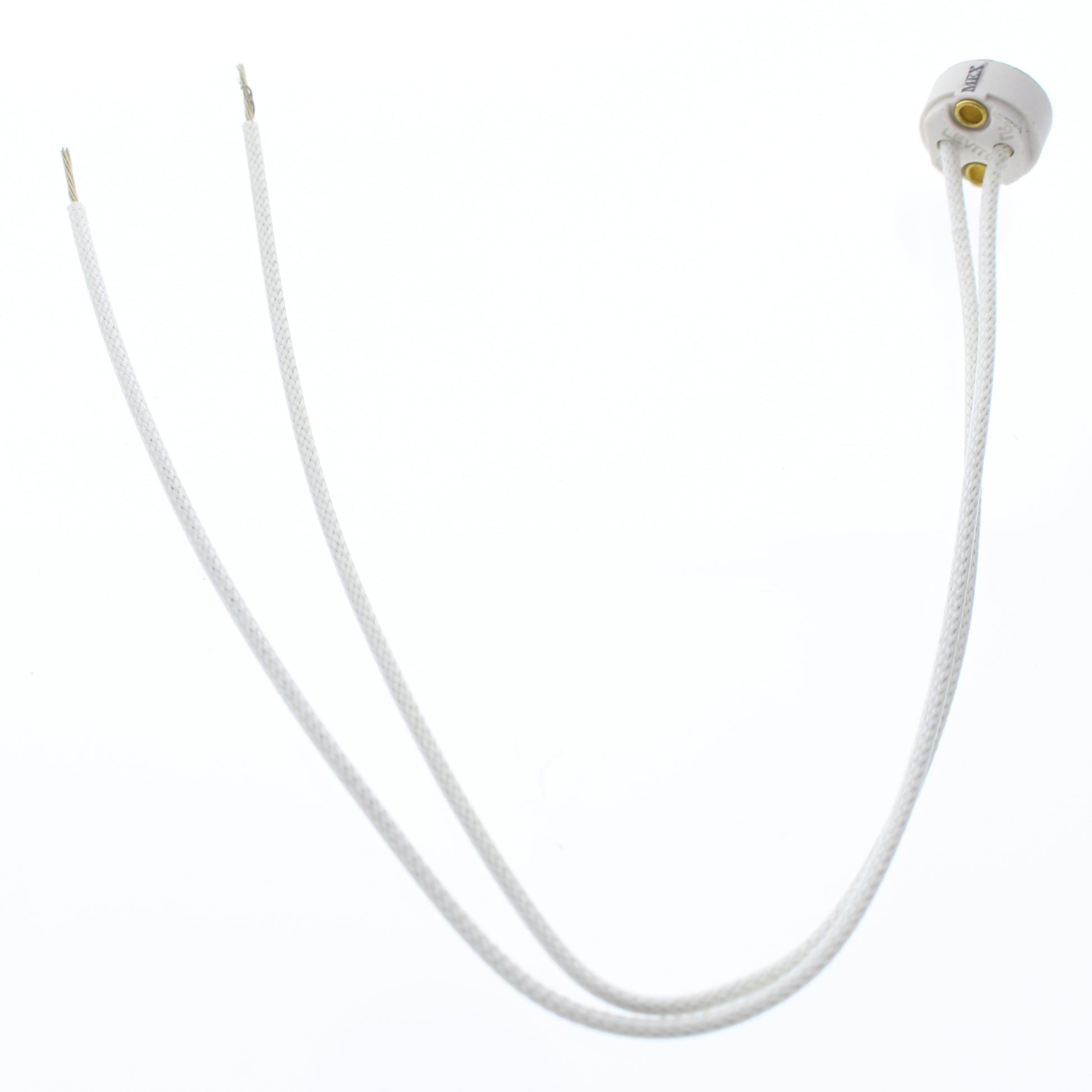

• Standard leads are No. 18 AWG SEW-1 200�C wire, 12" long, stripped 1/2"
• Warning: Miniature Quartz Halogen Lamps operate under pressure and high temperatures. To prevent socket damage, the design of the fixture and its application must be carefully considered. For Leviton warranties to apply to this product, lamp wattage, current and beam spread must be controlled to ensure that the following temperature limits are never exceeded. At contacts within socket: 225-Celcious; Socket lead wires: 200-Celcious
