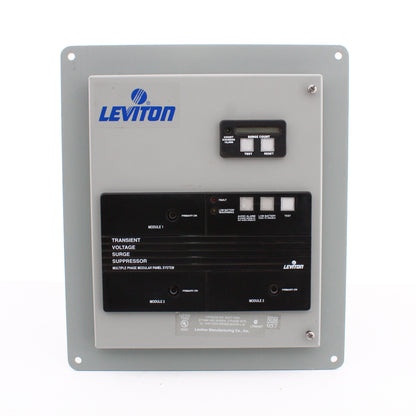

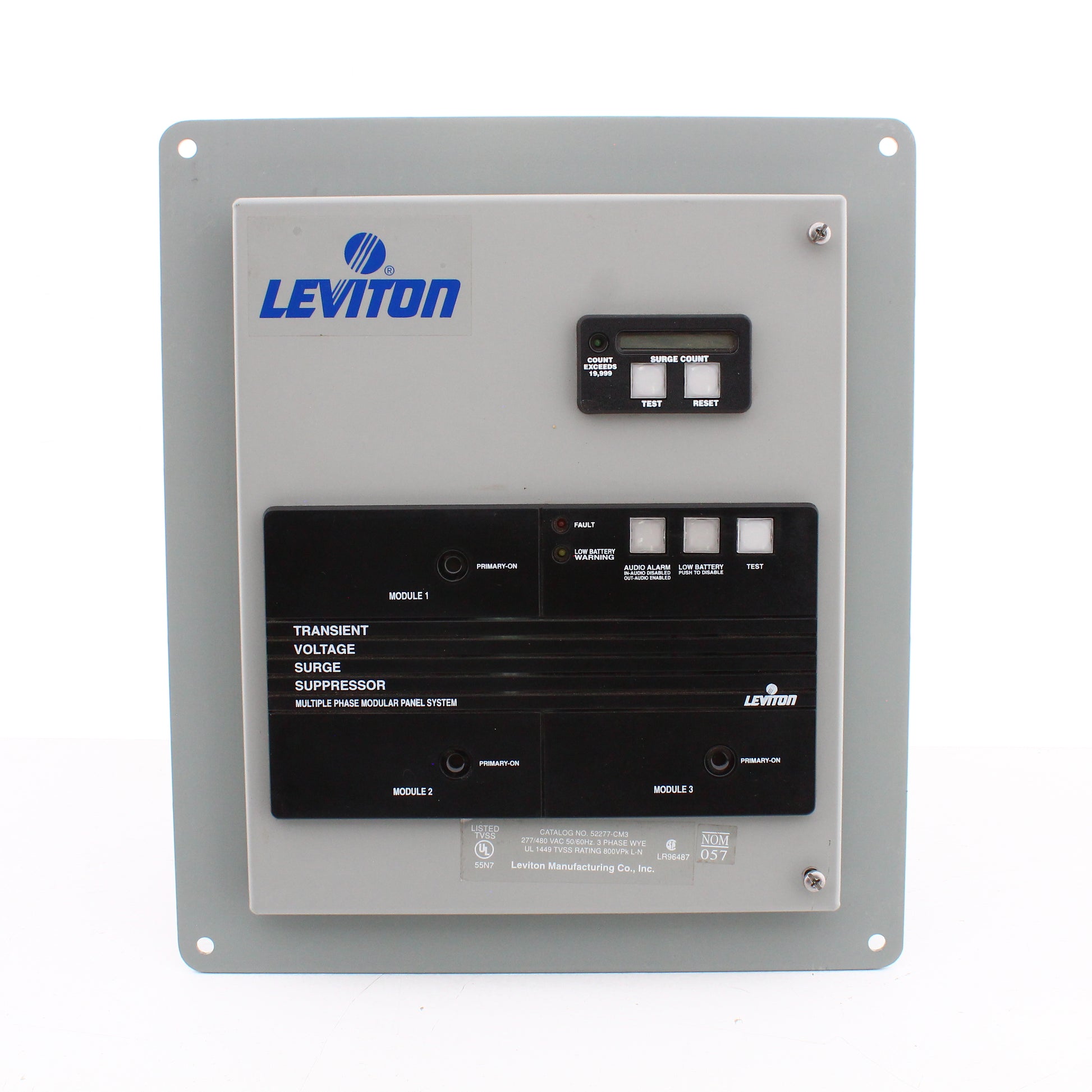

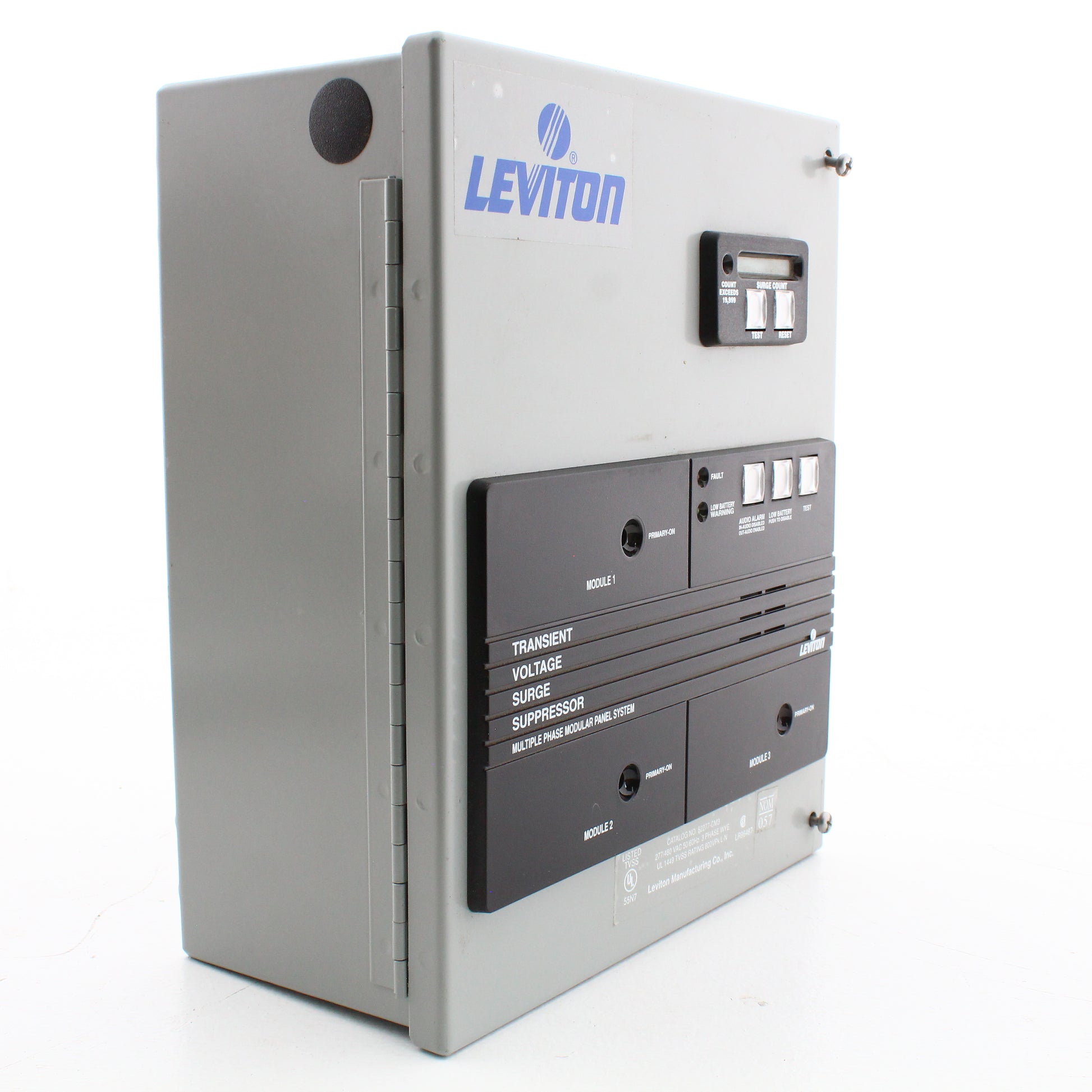

Leviton 52277-CM3 Type 12 Surge Panel 3-Phase 30A w/ Replaceable Surge Modules

Leviton 52277-CM3 Type 12 Surge Panel 3-Phase 30A w/ Replaceable Surge Modules

$867.03 USD
$867.03 USD
Sale Sold out
Shipping calculated at checkout.
Features include:
  • Frequency : 50/60Hz
  • Recommended Circuit Breaker Rating : 30A, 277/480V
  • Surge Technology : 40mm MOV Design

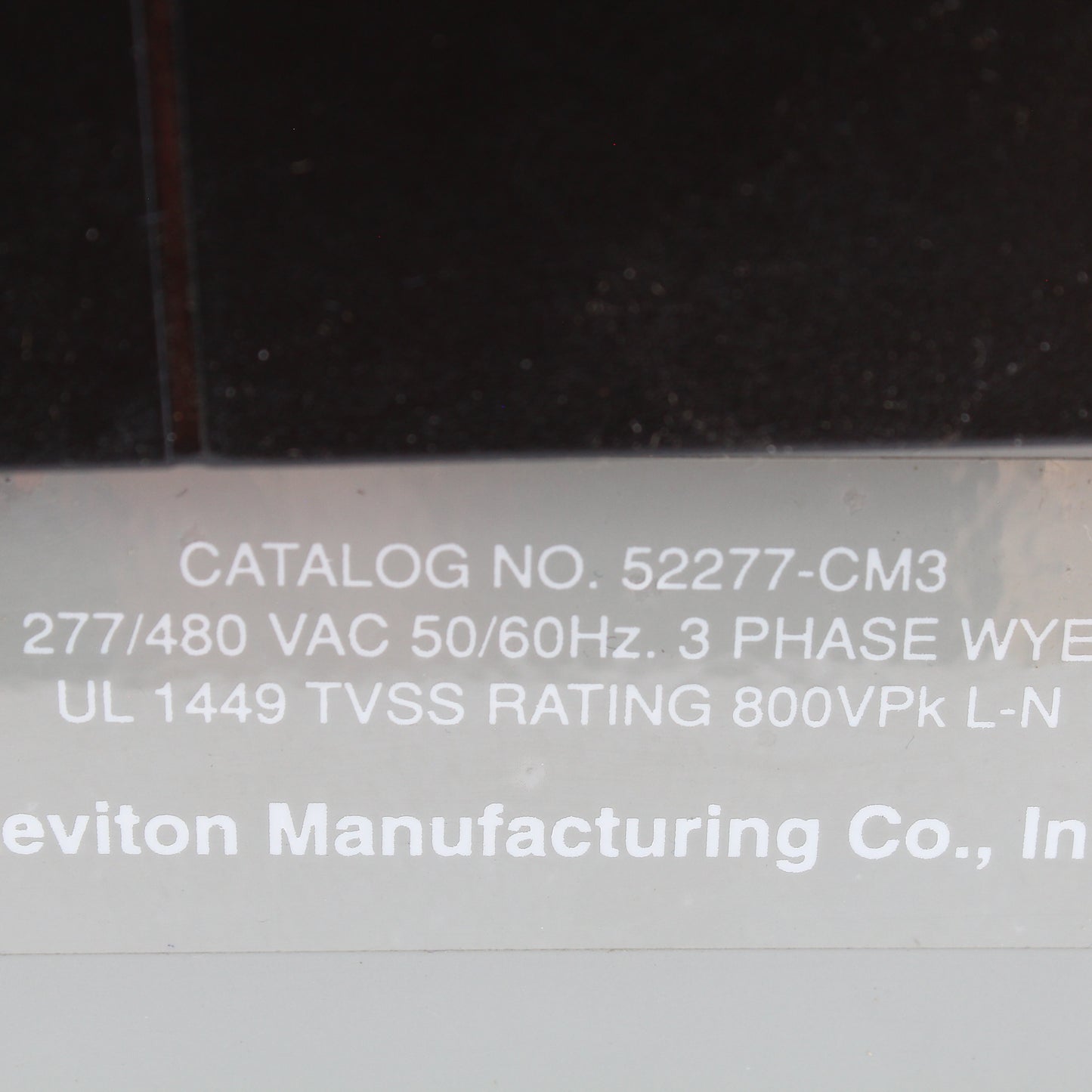

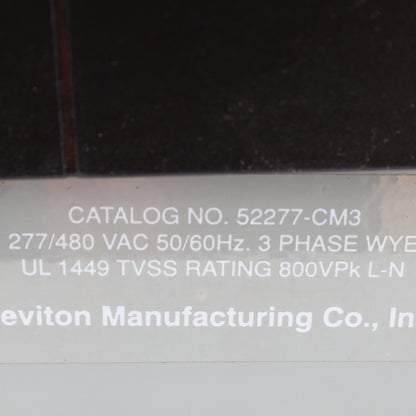

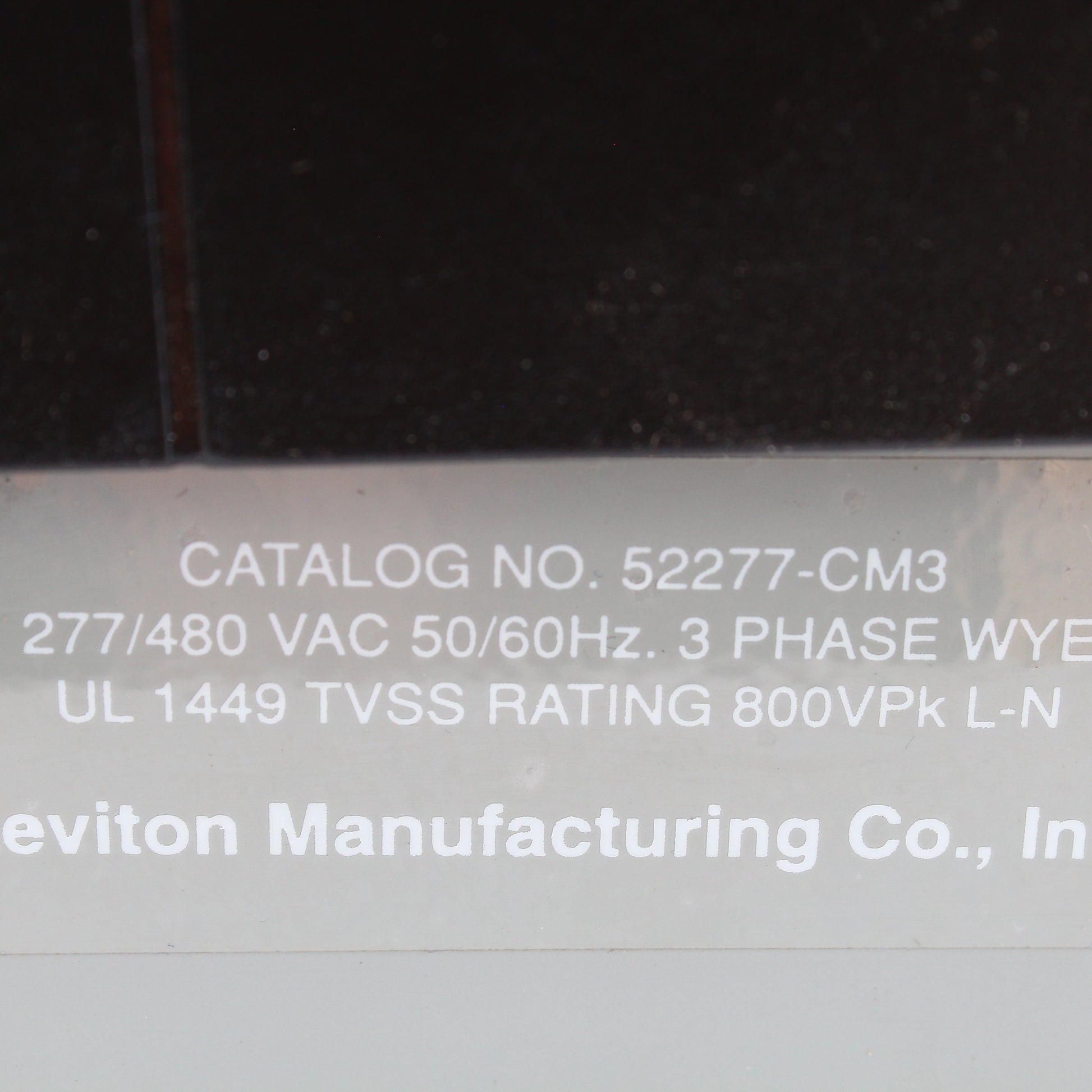

  • Voltage Configuration : 277/480, V 3-Phase WYE
  • Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire
  • Includes surge counter

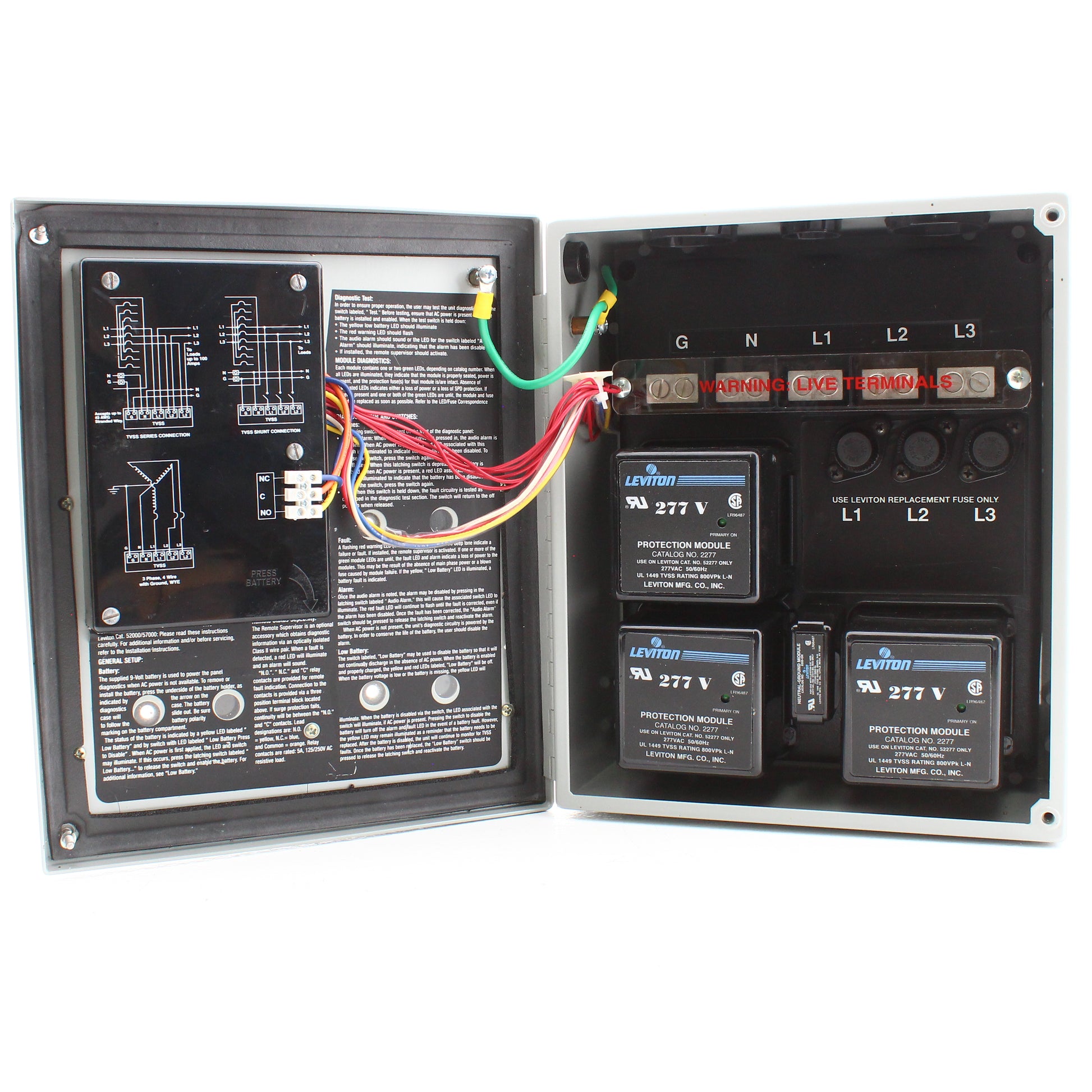

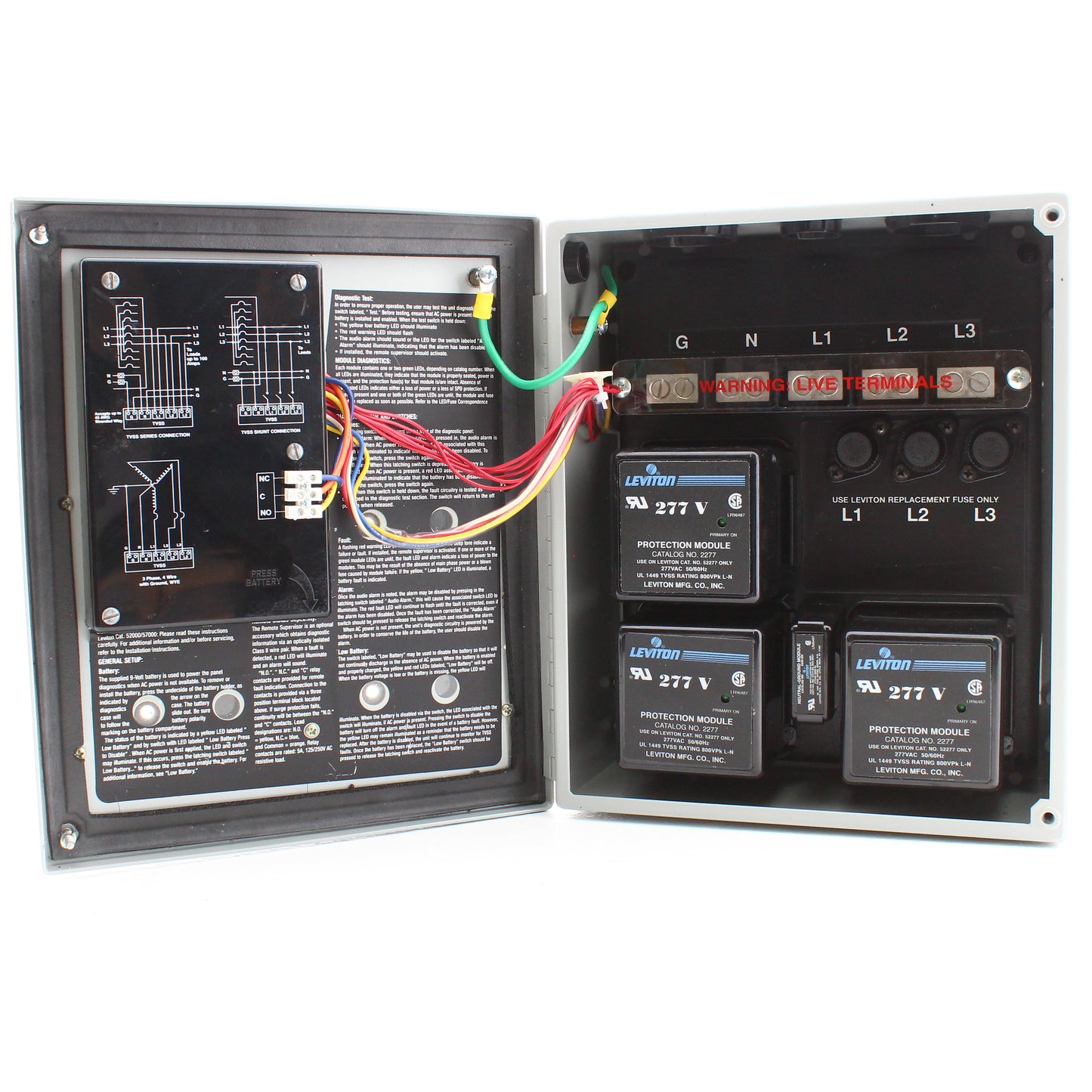

  • Module No. : (3) 2277 & (1) 8320-GN

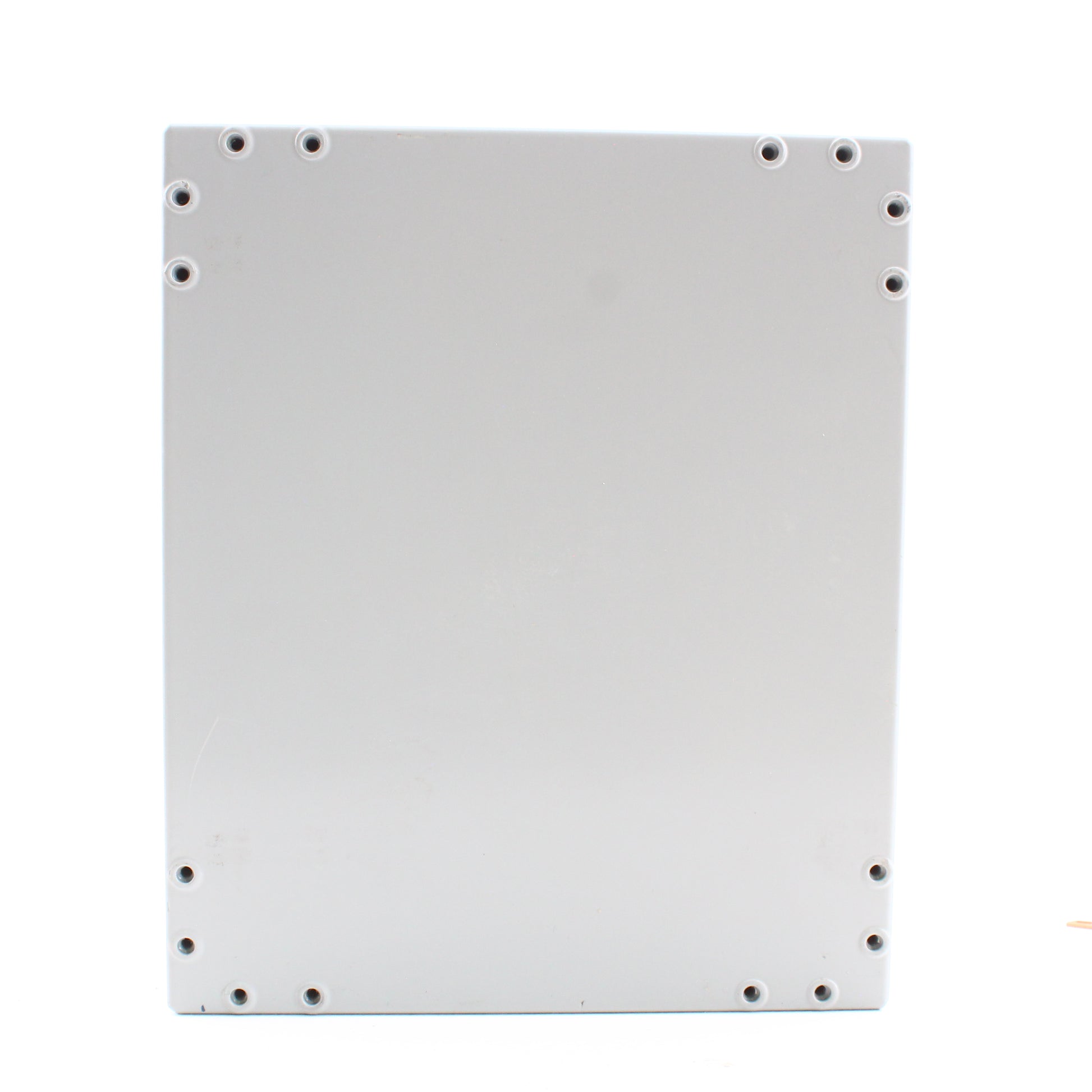

  • Enclosure : Type 12
  • Flammability : Rated V-2 per UL 94
  • Operating Temperature : -20?C to 40?C
  • Relative Humidity : 5% to 95% non-condensing
  • Maximum Surge Current, Per Mode (Per Phase) : 100kA (200kA)
  • Noise Rejection : -20 to -40 dB at 5kHz-10MHz
  • Nominal Discharge Current Rating : 20kA
  • Protection Mode : 4-Mode
  • Remote Monitoring : Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
