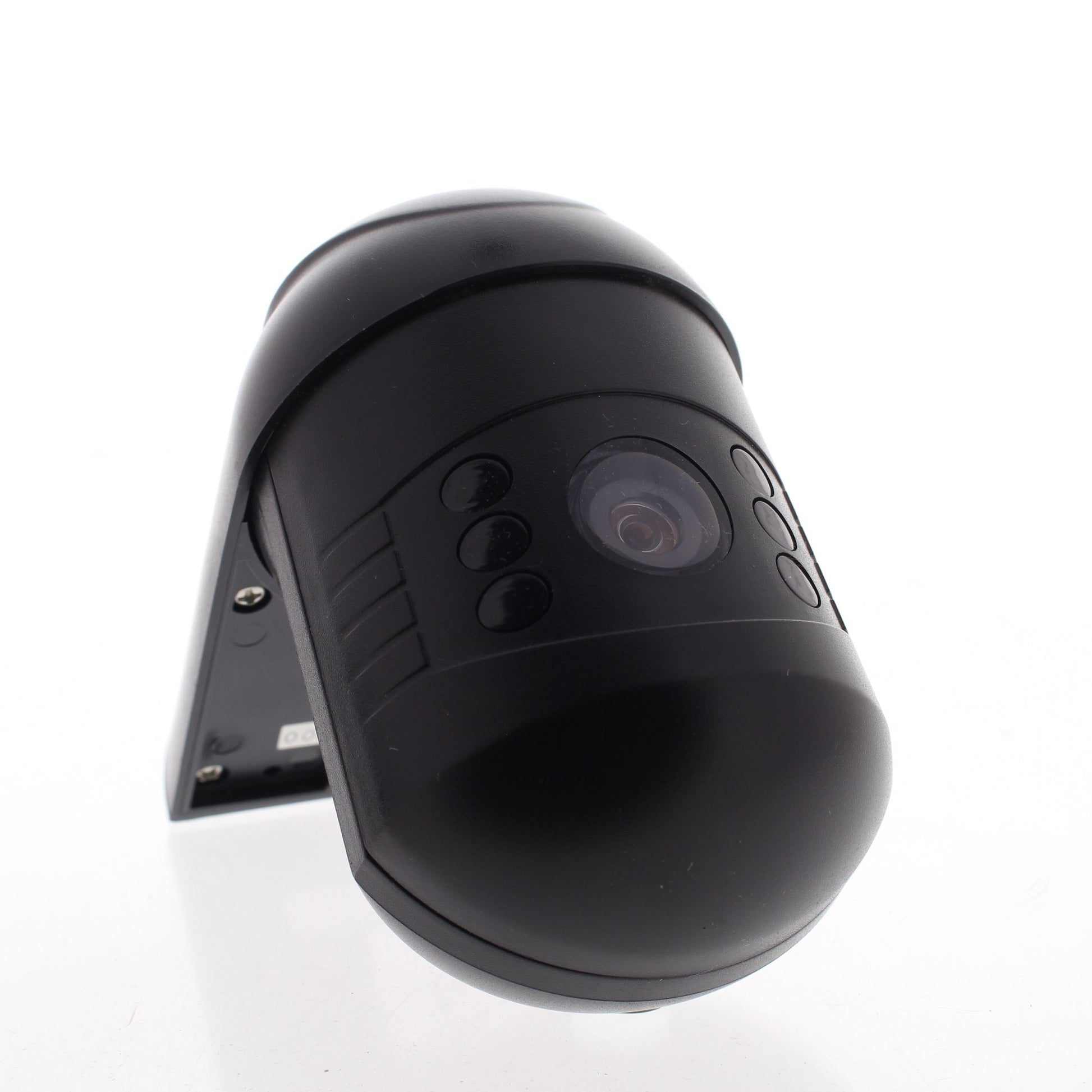

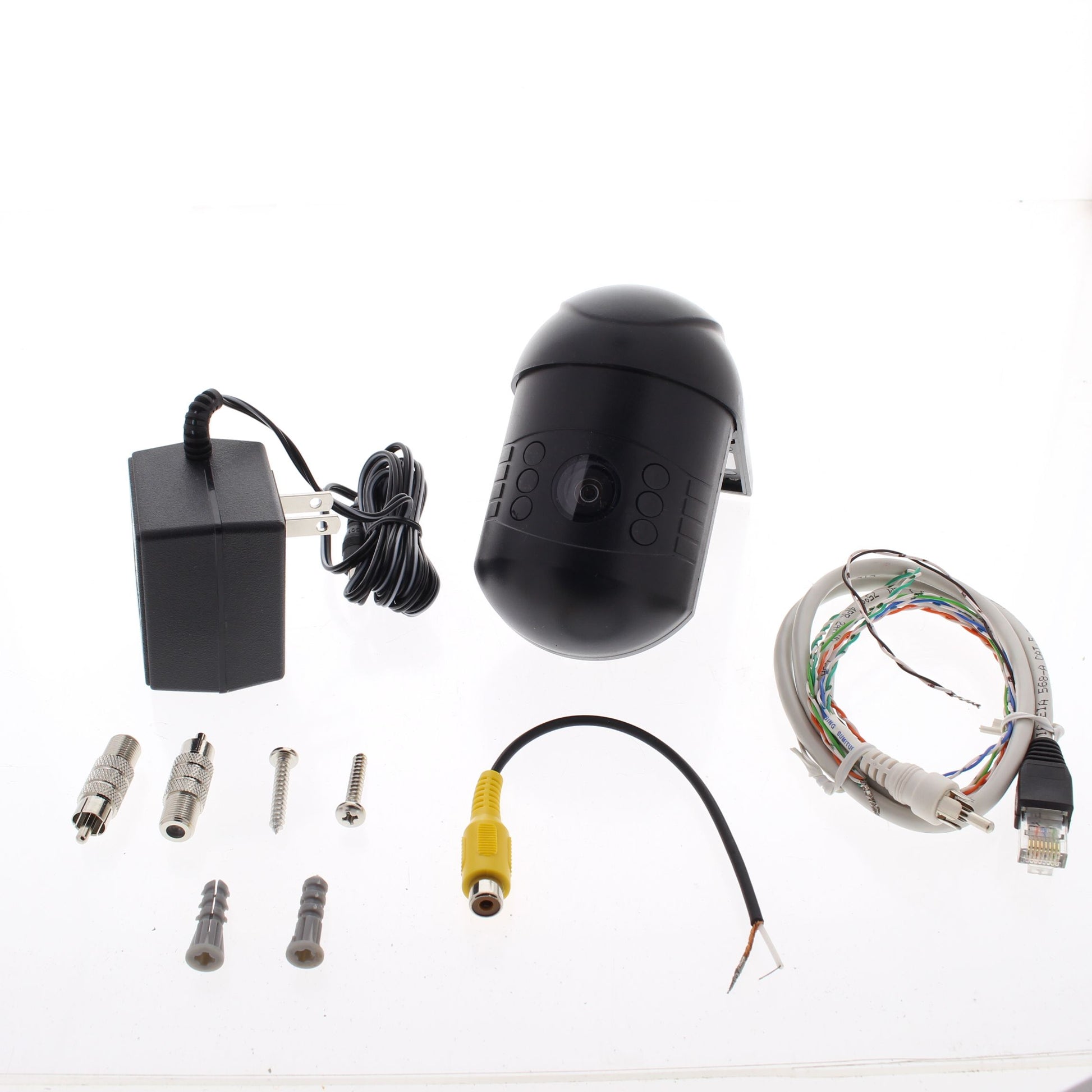

Leviton 48213-ECC Dome Style outdoor CCD DSP Color Camera with audio. Features include:
Allows monitoring of front doors, back yards, and anywhere an extra eye is desirable
Designed to withstand temperature and environmental extremes when mounted in a sheltered location such as under an eave or overhang and away from direct exposure to rain and snow
Wide-angle color video camera for use in a variety of lighting conditions - reverts to black and white in low-light settings

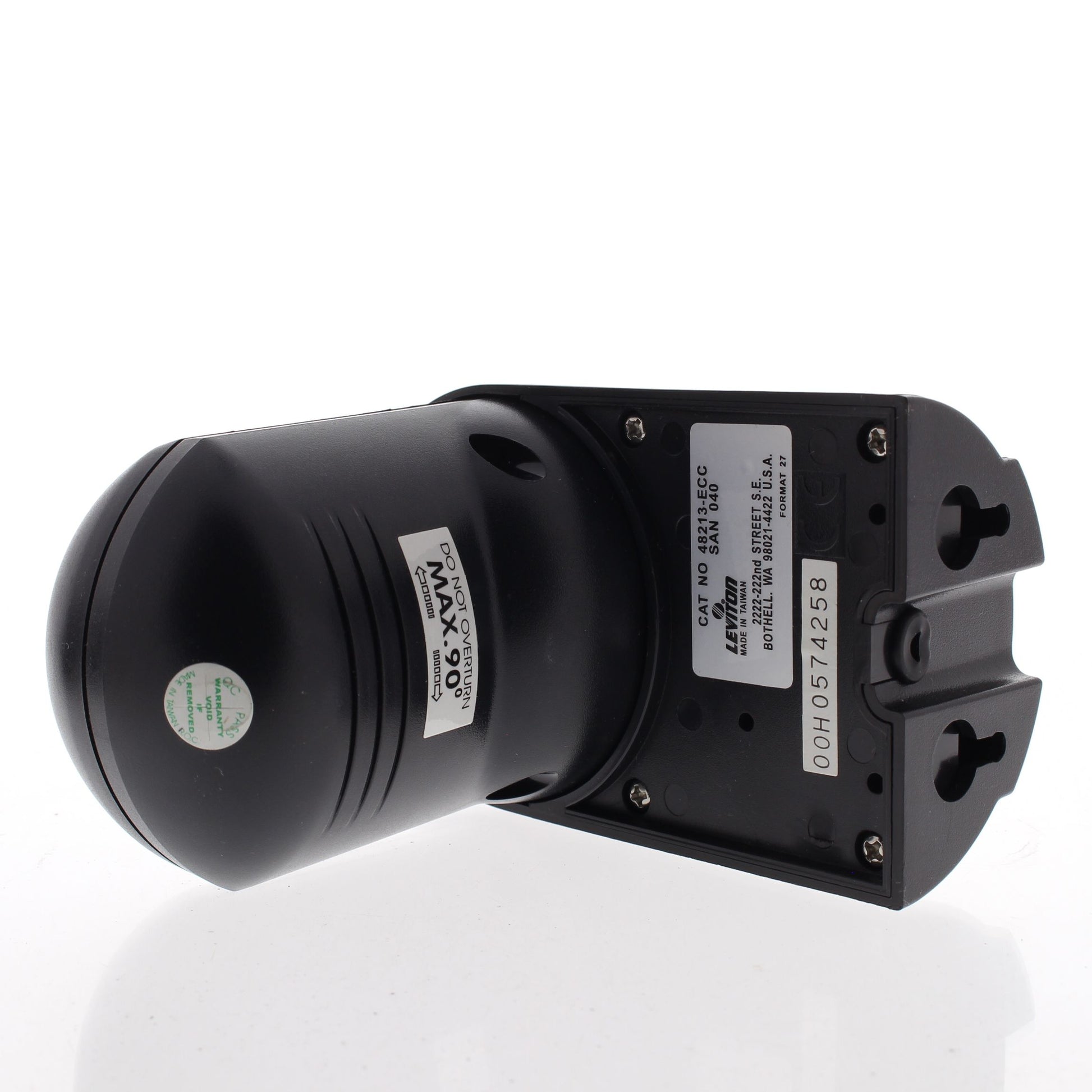

Manual tilt-and-pan bracket assembly provides fast installation and manual aiming

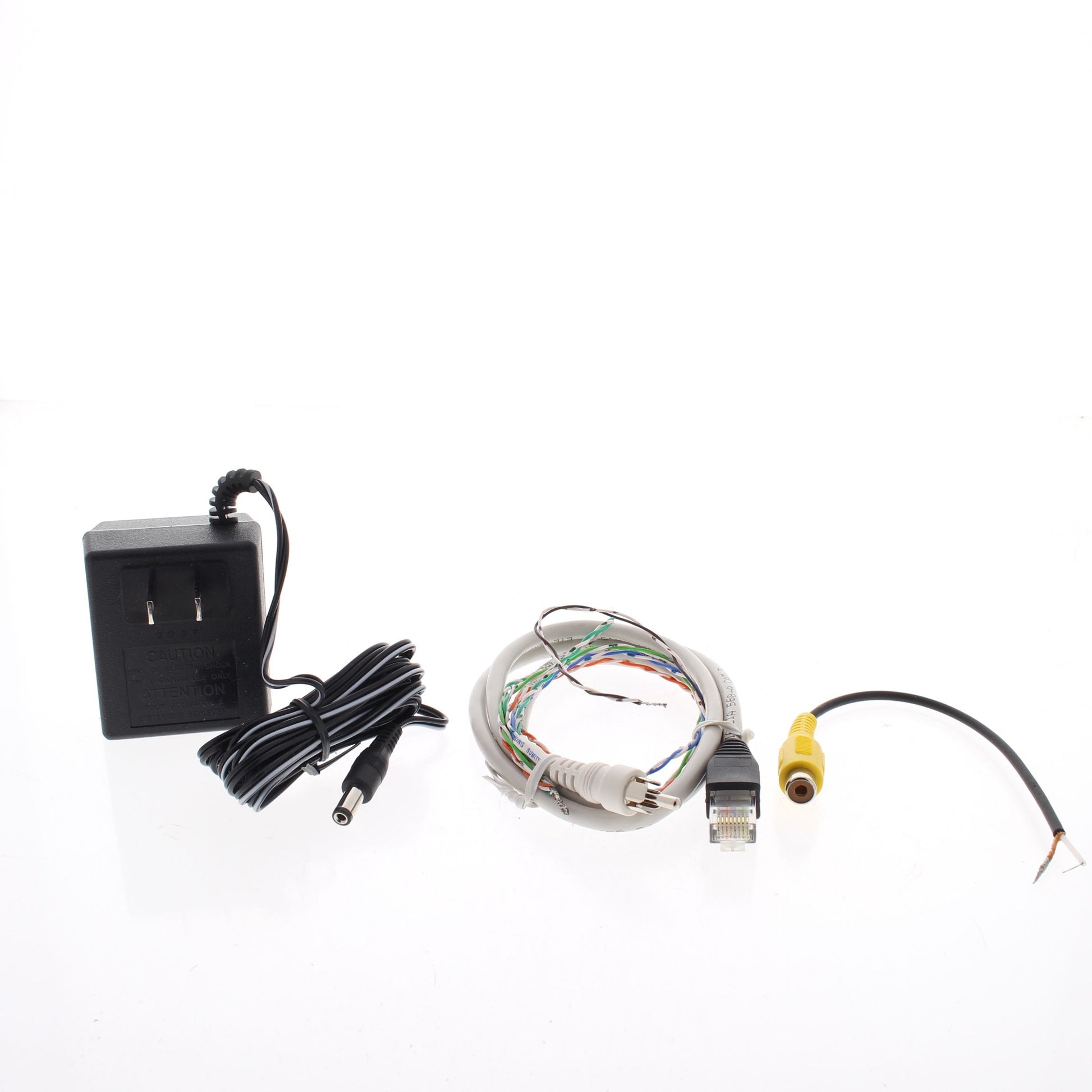

Requires one coaxial cable and one Cat 5 or 5e cable for output - can be powered from the Leviton SMC panel with a power distribution module or with the provided transformer if power is available nearby

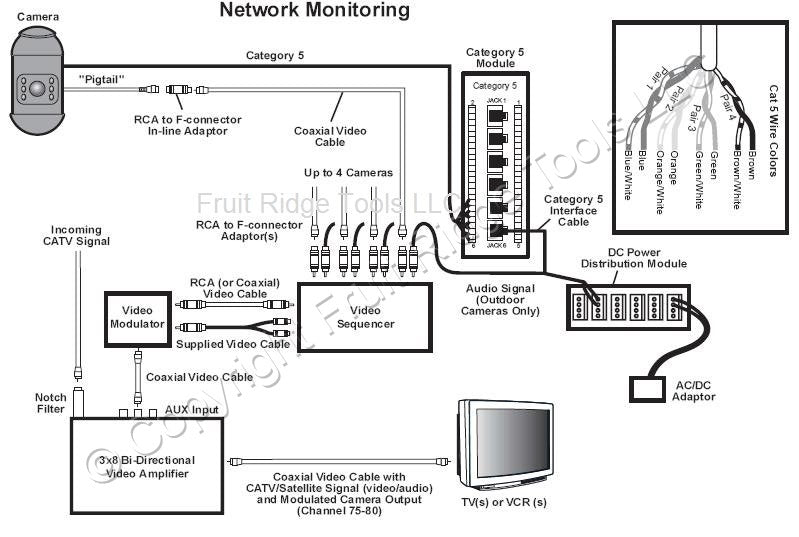

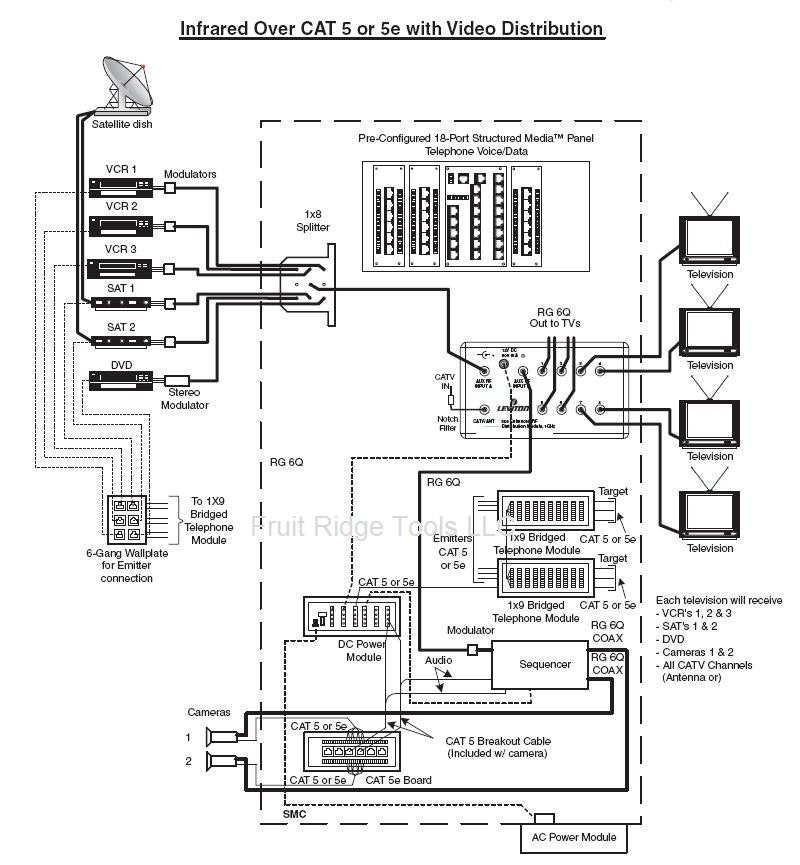

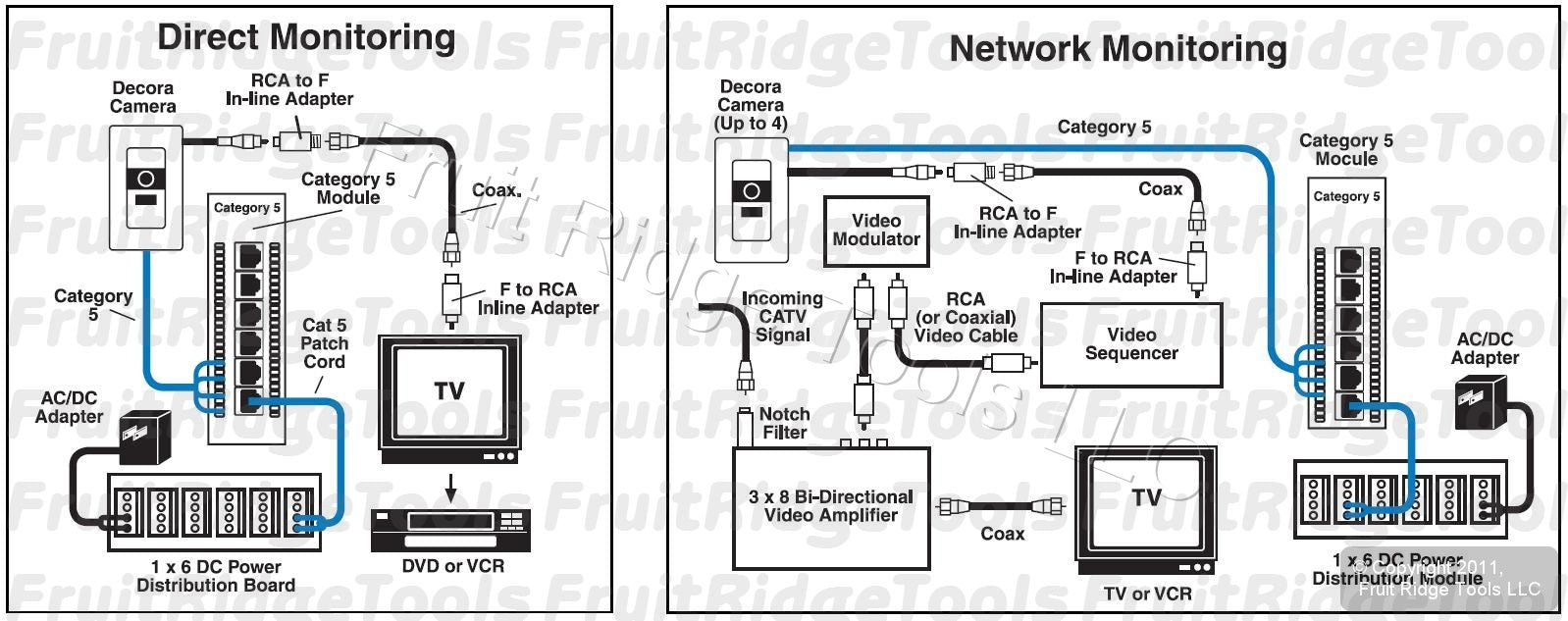

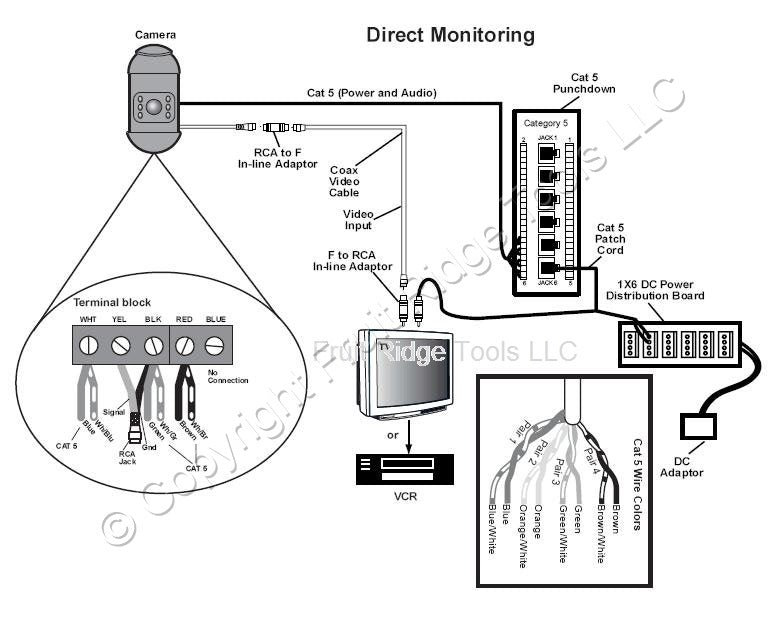

Can be wired alone for use with a dedicated monitor or with up to 4 other cameras and a sequencer such as the Leviton 48213-CVS Sequencer for use in a network system. See the wiring diagrams below for some examples of camera installations. Please note other components in the wiring diagrams are sold separately
Power: 12 VDC 55mA typical 70mA max.
CCD imager: 1/3" 310 TV lines, NTSC with S/N ratio 38 dB min.
