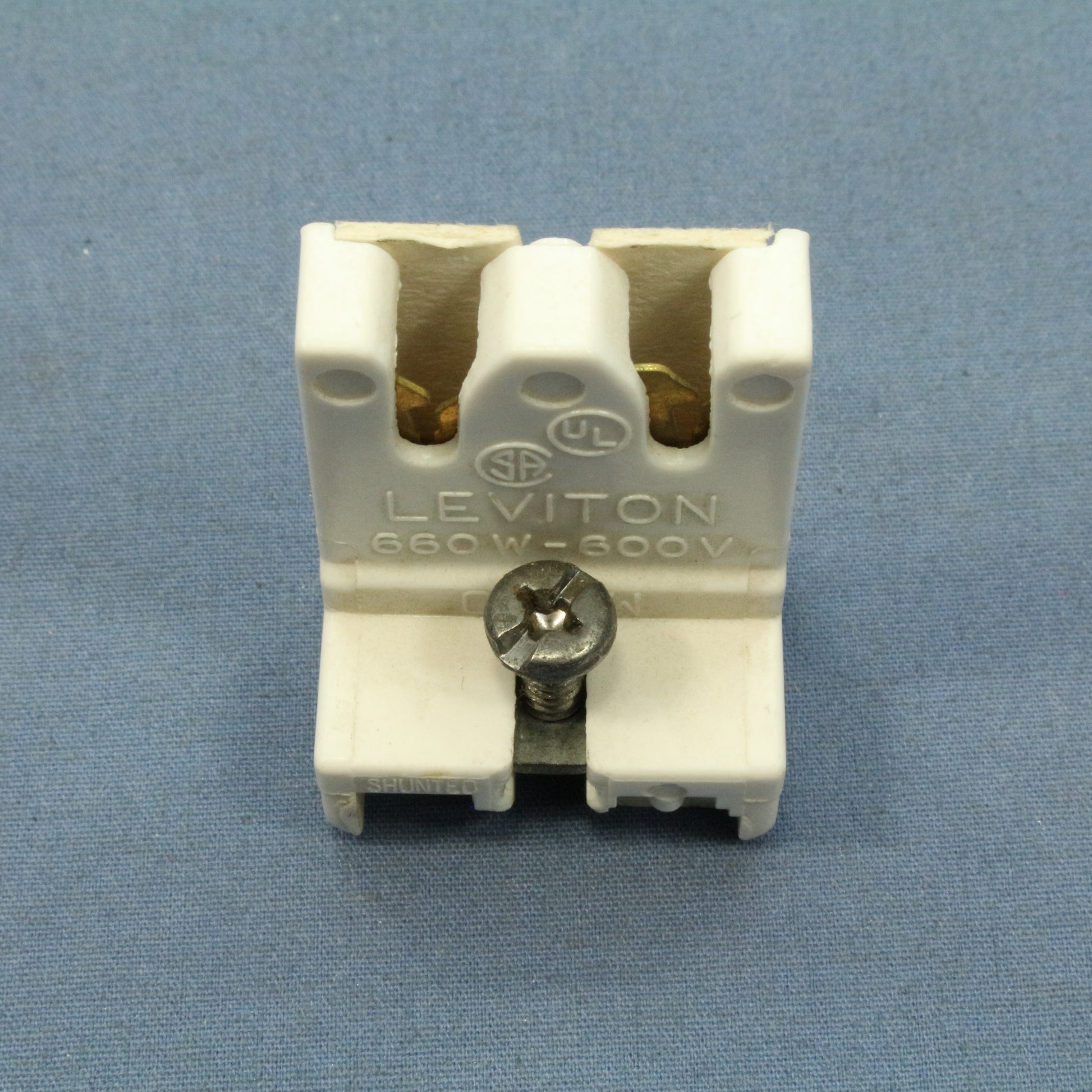

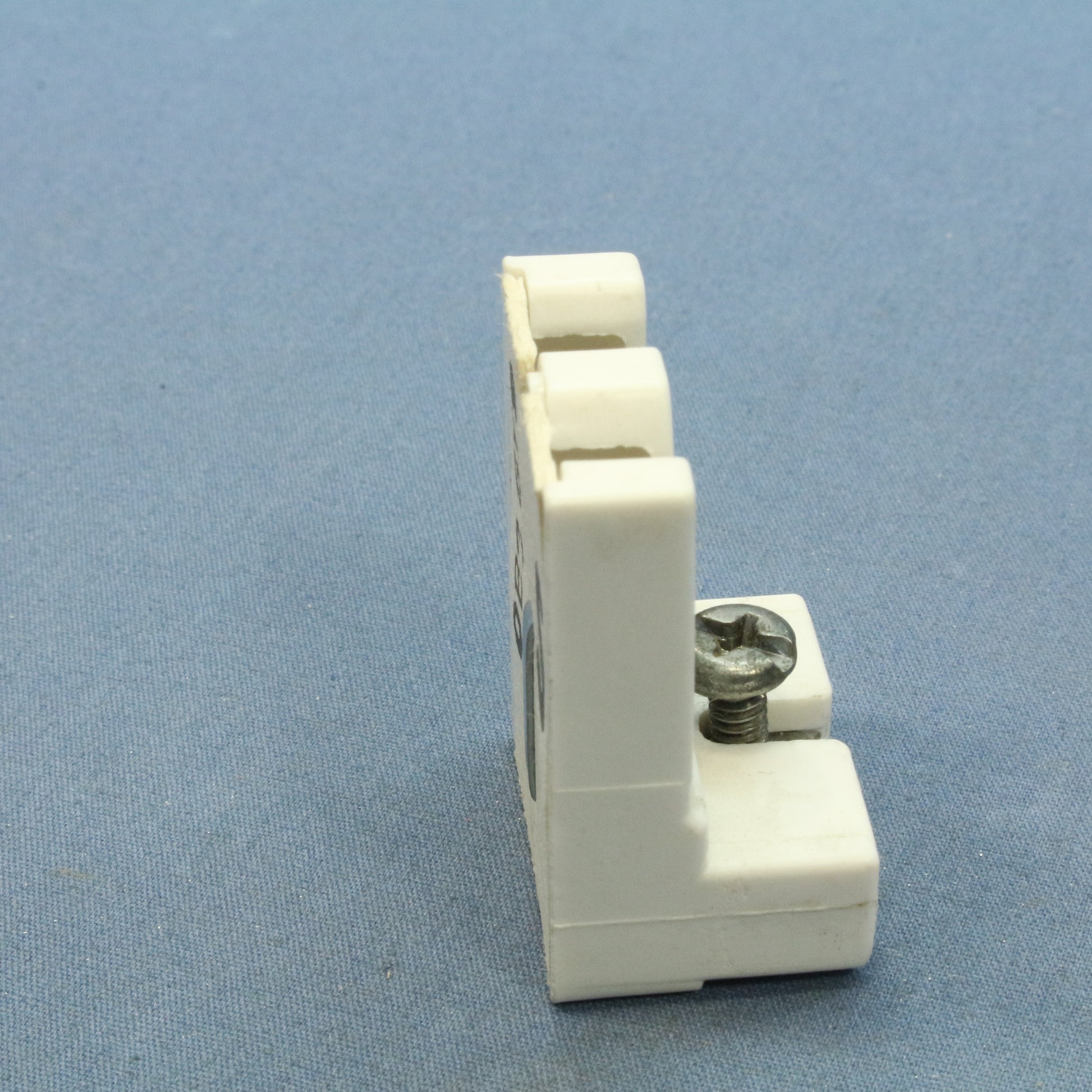

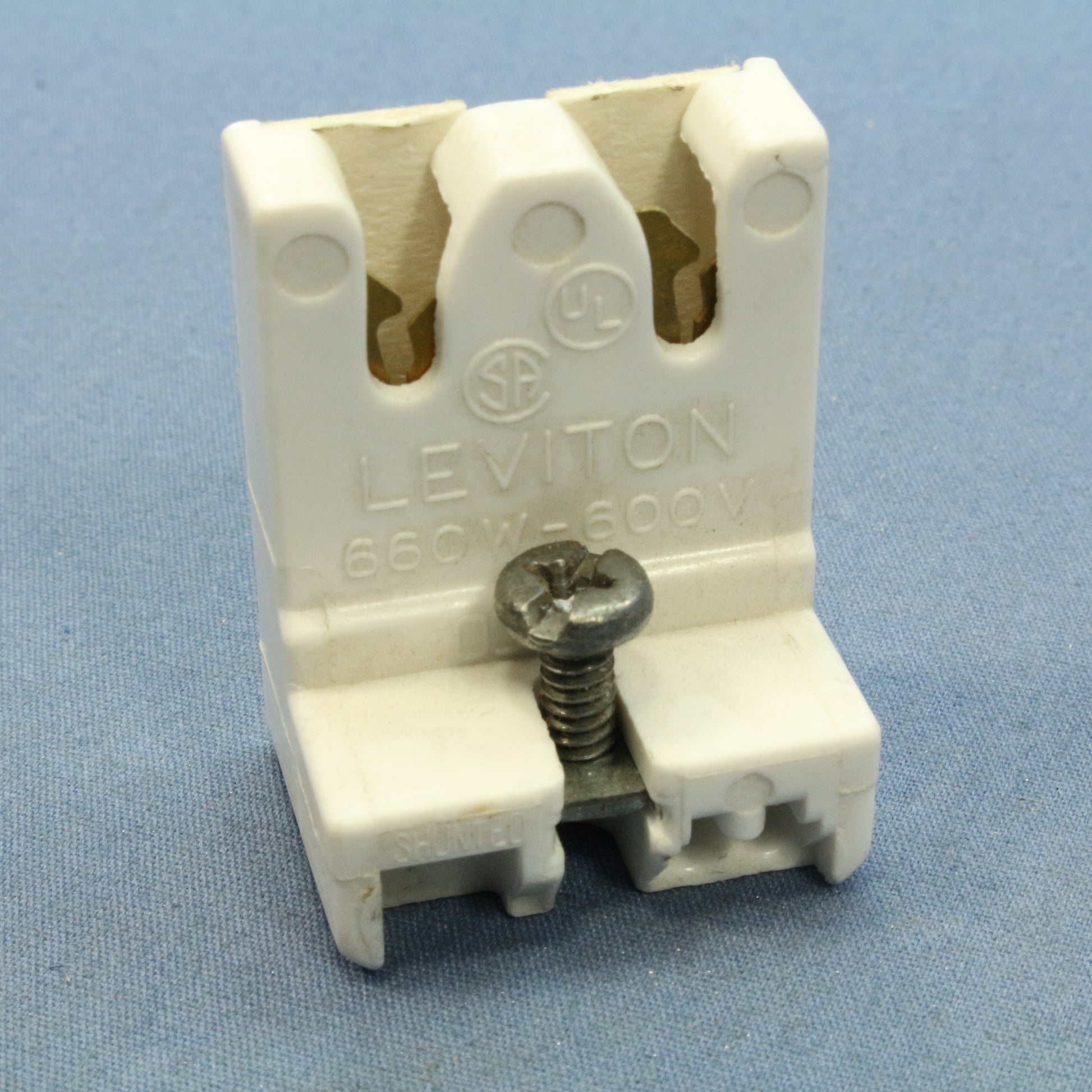

Leviton 23451-ONX white fluorescent lamp holder - for use with T-8 lamps only. Low profile panel mount design with 0.63" center lamp height. Molded thermosetting urea with copper-alloy, double edge contacts, and knife-edge contacts. Shunted lampholder is specially designed for use with electronic ballasts. Features include:
Medium Bi-Pin socket for T-8 fluorescent lamps only - G13 base
Recessed wire wells completely enclose conductor, insulating against shorts

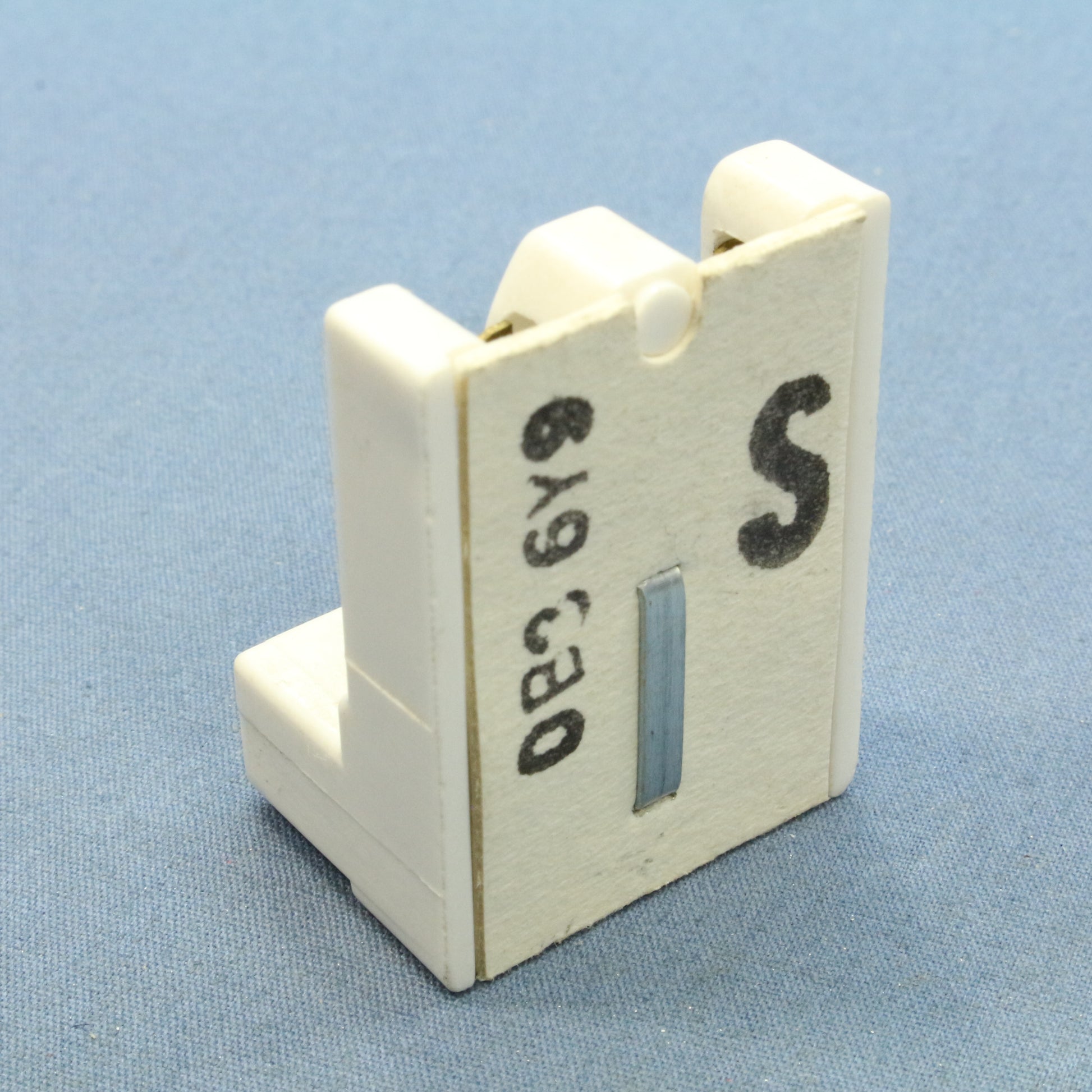

Large �S� identifies shunted version
Specially designed for use with electronic ballasts
Captive nut and screw are standard
Multiple terminal slots permit double connections at contact
Extra low profile panel mount design - 0.63" lamp center height
Quickwire termination for 18 AWG solid wire or tinned stranded wire
Rated 660W 600V
For use with standard 18-20 gauge panel thicknesses - fits standard 1" wide panel openings
