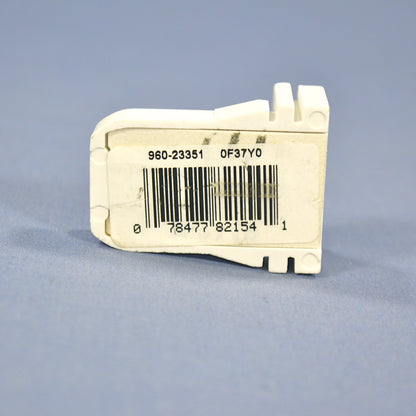

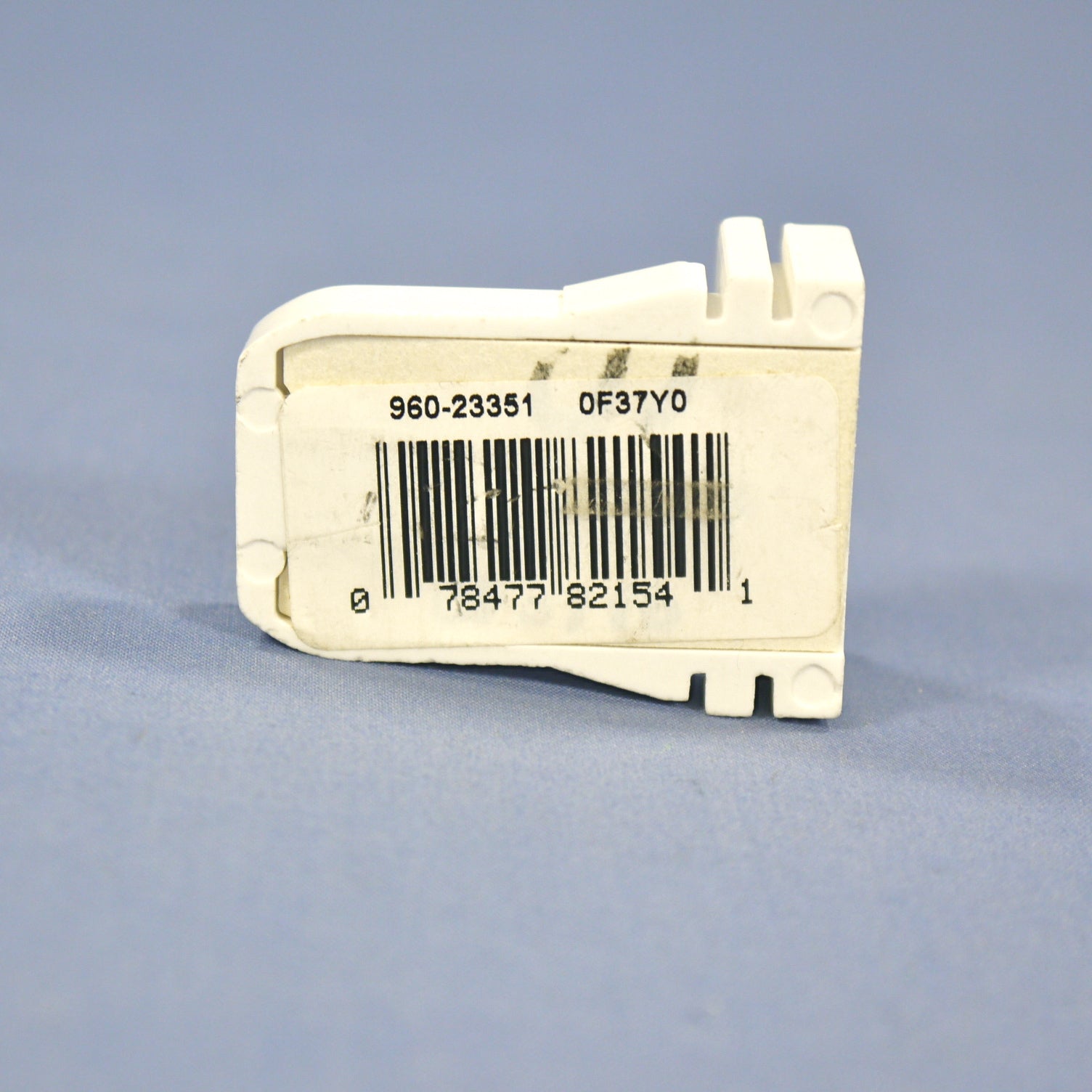

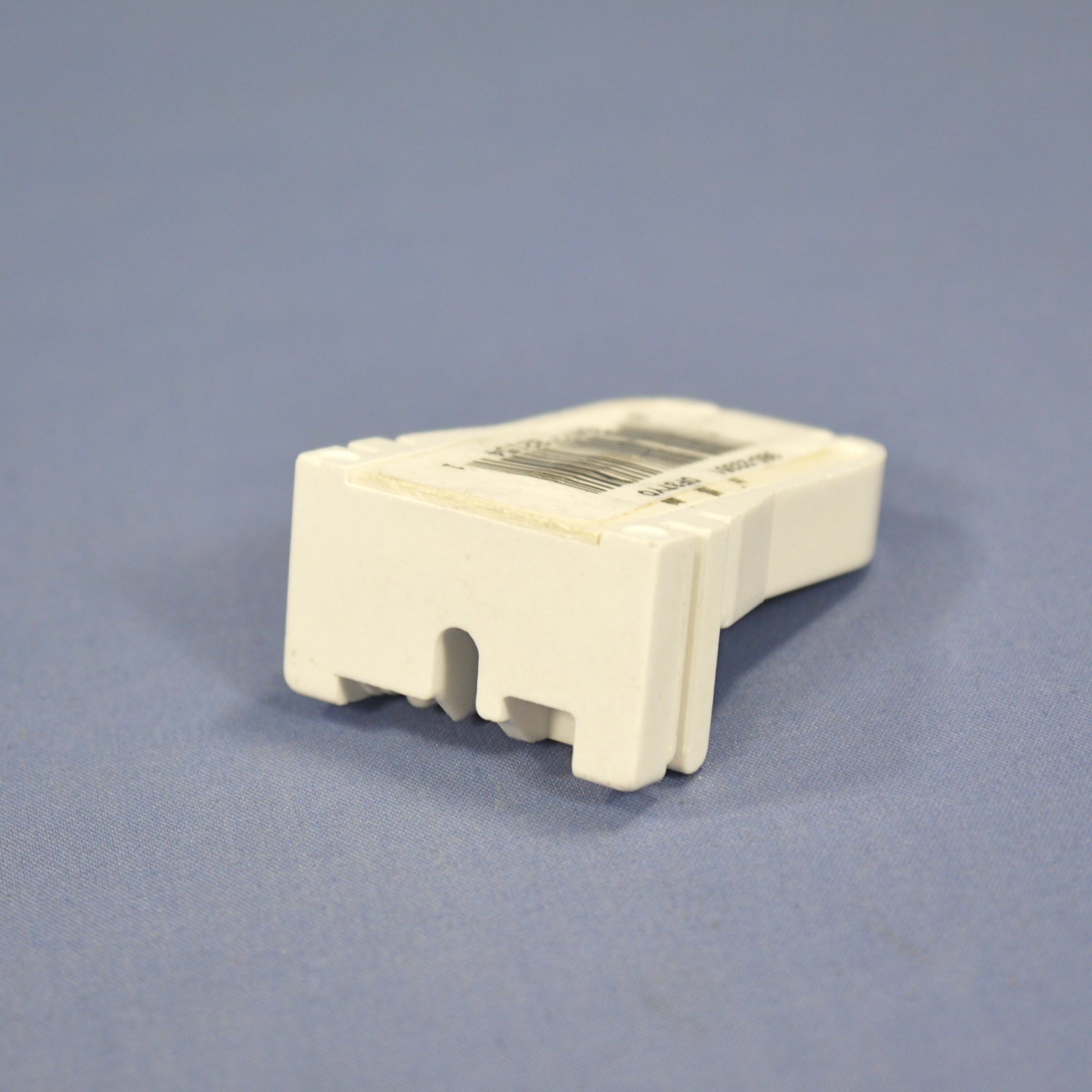

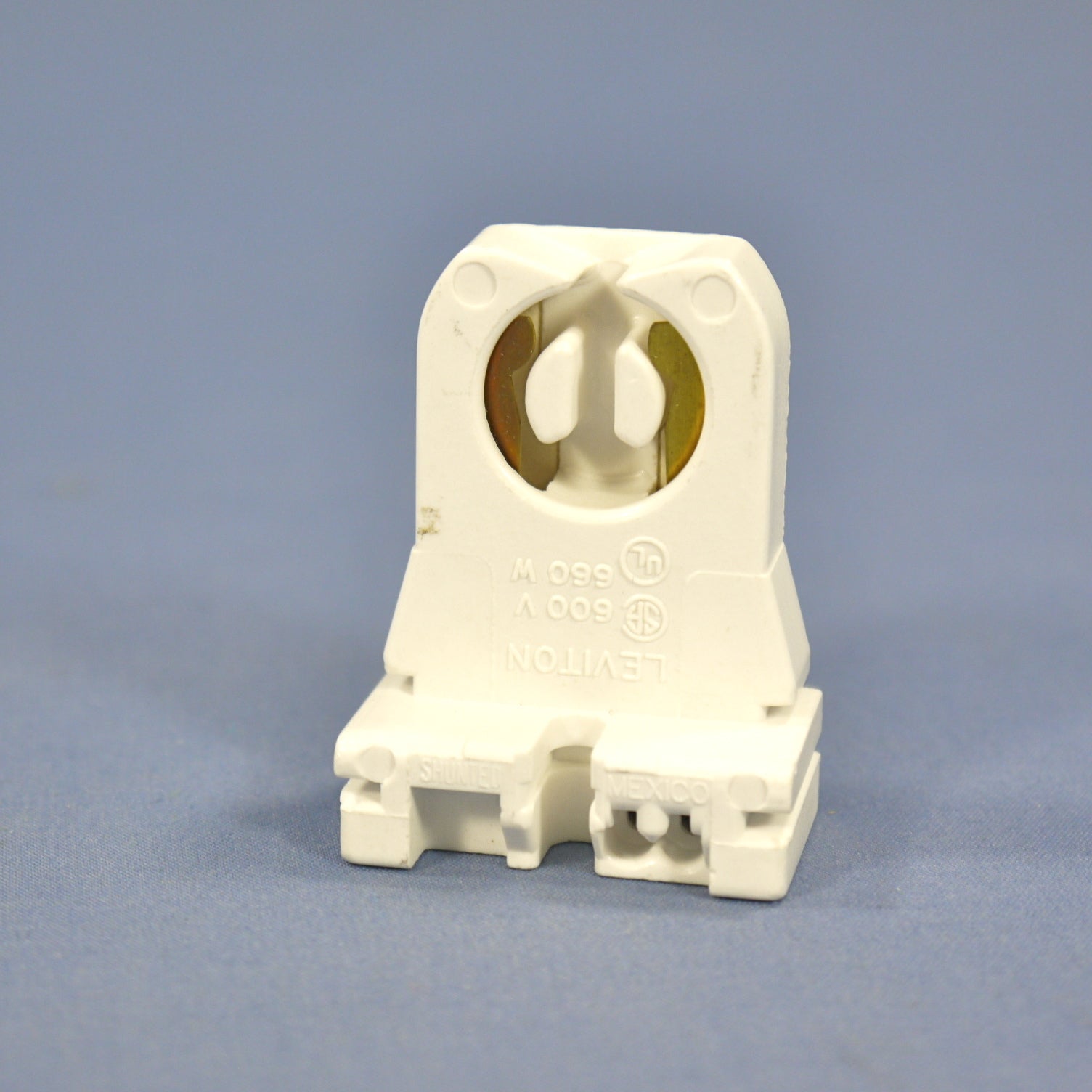

Leviton 23351 white fluorescent lamp holder with internal shunt connection for use with electronic ballasts. For use with T-8 lamps only. Low profile slide-on design with 0.88" center lamp height. Features include:
Medium Bi-Pin socket for T-8 fluorescent lamps only - G13 base
Recessed wire wells completely enclose conductor, insulating against shorts
Internal shunt connection for use with electronic ballasts; recessed wire well on one side of the lampholder is blocked off and labeled "SHUNTED"; back cover is stamped "S" to help prevent improper applications
Multiple terminal slots permit double connections at contact
Extra low profile slide-on design - 0.88" lamp center height
Quickwire termination for 18 AWG solid wire or tinned stranded wire
Rated 660W 600V
For use with standard 18-20 gauge panel thicknesses - fits standard 1" wide panel openings
