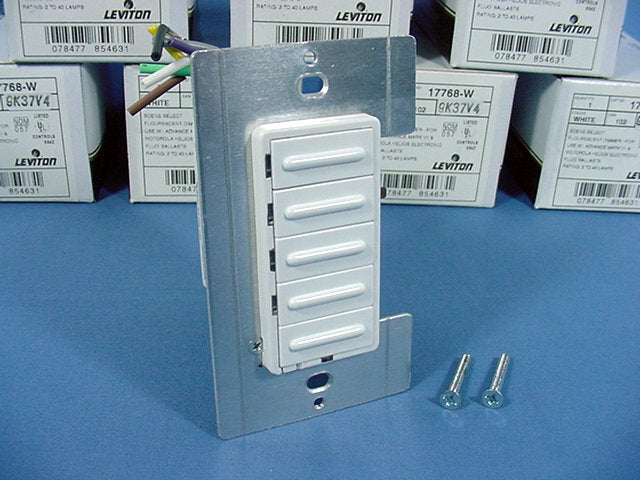

Leviton 17768-W White On/Off Scene Micro Dimmer Fluorescent Preset Switch 10pcs

10 Leviton 17768-W white Decora MicroDim Scene Selector dimmers. Four programmable dimming level buttons with LED indicators and separate ON/OFF preset button. Provides full range control of Advance Mark VII and Motorola Helios dimmable electronic fluorescent ballasts. When installed as part of a Scene Select network, provides multi-location scene dimming with the addition of Leviton 17700 Scene Select Masters. Check the additional photos to see wiring diagrams of typical network installations. Can be installed with a variety of Leviton MicroDim devices to provide sophisticated lighting schemes. Please note that both single pole and multi-location installations require a Leviton 9900 Series Control Unit to interface with the ballast. Features include:

• For use with Advance Mark VII and Motorola Helios electronic dimmable ballasts only - rated 3W 120VAC 60Hz for 2 to 40 lamps
• Requires Leviton 9900 Series Control Unit (or equivalent) to operate
• May be used in a Scene Selector network or alone with a single fixture for ON/OFF and four preset brightness levels
• Multi-preset with LED indicators - each of the presets can be programmed to any lighting level in the dimming range, including OFF
• Up to twenty Scene Dimmers can be used with a Scene Controller, accommodating sophisticated scene lighting designs
• Locator LED illuminated when lights are OFF to make it easier to find switch in the dark
• Protected memory and voltage compensation maintain light levels after power outages and during minor power fluctuations
• Encapsulated, gold-surfaced touch contacts resist humidity and wear
• Wraparound mounting strap provides efficient heat dissipation and ease of installation
• Superior RFI filtering coil
• ON/OFF AC air gap switch completely disconnects power to unit for bulb changing or removal from service
• Low-end trim adjustment permits setting of minimum brightness level
• Includes pre-printed button labels
• Wallplate sold separately
