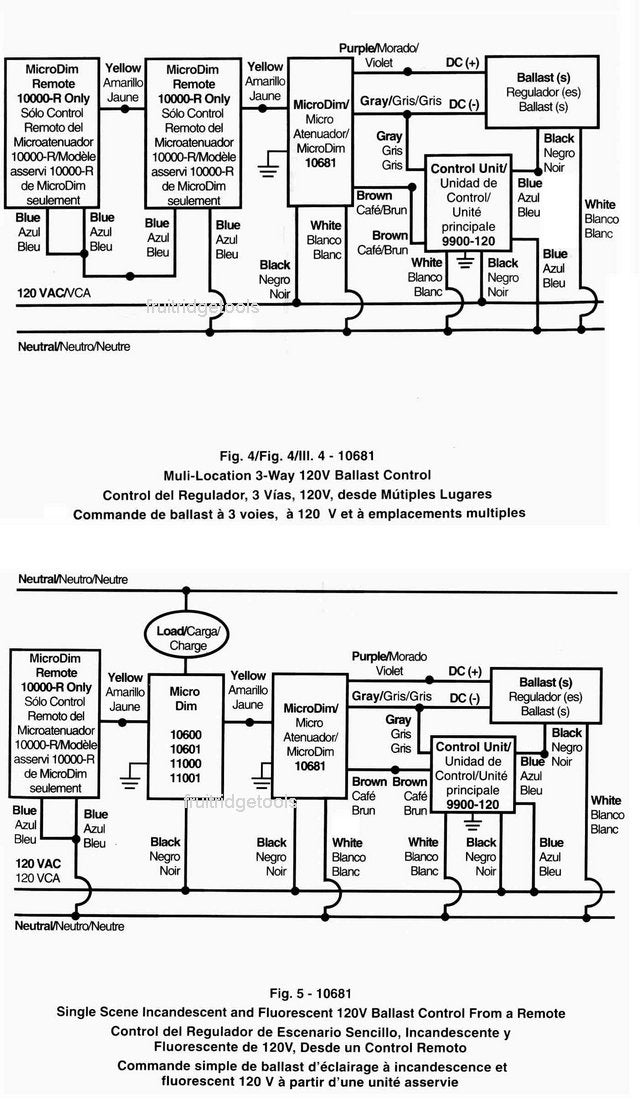

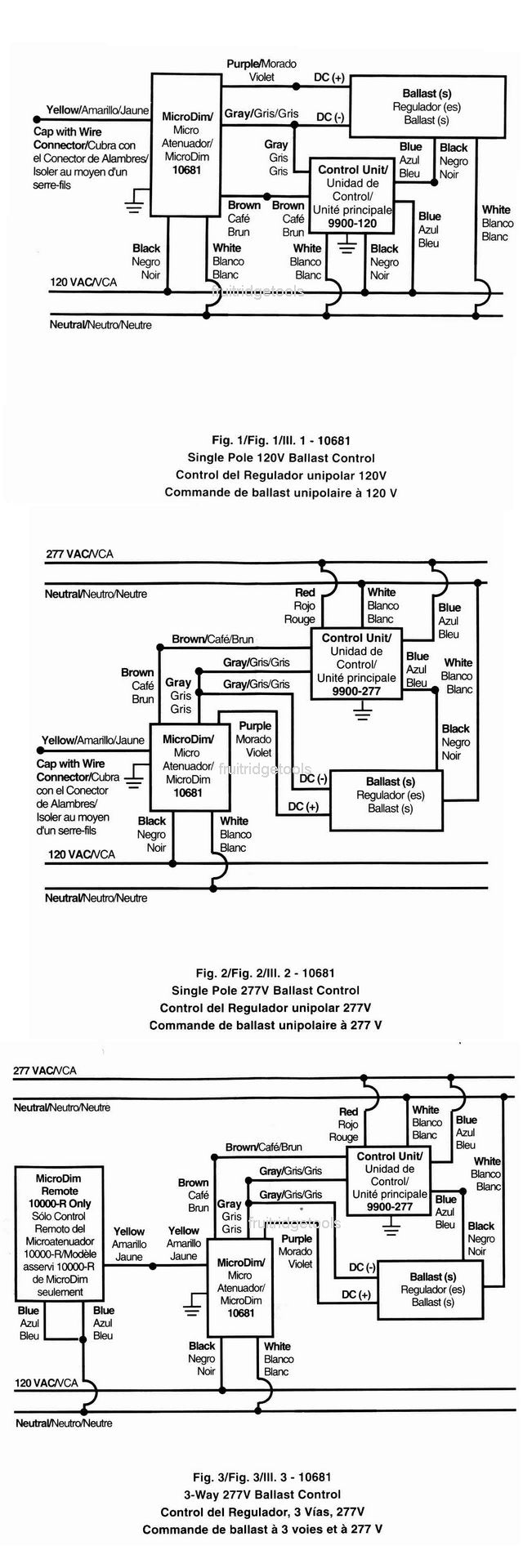

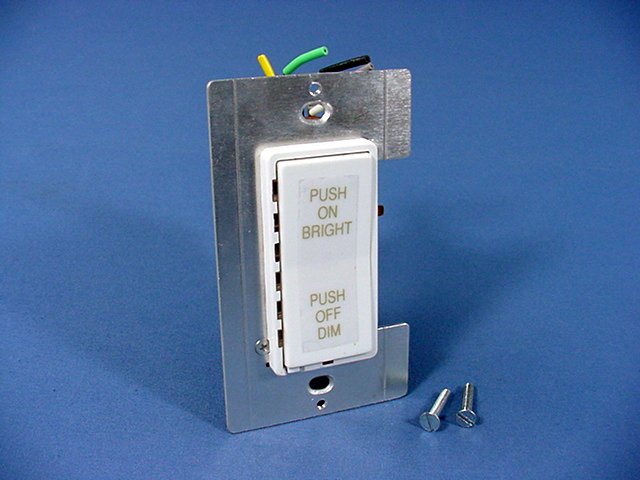

Leviton 10681-W white Decora MicroDim dimmer. Provides full range control of Advance Mark VII and Motorola Helios dimmable electronic fluorescent ballasts. When installed as part of a Scene Select network, provides multi-location scene dimming with the addition of Leviton 10000-R Remotes. Check the additional photos to see wiring diagrams of typical network installations. Can be installed with a variety of Leviton MicroDim devices to provide sophisticated lighting schemes. Please note that both single pole and multi-location installations require a Leviton 9900 Series Control Unit to interface with the fluorescent ballast. Features include:

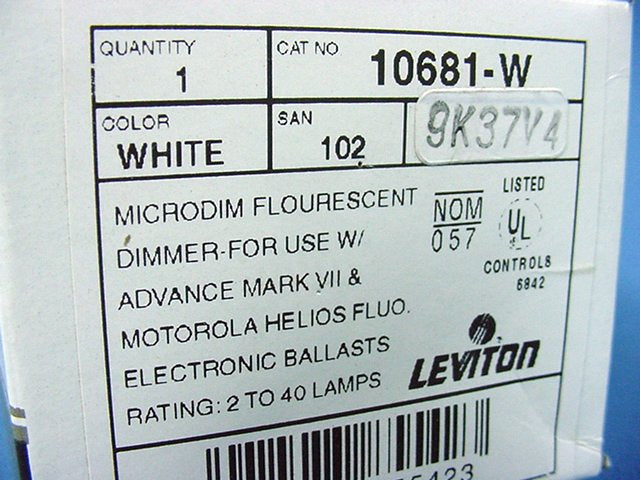

For use with Advance Mark VII and Motorola Helios electronic dimmable ballasts only - rated 3W 120VAC 60Hz for 2 to 40 lamps
Up to twenty Scene Dimmers can be used with a Scene Controller, accommodating sophisticated scene lighting designs
Locator LED illuminated when lights are OFF to make it easier to find switch in the dark
Protected memory and voltage compensation maintain light levels after power outages and during minor power fluctuations
LED display at left side provides visual feedback of dimming level
Encapsulated, gold-surfaced touch contacts resist humidity and wear
Wraparound mounting strap provides efficient heat dissipation and ease of installation
Superior RFI filtering coil
ON/OFF AC air gap switch completely disconnects power to unit for bulb changing or removal from service
Low-end trim adjustment permits setting of minimum brightness level
