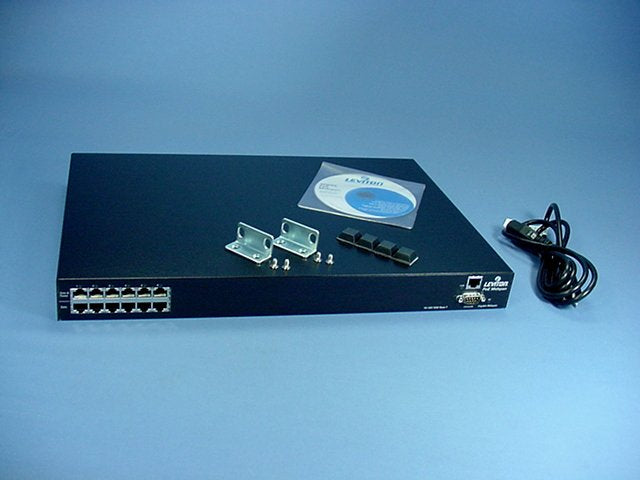

Leviton 100-M3006-1UB black 6-Port PoE Midspan adds 48 VDC to unused (non-data) wires in standard Cat 5/5E/6 Ethernet Cable, delivering both data and power to the terminal. Please note this item is not a repeater and does not amplify the Ethernet data signal and does not have a on/off switch. Features include:
Supports 10/100mbps devices
IEEE 802.3af compliant
Power distribution over CAT 5/5e/6 LAN infrastructure
Interlocking feature connects multiple units and detects PoE-ready devices
Port status indicators
Universal range power input
Protects non-PoE terminals
Maybe wall/bench mounted using rear side holes

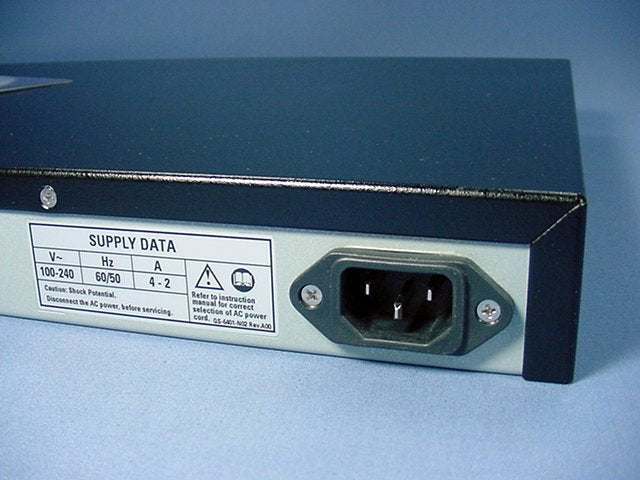

Voltage Required: AC 90-264 V
Power Output Connectors Details 6 x RJ-45
Output Voltage: 48 V
Power Capacity: 100 Watt
Power Provided: 100 Watt
Frequency Required: 47 - 63 Hz
Form Factor: rack-mountable
Voltage Provided: 48 V
Output Connector: Type RJ-45
Output Connector: Qty 6
Power Device Features: LED indicators, overload protection, short-circuit protection
