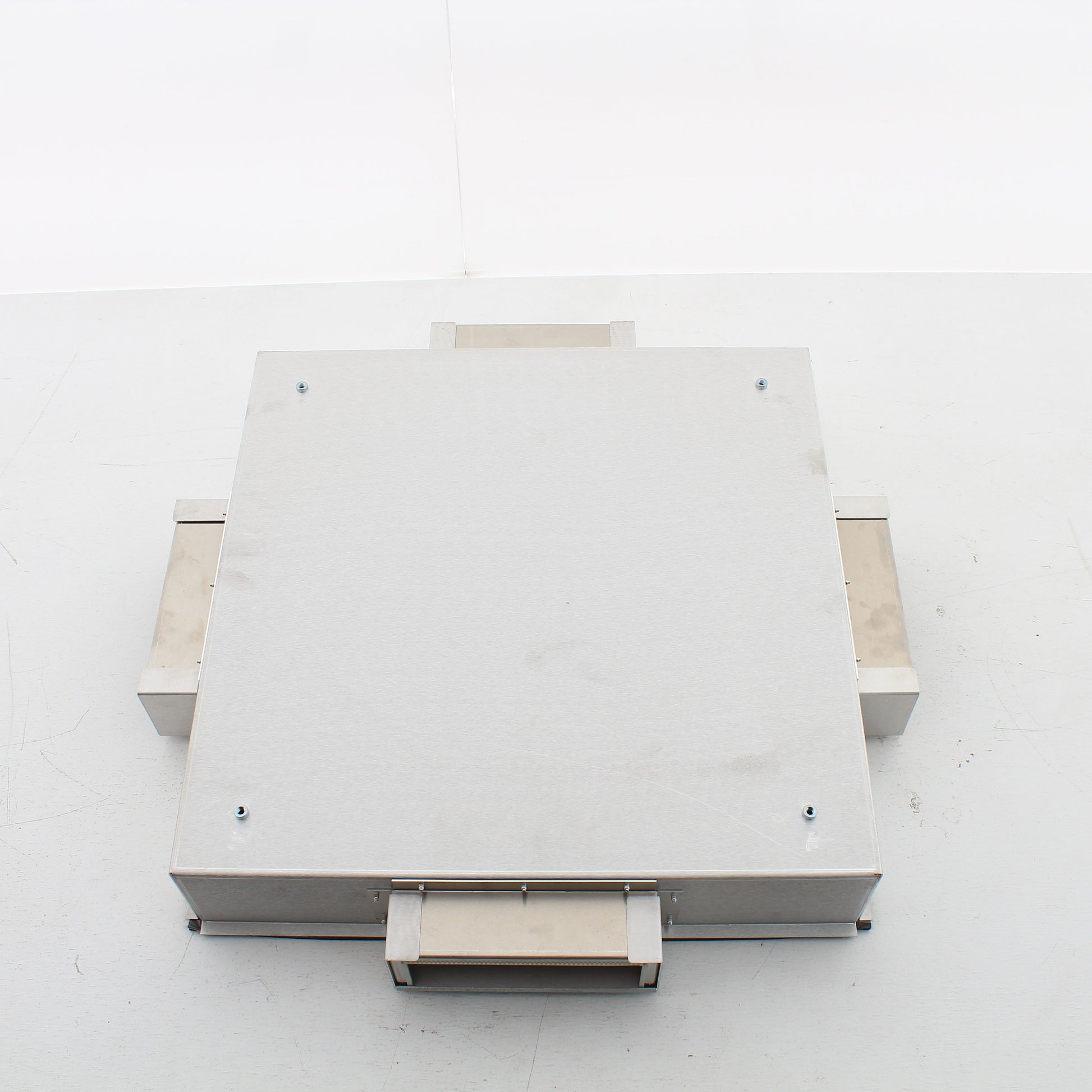

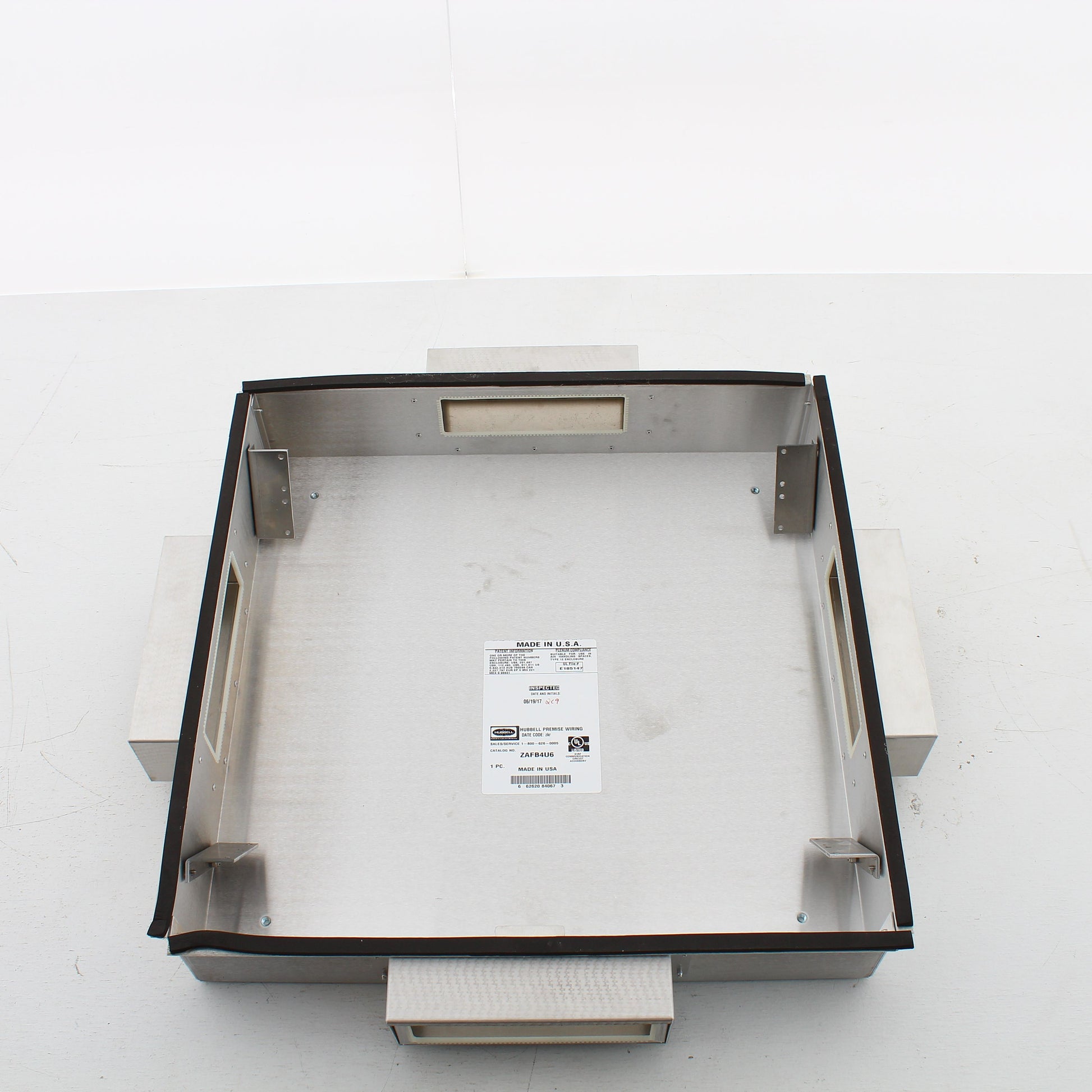

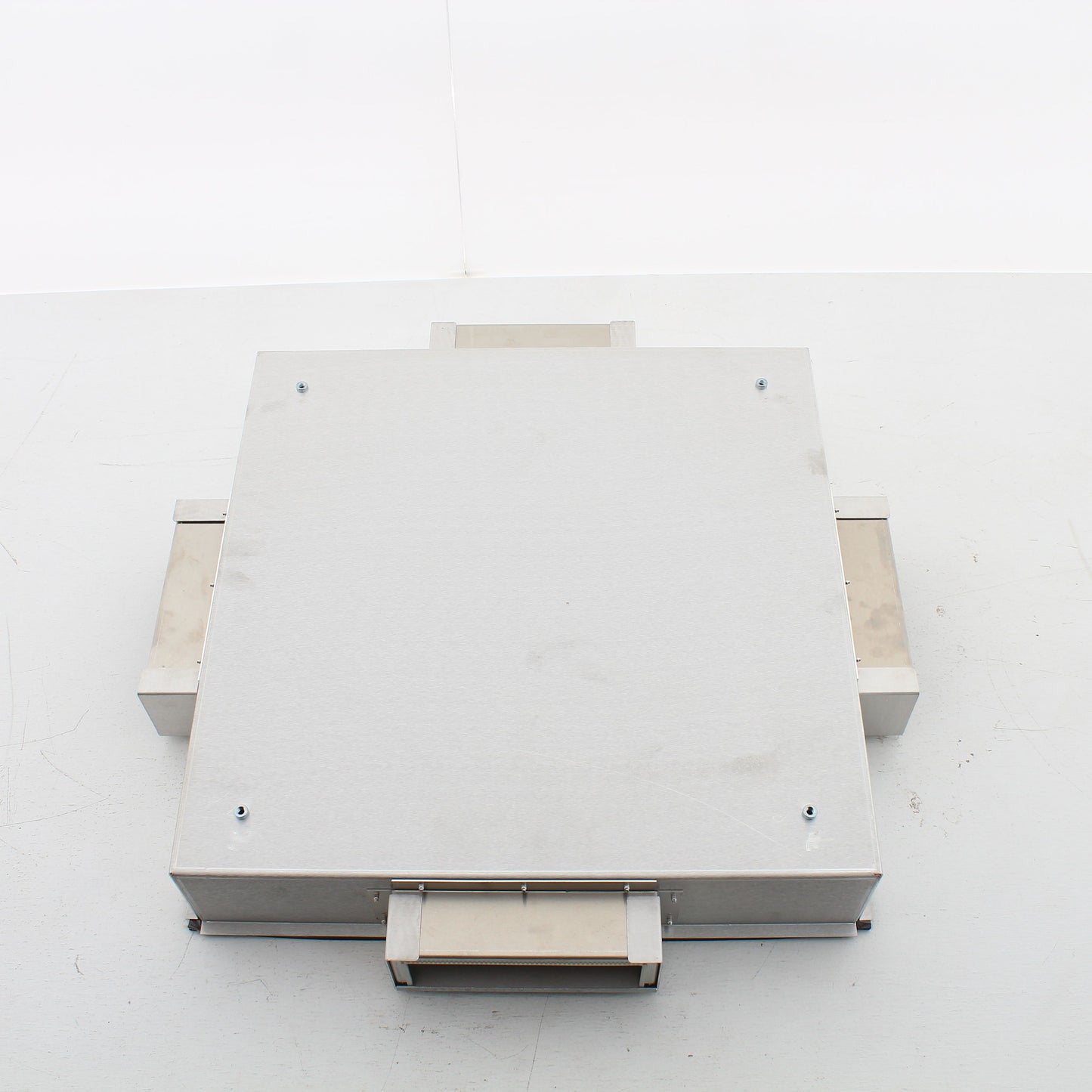

Hubbell ZAFB4U6 zone access floor box. Hubbell's ZOBOX Zone Boxes for raised access floor applications are rugged, high-capacity boxes designed for zone cabling. Engineered for low voltage, standard 19" rack mountable panels, the brackets mount at a 45� angle. The mounting brackets swivel down for easy accessibility when terminating during moves, adds and changes. In addition, the design allows for proper cable bend radius. Features include:
Plenum rated
Rack capacity: 4 rack units
Maximum port capacity: 96 ports
External dimensions: 4.12"h x 21.9"w x 21.9"d; Internal dimensions: 4"h x 21"w x 21"d
Minimum floor depth: 6"
Cable entry dimensions: 3.5" x 11"
0.060" thick aluminum enclosure
Pre-tapped holes in brackets - 12-24 threads
Mounts in standard 24" x 24" raised floor panel space

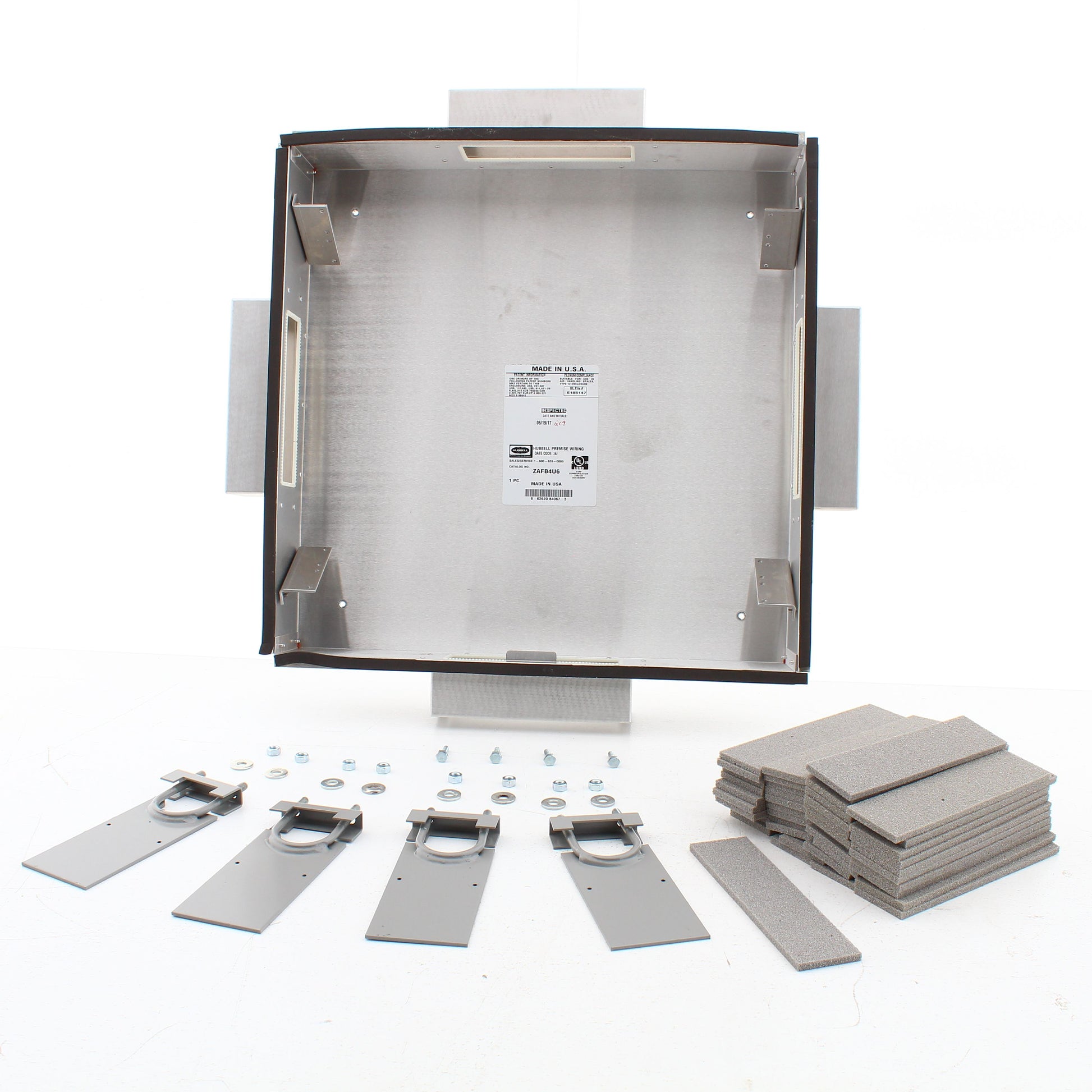

Includes: enclosure, fire-rated foam kits for cable entries and exits, leveler bolts, support brackets and cable entry port covers
