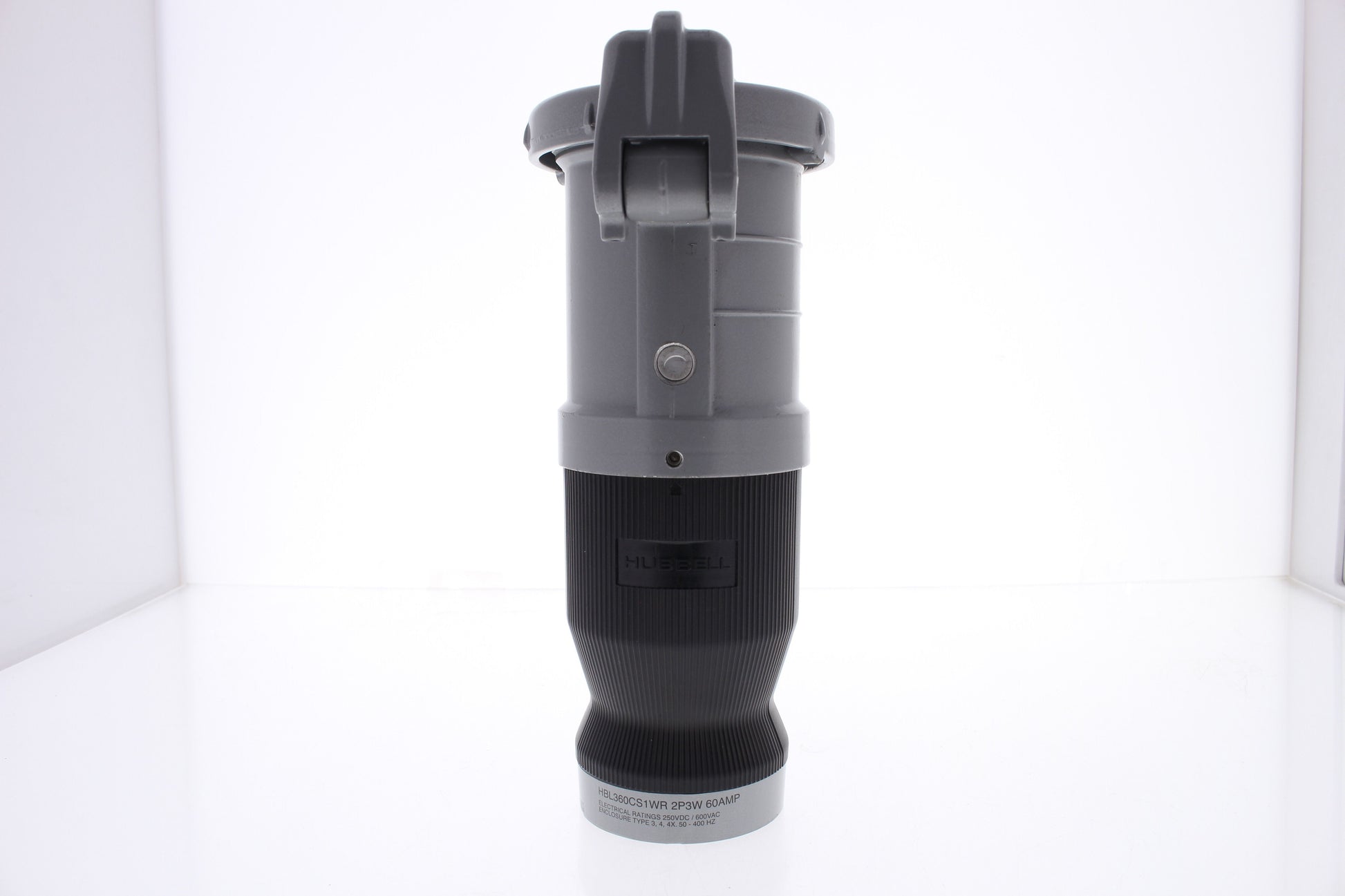

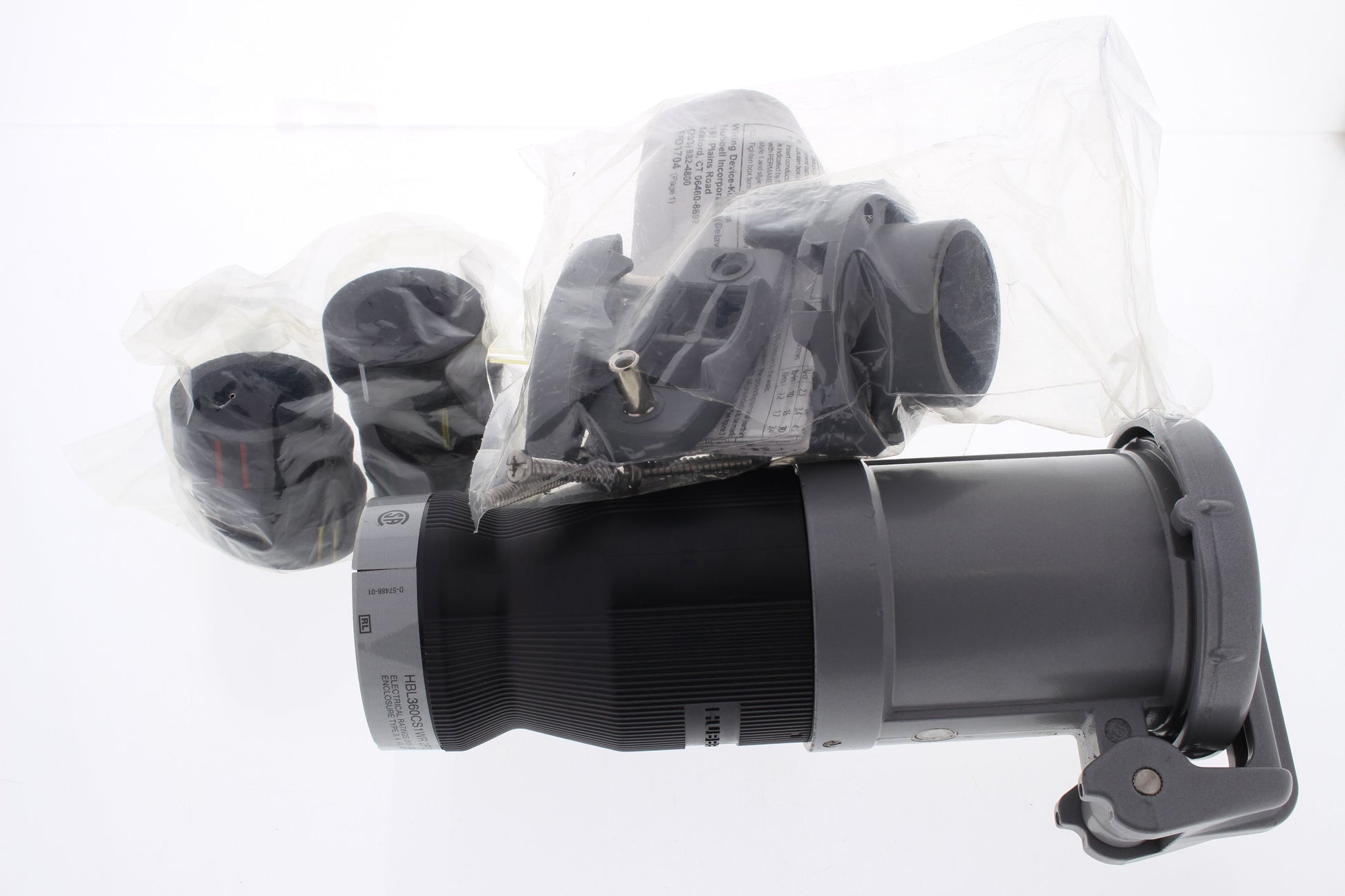

Hubbell HBL360CS1WR watertight pin and sleeve reverse service connector (Style 1 Insulgrip). Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 60A 600VAC, 60A 250VDC. Each is individually packaged; packaging may differ from photo. Features include:

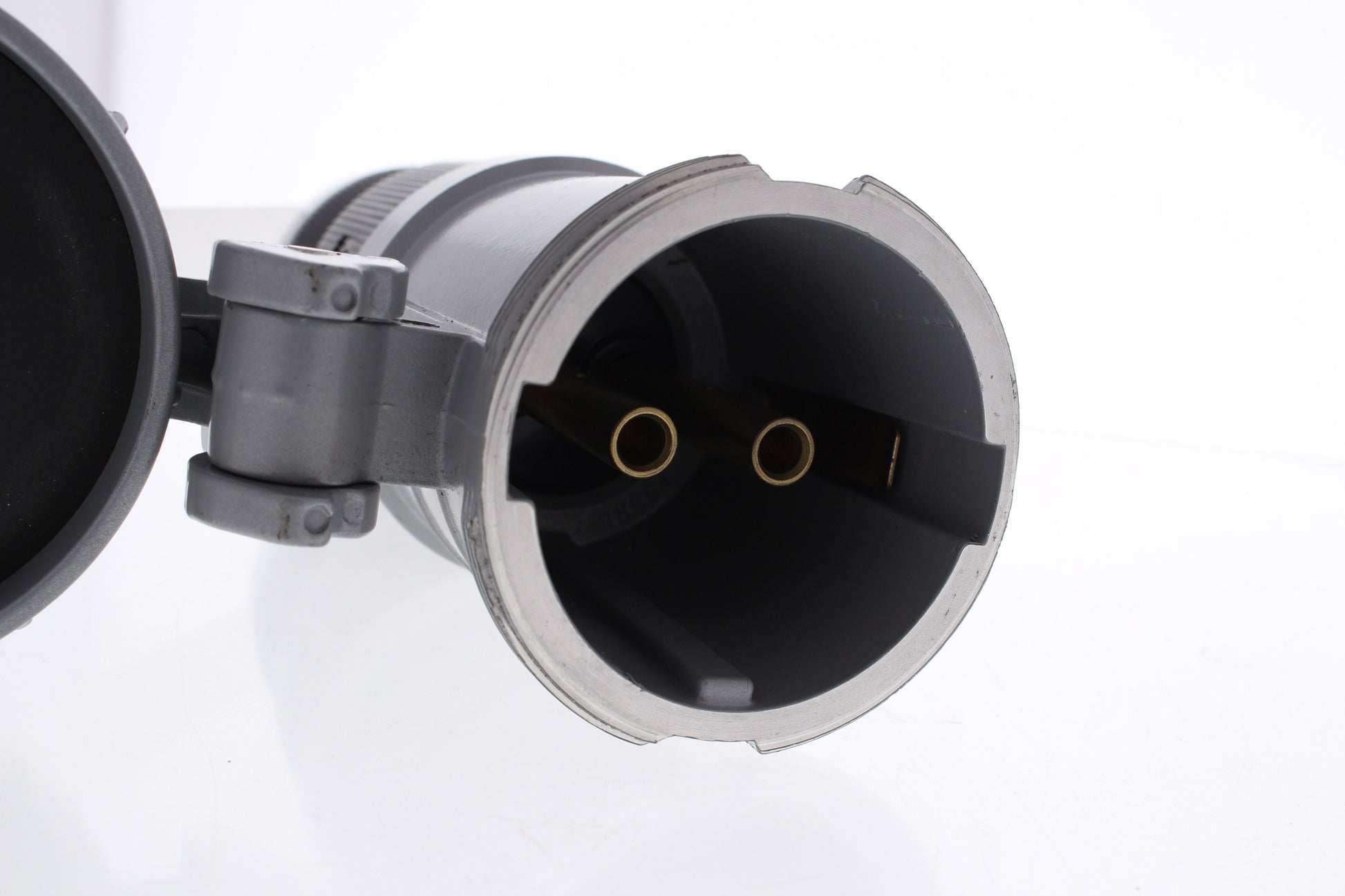

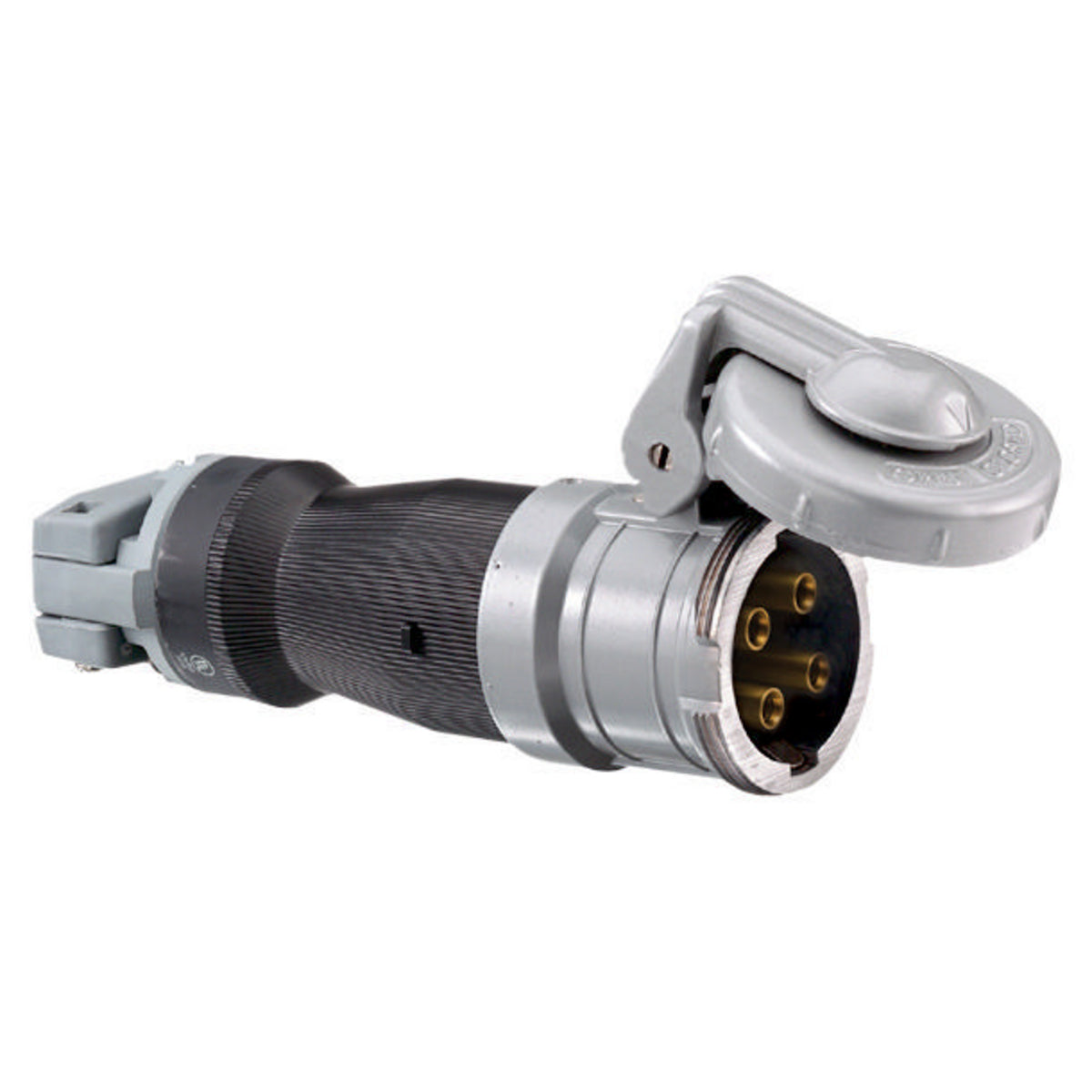

This is a reversed service connector (a plug inside a connector body)
External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings

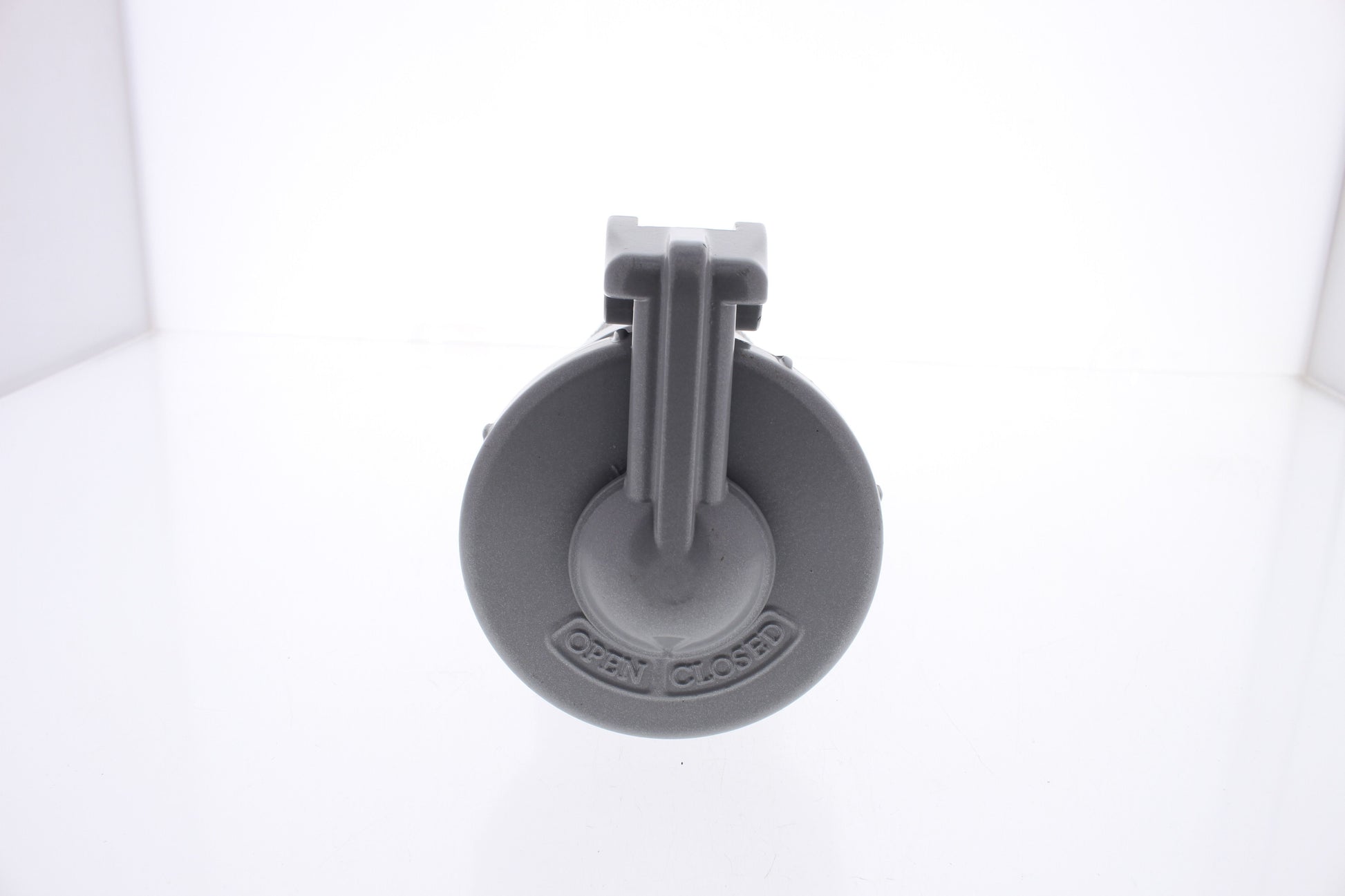

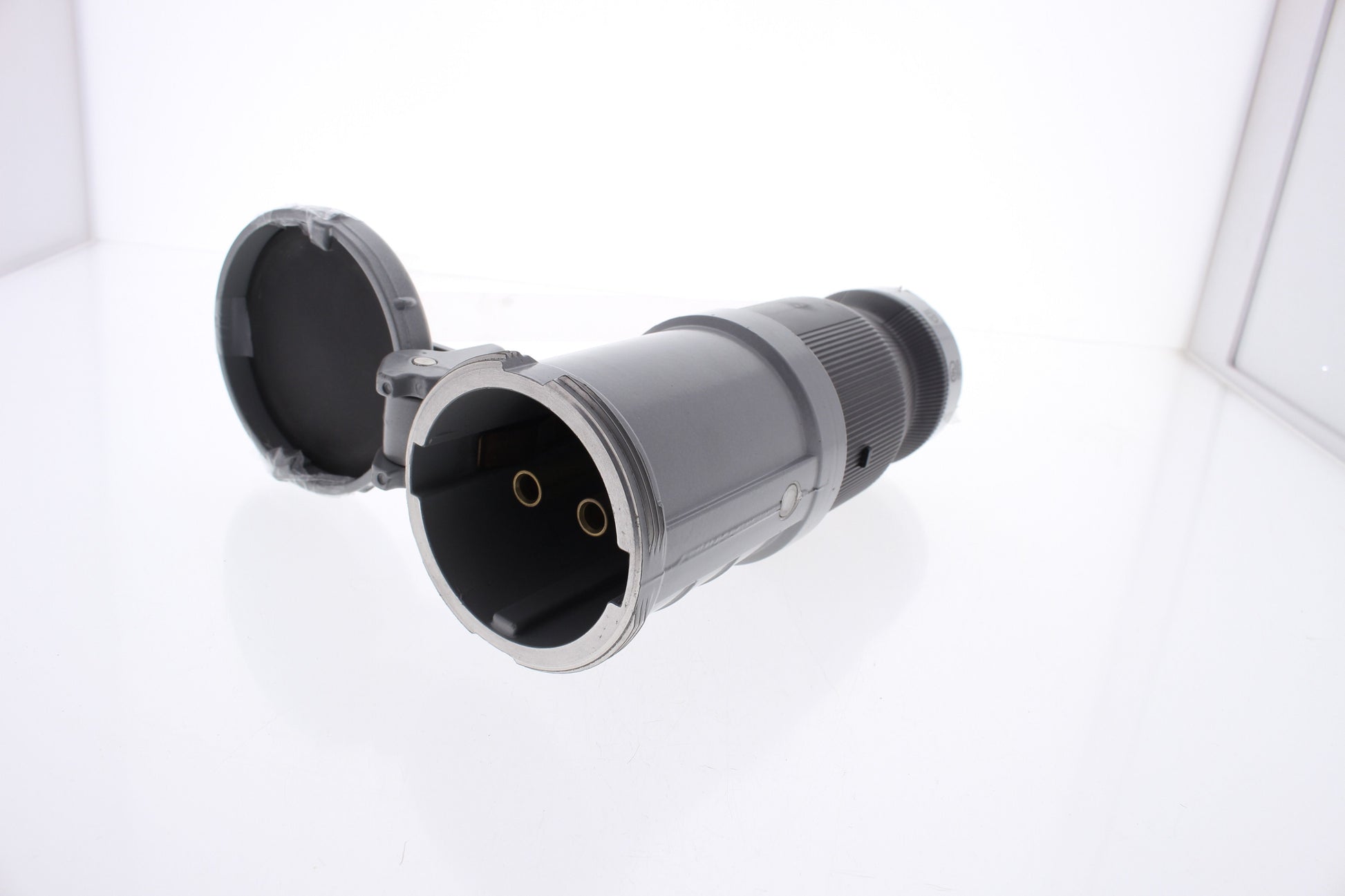

Self-closing gasketed cover, detents into position to fully close automatically
Sequential contact engagement: ground makes first and breaks last; neutral makes second and breaks second (to prevent a momentary over-voltage on components connected phase to neutral); and phase contacts make last and break first

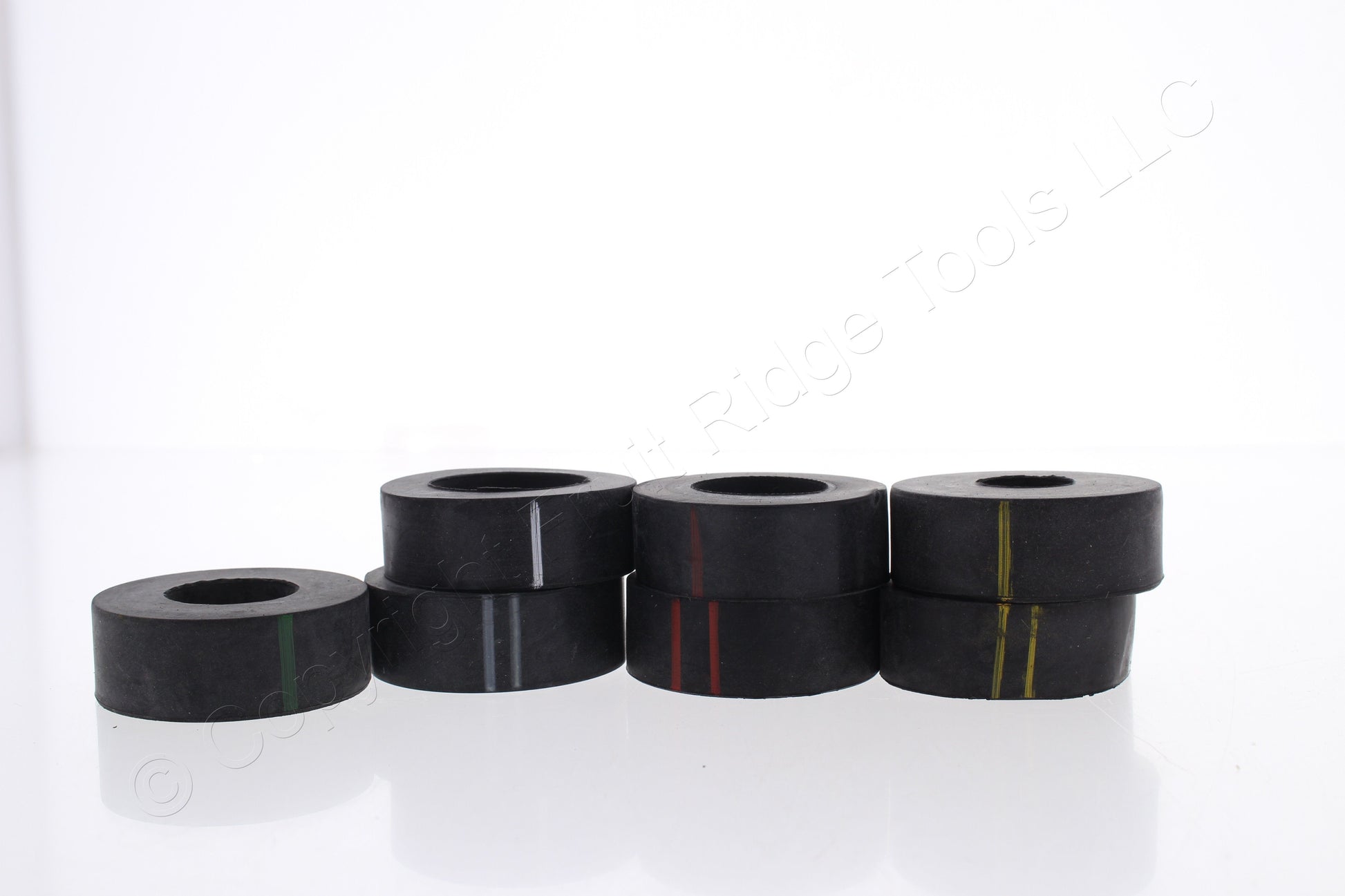

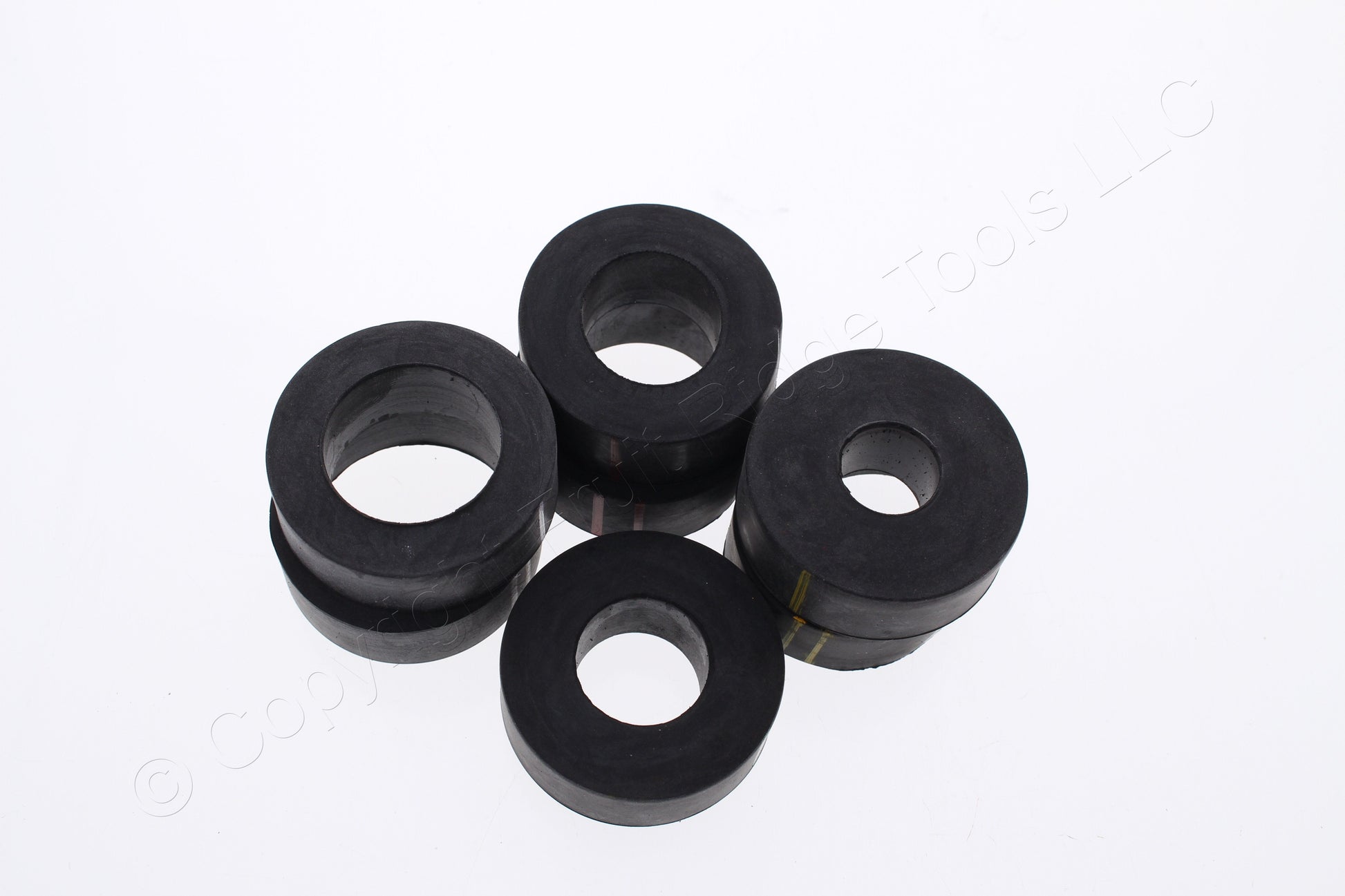

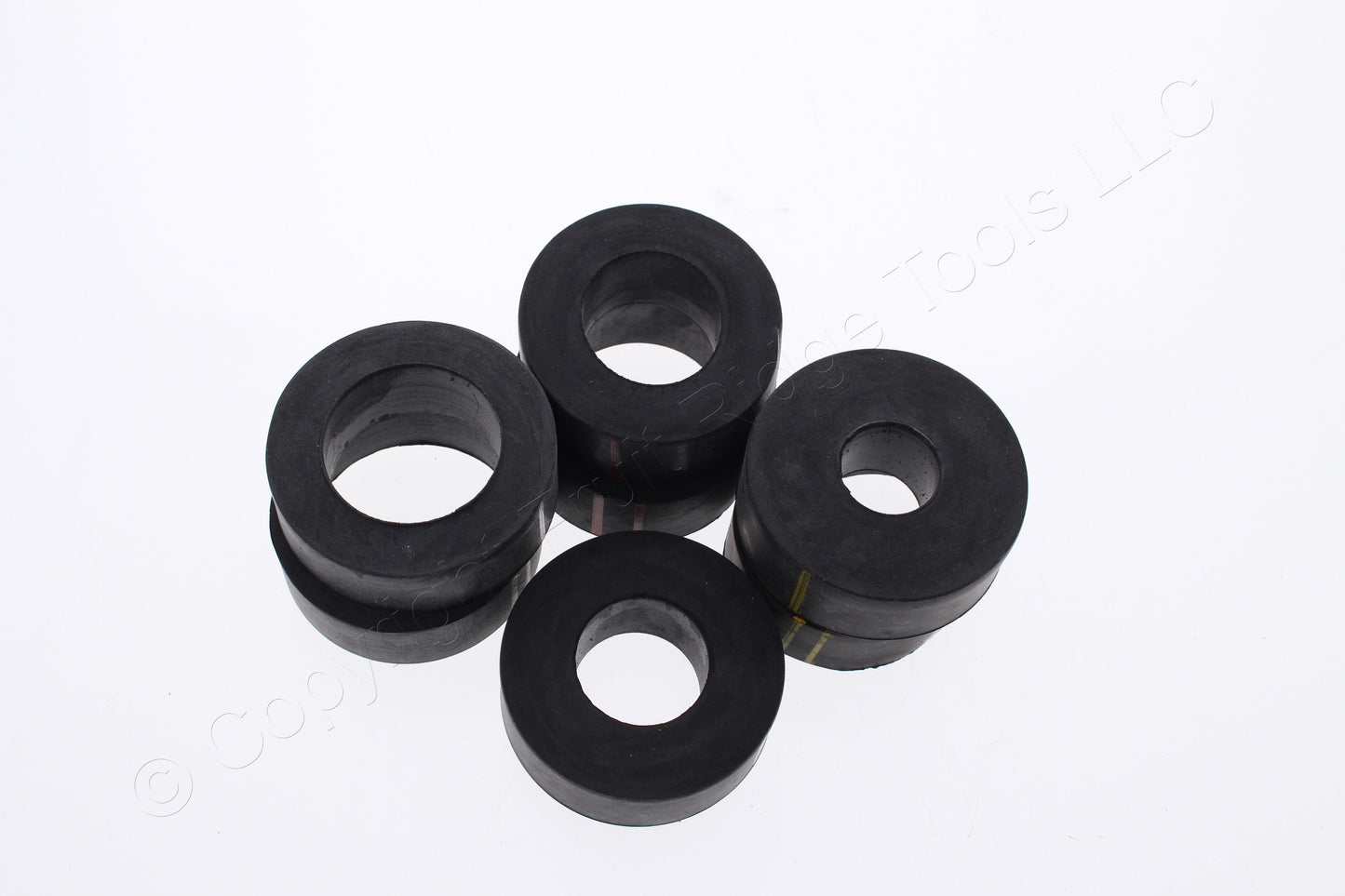

Tapered bore entrance creates high compression forces on sealing gland, providing a watertight seal around cord. Individual solid neoprene glands are supplied to match a full range of cord sizes and assure watertight performance,

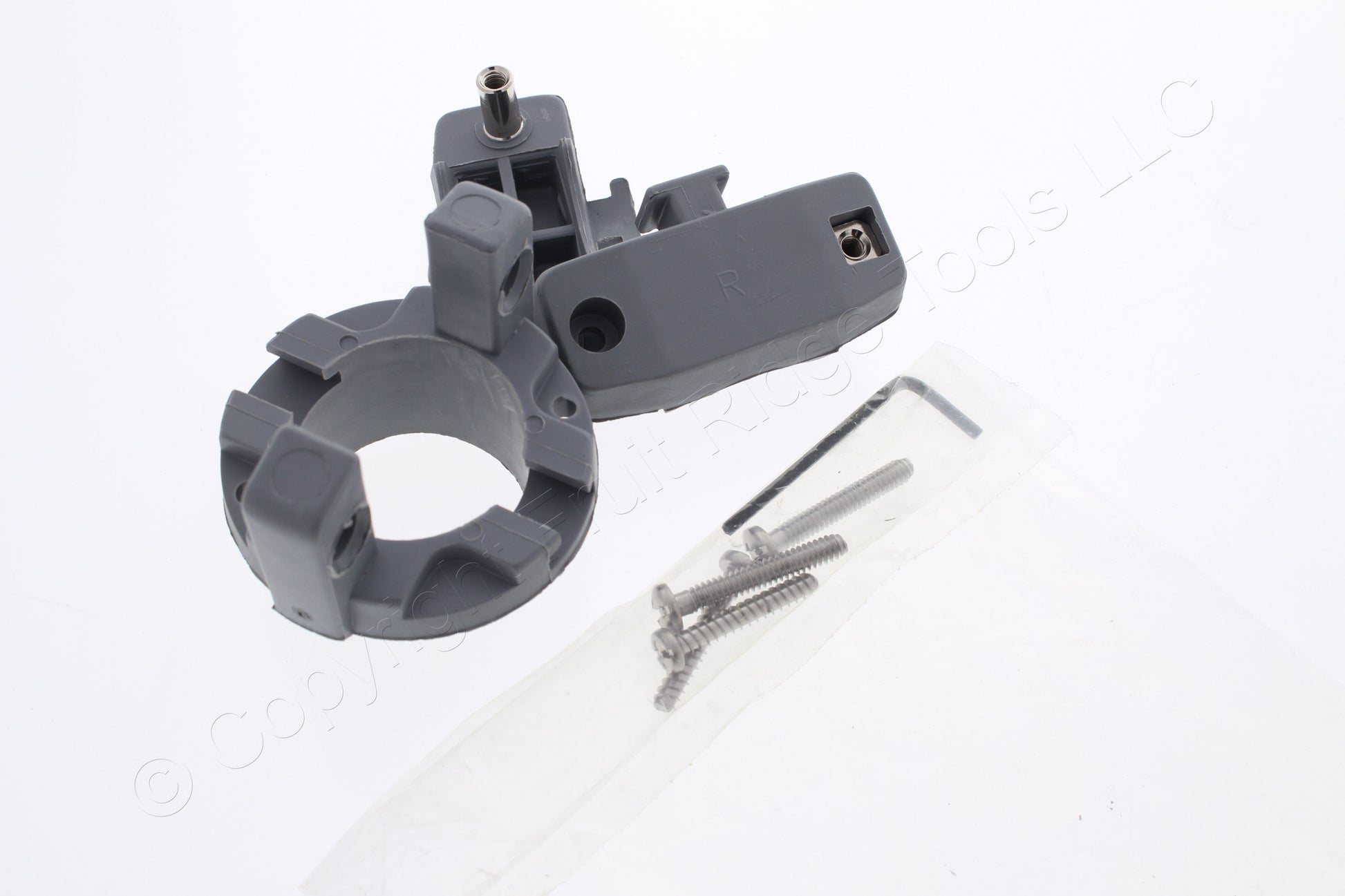

Cord grip incorporates two molded-in teeth to securely grip the outer cable jacket, and internal conductors to prevent slippage and strain on terminations. Captive barrel nuts ease assembly and allow higher tightening torque for maximum cord retention
Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environments
