Hubbell Watertight Pin & Sleeve Connector Female Plug 20A 125/250V HBL420C12WM2

Hubbell HBL420C12WM2 watertight pin and sleeve connector. Industrial Grade, IEC 309, 3-pole, 4-wire, grounding, rated 20A 125/250V AC. Bulk packed loose with no individual packaging or instructions. Features include:

• External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings

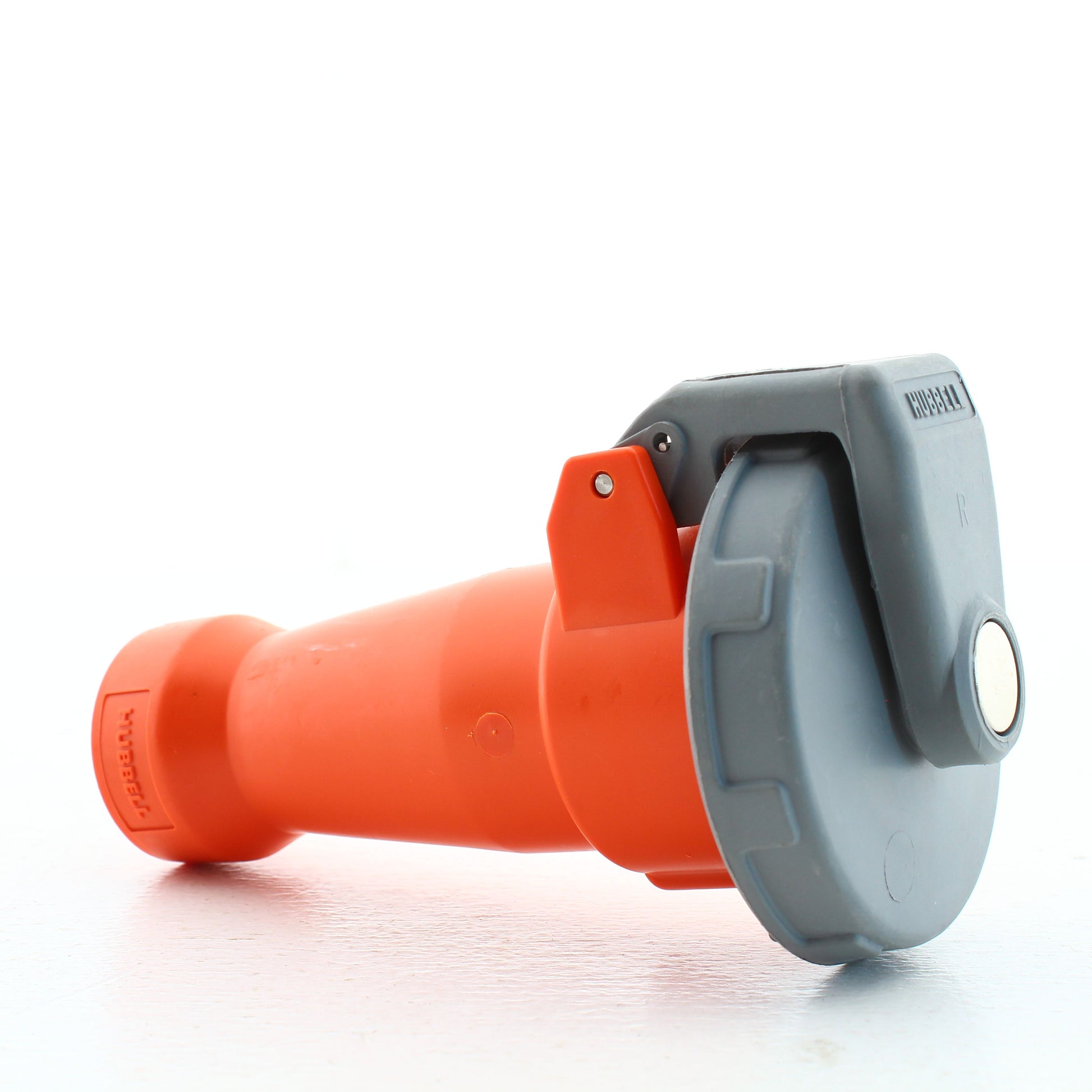

• Self-closing gasketed cover, detents into position to fully close automatically
• Sequential contact engagement: ground makes first and breaks last; neutral makes second and breaks second (to prevent a momentary over-voltage on components connected phase to neutral); and phase contacts make last and break first
• Molded thermoset polyester contact carrier provides high resistance to electrical tracking. Withstands higher temperatures which may result from overload or arcing. Thermoset properties provide dimensional stability for this critical assembly
• Tapered bore entrance creates high compression forces on sealing gland, providing a watertight seal around cord. Individual solid neoprene glands are supplied to match a full range of cord sizes and assure watertight performance,
• Cord grip incorporates two molded-in teeth to securely grip the outer cable jacket, and internal conductors to prevent slippage and strain on terminations. Captive barrel nuts ease assembly and allow higher tightening torque for maximum cord retention
• Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environments
