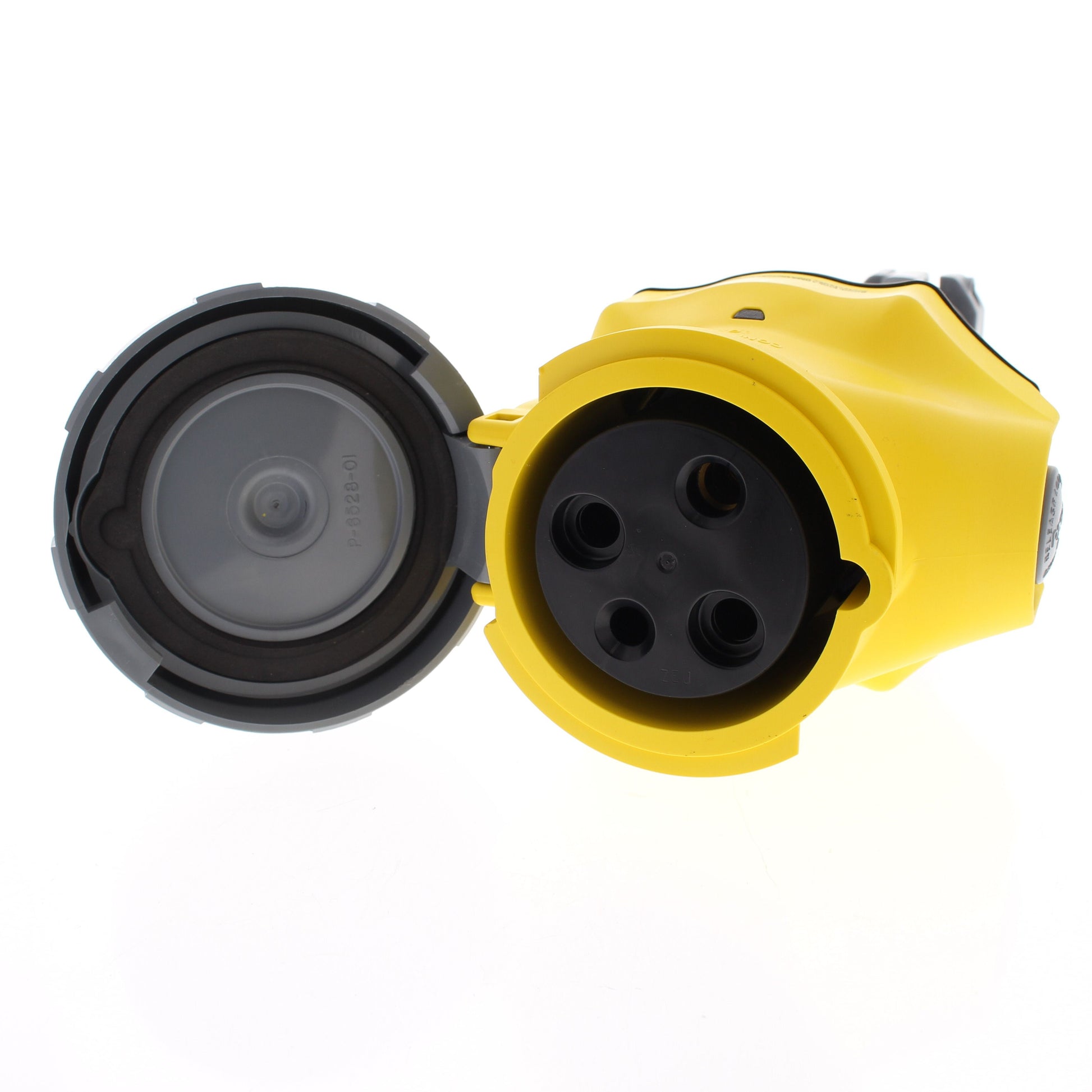

Hubbell HBLS360C4W Advantage Series watertight pin and sleeve connector. Industrial Grade, IEC 60309, 2-pole, 3-wire, grounding, rated 60A 125VAC. Each is individually packaged; packaging may differ from photo. Features of the Advantage Series include:
Hubbell Advantage Series devices are approved as disconnecting means for both motor circuitry and branch circuits
External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings

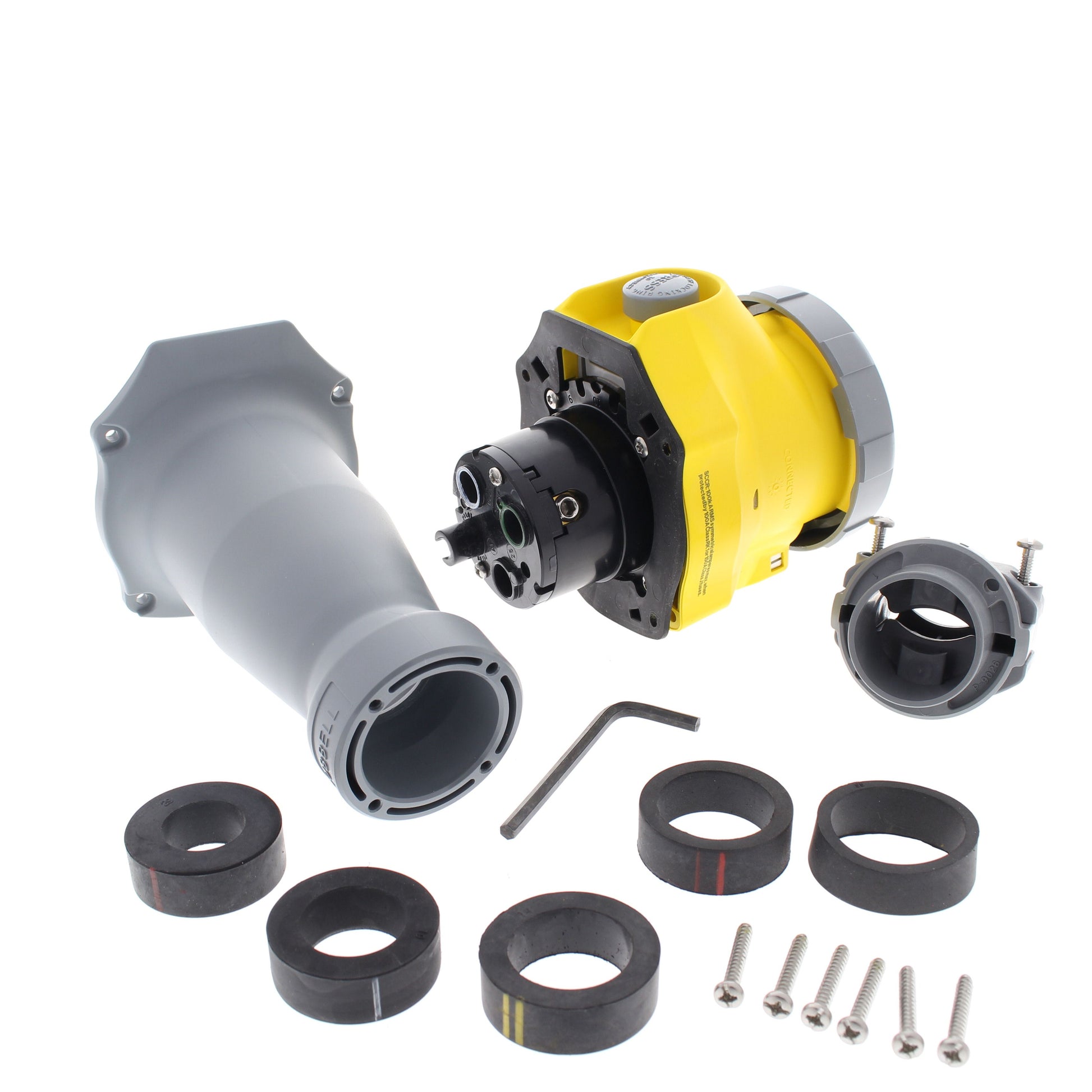

Rugged one-piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants

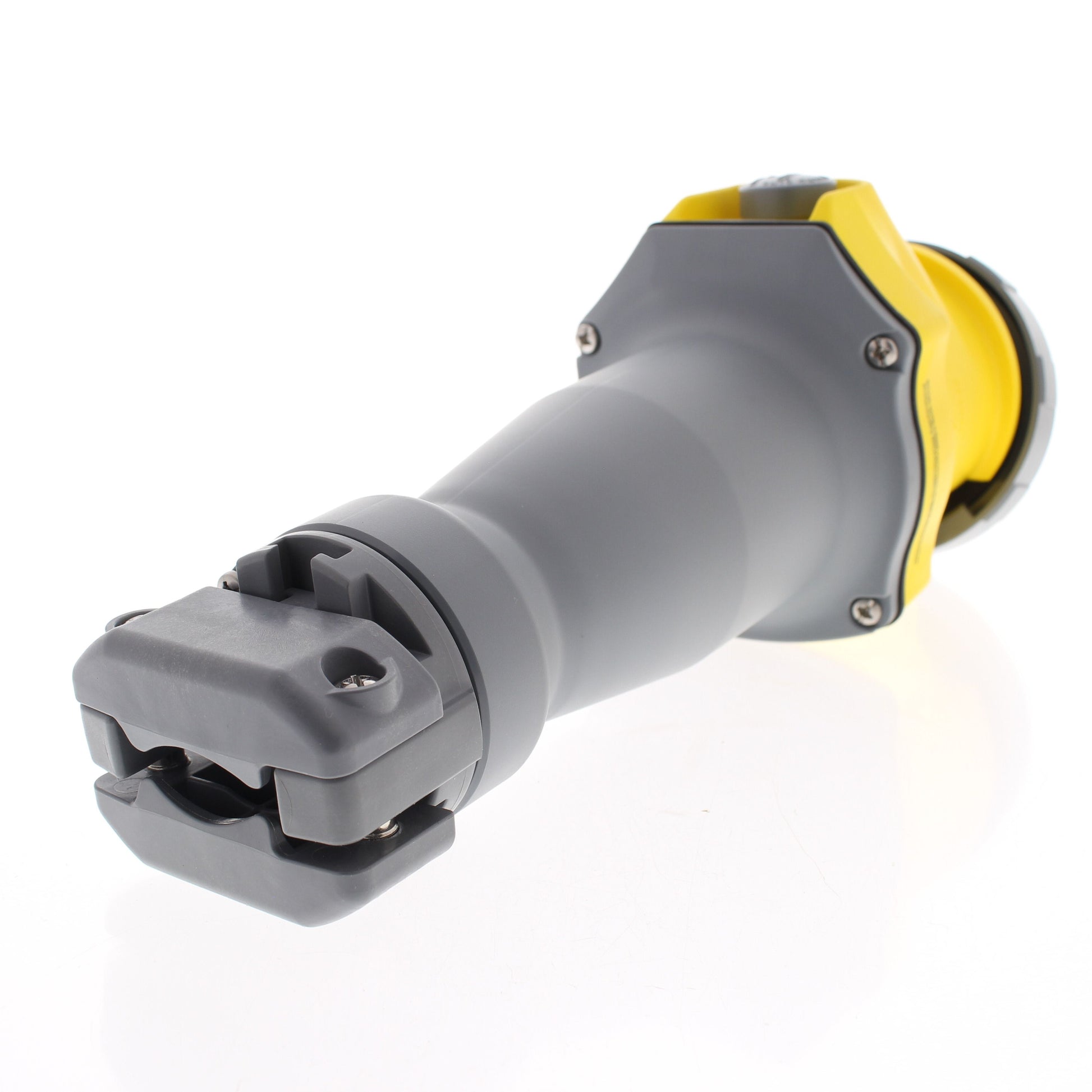

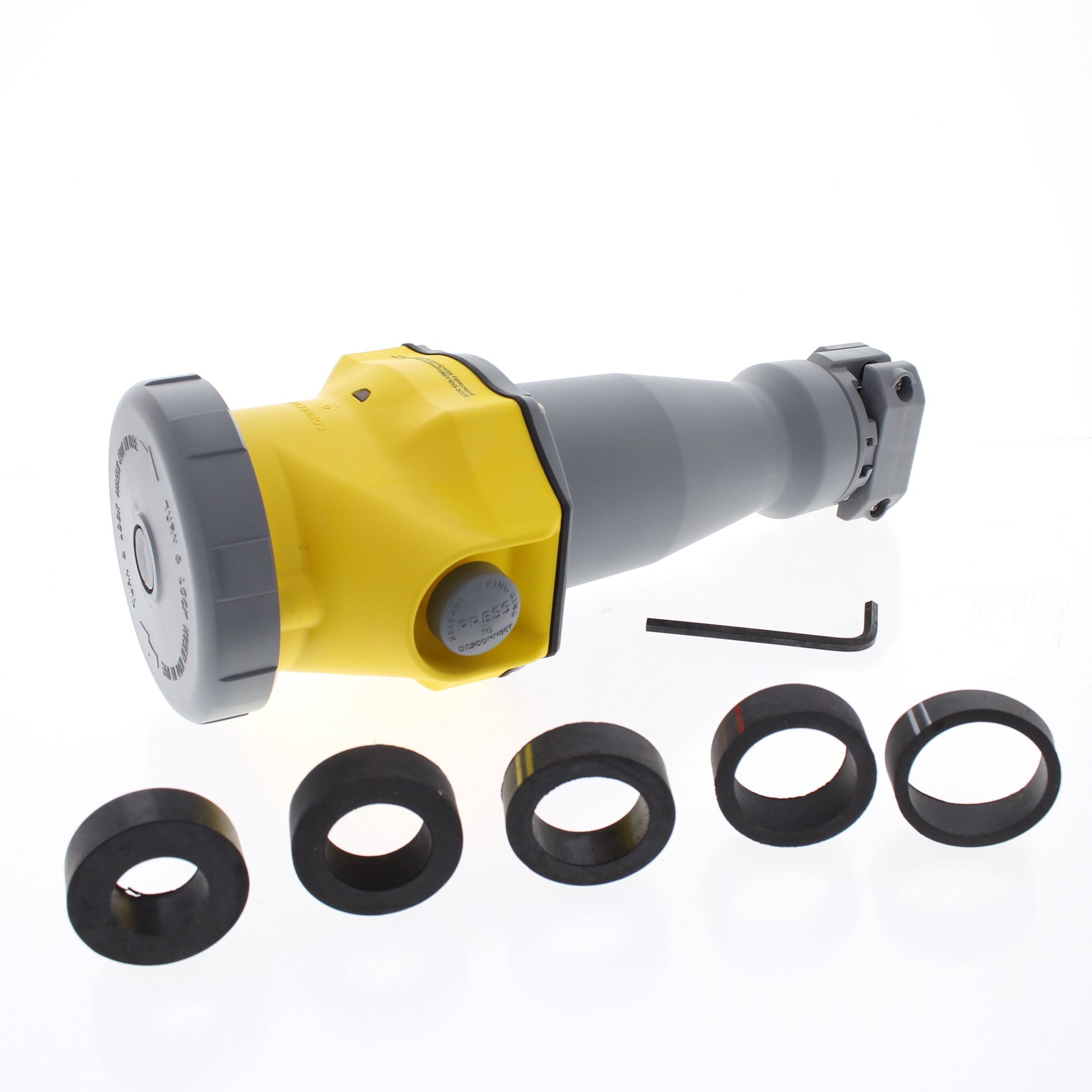

Heavy duty external cord grips provides maximum cord retention to maintain unstressed terminations
Pocketed recess for screws deters slippage of the screwdriver and are conveniently located on the same side for easy installation

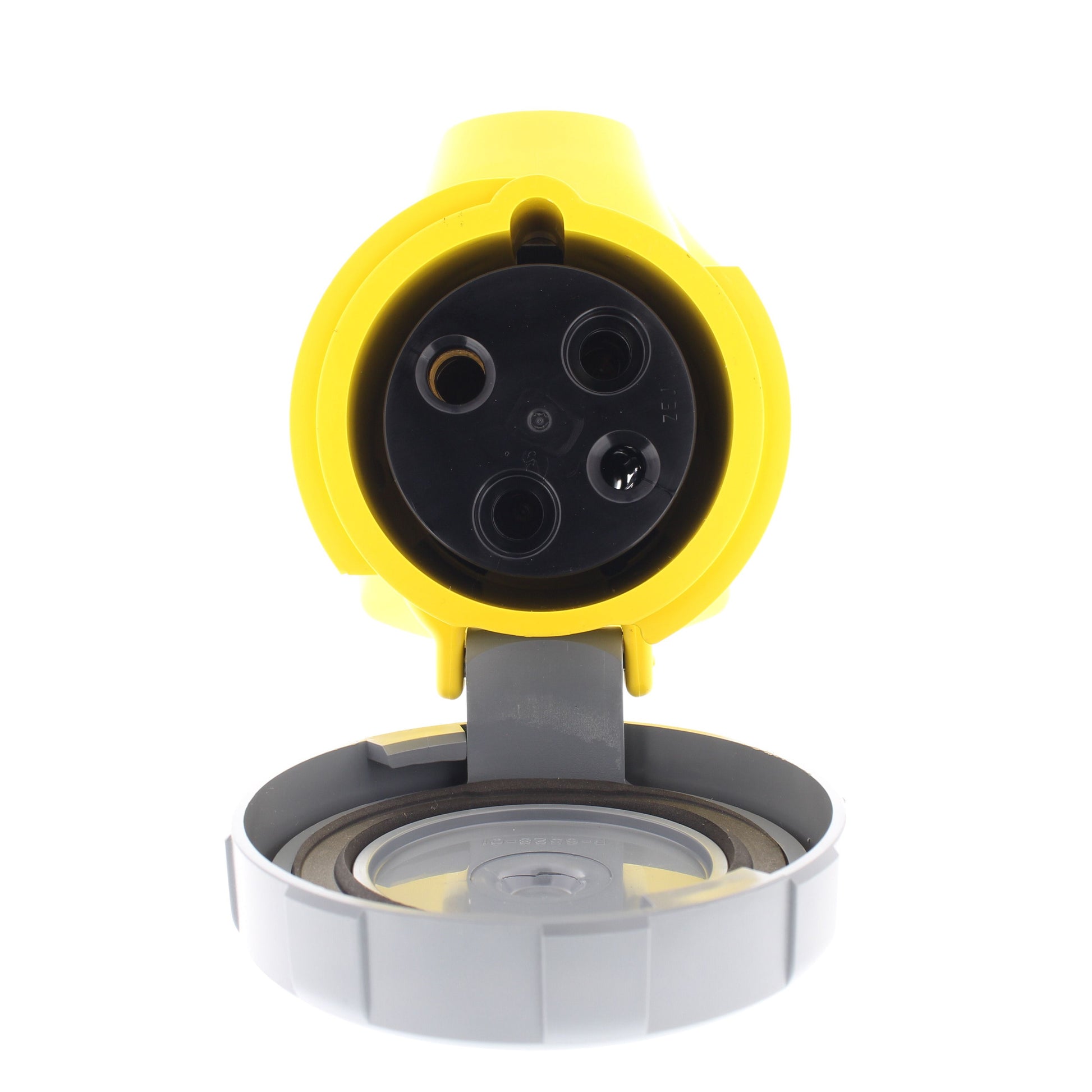

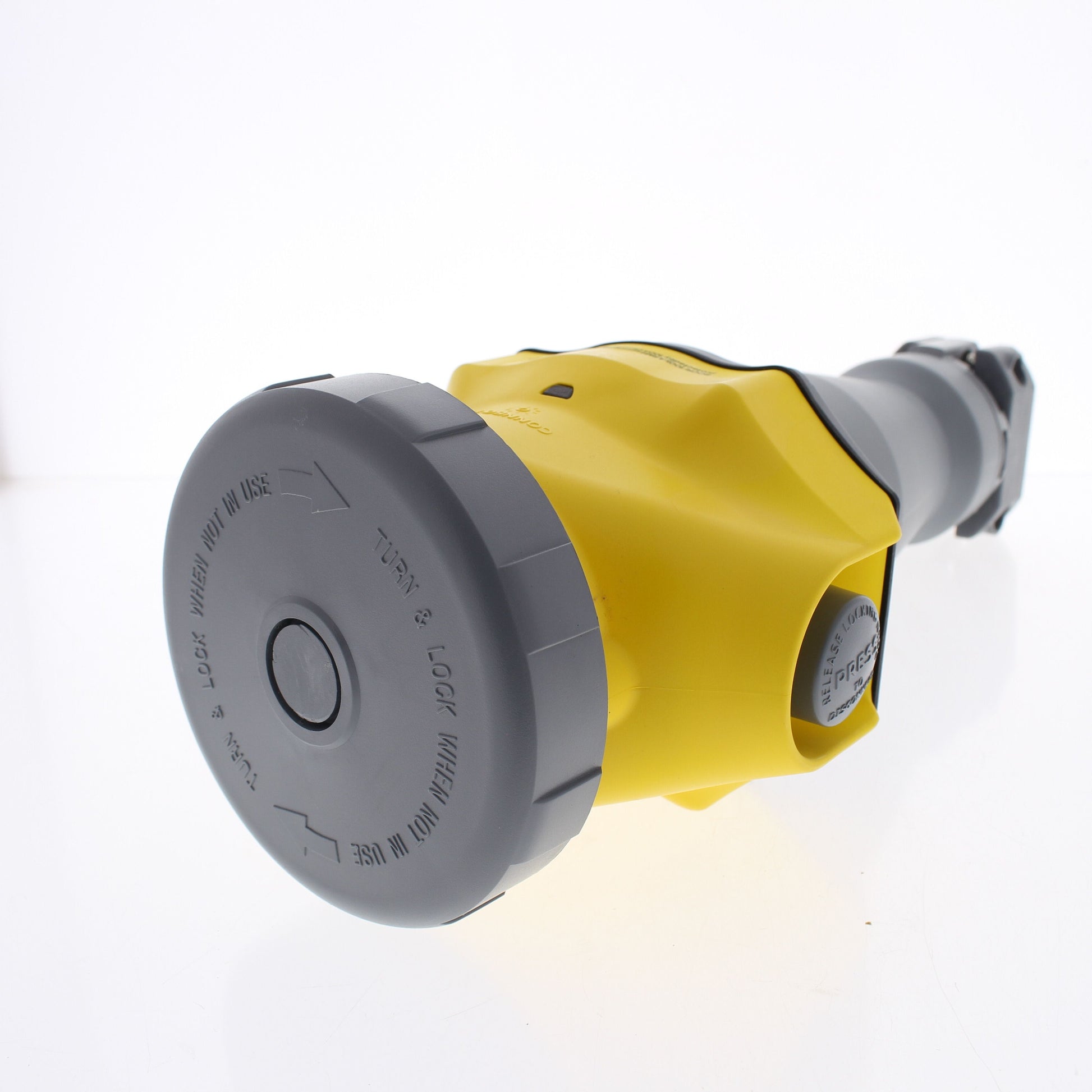

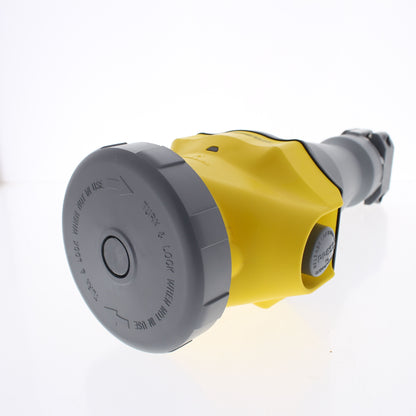

Spring loaded cover is spring-loaded to the open position, reminding users that the cover must be secured to ensure maximum ingress protection. Impact resistant cover arm compact and durable internal swing arm is fully shrouded protecting it from damage
Spring loaded disconnect button: oversized for easy actuation with gloved hands
Continuous ground engagement: unswitched feed-through ground pin is first-to-make and last-to-break followed by switched neutral and phase contact(s)
Highly visible and long lasting green LED lights on both sides of the device provide visual verification of power when connected
