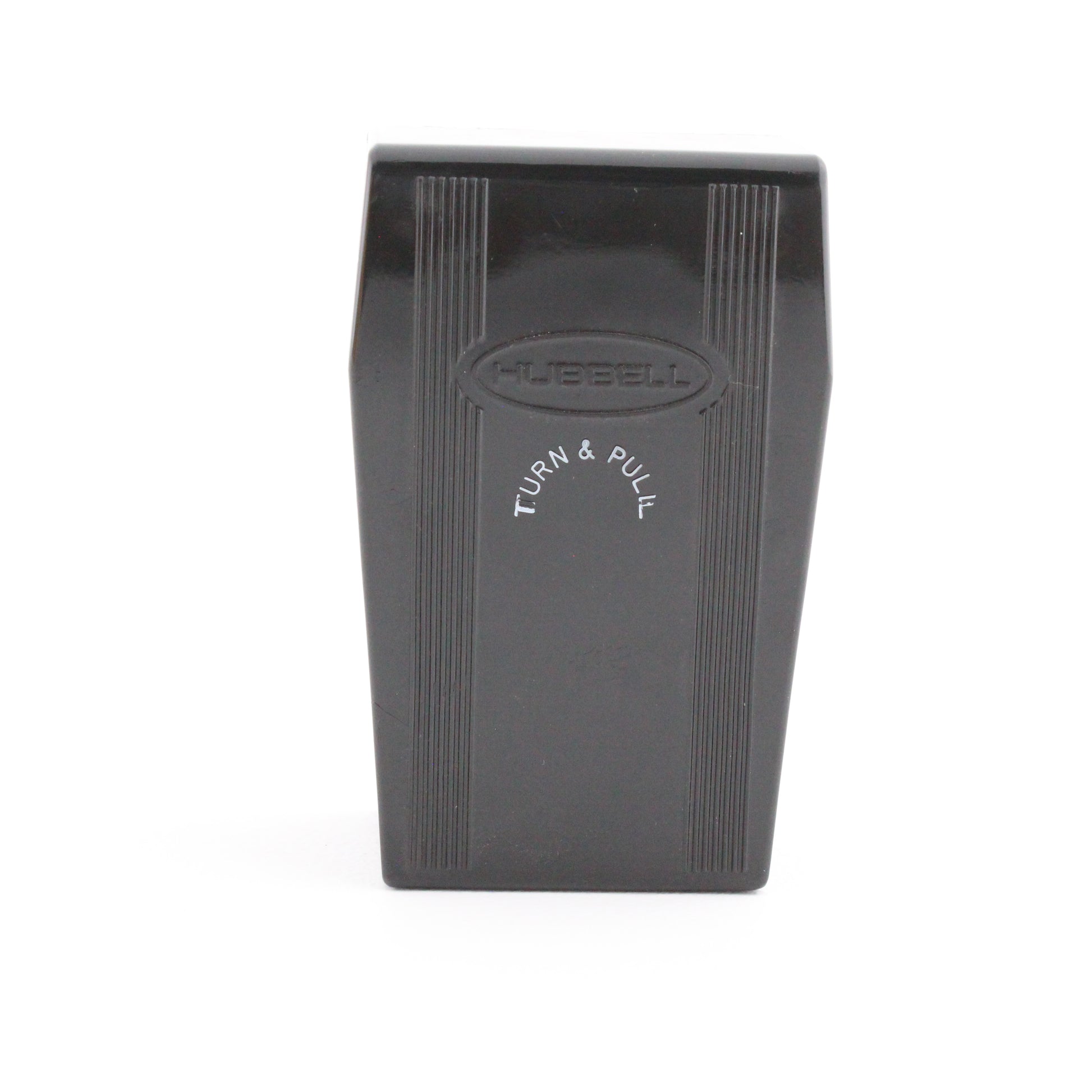

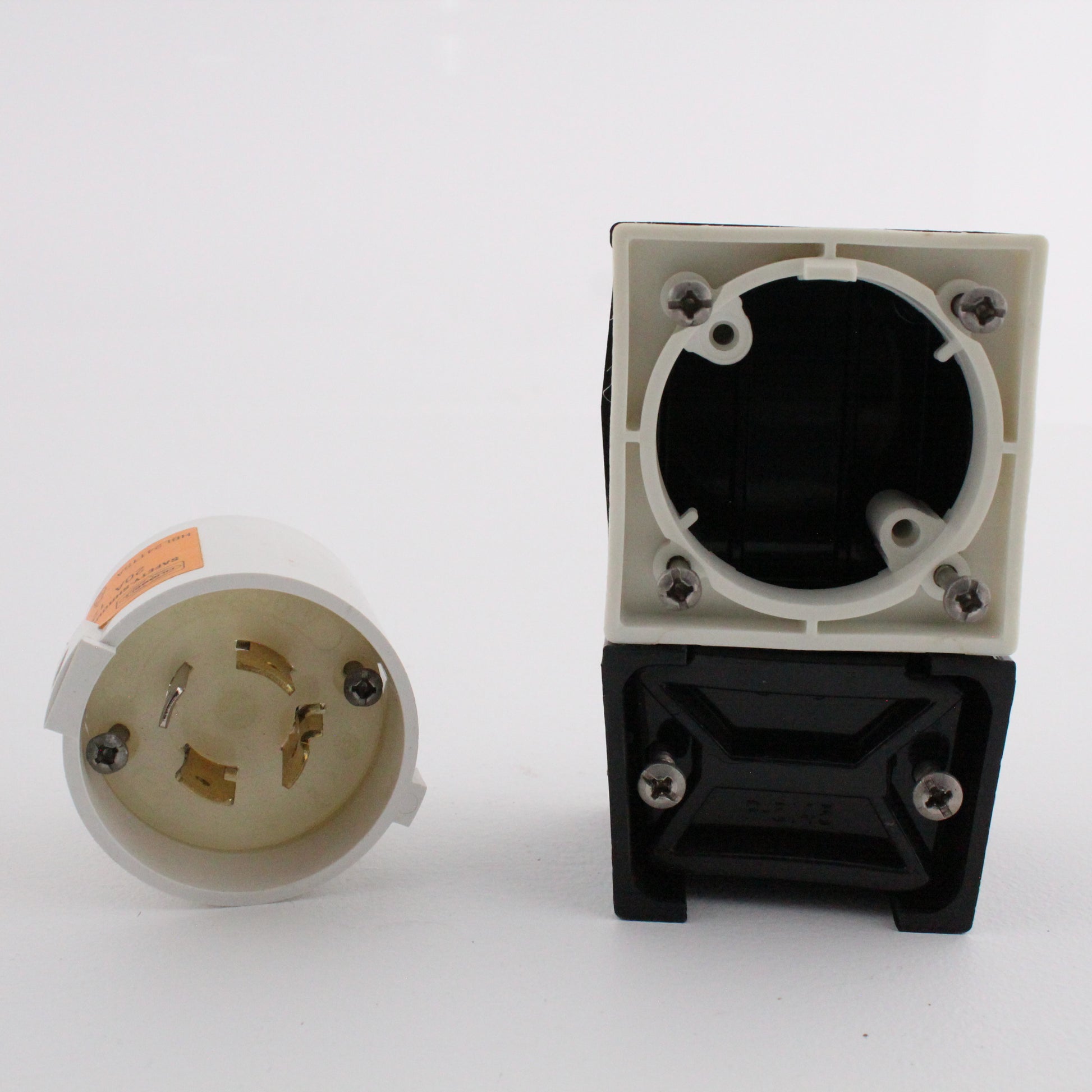

Hubbell Twist Locking Right Angle Plug Nema L14-20P 20A 125/250V HBL2411SA

Hubbell HBL2411SA right angle locking plug with Safety-Shroud design. Industrial Specification Grade, NEMA L14-20P, 3-pole, 4-wire, grounding, rated 20A 125/250V. Cord grip range: .350"-1.150". Terminals accommodate #14-#10 AWG. Each is individually packaged; packaging may differ from photo. Features include:

• Solid brass blades are fitted and held tightly and securely in place
• Dead front construction prevents accidental contact with internal parts
• Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
• Deep-funnelled, chamfered wire wells guide conductors into termination position

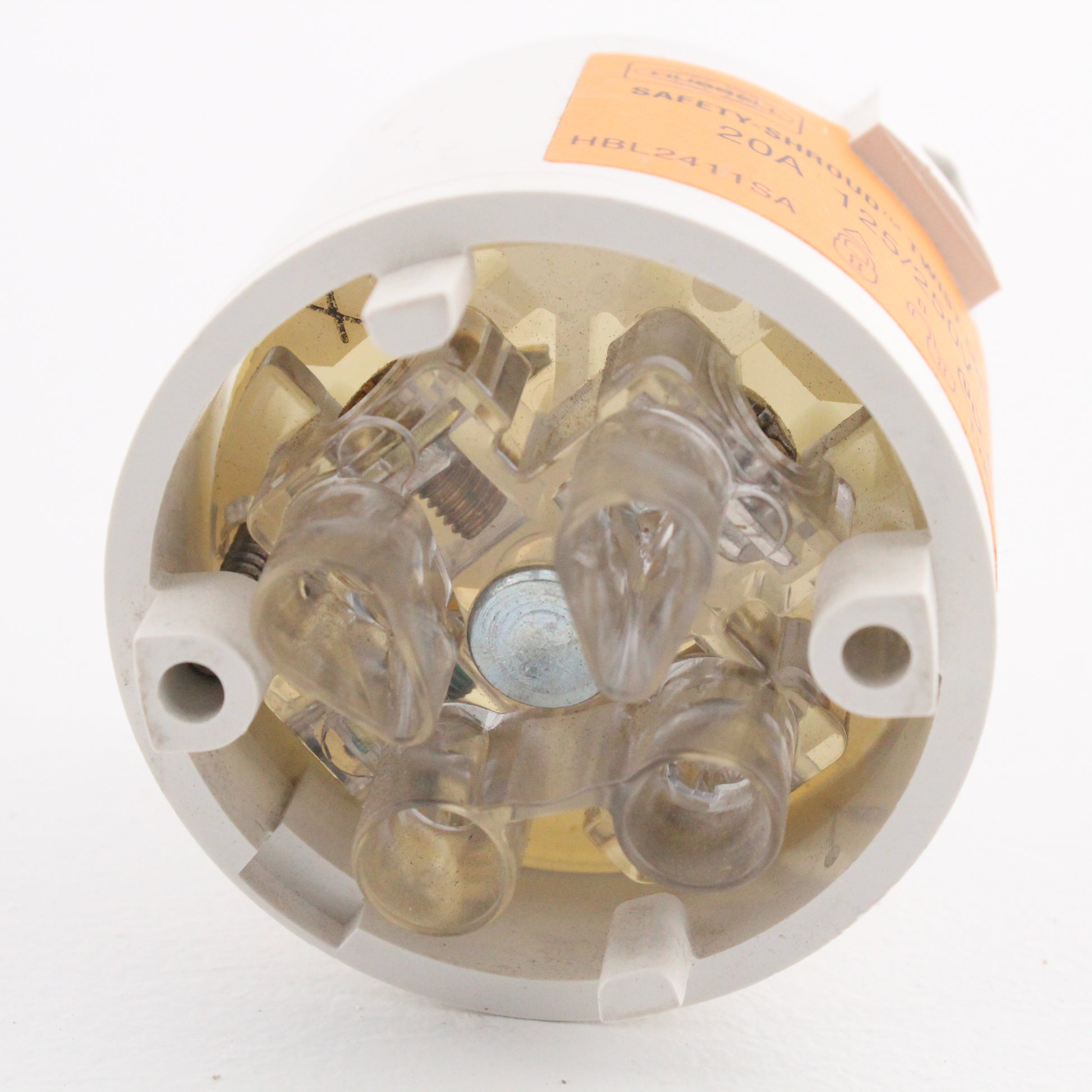

• Transparent wiring chambers provide a means of visual inspection of conductors and terminals
• Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
• Color-coded terminal screws
• Molded-in strip gage provides correct measurement for proper strip length of conductor
• Terminal identification letters on back cover ensure quick and accurate termination
• Captive terminal screws eliminate nuisance dropping and searching for missing screws
• Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
• Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
• Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
• Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module to body
• NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
