Hubbell SNAP8200LAL SnapConnect Light Almond 15A Hospital Receptacle Outlet
Hubbell SNAP8200LAL SnapConnect Light Almond 15A Hospital Receptacle Outlet
Regular price
$11.85 USD
Regular price
Sale price
$11.85 USD
Shipping calculated at checkout.

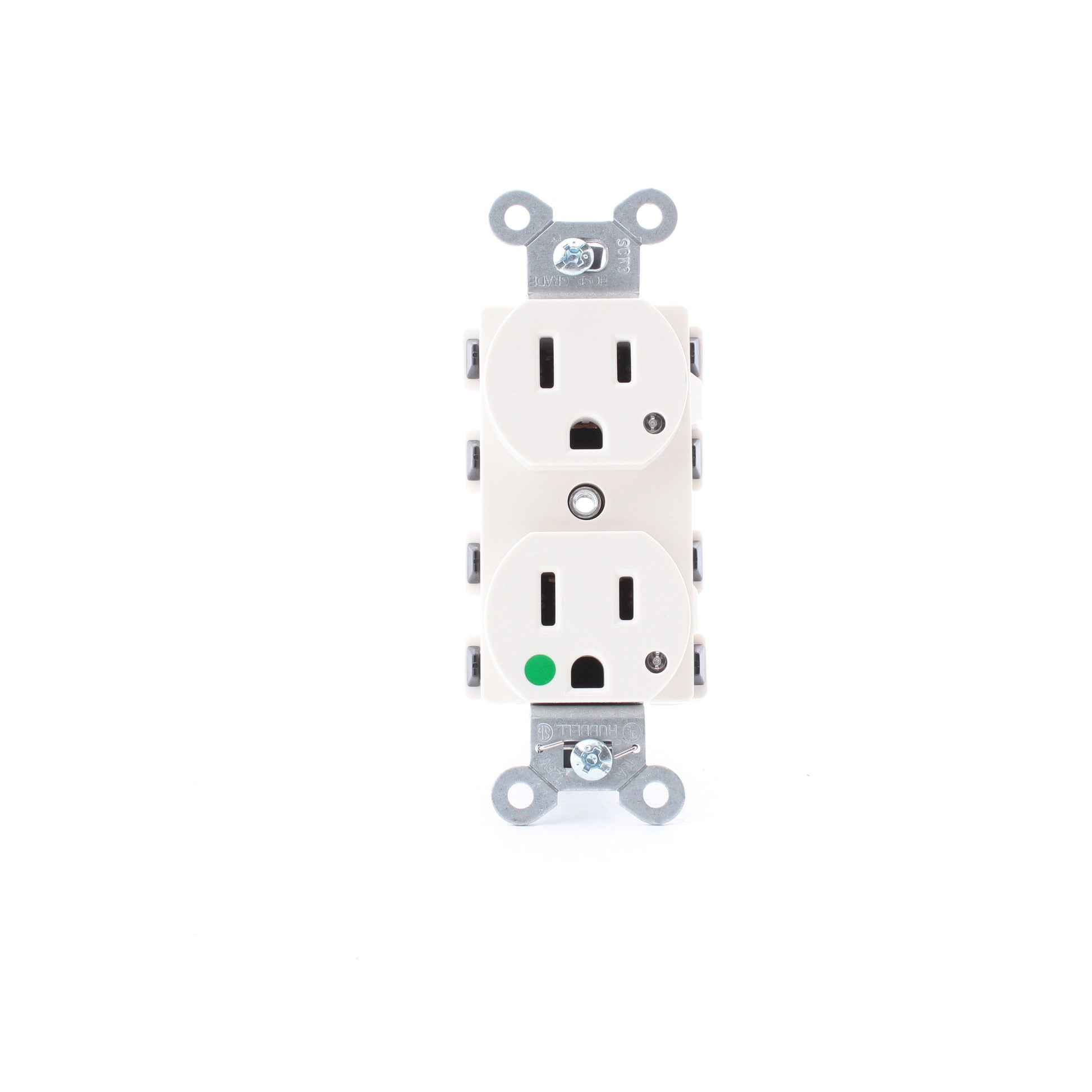

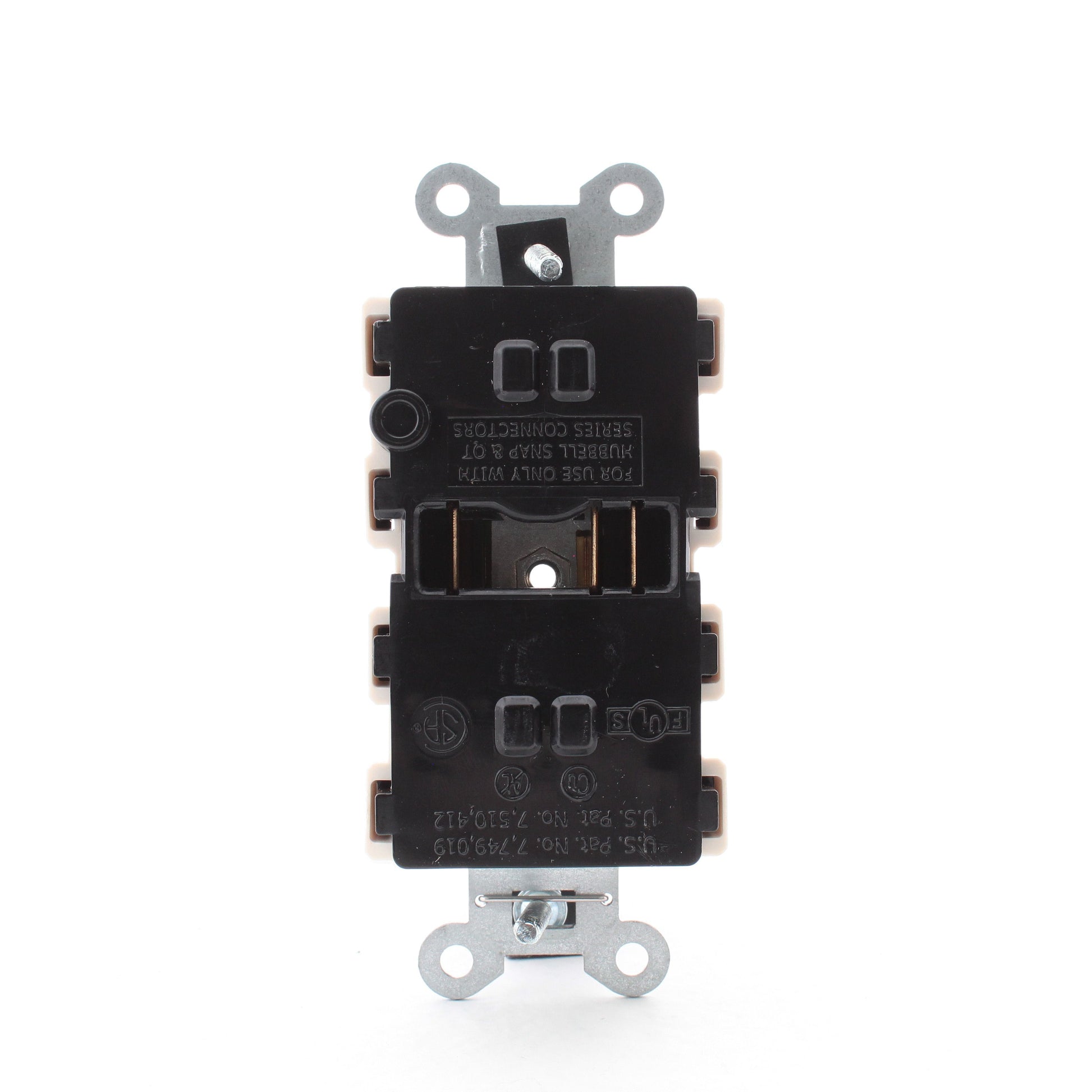

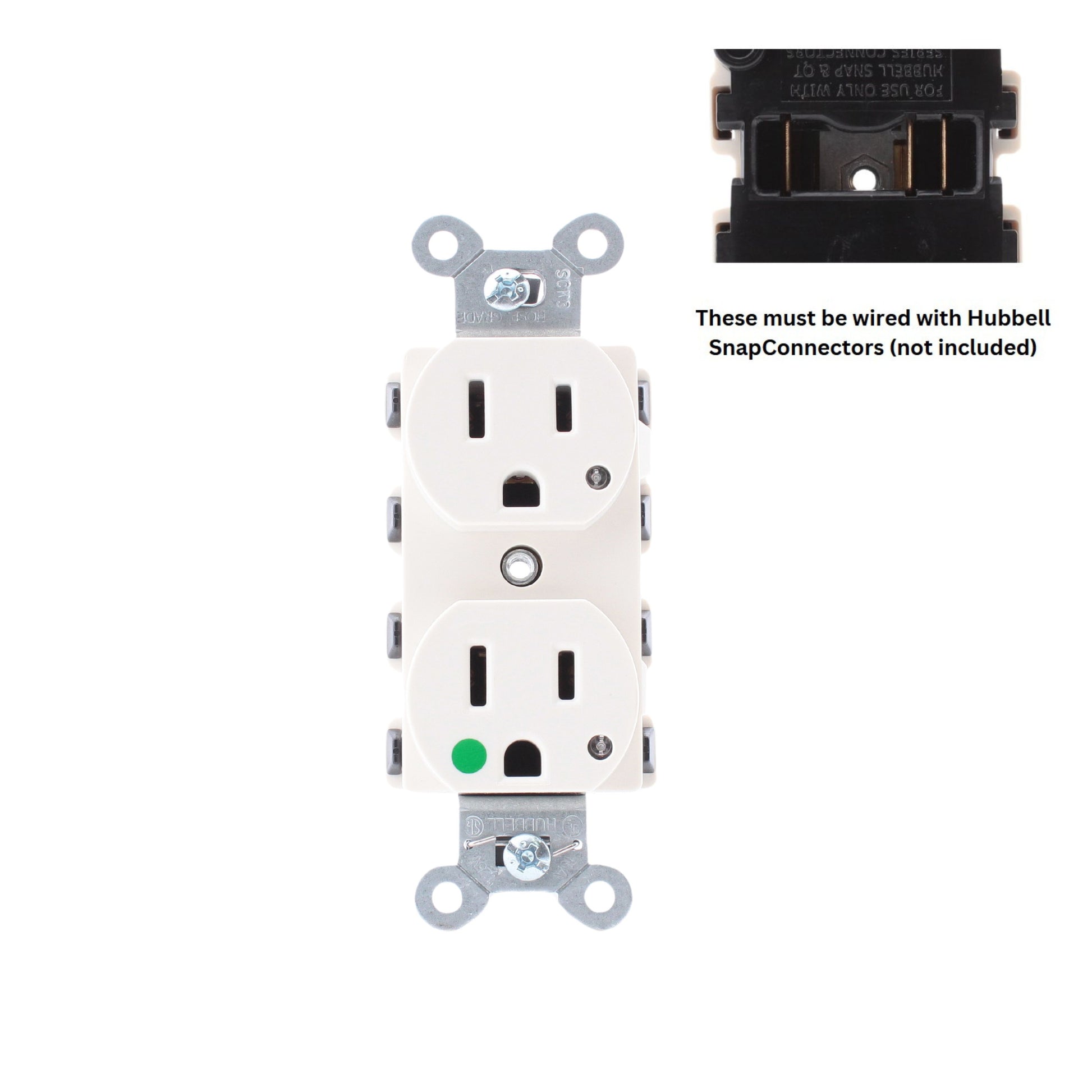

Hubbell SNAP8200LAL almond SnapConnector Hospital Grade duplex receptacle with twin LED power indicators on the face. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect�s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Hospital grade, SnapConnect wired, NEMA 5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Hospital grade devices are top of the line in their category, designed for high-abuse environments such as those found in healthcare facilities. Each is individually packaged; packaging may differ from photo. Features include:
- Twin LED indicators on the face to provide positive indication of power state
- Abuse resistant nylon for extra heavy use applications
- SNAPConnect eliminates exposed live parts
- Stainless steel autoground clip
- 2-pole, 3-wire, NEMA 5-15R, rated 15A 125V
- SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
- SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
- SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
- SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:
