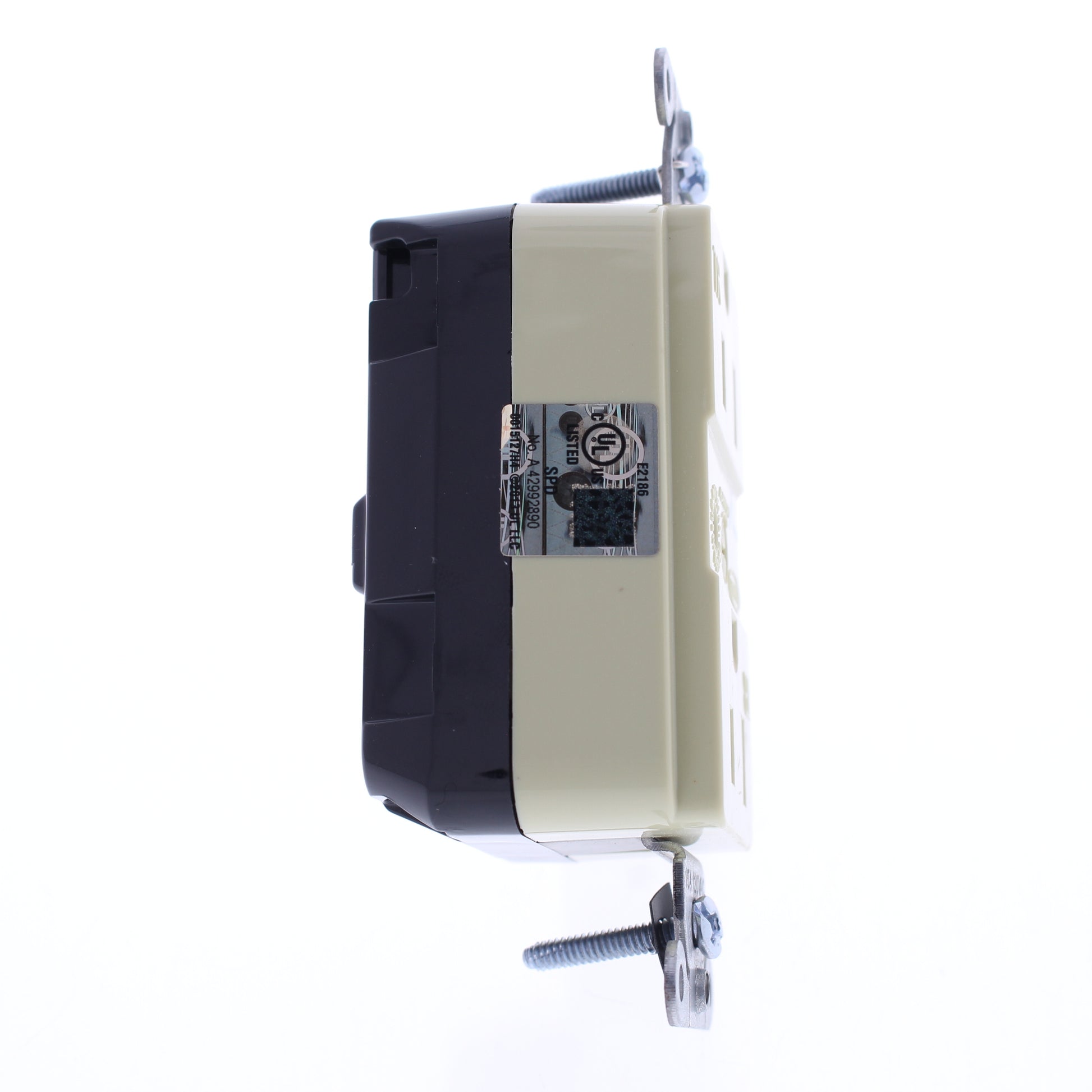

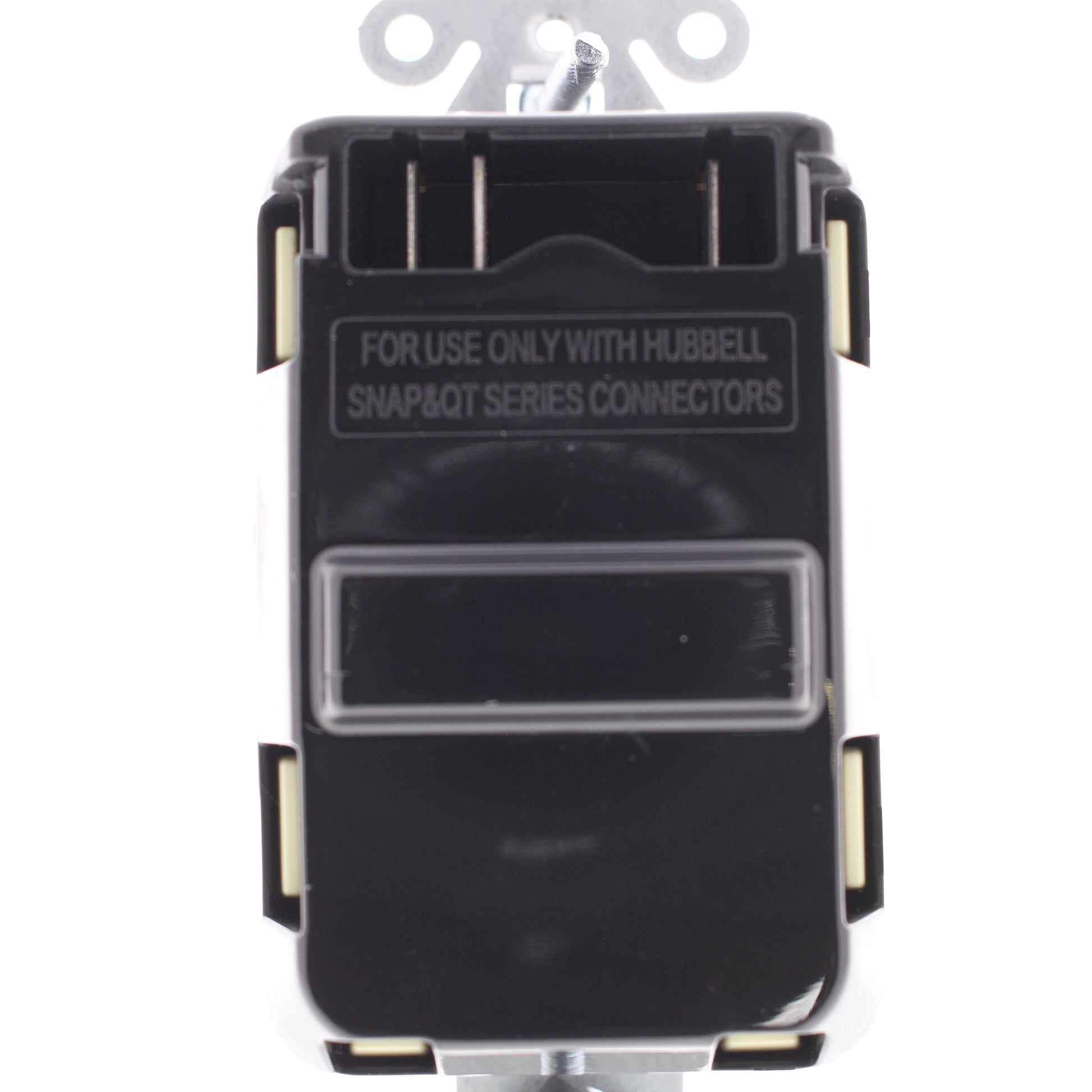

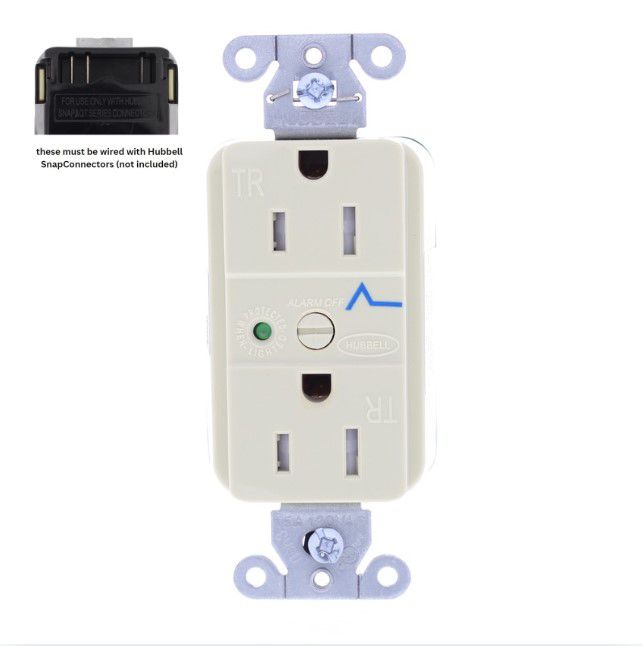

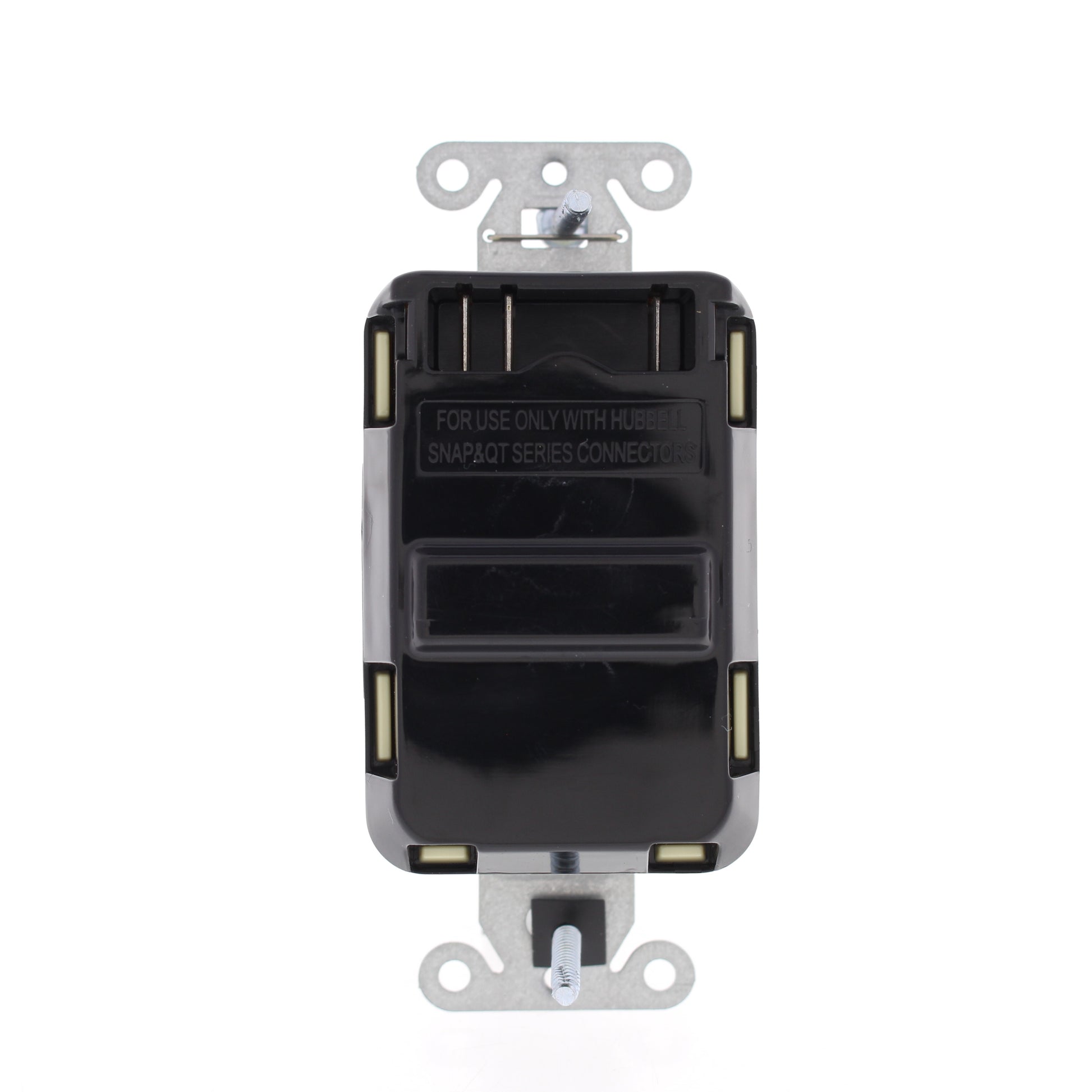

Hubbell SNAP5262IS ivory duplex decorator SnapConnect transient voltage surge supressor receptacle. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect�s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Device is equipped with an LED indicator light and an audible alarm. Extra heavy duty specification grade, NEMA 5-15R, 2-pole, 3-wire, grounding, SnapConnect wired, rated 15A 120V. Each is individually packaged; packaging may differ from photo. Features include:
Patented tamper resistant design eliminates plug-in difficulty. Provides protection that feels like it is not even there: tamper resistant...NOT plug resistant
Abuse resistant nylon for extra heavy use applications
SNAPConnect eliminates exposed live parts
Stainless steel autoground clip
2-pole, 3-wire, rated 15A 125V
As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:
SNAP1RA: solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
SNAP2RA: stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
SNAP1RNA (assembled in USA): solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
SNAP2RNA (assembled in USA): stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
