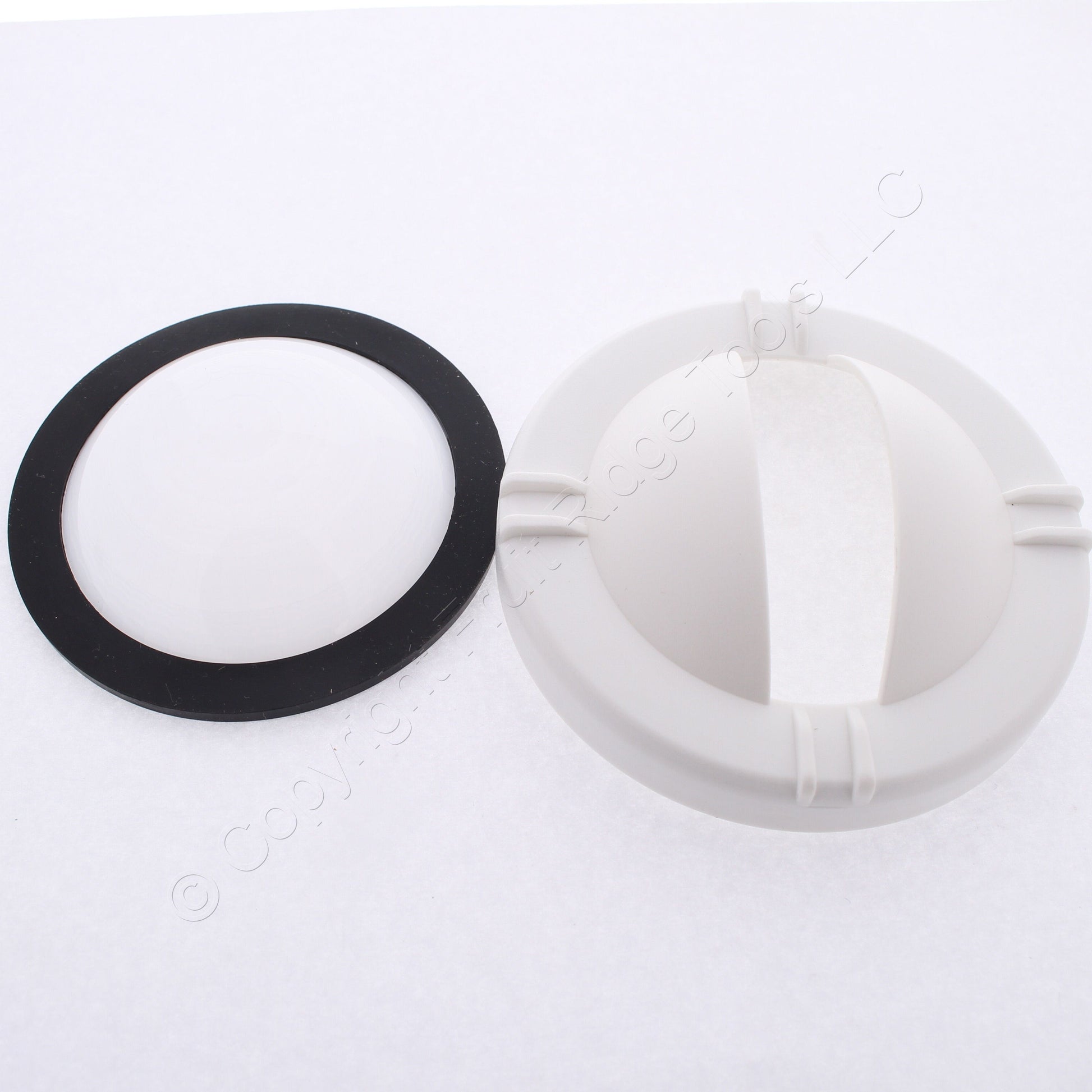

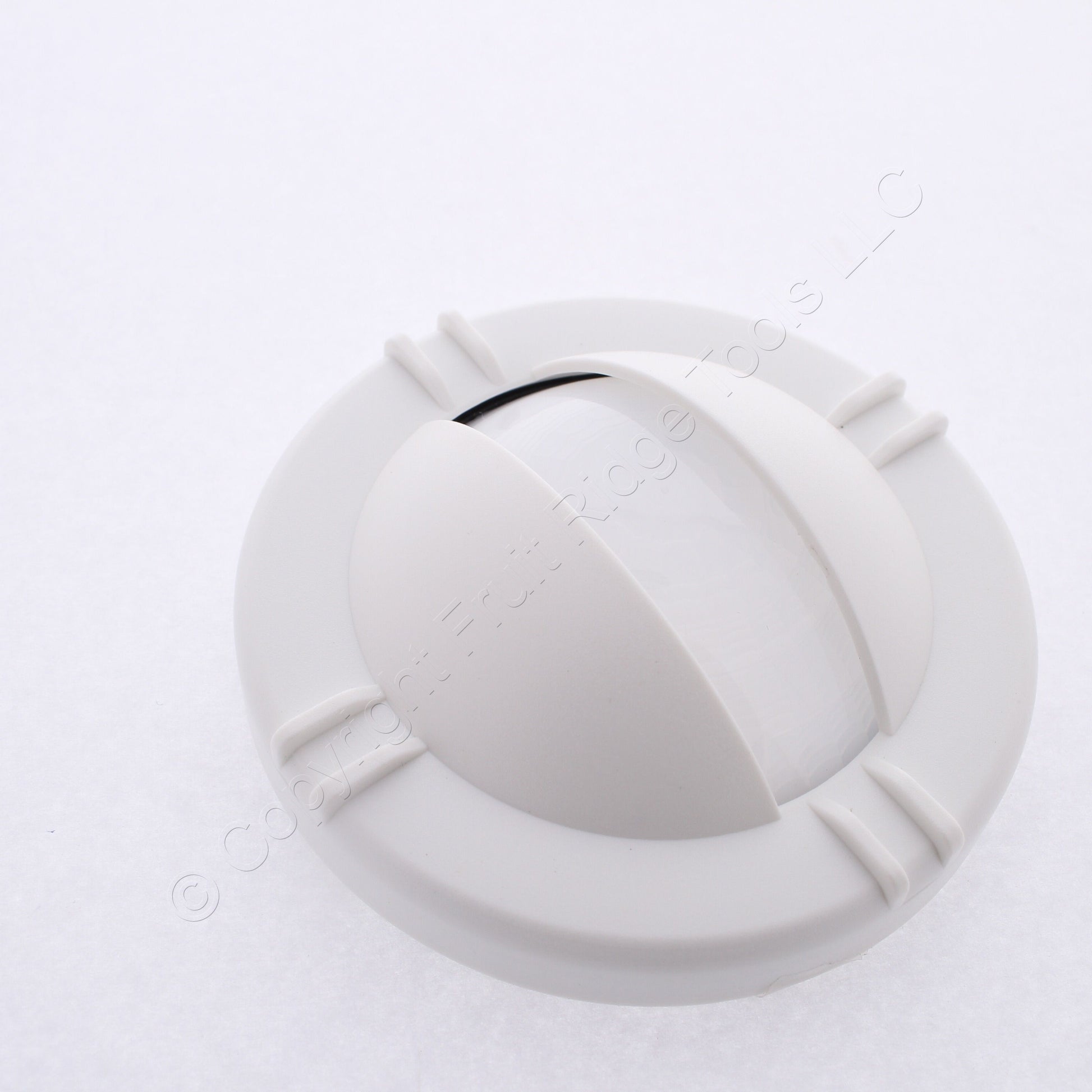

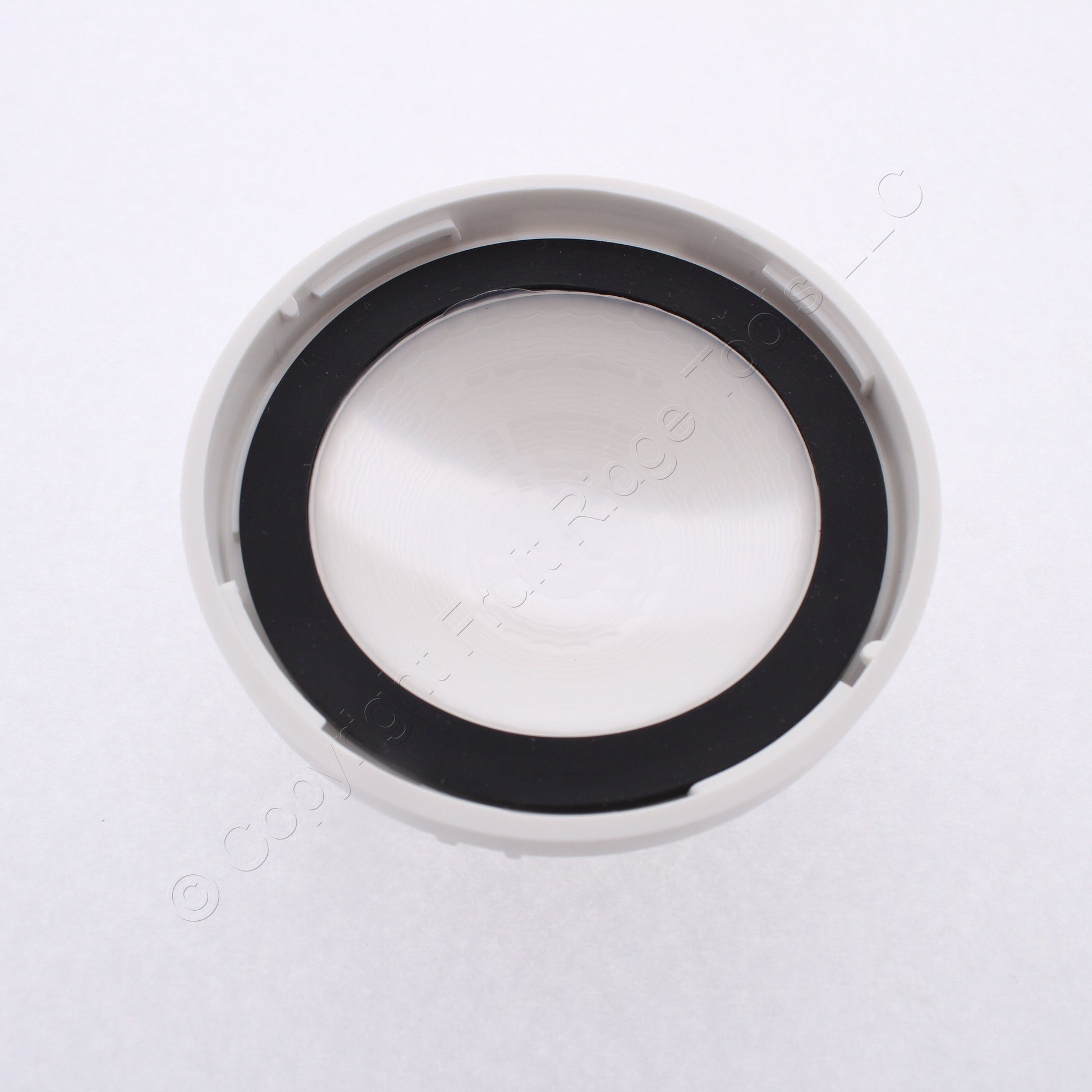

Hubbell HBRLXTA replacement lens for an aisle high bay outdoor occupancy sensor. Used to replace a broken lens or to convert the attributes of an existing outdoor sensor (from 360 degree to aisle, or from low bay to high bay, etc). Features include:
This is just the replacement lens; it is not an occupancy sensor. It can only be used on sensors with an XT suffix on the part number, meaning that they are outdoor rated
Fits the following Hubbell sensors: HBS13D, HBS28D, HBS48D, HBS24D, HMHB219, HMHB229, HMHB23A9, and HMHB23B9
H radius to mounting height ratio is 1.4 up to 30 ft high, and 1.1 for 30 to 45 ft high. I am not exactly sure how the H radius is defined but I assume that it means the detection area of the sensor on the floor when you have this lens installed.
IP65, NEMA 3R watertight, and outdoor rated, when used with suffix XT sensors
