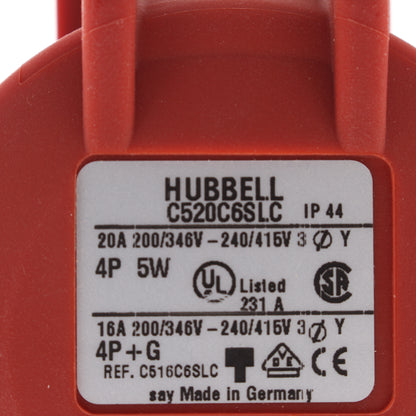

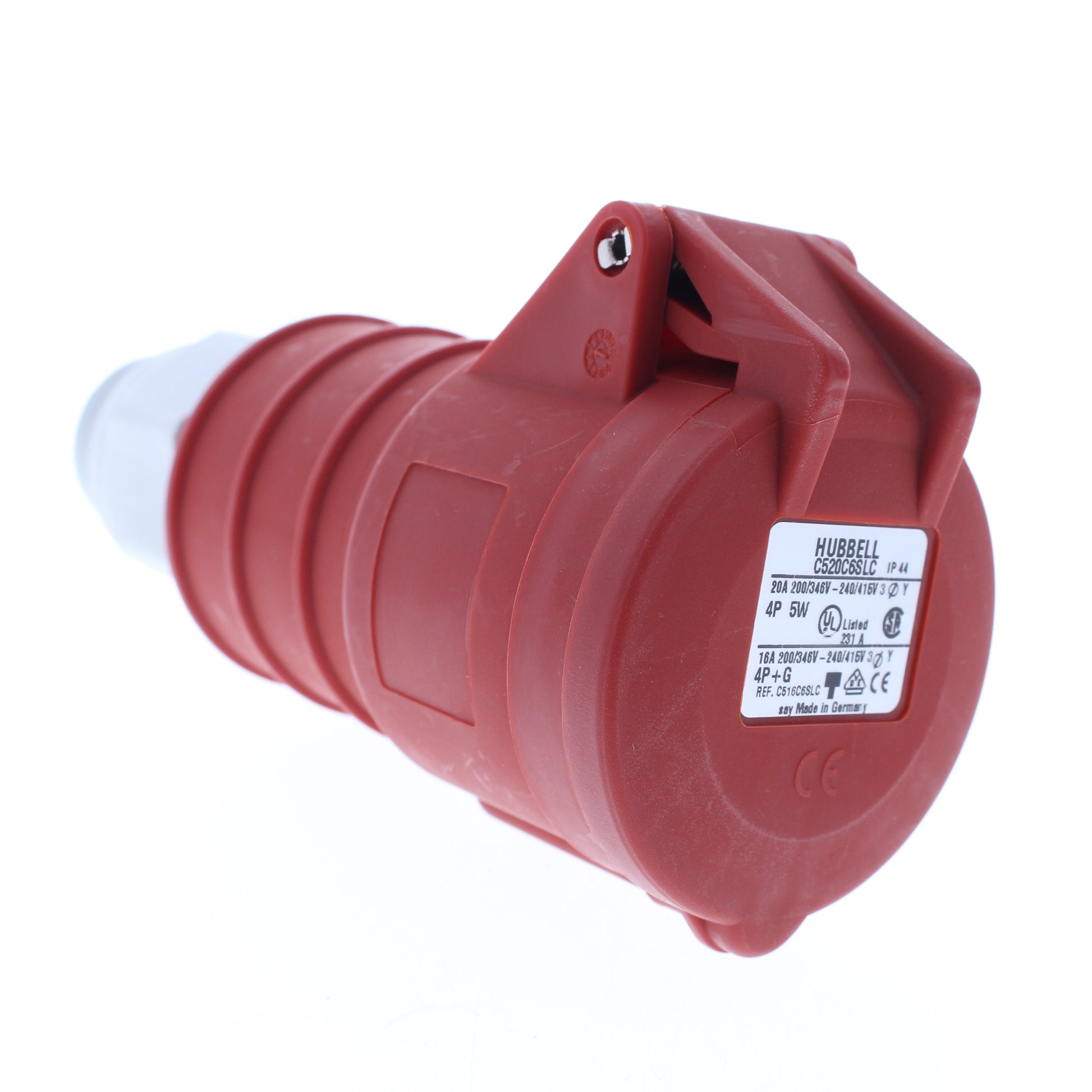

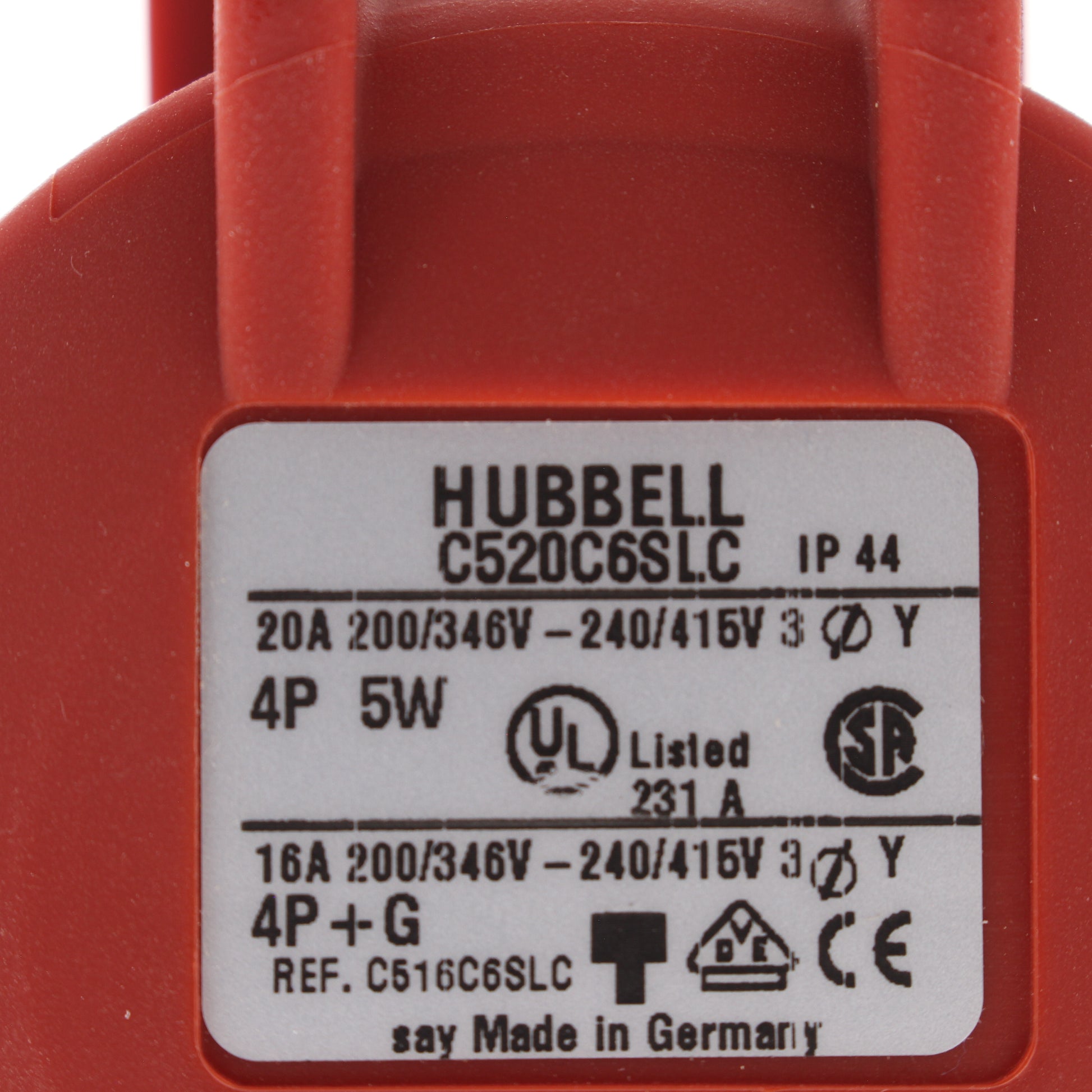

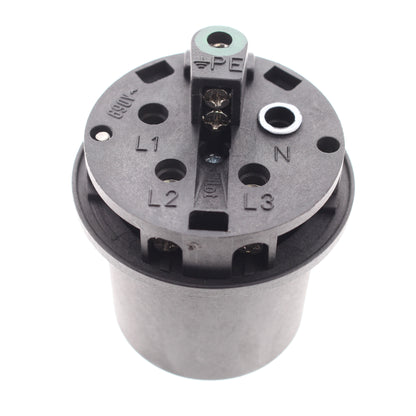

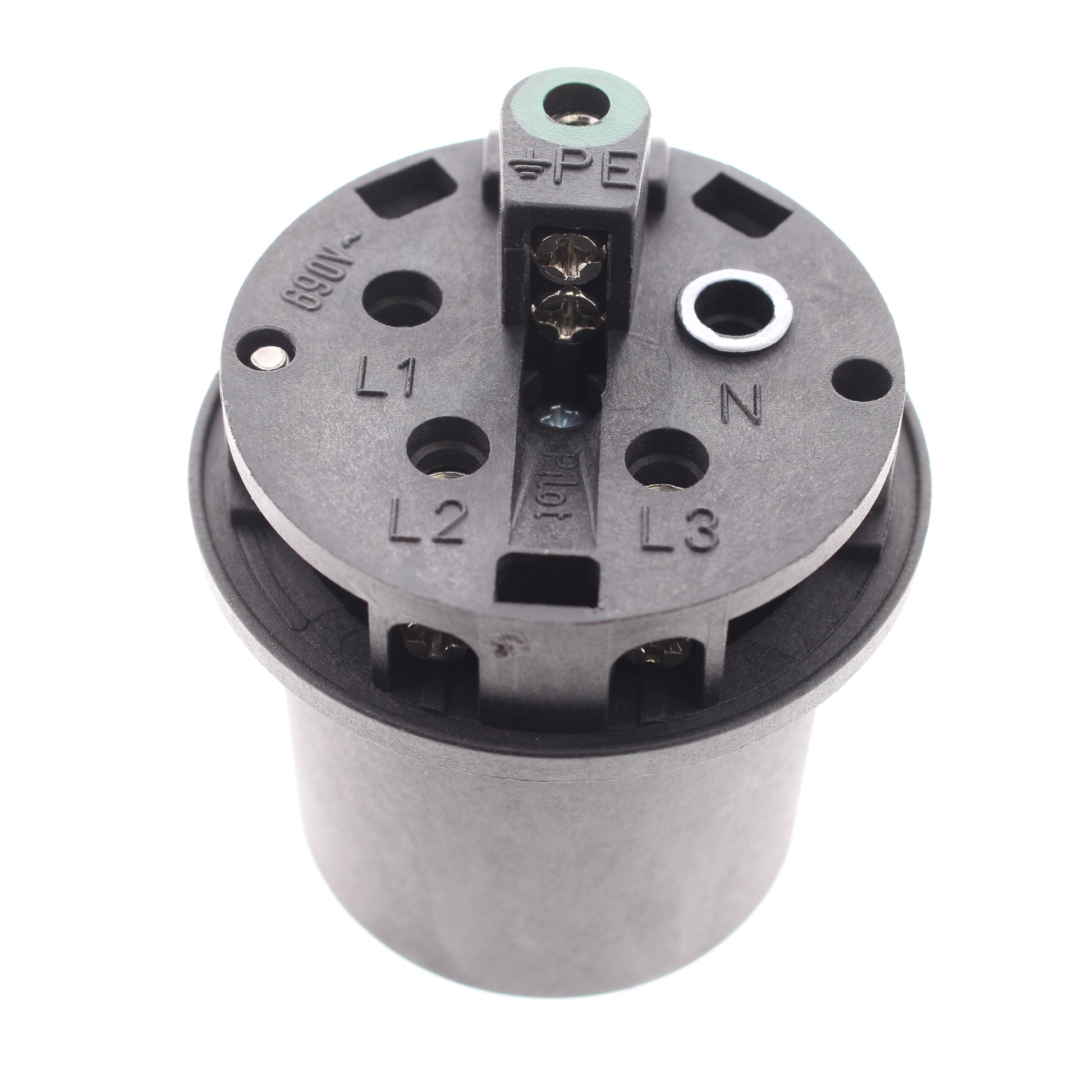

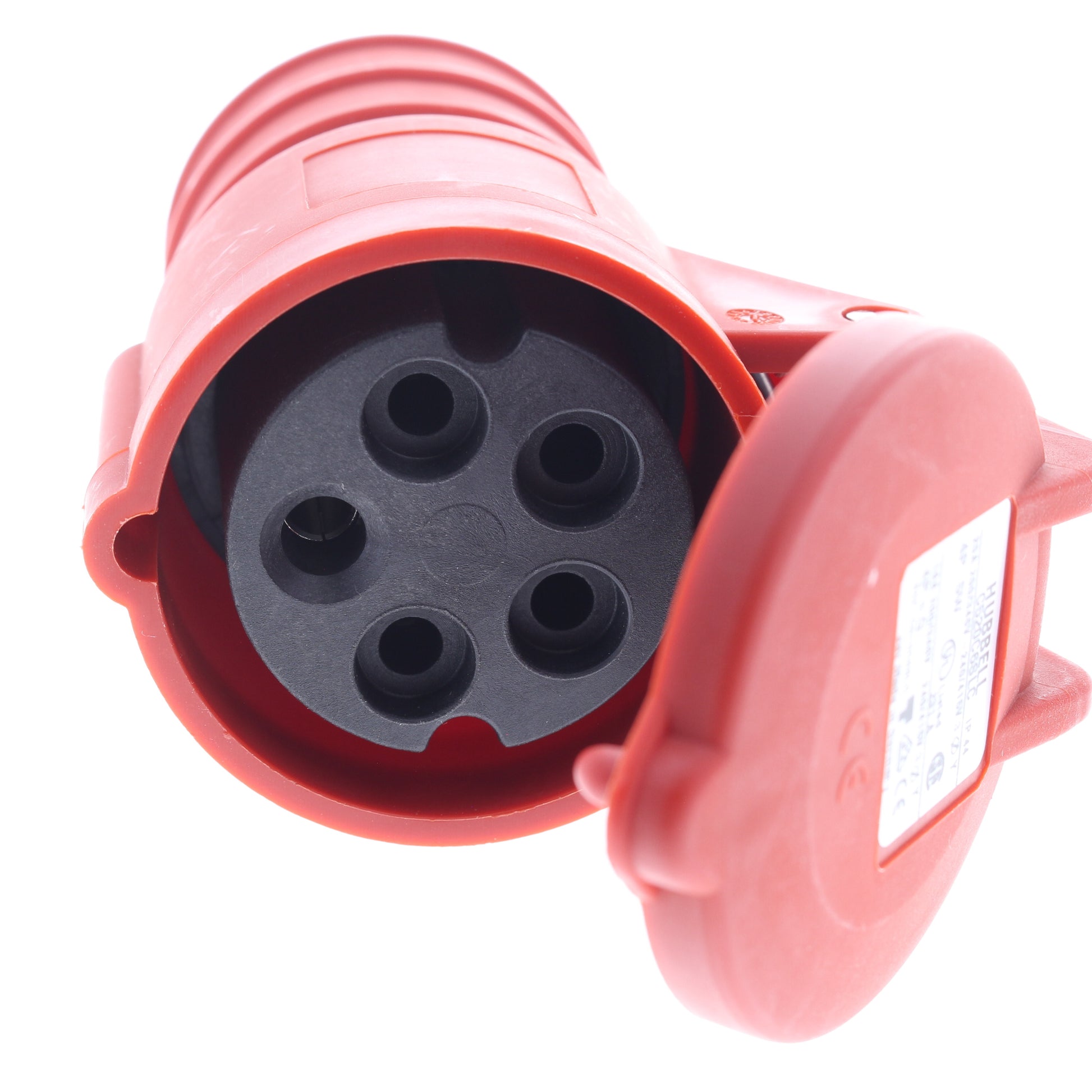

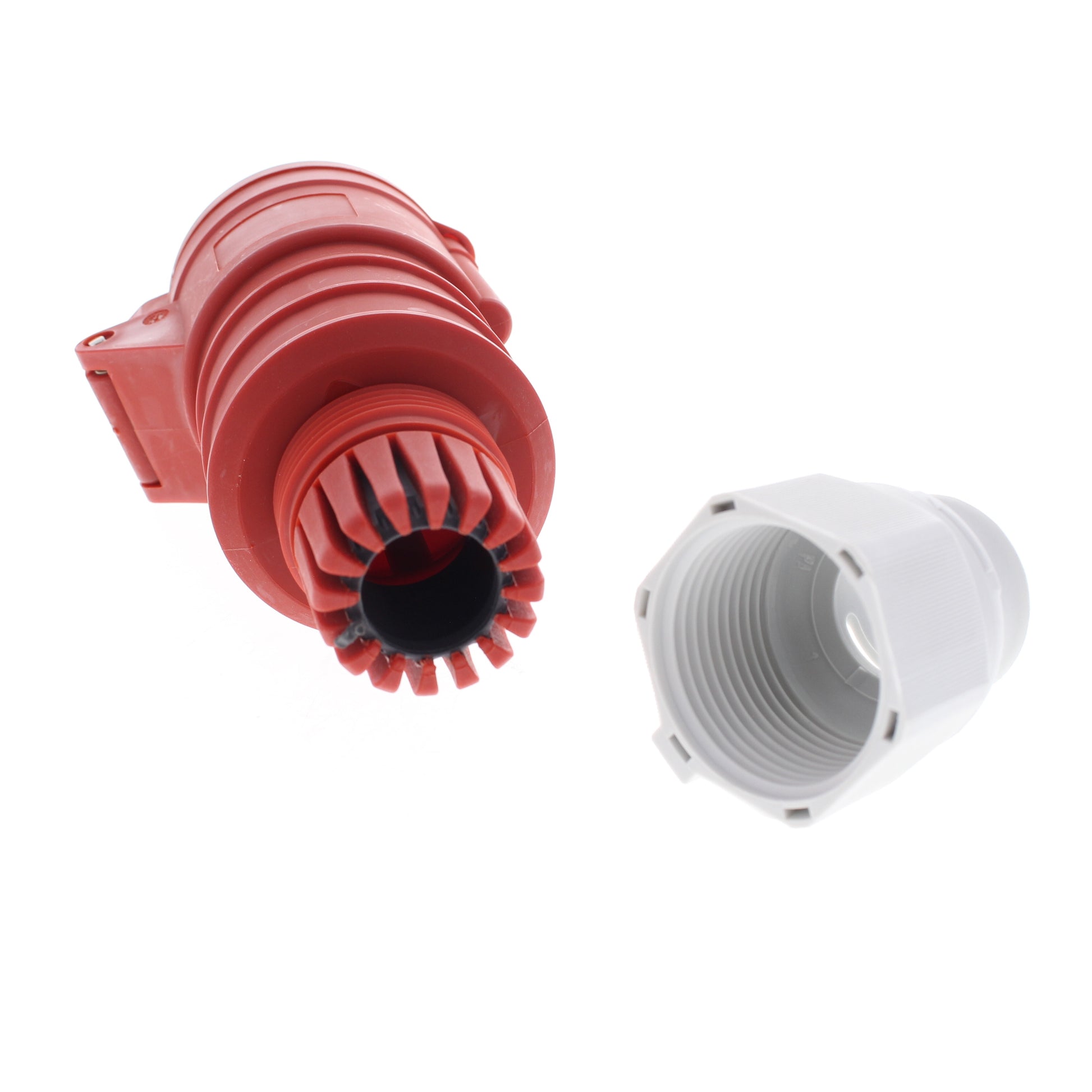

Hubbell C520C6SLC red pin and sleeve splashproof IP44 connector. Rated 3-Phase 20A 200/346 - 240/415V, 4-Pole 5-Wire grounding 14-10 AWG gauge; Cord grip range 0.385"-0.770". Device measures 6.38" (length) x 1.82" (wire-way) x 2.28" (Terminal end) x 3.07" (Terminal end + hinge). The device has a natural designed grip that makes it easy to work with during connection. The cable entry is for flex and convex cables and the cable is secured through a flip aside cable clamp. The installation is easy done due to the clear terminal marking. After connecting the cables the housing is easily closed by a twist. Bulk packed loose with no individual packaging or instructions. Features include:
Hubbell's design incorporates two molded-in teeth to securely grip the outer cable jacket, and internal conductors to prevent slippage and strain on terminations

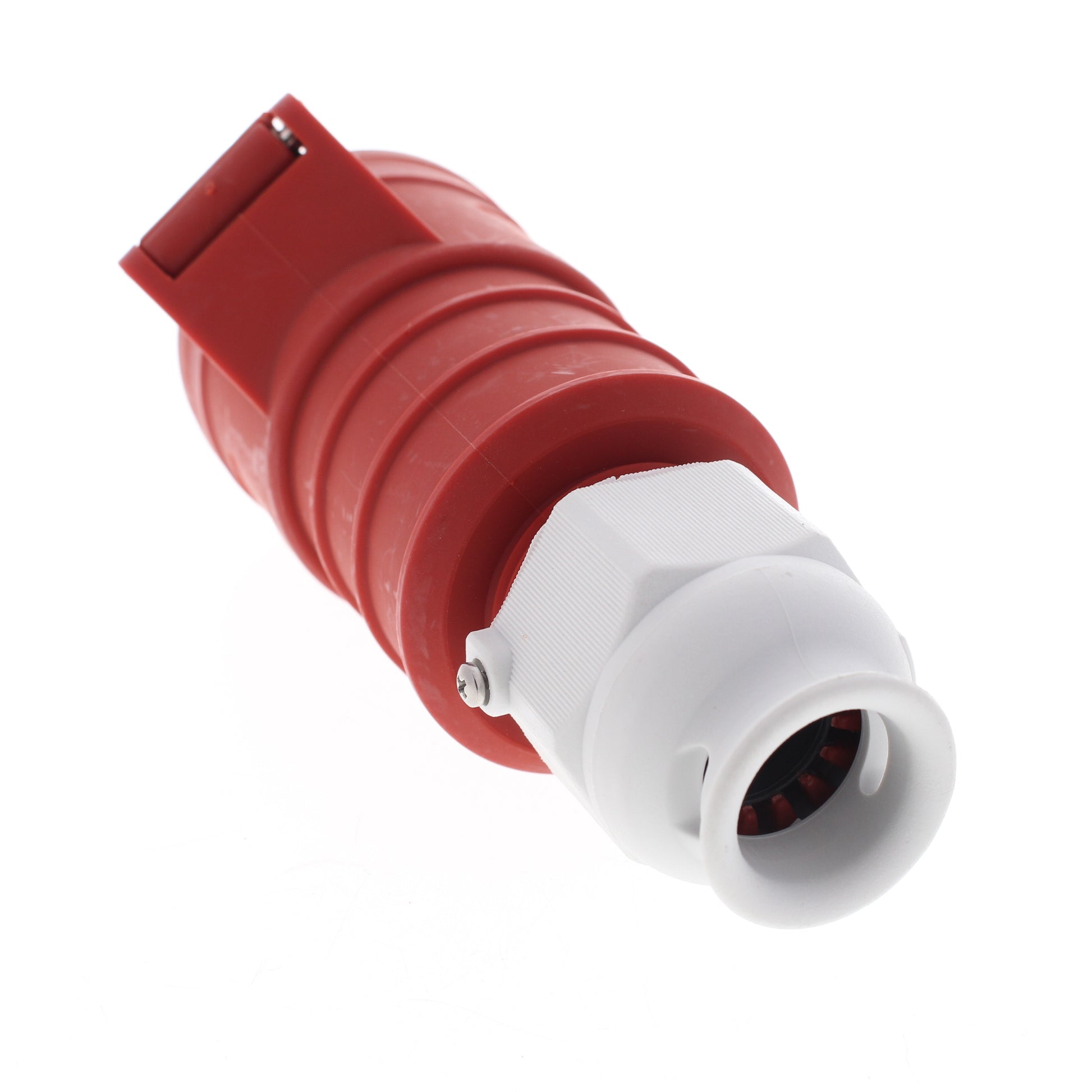

Individual solid neoprene glands are supplied to match a full range of cord sizes and assure watertight performance
Broaches oxide film to achieve low resistance contact for cooler operation
Features a V-0 flammability rating
Locking ring torque tabs for a reliable seal for maximum environmental protection
Shrouded cover arm offers a compact internal swing arm is fully shrouded, improving durability
Pocketed recessed screws prevent slippage of the screwdriver
