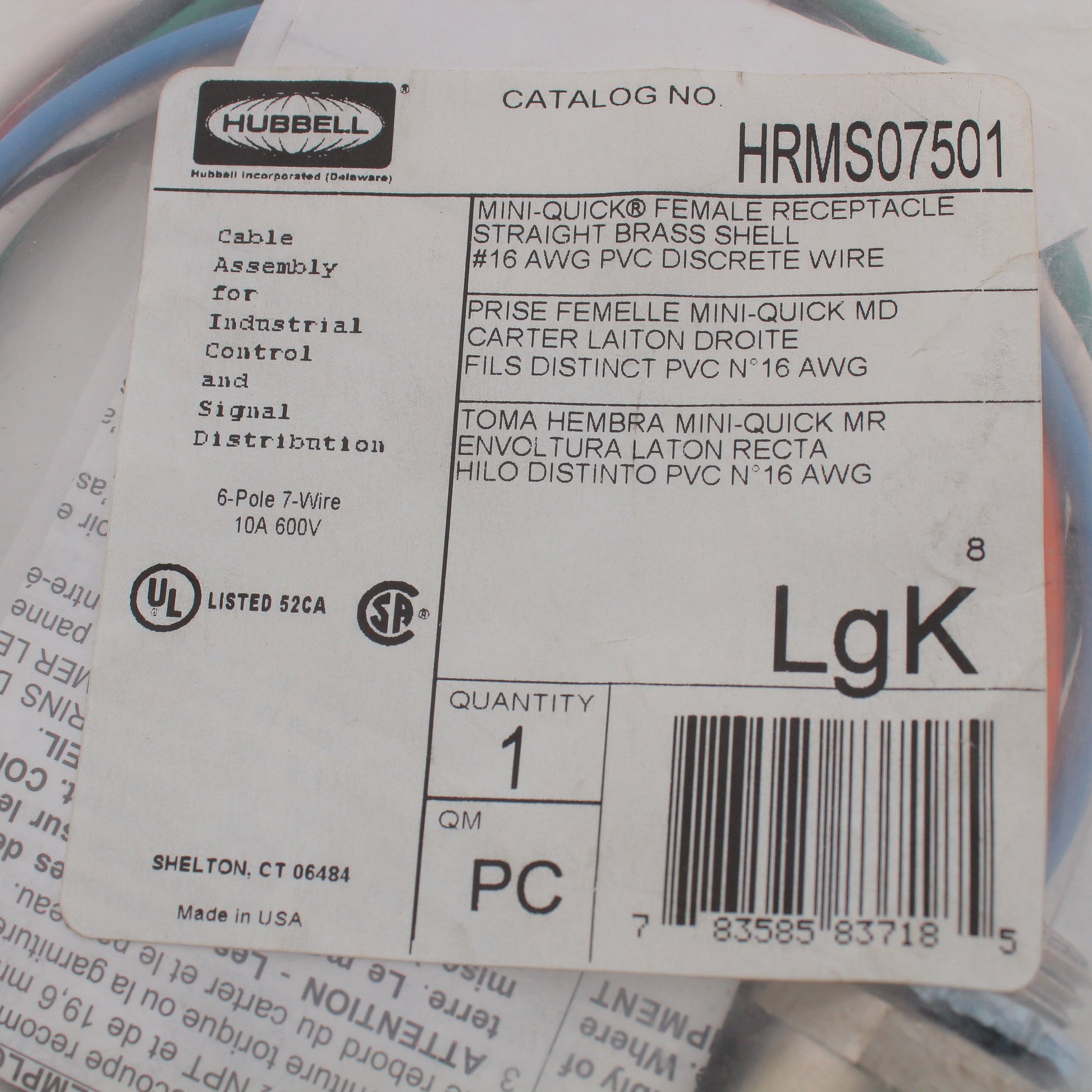

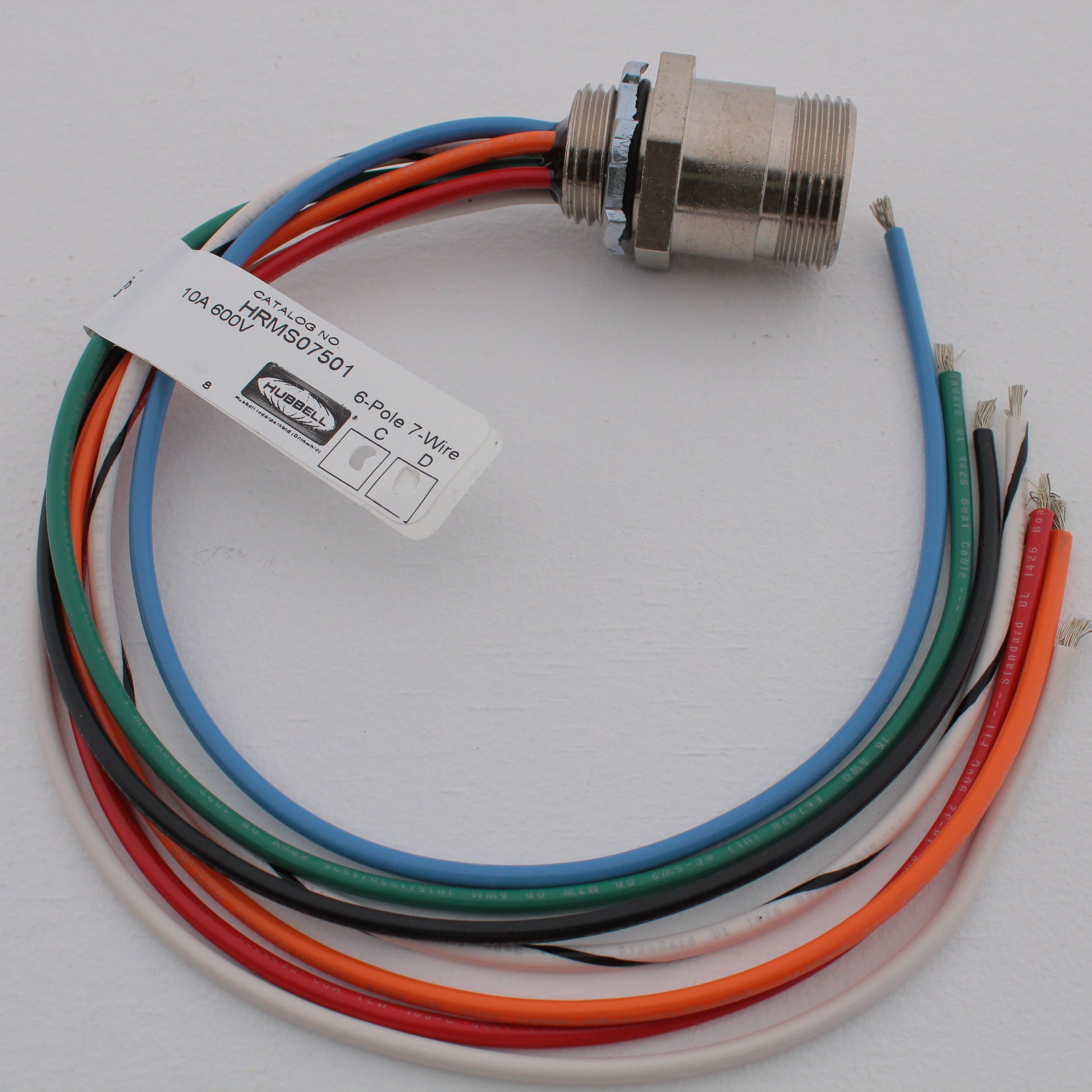

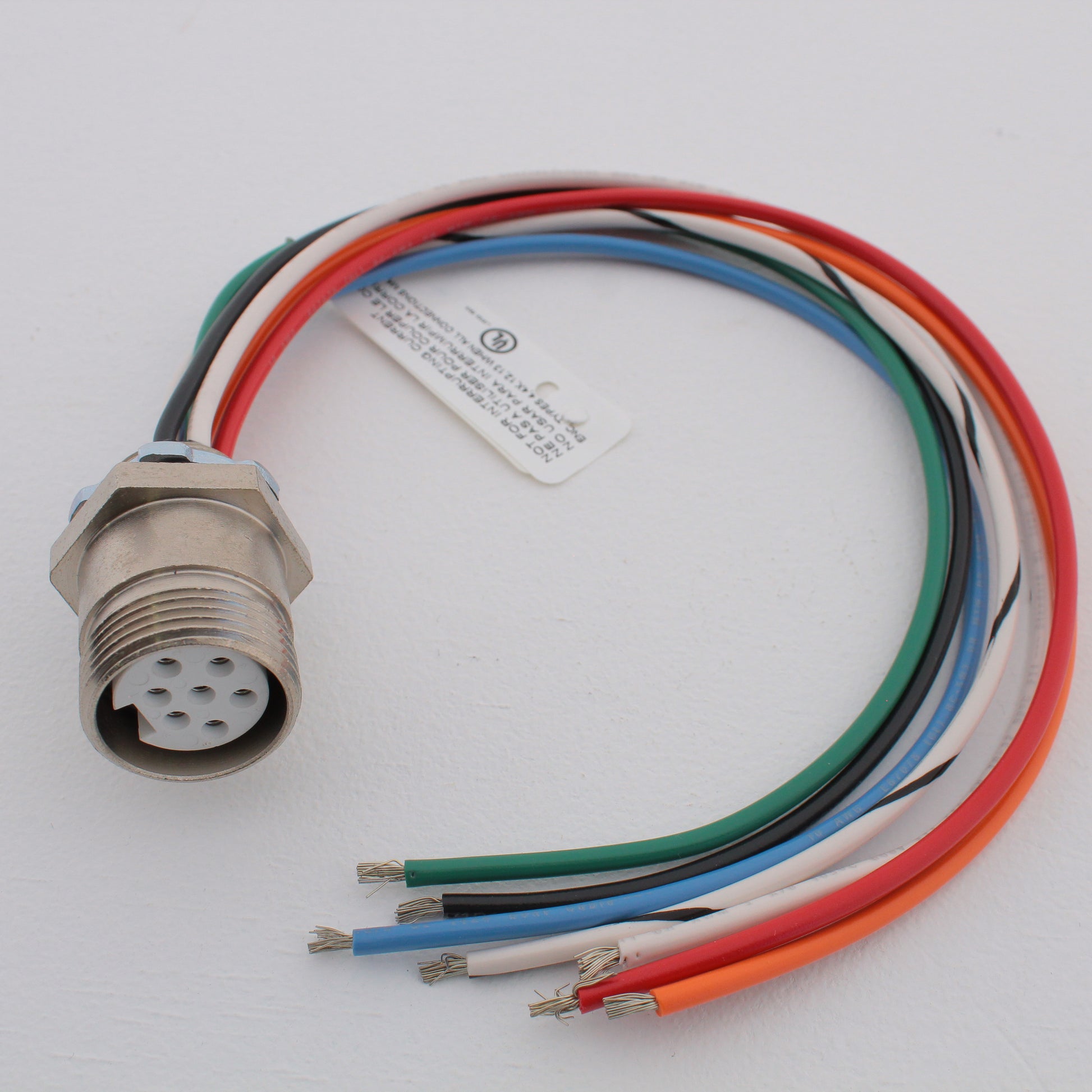

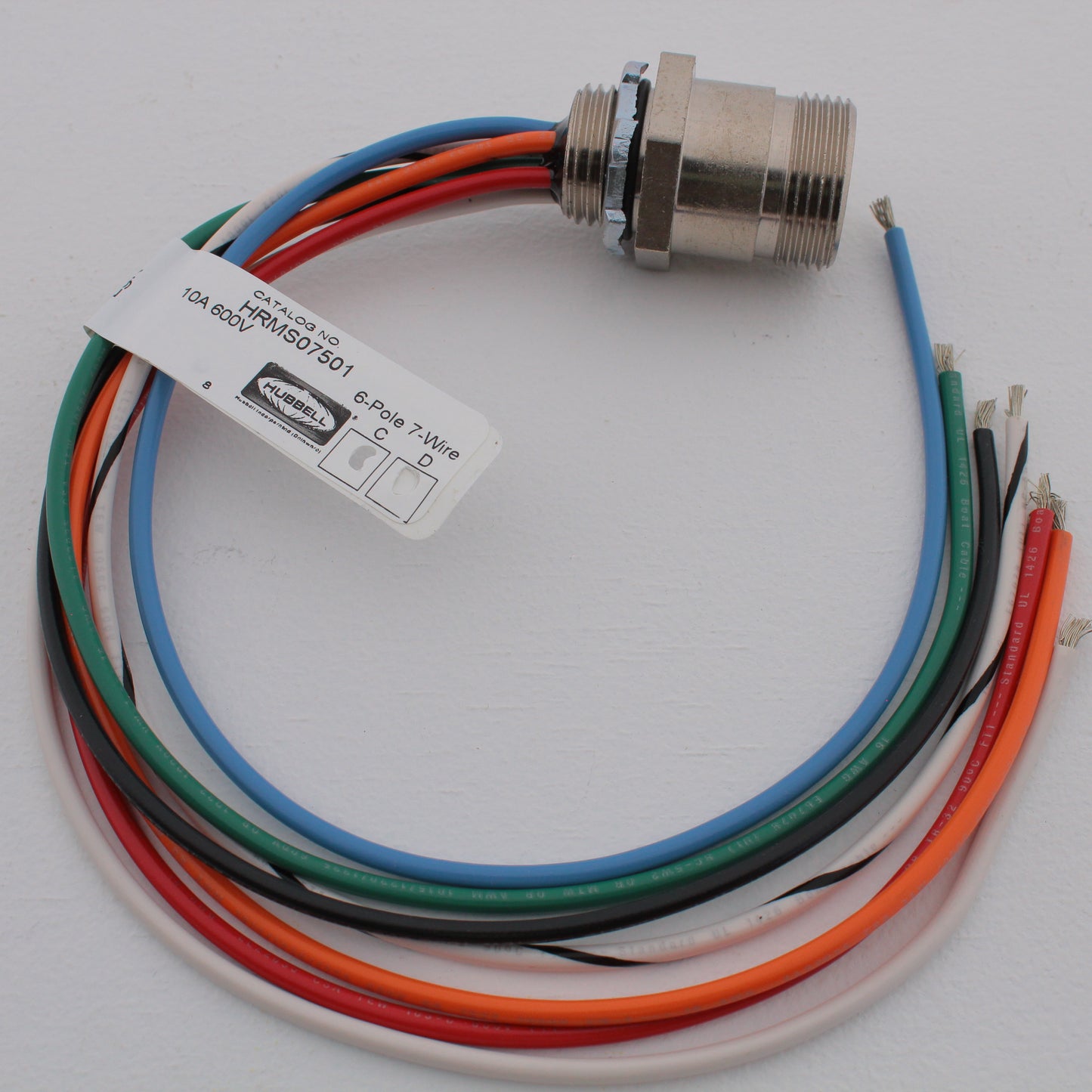

Hubbell MiniQuick Female Receptacle 6P7W Straight Quickconnect 16AWG HRMS07501

Hubbell HRMS07501 Mini-Quick straight mount receptacle. Typically used for signal and control applications. Features include:

• 1/2" NPT mount with lock nut; fits .83" panel opening
• Brass contacts have hard gold over palladium nickel contact plating for superior conductivity and extended contact life
• 1 foot long 16 AWG wire leads
• 6-pole, 7-wire
• Construction: nickel plated brass shell; leaded nickel copper contact sockets; stainless steel contact sleeve; nylon 6/6 insulator; black polyurethane overmold
• Rated 600V AC/DC 10A
• NEMA 4/4X/12/13, IP66 enclosure
• Wire code: 1-White/Black 2-Black 3-White 4-Red 5-Orange 6-Blue 7-Green
