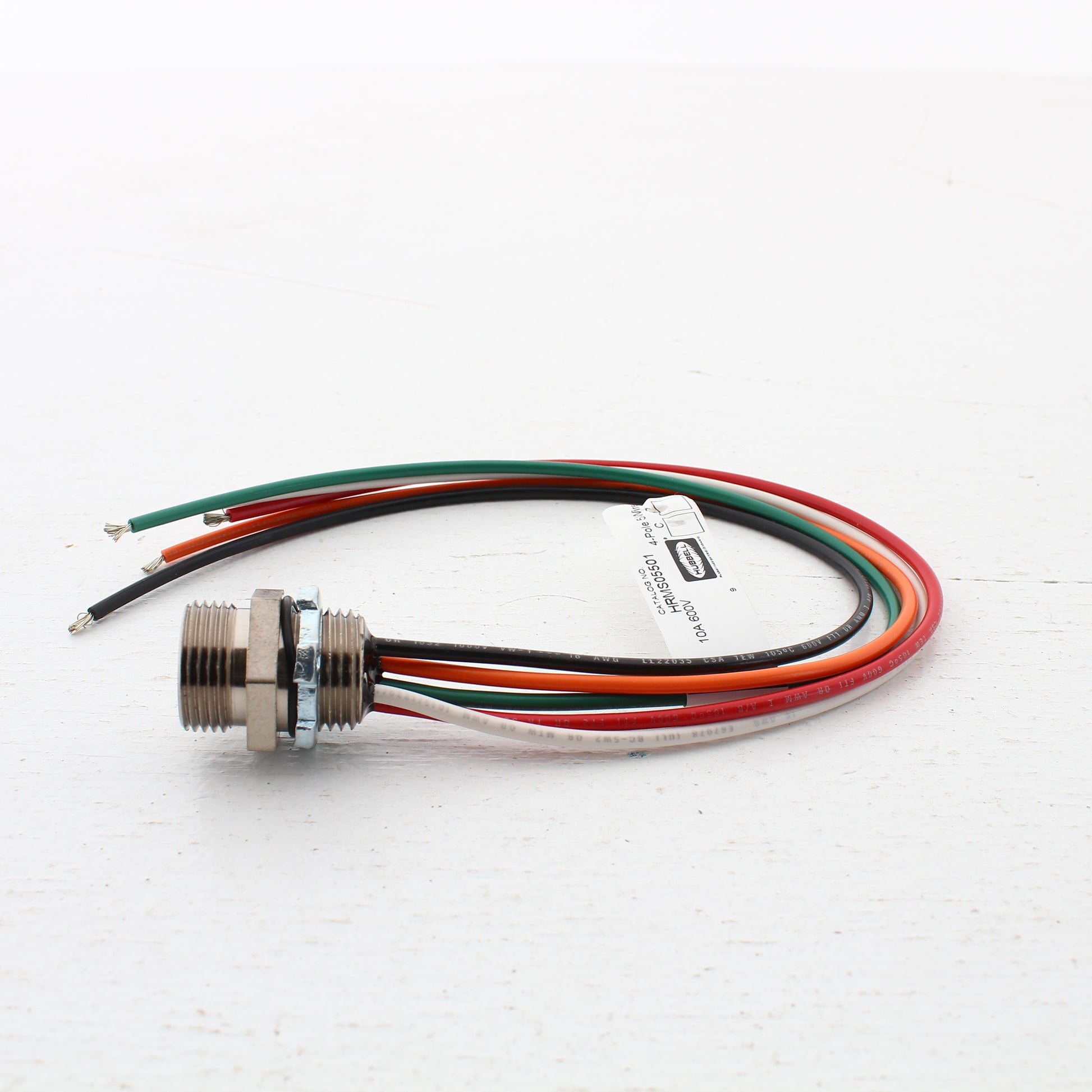

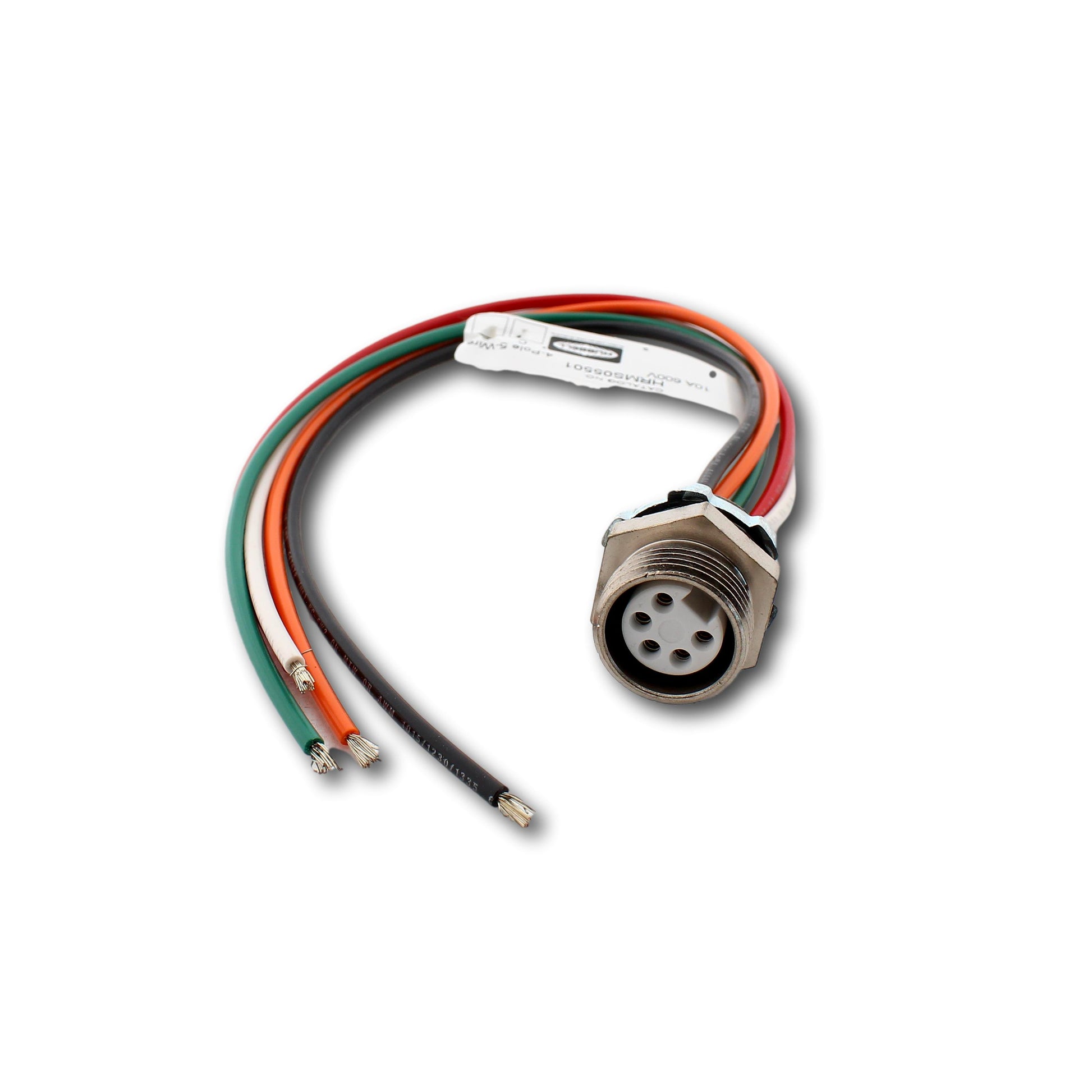

Hubbell MiniQuick Female Receptacle 4P5W Straight Quickconnect 16AWG HRMS05501

Hubbell HRMS05501 Mini-Quick straight mount receptacle. Typically used for signal and control applications. Features include:

• 1/2" NPT mount with lock nut; fits .83" panel opening
• Brass contacts have hard gold over palladium nickel contact plating for superior conductivity and extended contact life
• 1 foot long 16 AWG wire leads
• 4-pole, 5-wire
• Construction: nickel plated brass shell; leaded nickel copper contact sockets; stainless steel contact sleeve; nylon 6/6 insulator; black polyurethane overmold
• Rated 600V AC/DC 10A
• NEMA 4/4X/12/13, IP66 enclosure
• Wire code: 1-White 2-Red 3-Green 4-Orange 5-Black
