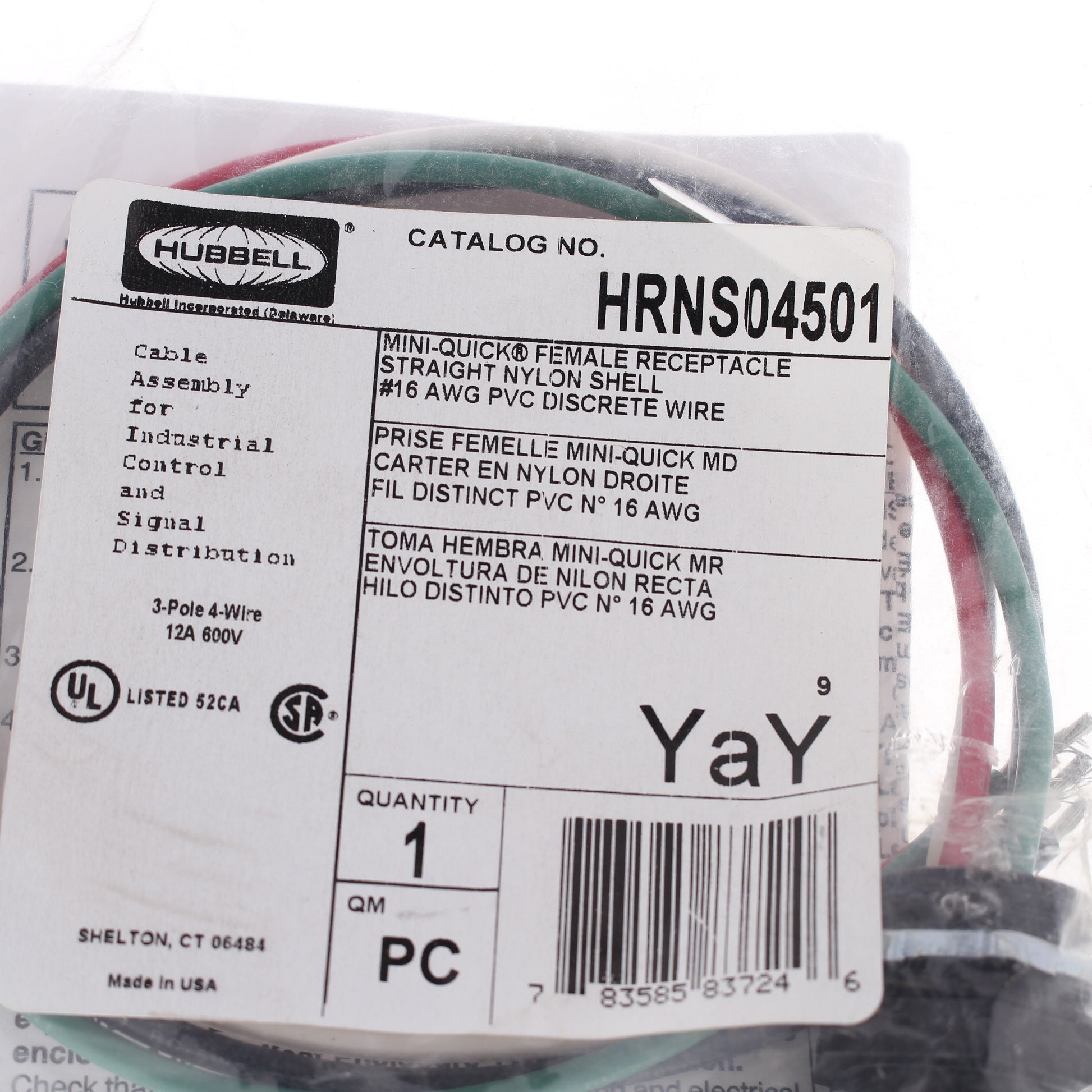

Hubbell MiniQuick Female Receptacle 3P4W Straight Quickconnect 16AWG HRNS04501

Hubbell HRNS04501 Mini-Quick straight mount receptacle. Typically used for signal and control applications. Features include:

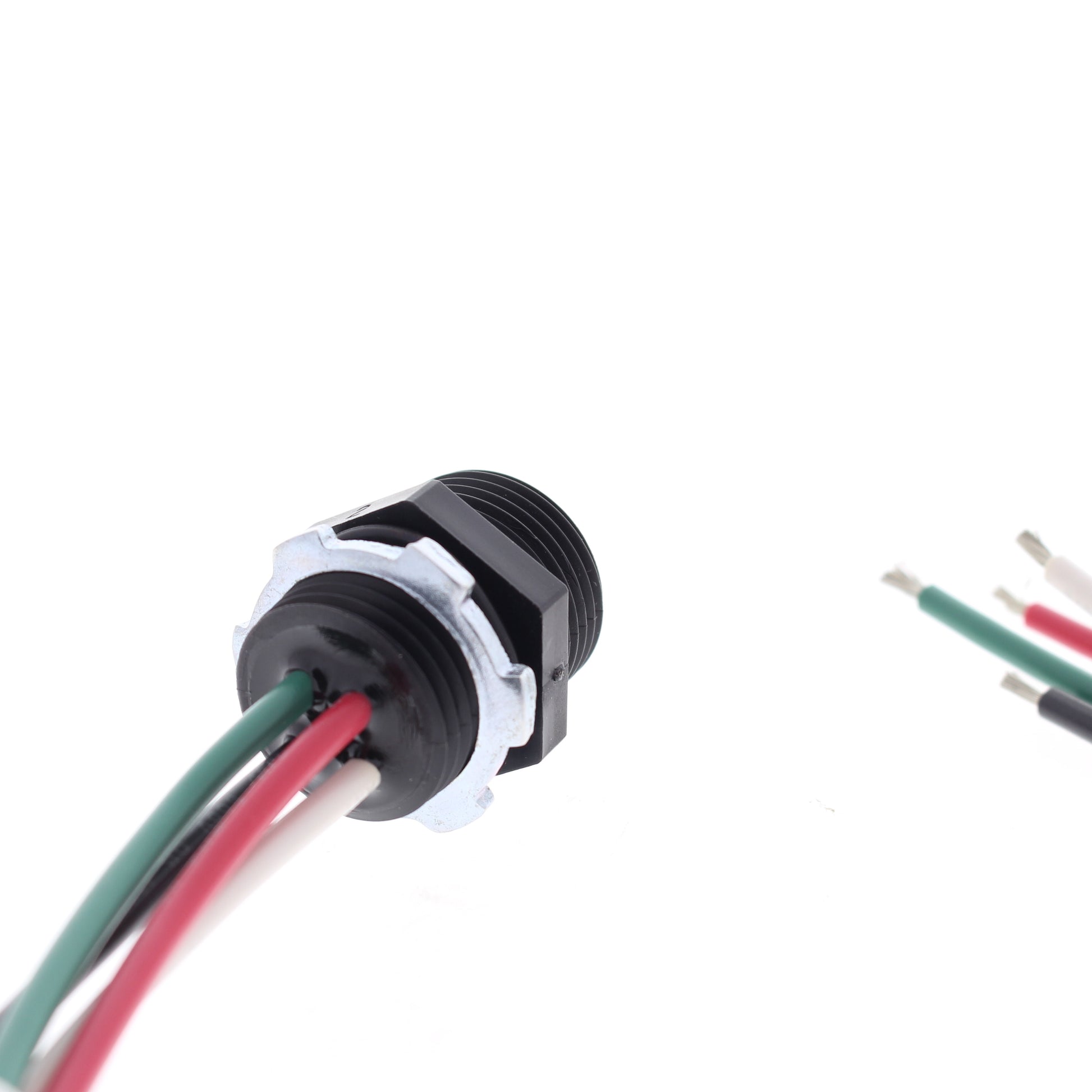

• 1/2" NPT mount with lock nut; fits .83" panel opening
• Brass contacts have hard gold over palladium nickel contact plating for superior conductivity and extended contact life

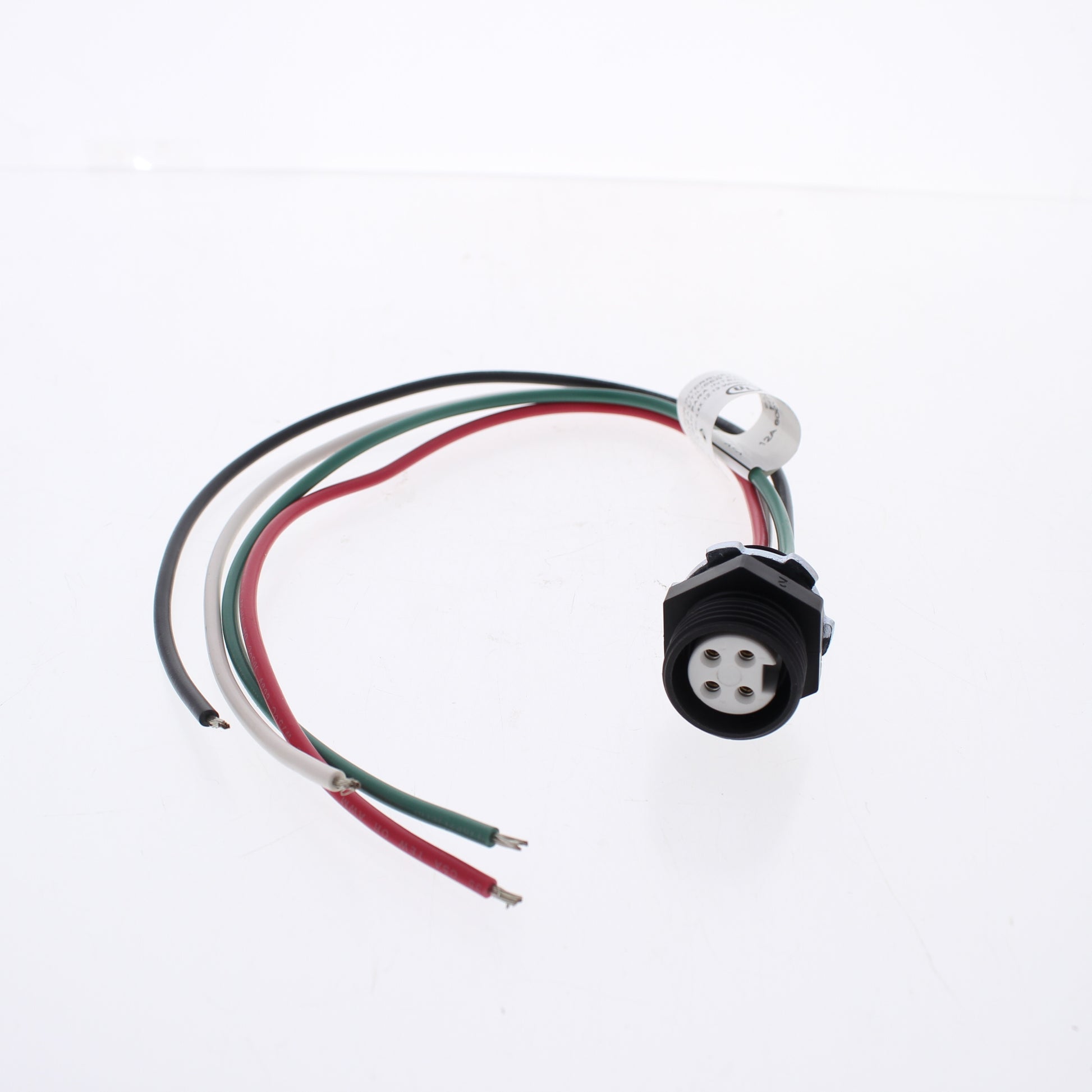

• 1 foot long 16 AWG wire leads

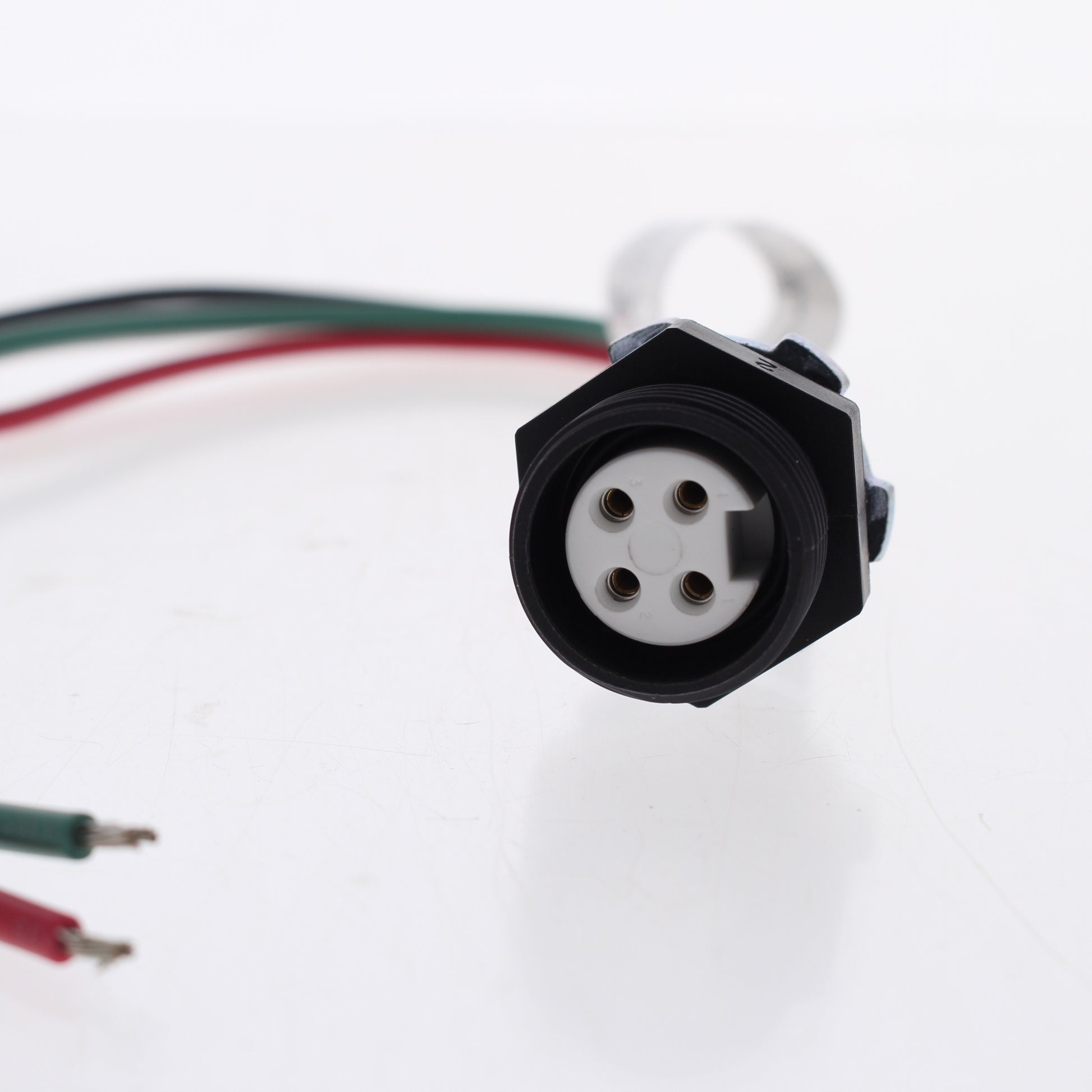

• 3-pole, 4-wire
• Construction: nylon shell; leaded nickel copper contact sockets; stainless steel contact sleeve; nylon 6/6 insulator; black polyurethane overmold
• Rated 600V AC/DC 12A
• NEMA 4/4X/12/13, IP66 enclosure
• Wire code: 1-Black 2-White 3-Red 4-Green
