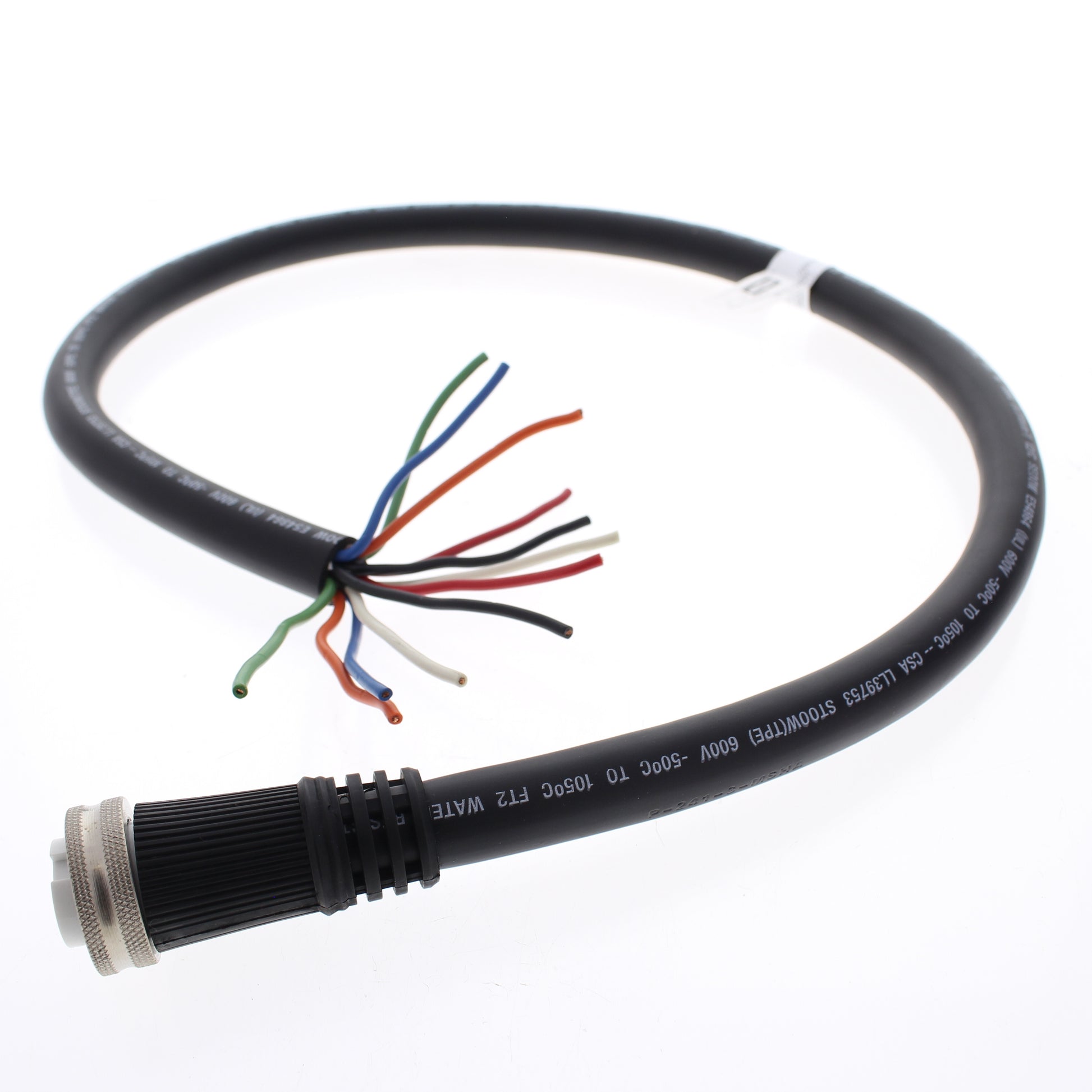

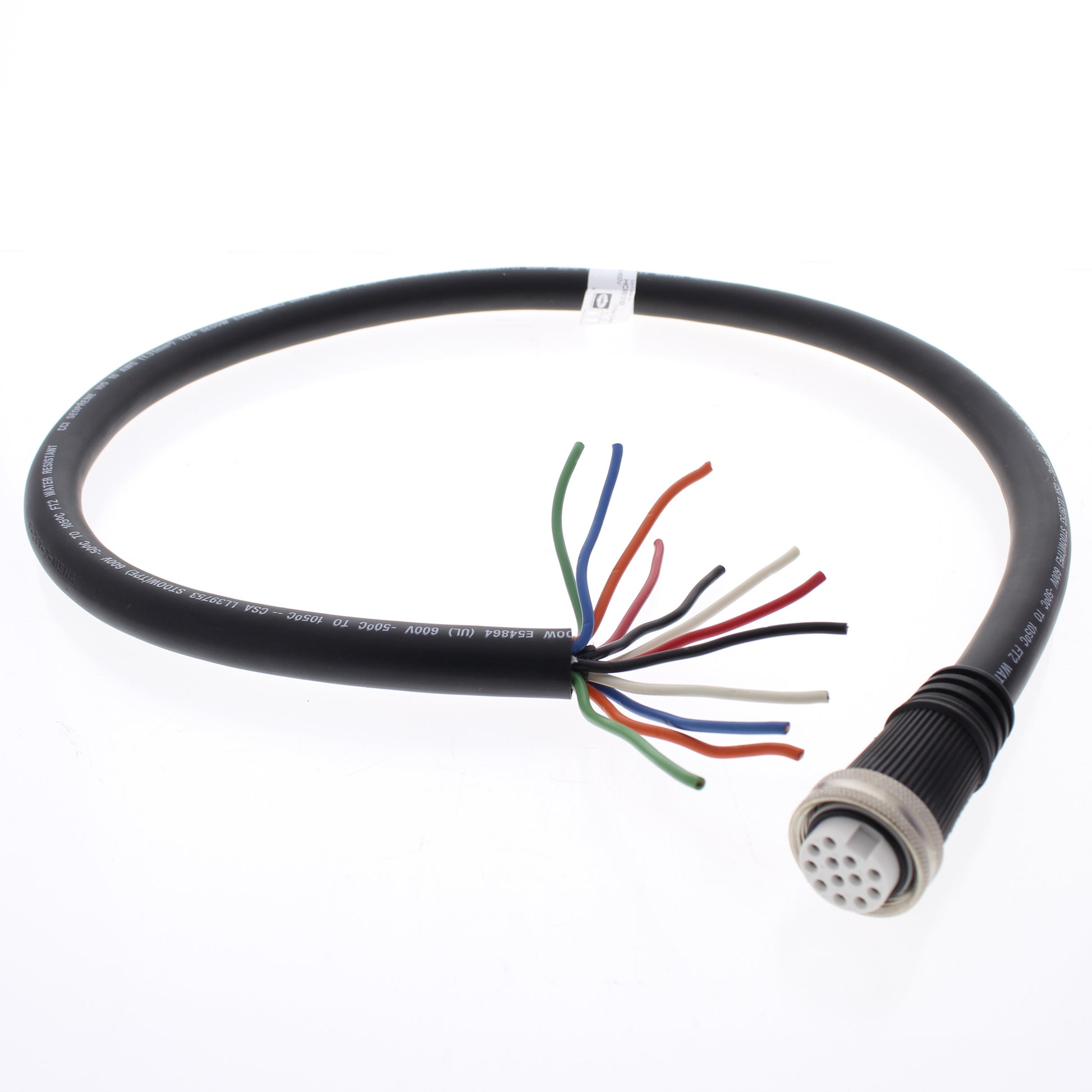

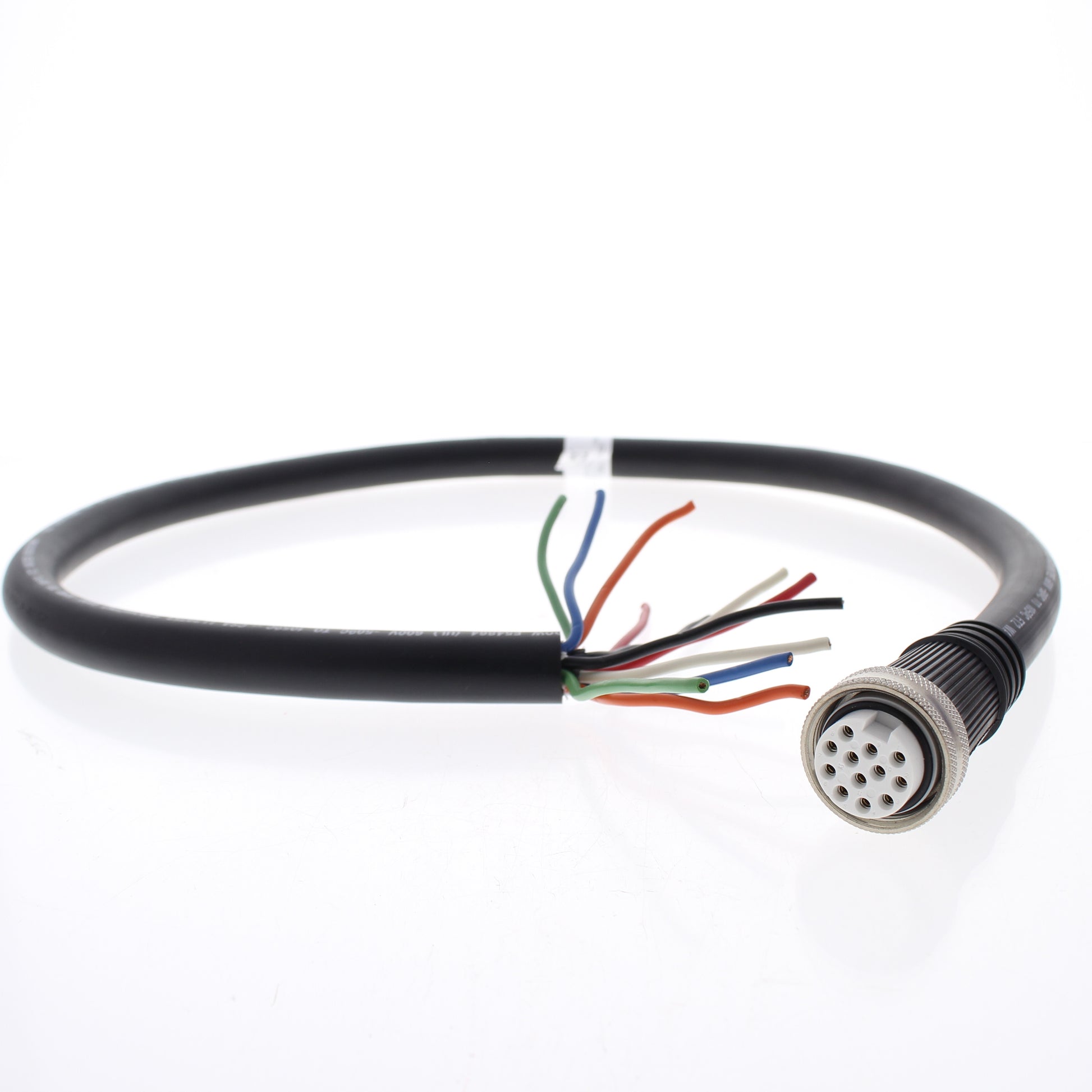

Hubbell Mini-Quick Cable Female Plug 6P7W Quick-Connect 16AWG 10A 3 Ft HCMS12103

Hubbell HCMS12103 Mini-Quick cable assembly plug. Typically used for signal and control applications. Features include:

• Brass contacts have hard gold over palladium nickel contact plating for superior conductivity and extended contact life
• 3 foot long cable: 16 AWG SEOOW, TPE jacket, .706" diameter
• 11-pole, 12-wire
• Construction: nickel plated brass coupling nut; leaded nickel copper contact sockets; stainless steel contact sleeve; nylon 6/6 insulator; black polyurethane overmold
• Rated 600V AC/DC 10A
• NEMA 4/4X/12/13, IP66 enclosure
• Wire code: 1-Orange 2-Blue 3-White/Black 4-Red/Black 5-Green/Black 6-Orange/Black 7-Blue/Black 8-Black/White 9-Green 10-Red 11-White 12-Black Wire
