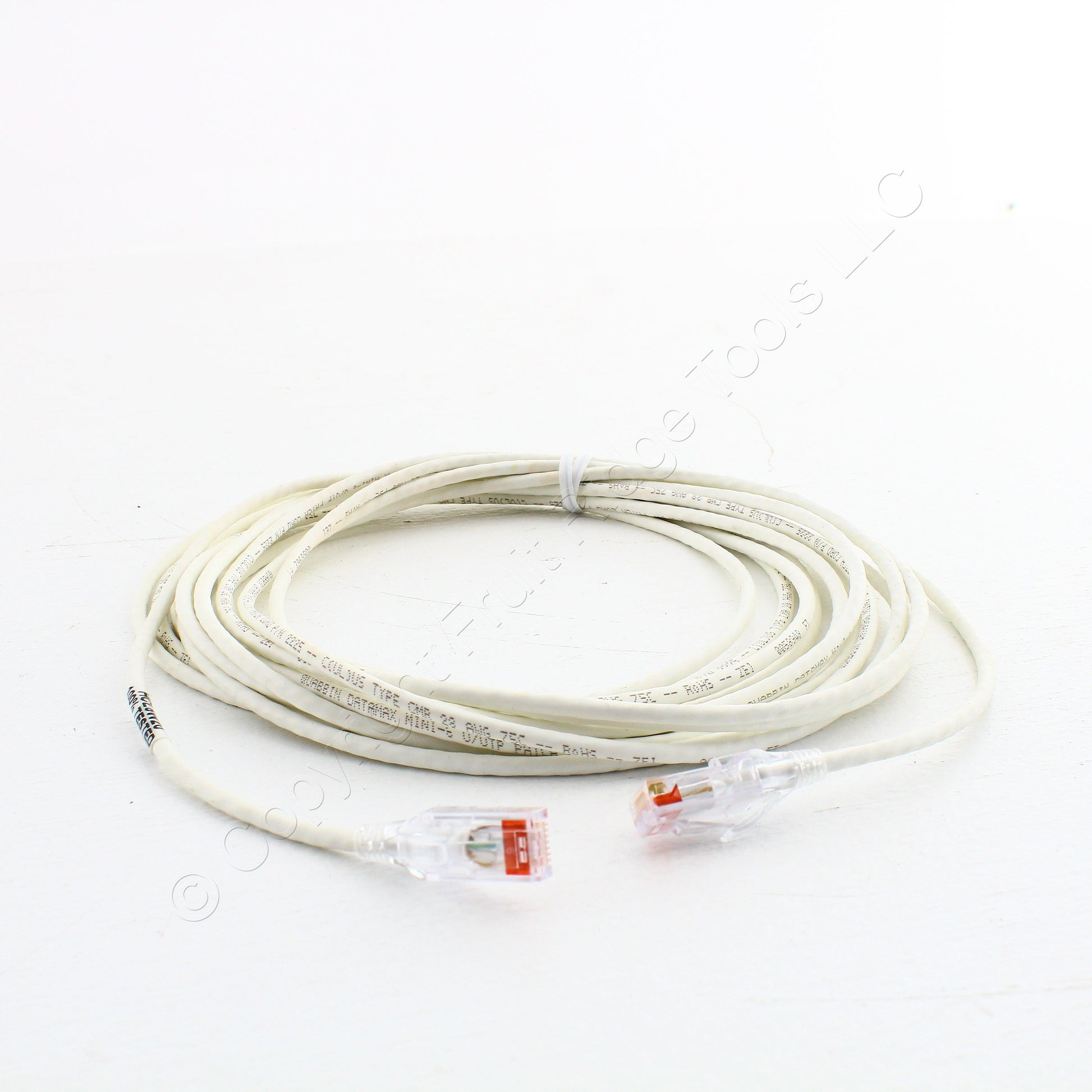

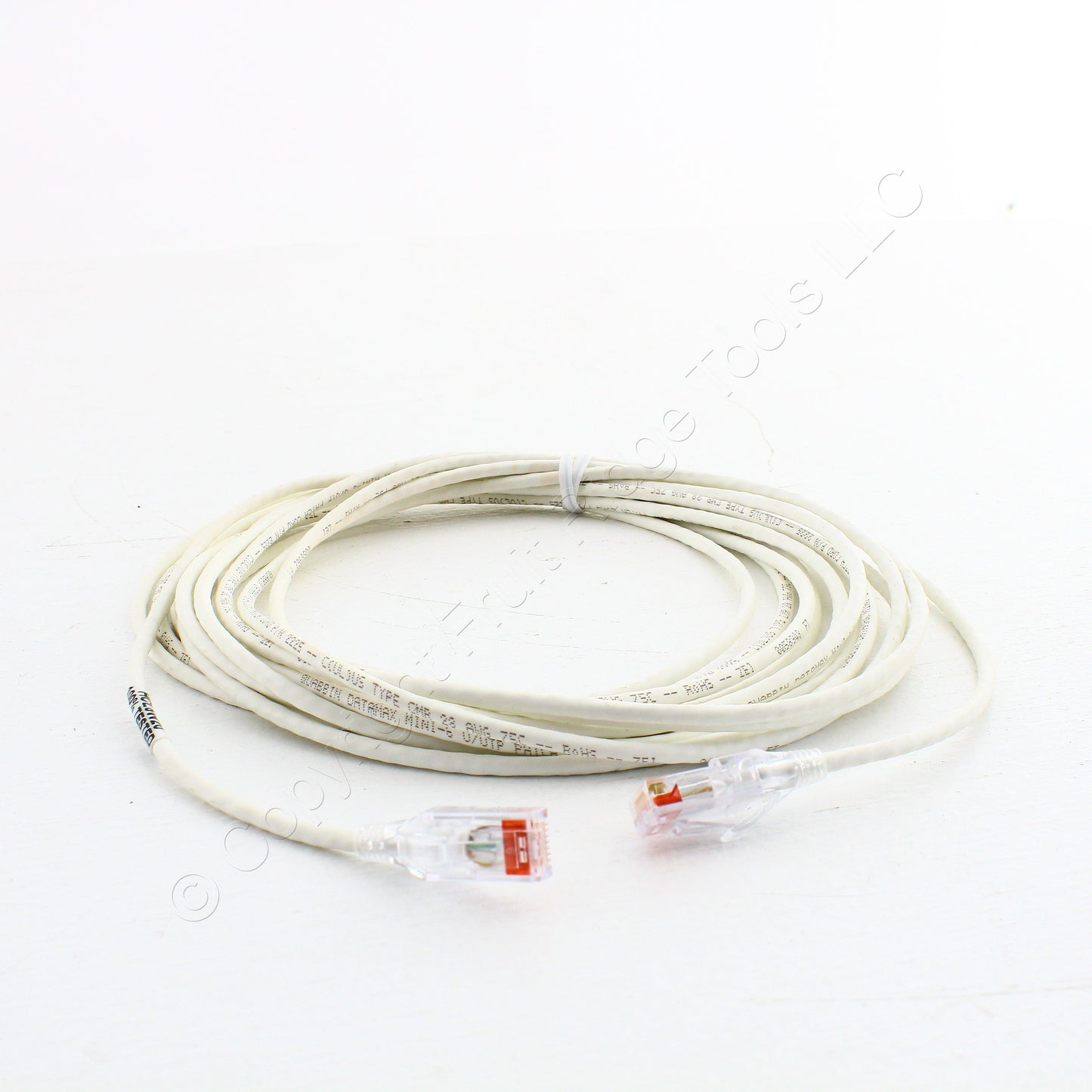

Hubbell HCL6W20 Category 6 patch cord. Special low diameter design (0.15" O.D.). Low diameter patch cords from Hubbell reduce cable congestion associated with high density installation in data centers, wall mount enclosures and Cat 6 panels. They utilize #28AWG stranded copper conductors that are extremely flexible and easy to manage. This gauge is below current TIA-568 specifications and, as a result, these cords have an increased de-rating factors and limitations on PoE applications. Features include:
De-rating factor: 1.87
Maximum channel with PoE: 131ft
Maximum bundle: 802.3bt=24 cables; 802.3at=48 cables
Length: 20 ft.
Color: white
Category 6
Nominal O.D.: 0.150"

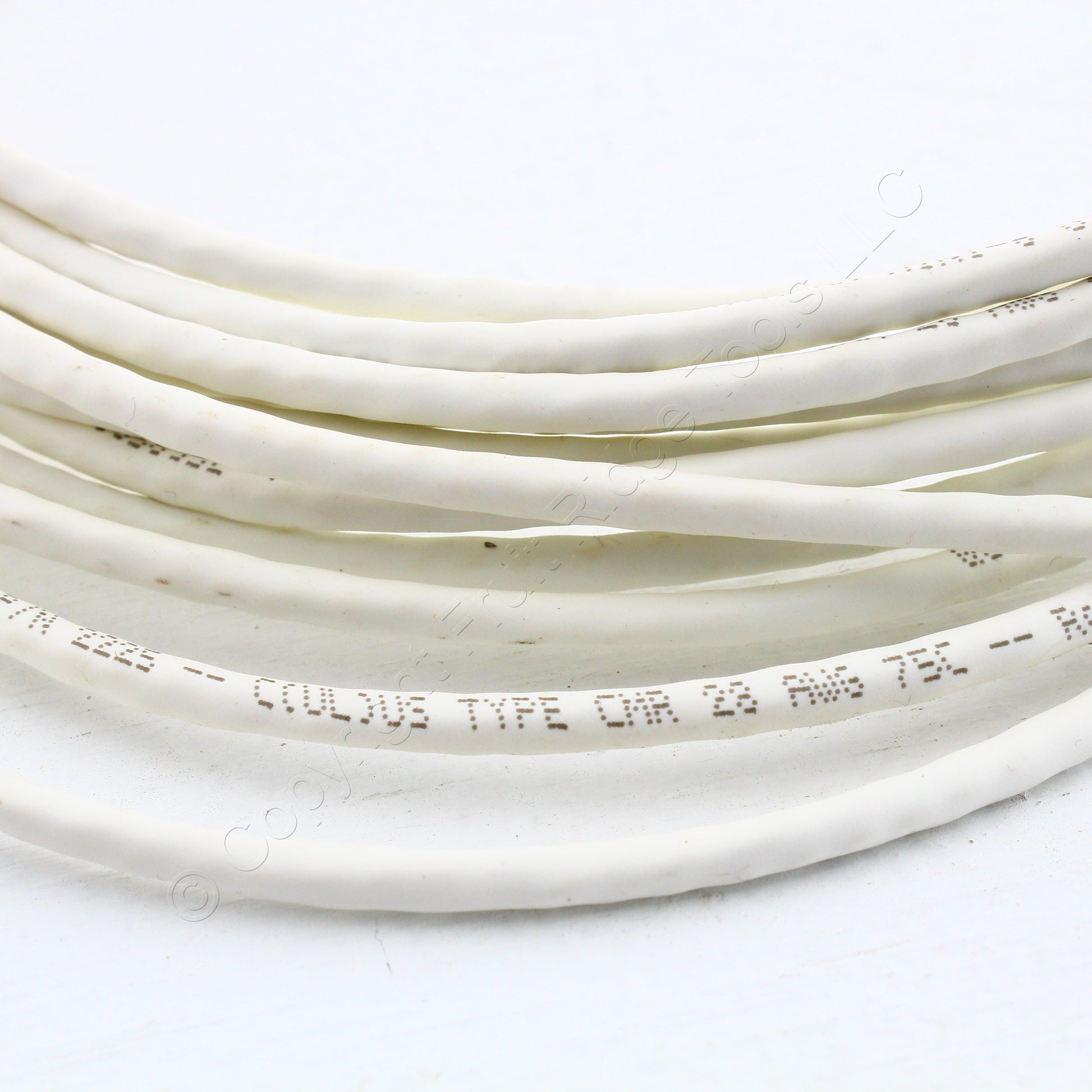

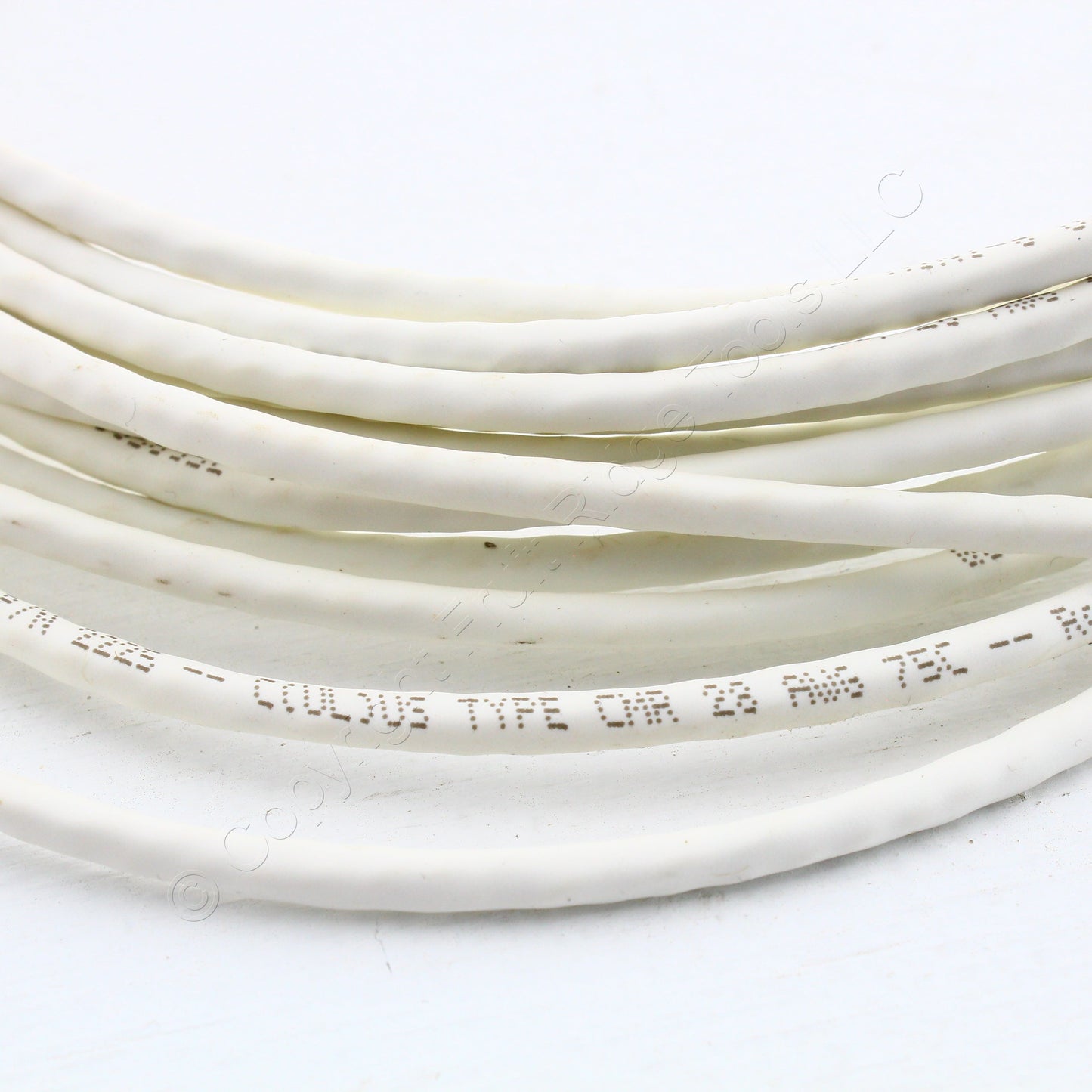

28 AWG stranded copper
Strain relief boot
5-gigabit application assurance
50 micro-inch gold contact plating with 100 micro-inch underplating
High flexibility: stranded copper conductors with soft, flexible cable jacket provide easy cable management

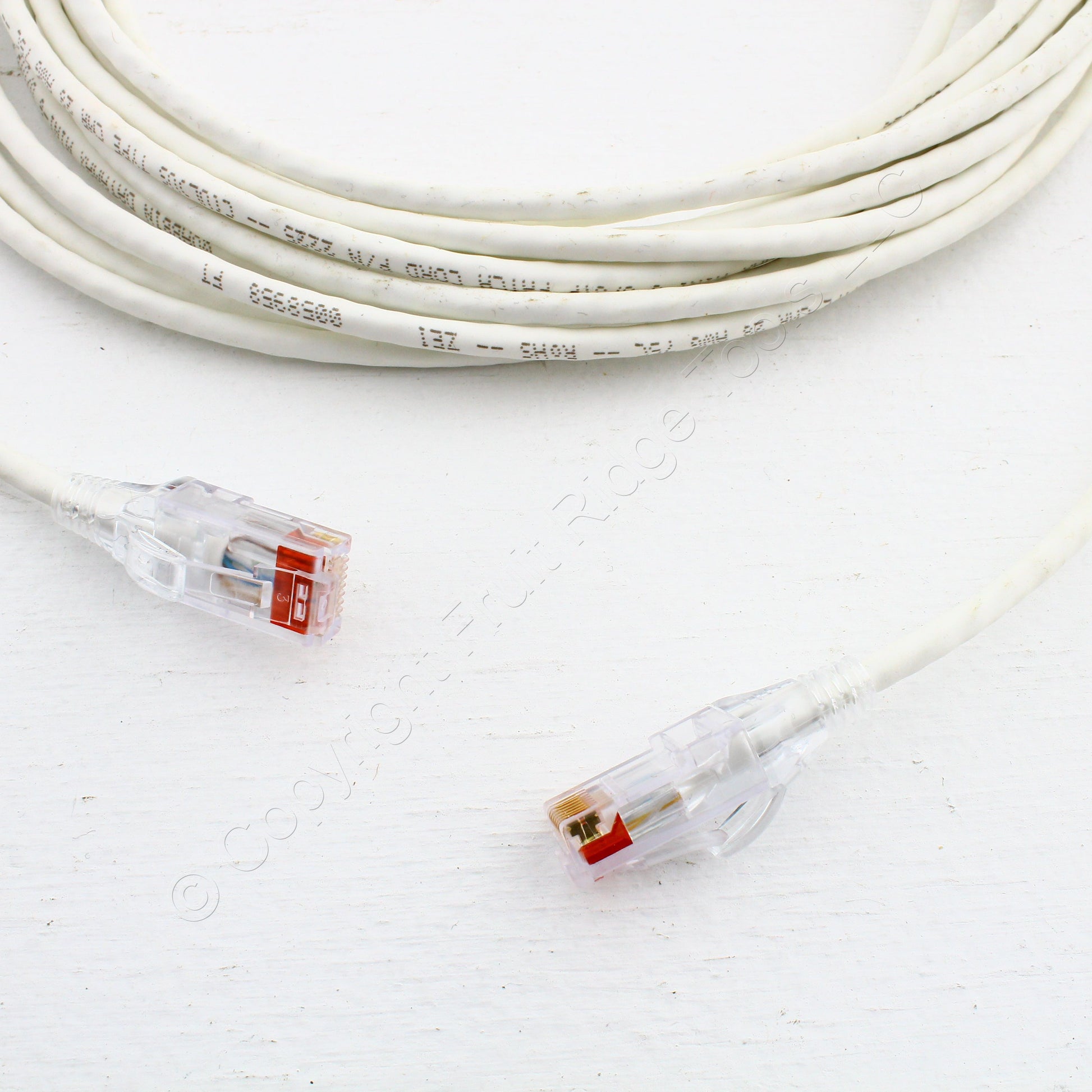

Plug optimized: allows for easy access to high density switch ports
40% improved bend radius
Third party ETL verified Category 6 component
ETL Verified for TIA Component NEXT and Return Loss
Designed to exceed TIA component NEXT and Return Loss values
Reduced airflow resistance and improved cooling
Over 30% reduction in weight puts less stress on cable support infrastructure
