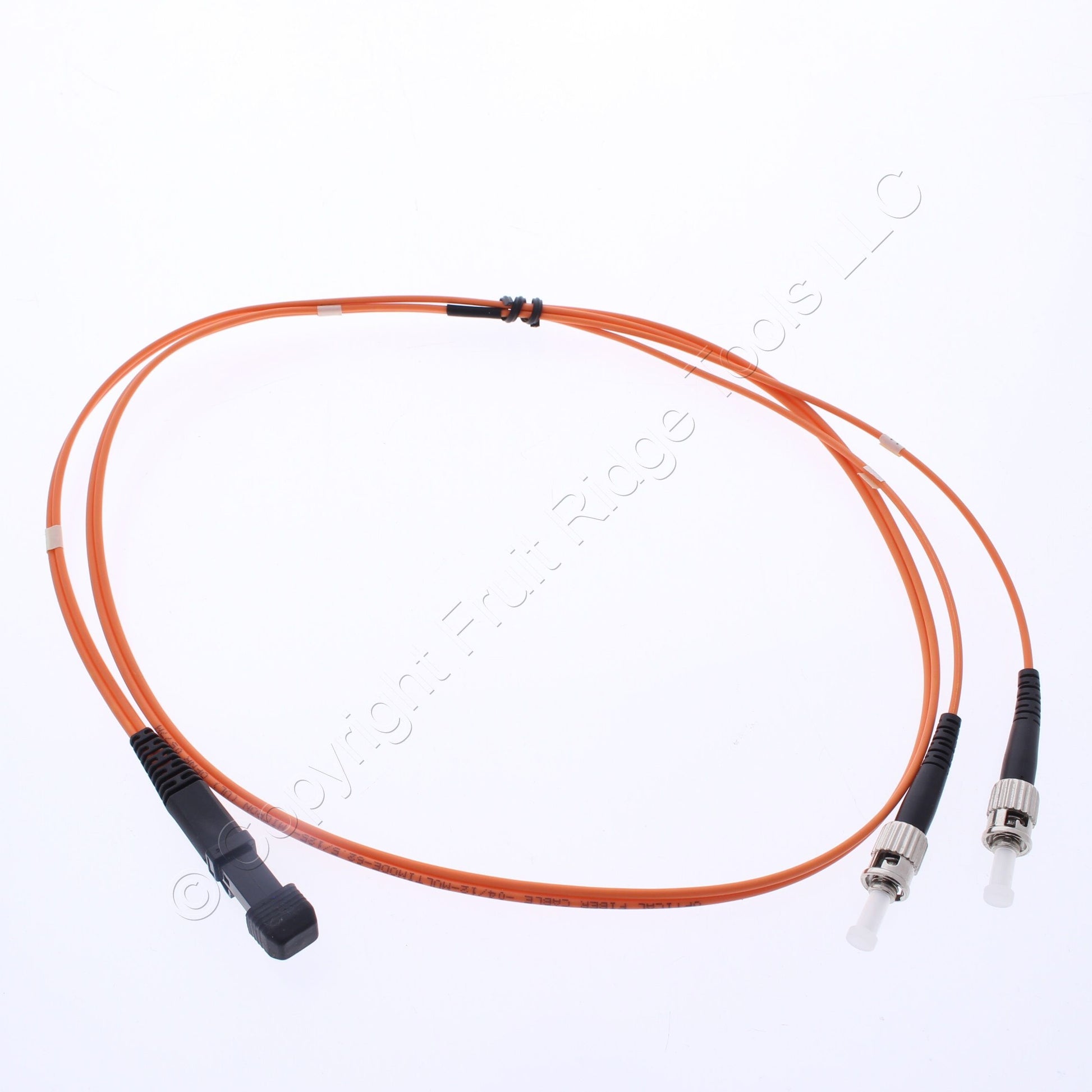

Hubbell Fiber Optic Patch Cord Plenum OM1 Cable Duplex MM MTRJ-ST 1m

Hubbell DFPCRJSTC1MM OptiChannel fiber optic patch cord. Features include:

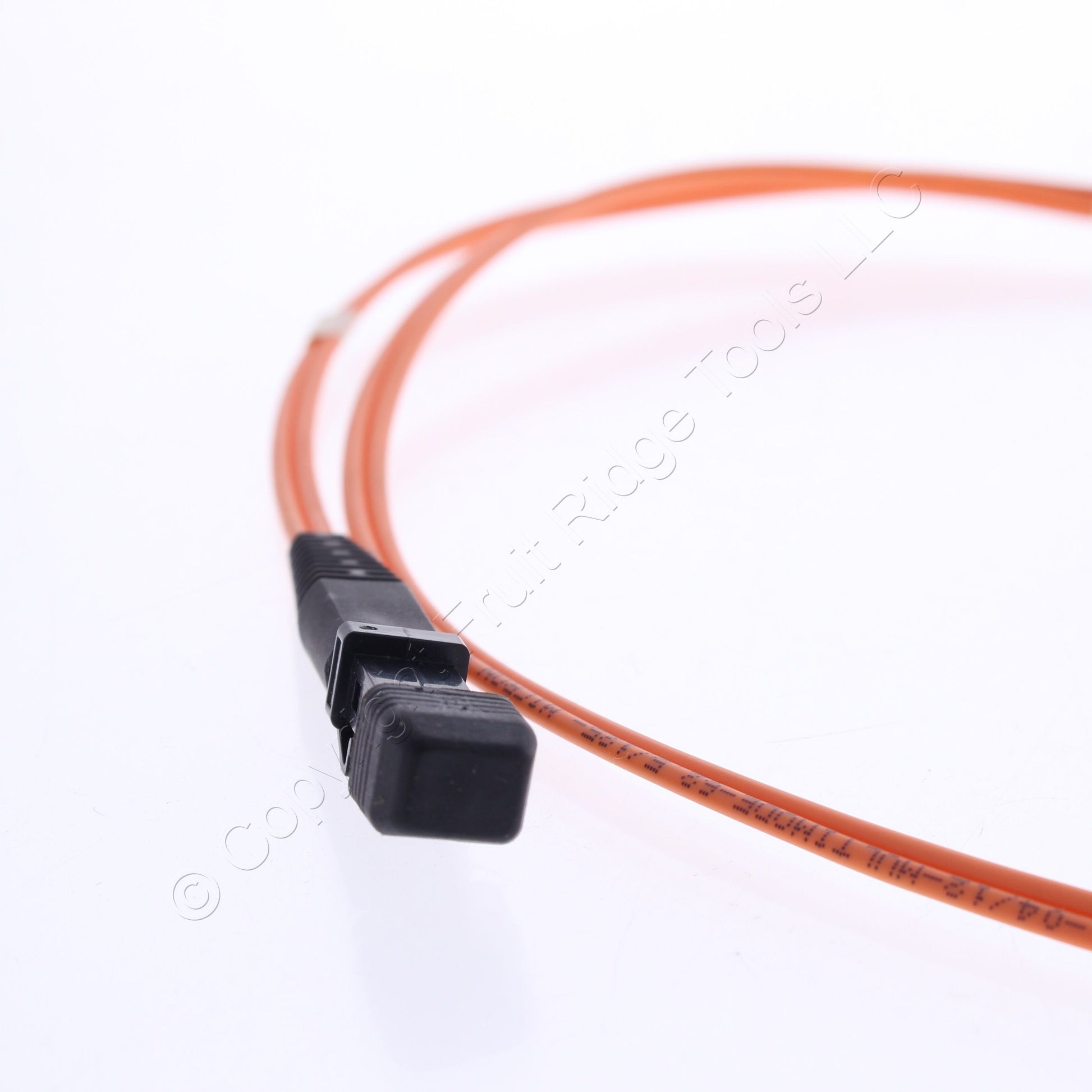

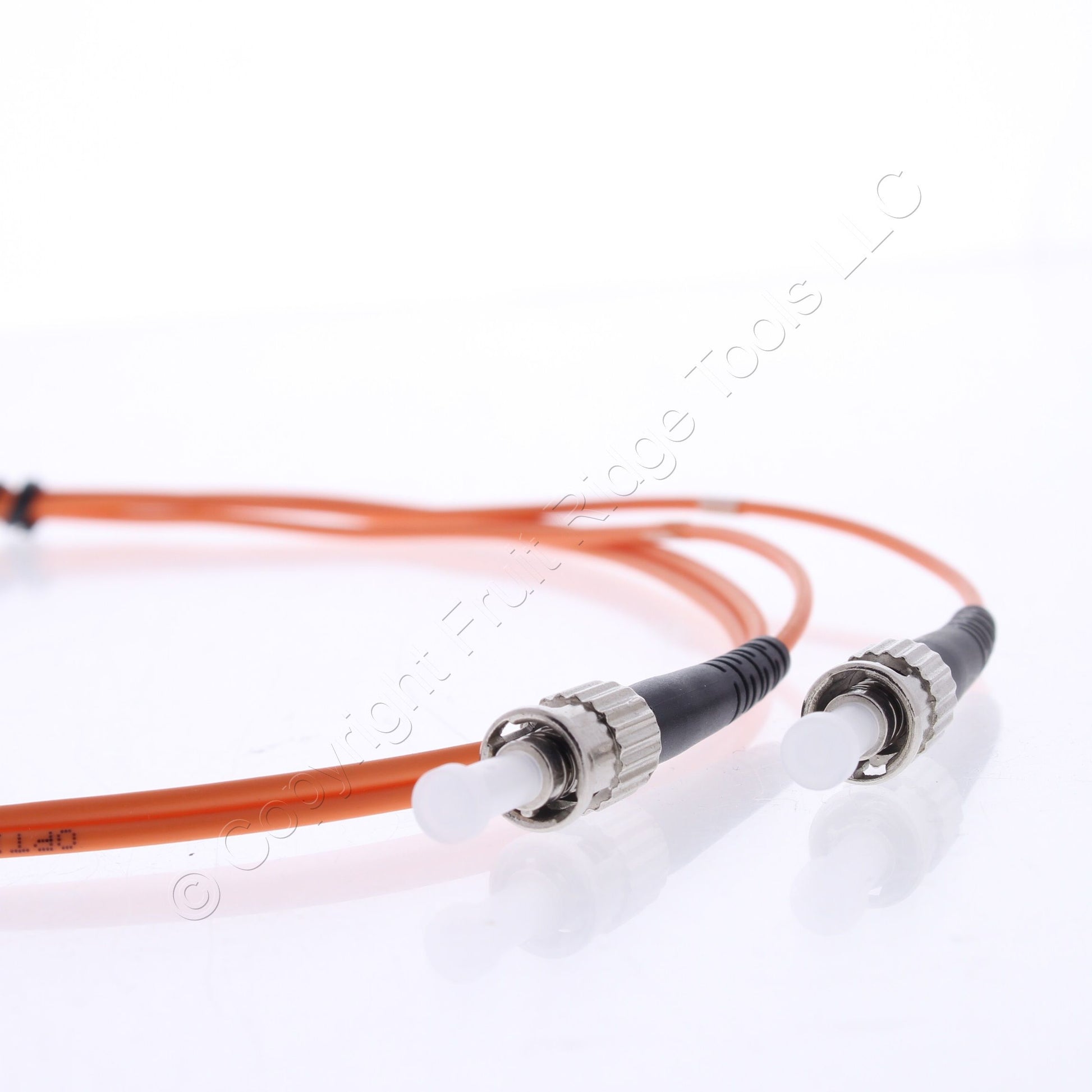

• Connectors: MT-RJ to ST
• Fiber grade: OM1
• Density: Duplex
• Mode type: Multimode
• Tip polish style: PC (physical contact)
• Core/cladding: 62.5/125 micron
• Length: 1 meter
• Cable type: Plenum
• Cable diameter: 1.6 mm to 2.0 mm
• OM1 distance limits: 33 meters @ 10G
• Mated pair insertion loss: < 0.50 dB (0.35 dB Typical)
• Mated pair return loss: > 26 dB
• Factory polished and 100% tested for superior performance
• 100% tested, heat cured epoxy termination
• Ferrule material: zirconia ceramic
