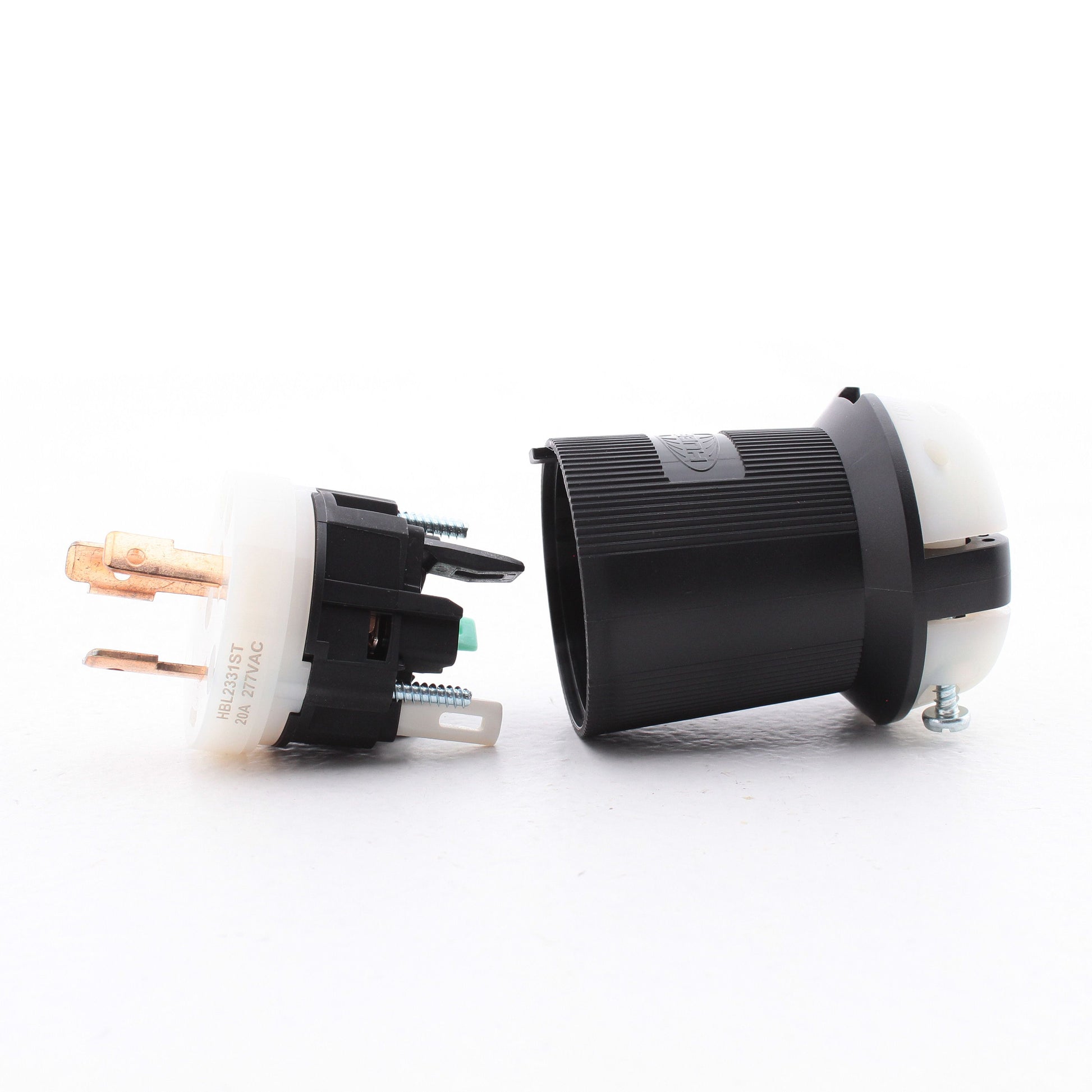

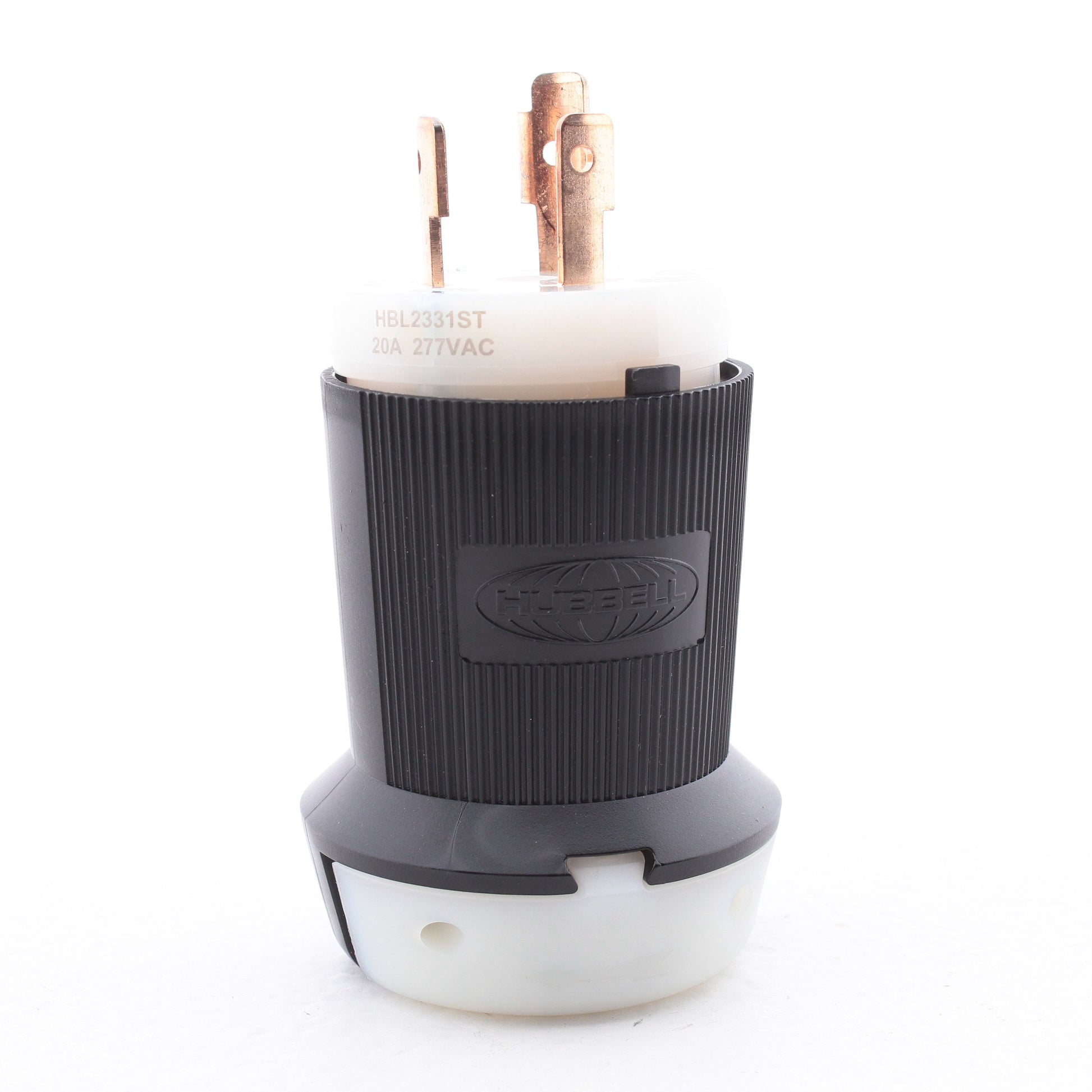

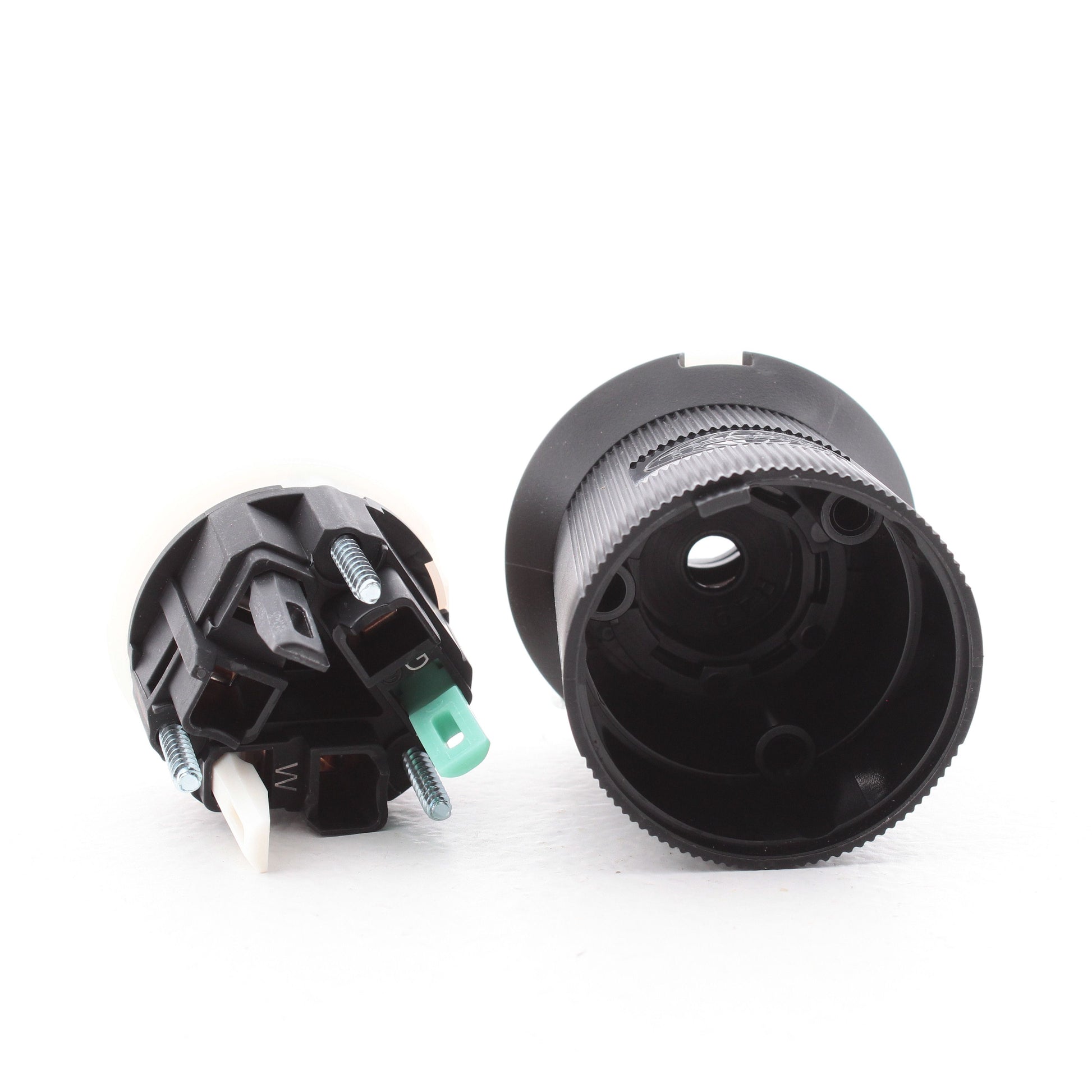

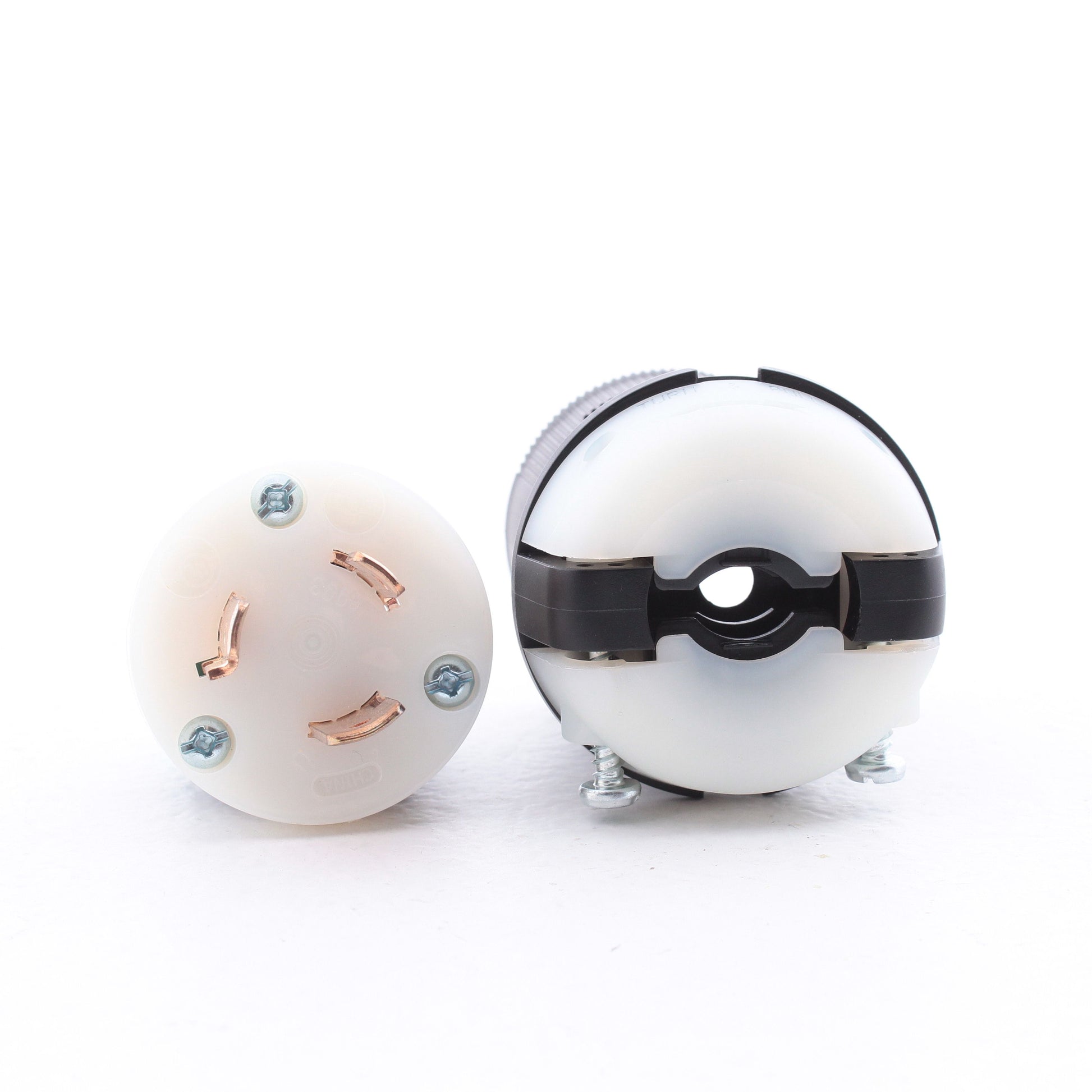

Hubbell EdgeConnect� HBL2331ST 20A Twist Locking Plug Single Phase L7-20P 277V

Hubbell EdgeConnect� HBL2331ST turn locking plug. EdgeConnect� Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Industrial Specification Grade, NEMA L7-20P, 2-pole, 3-wire, grounding, rated 20A 277V. Cord grip range: .385"-.780". Terminals accomodate #18-#10 AWG. Each is individually packaged; packaging made differ from photo. Features include:

li>Manufactured to withstand the demands of commercial and institutional applications
• Funneled wire entry to direct conductor strands
• Molded in leverage points for easy unwiring
• Heavy-gauge, rust-resistant steel mounting strap
• No need for screwdriver and torque wrench
• Thread cleaning captive combination Phillips/slotted/ Robertson mounting screws
• Uncompromising industrial-grade quality for superior performance and long service life
• Terminals clearly identified to speed and simplify wiring
• Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
• One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
• Contacts deeply seated in thick walled face
• Extra-thick .050" mounting strap
• Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
• Molded-in terminal identification letters
• Accepts #8-#14 AWG solid or stranded copper conductors
• Mechanically-secured all-brass ground path
