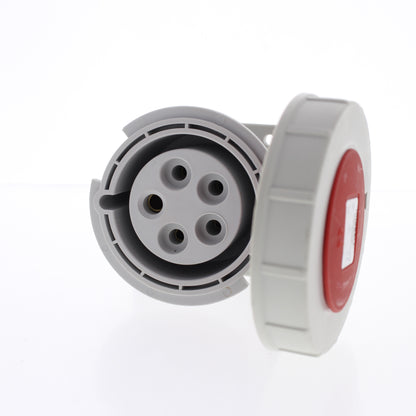

Hubbell C532R6W Watertight Pin & Sleeve Receptacle Outlet 32A 200/346V 240/415V

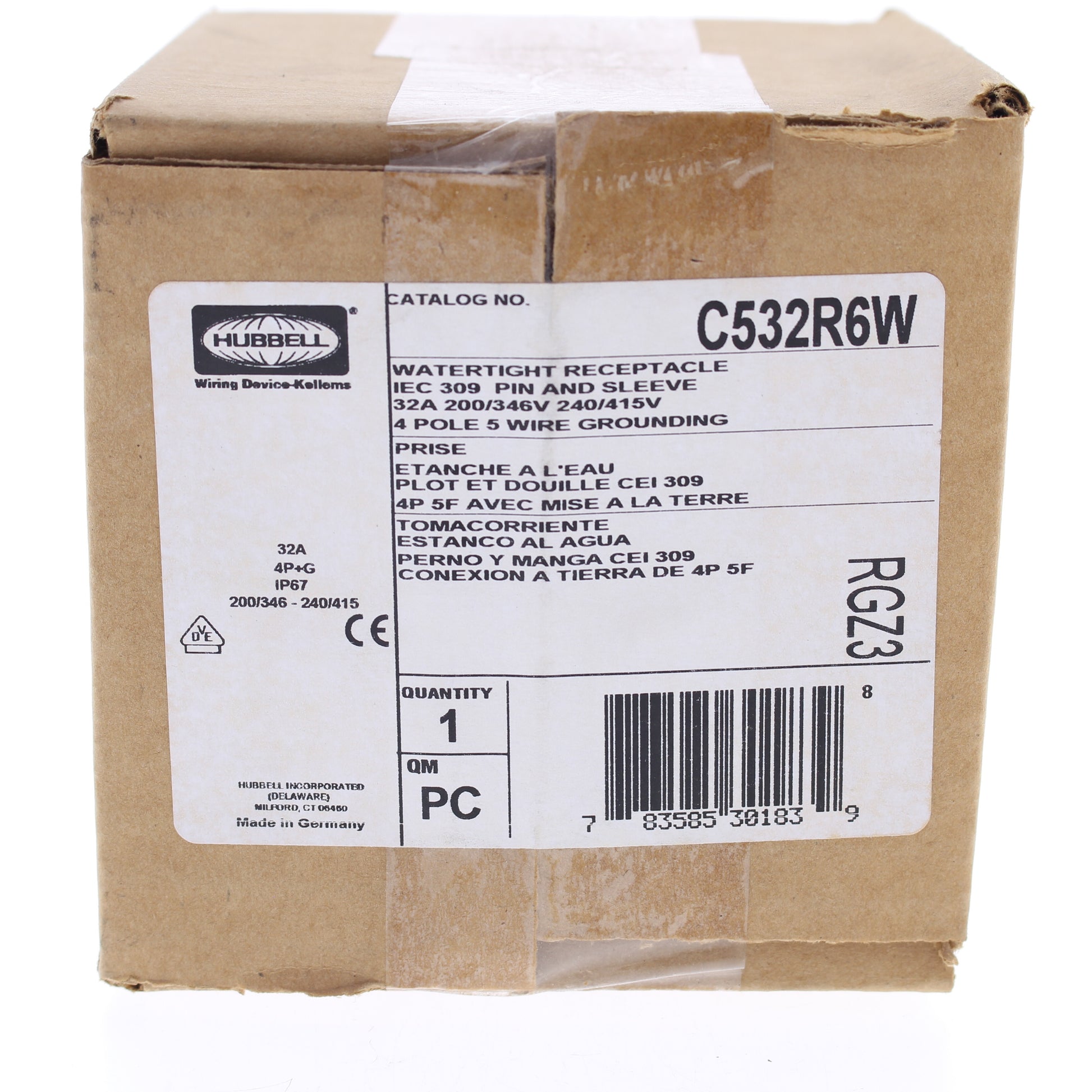

Hubbell C532R6W watertight pin and sleeve receptacle. The "C" prefix on this part number denotes Hubbell's C-IEC Series, an economy line of pin and sleeve devices for light-industrial applications. Commercial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 32A 200/346V and 240/415V. Each is individually packaged; packaging may differ from photo. Features include:

• External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o�clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings

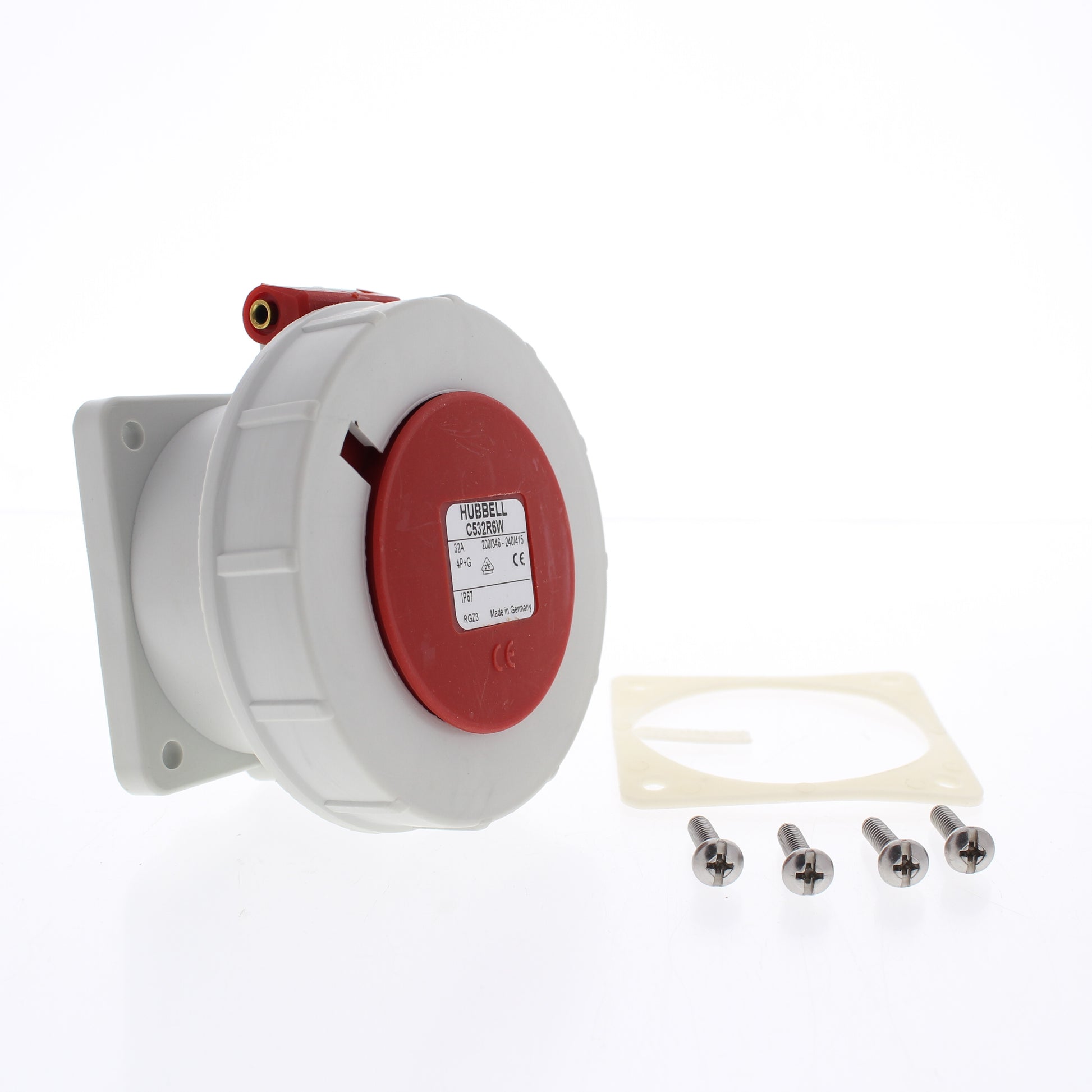

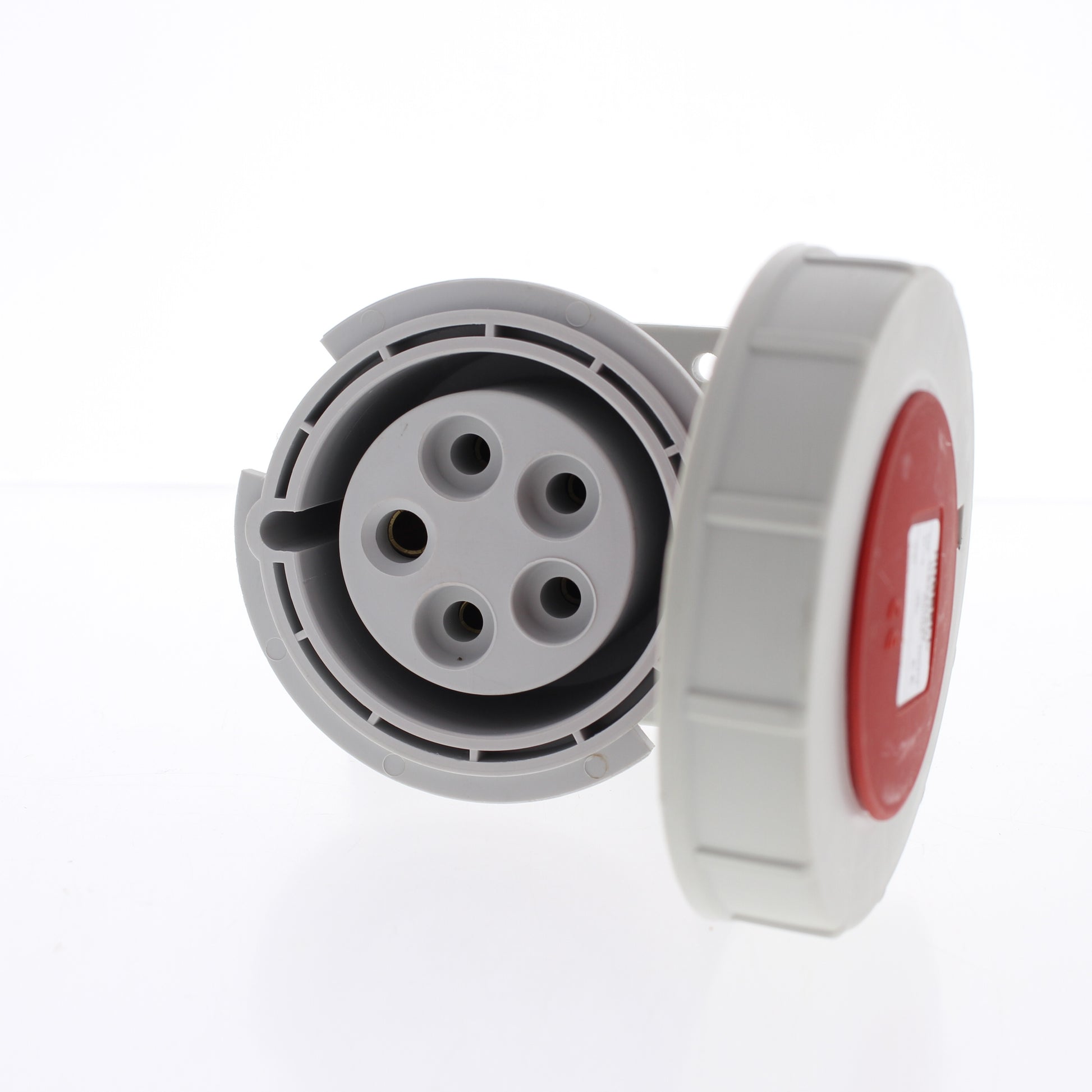

• Gasketed cover and locking ring - the self-closing cover sits in a position that provides a weatherproof seal. Simply rotating the cover then locking it makes it watertight

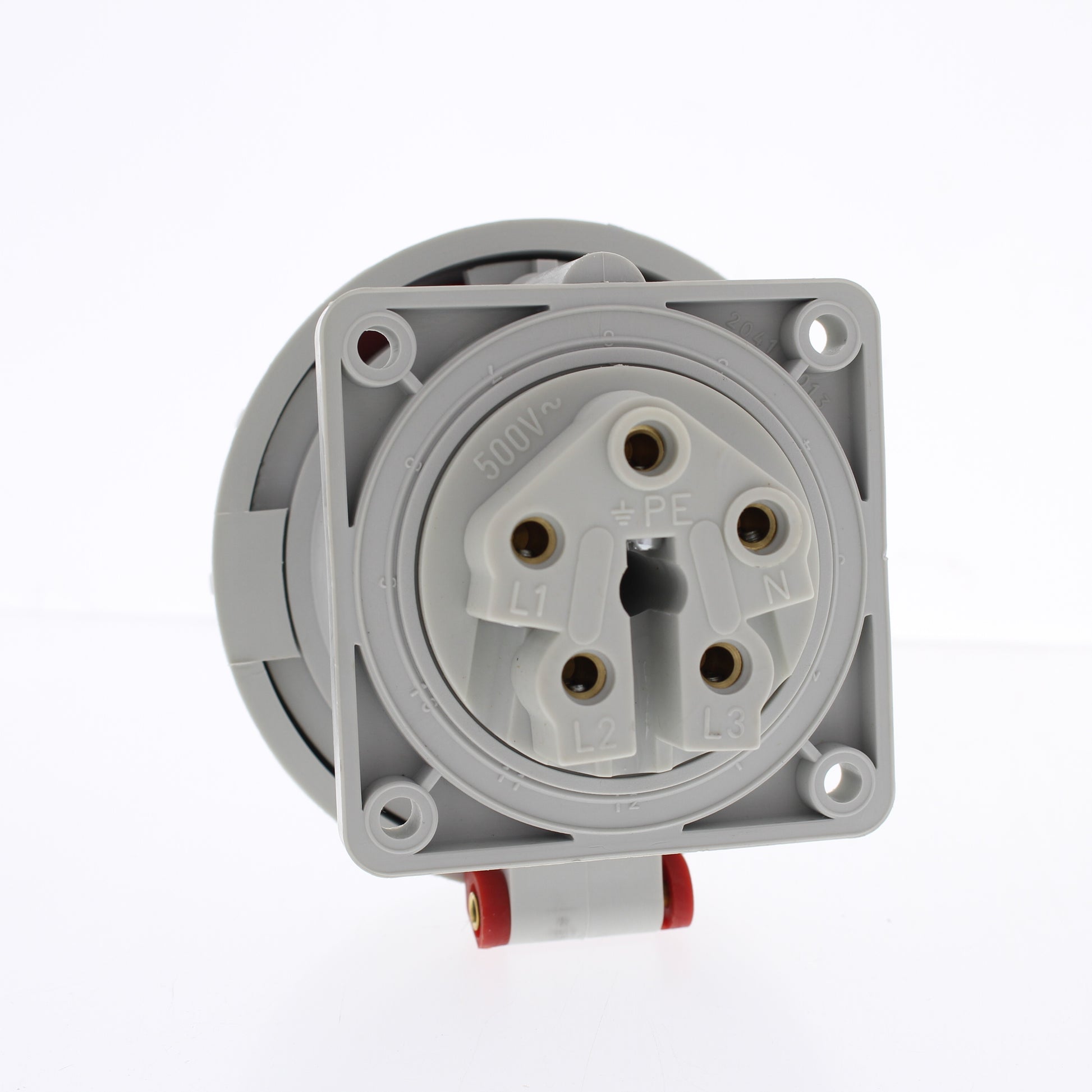

• Staggered contacts in female devices to assure protection of personnel and equipment. Oversized ground contact is farthest forward, assuring first make and last break of the ground for safety. Neutral contact is next to prevent the possibility of an �open neutral� condition that could result in an over-voltage condition at equipment. Phase contact is farthest back, making it last to make, first to break.
• Color coding - all devices are color coded by voltage for quick visual identification of mating devices. Terminal identification - the ground and neutral terminals are clearly identified with large color coded markings for easy recognition.
