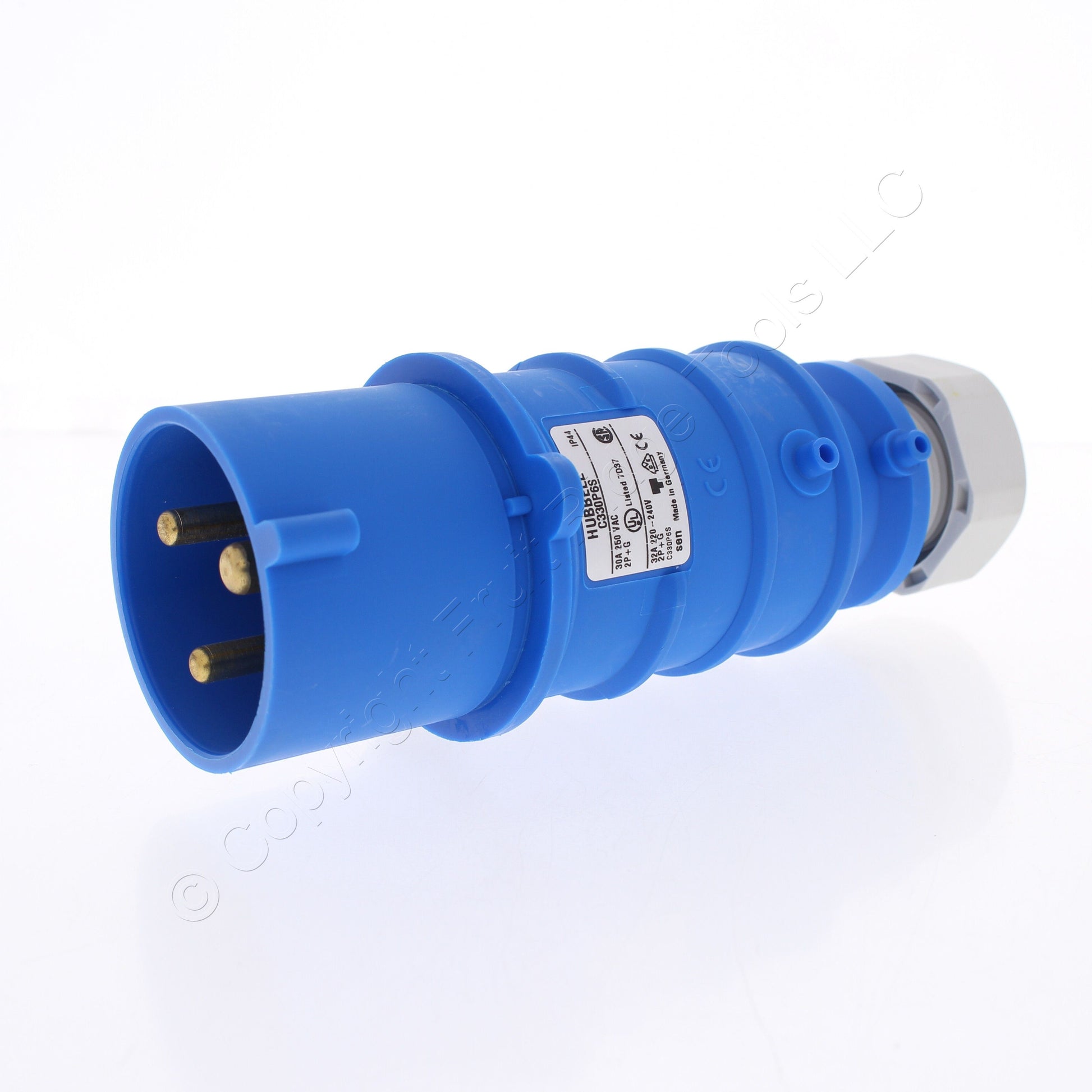

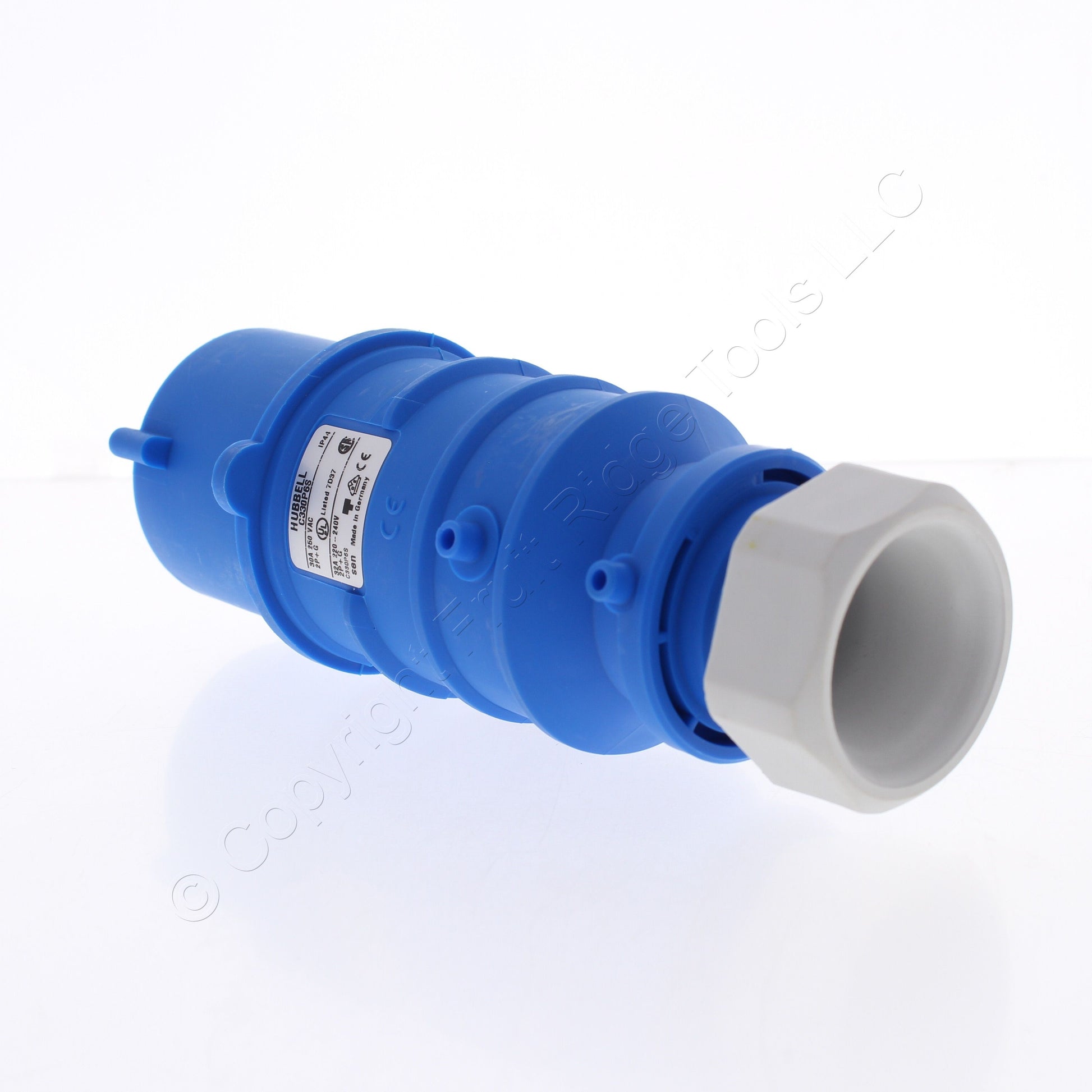

Hubbell C332P4S splashproof pin and sleeve plug (Bryant is a division of Hubbell). Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 30A 250V and 32A 220-240V. Each is individually packaged; packaging may differ from photo. Features of Hubbell/Bryant's pin and sleeve plugs and connectors include:
Singly-rated, non-interchangeable configurations in accordance with IEC 309-1 and 309-2 standards. Prevents mismating of devices with different voltage ratings. Color coded for easy identification
Self-adjusting, slotted contact sleeve and nickel-plated spring steel contact pressure spring ease insertion of pins and provide consistent contact pressure

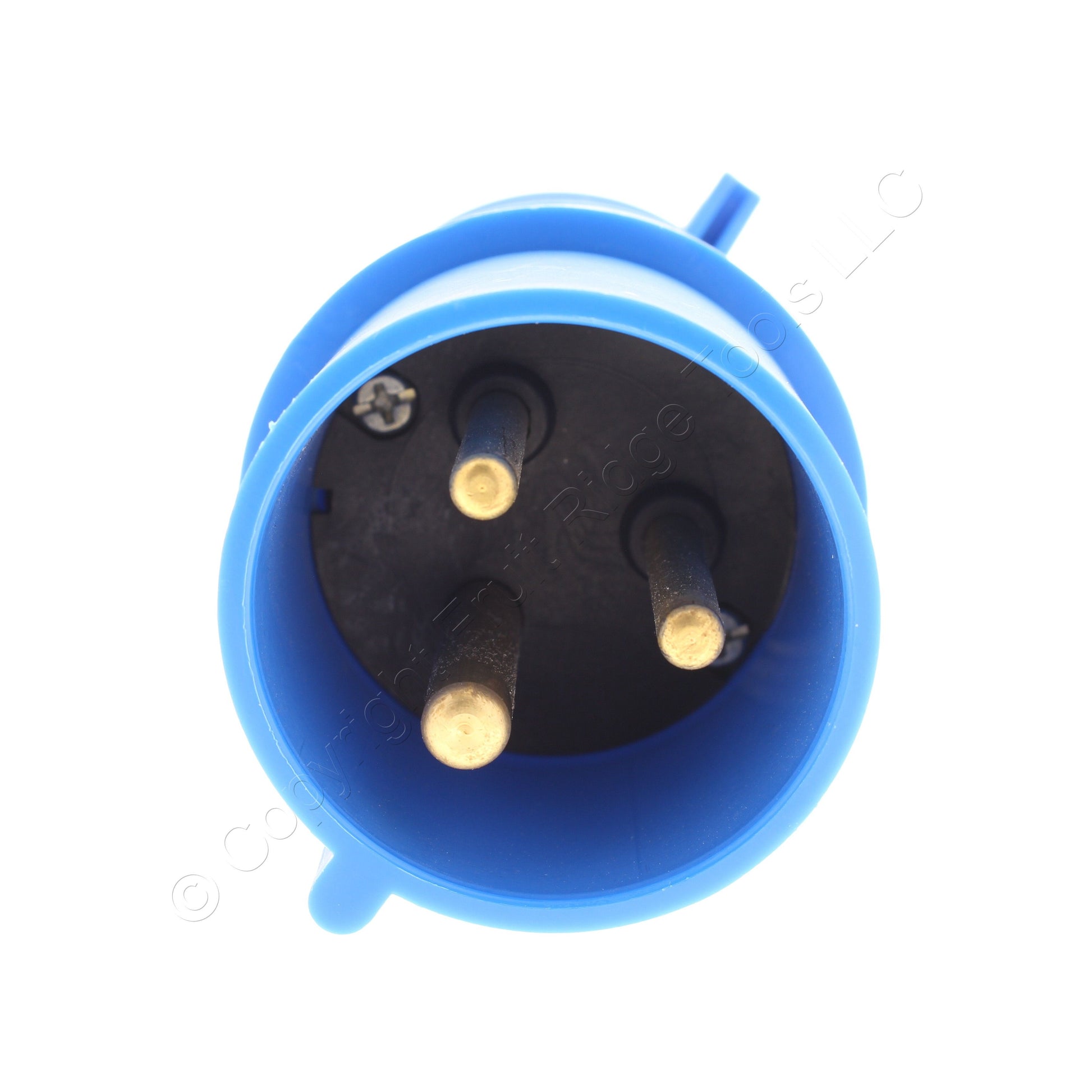

Pins are recessed in shrouded housing for protection from abuse
Pins and sleeves are fabricated from solid brass for longevity, contact reliability, and superior conductivity
Ground contact in forward position to ensure first make, last break. Neutral contact connects next, then phase contacts
Neoprene sealing glands seal out moisture and contaminants at cord entry and can accommodate a variety of cord diameters
Cord clamp screws fasten into threaded, plated steel nuts to prevent strip-out

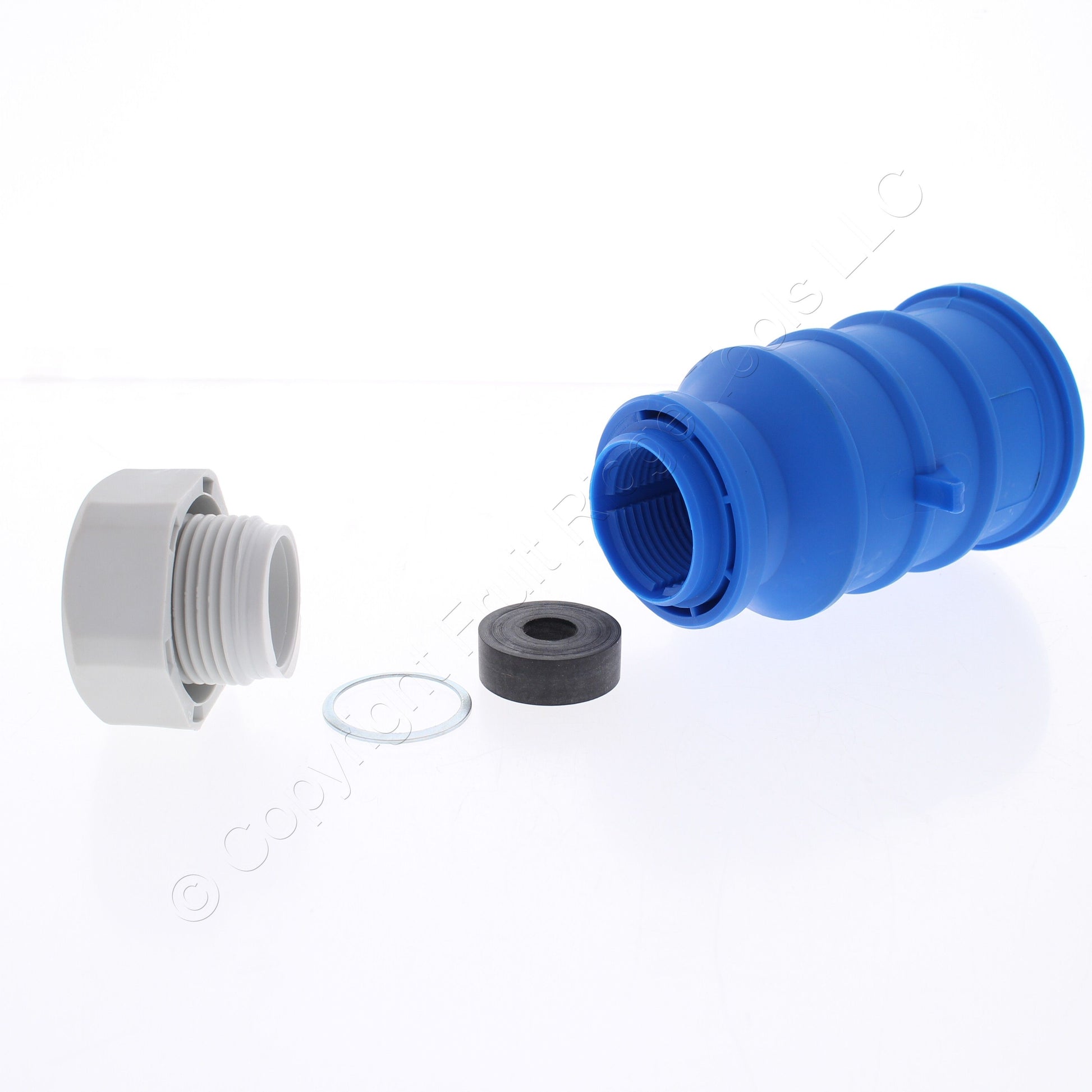

Gland nut and ring compress sealing gland around cord to seal out contaminants. Provides supplemental strain relief
Insulated nylon housing resists impact, corrosion, and chemical attack
IP44 moisure resistance rating

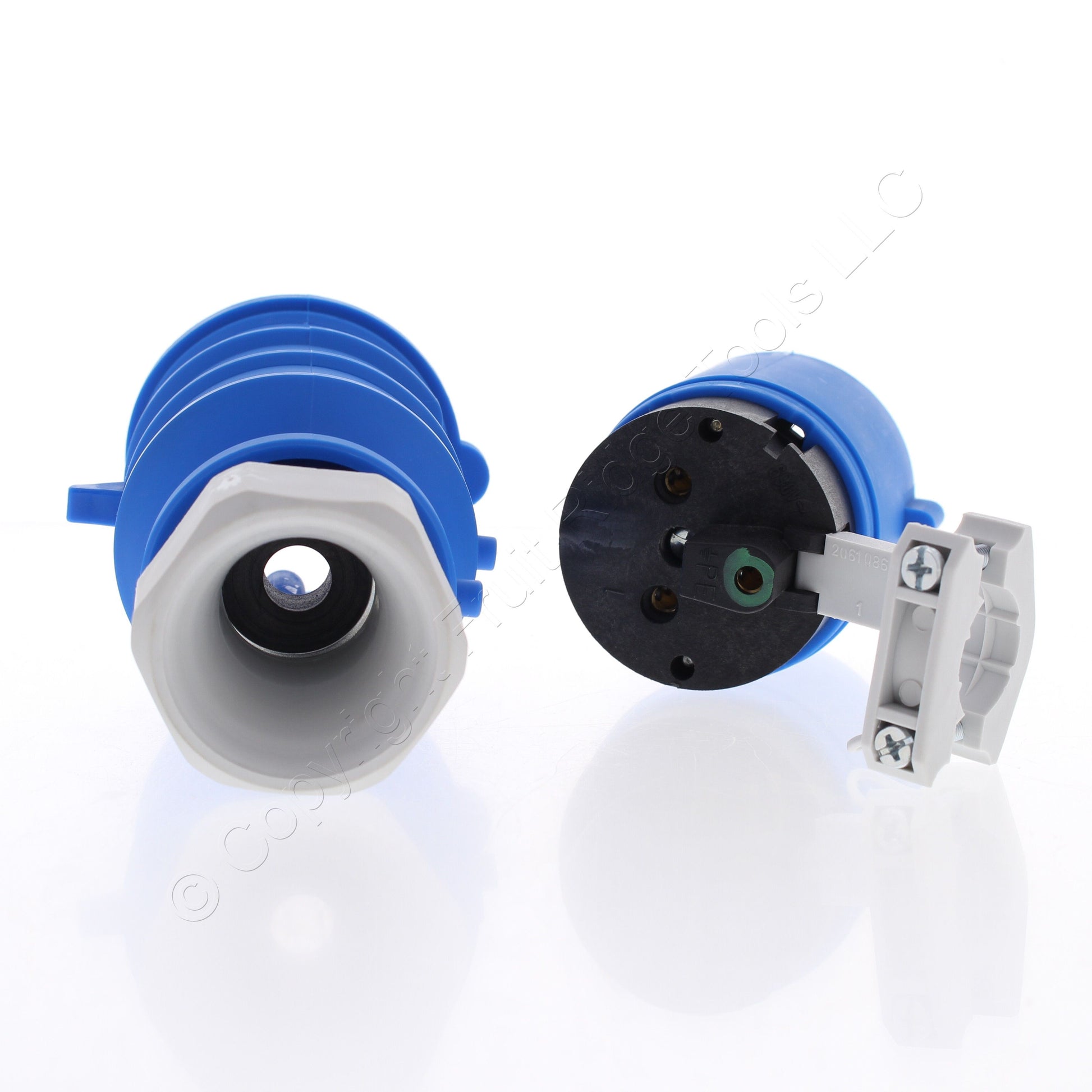

Combination straight/Phillips head cord grip, terminal and assembly screws, and single side terminals simplify wiring
