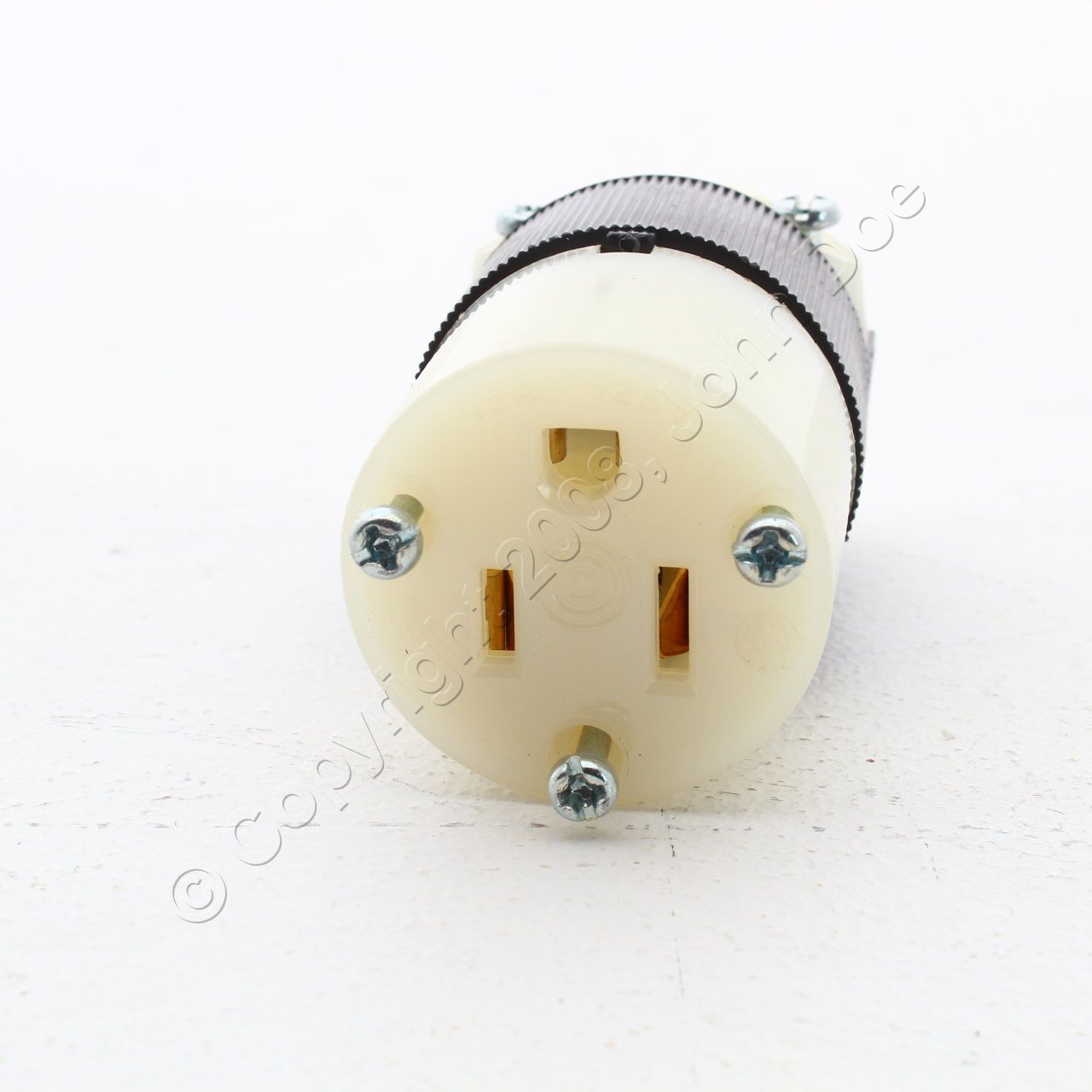

Hubbell Bryant Insulgrip Straight Blade Connector Nema 5-15R 15A 125V HBL5269CM8

Hubbell HBL5269CM8 straight blade plug. Made to resist impact, punishing application environments, chemicals and sunlight, resulting in superior performance and long-lasting reliability. Industrial Specification Grade, NEMA 5-15R , 2-pole, 3-wire, grounding, rated 15A 125V. Each is individually packaged; packaging may differ from photo. Features include:

• All-nylon dead front. Heavy, solid brass blades held tightly in individual module configurations
• Individual deep-funnelled rectangular-shaped chamfered wire wells. Clear housing allows inspection of wire termination and provides molded-in wire strip gage
• Wire clamps move in individual chamber - provide positive crimp lock without cutting wire strand
• Captive, color-coded brass #8 terminal screws
• Cord clamp does not have to be disassembled from body for wiring - easy to tighten and no lost screws to find. Accepts all wire mesh strain reliefs
• Cord clamp seats flush with body for all cables rated from 10-3 ST to 18-3 SVT (.325"-.720")
• Clamp prevents damage to jacket on any cable used within rated range
• Husk is constructed of ST801 Super Tough Nylon for superior impact resistance in rugged environments

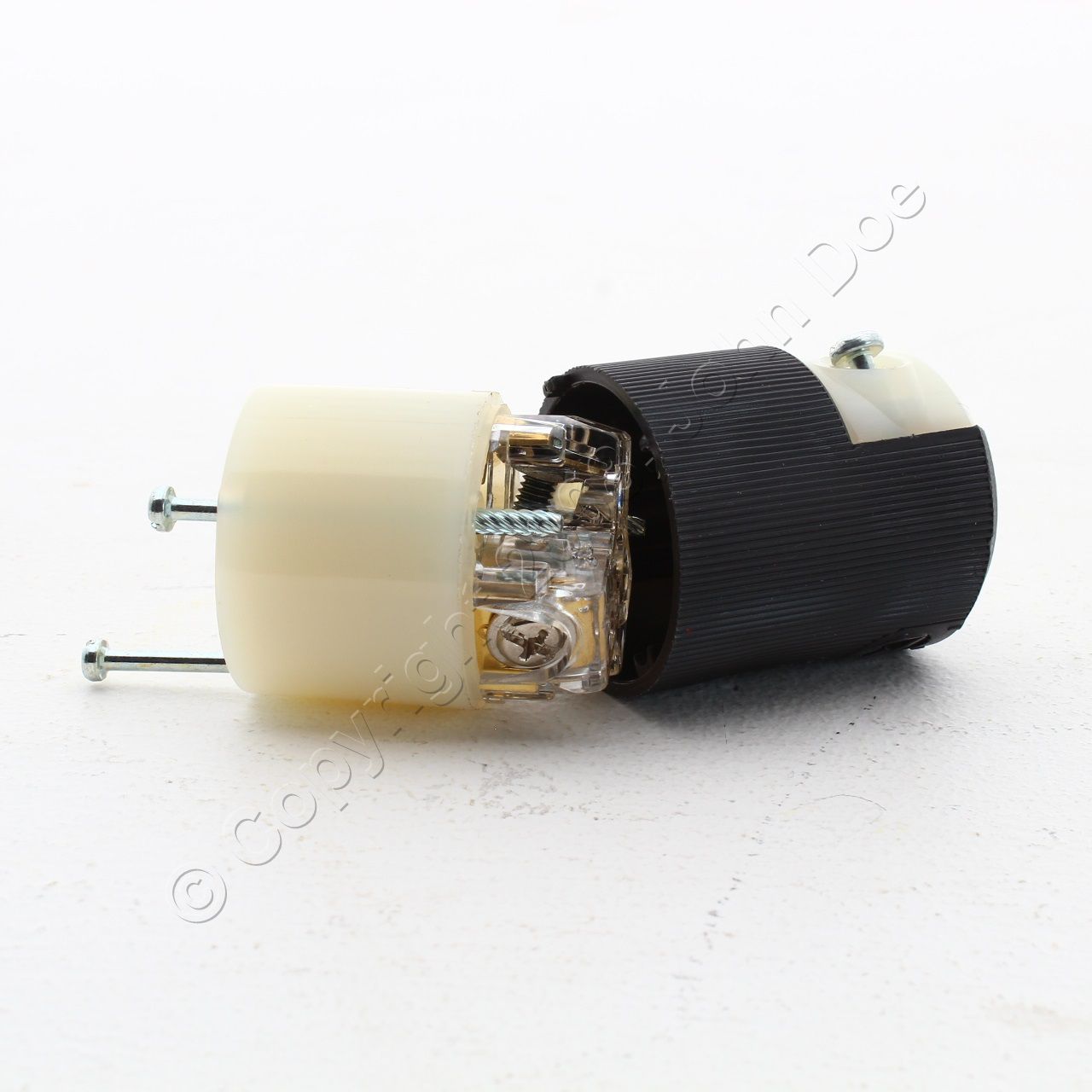

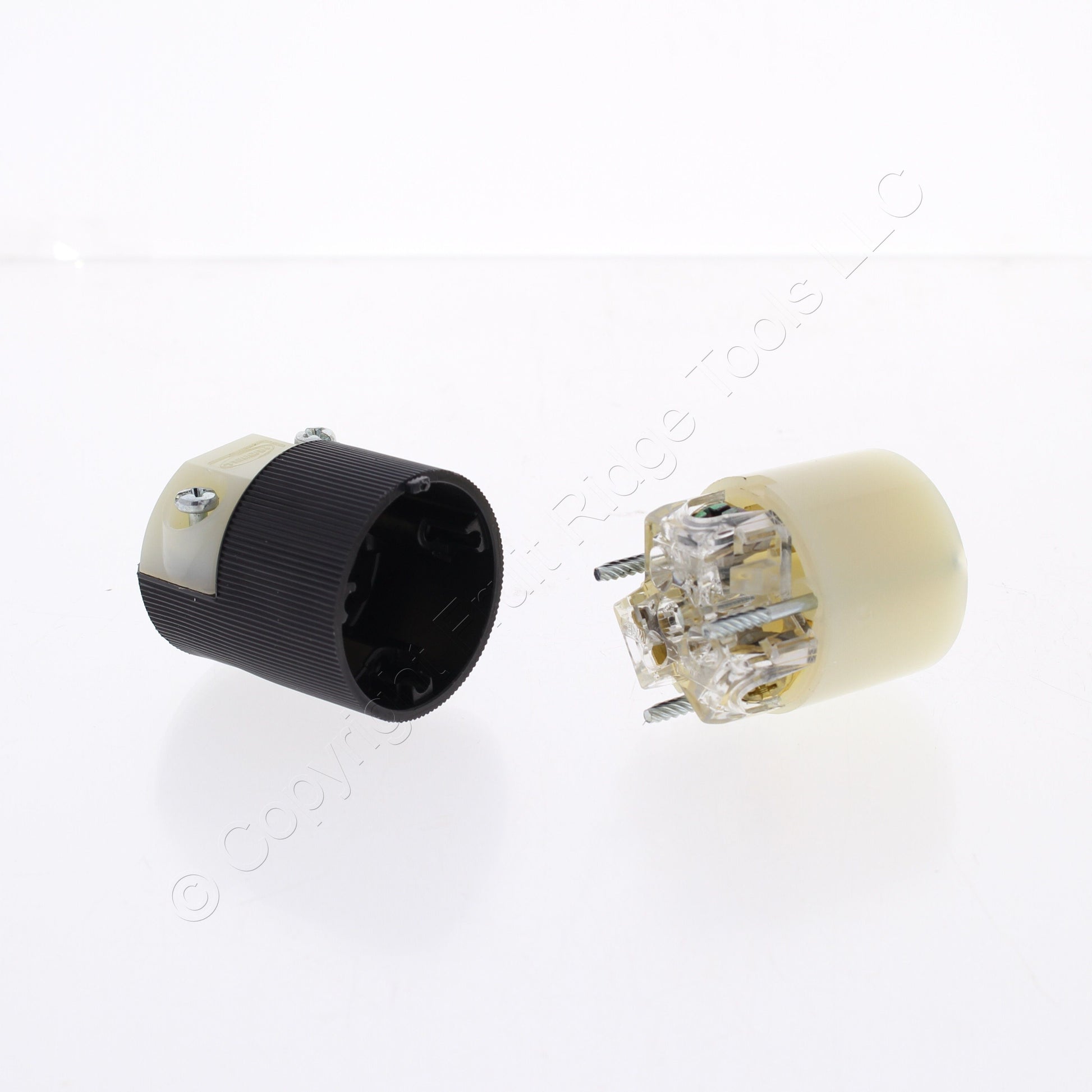

• Wiring module keyed to body for easy assembly and a tight fit
• Three fast-threading screws secure wiring module to body - combination Phillips and straight blade screws
• Beveled back edges prevent body from catching on corners and rough surfaces
• Complete-containment design insulates non-current carrying parts
• Fluted body design provides a sure grip

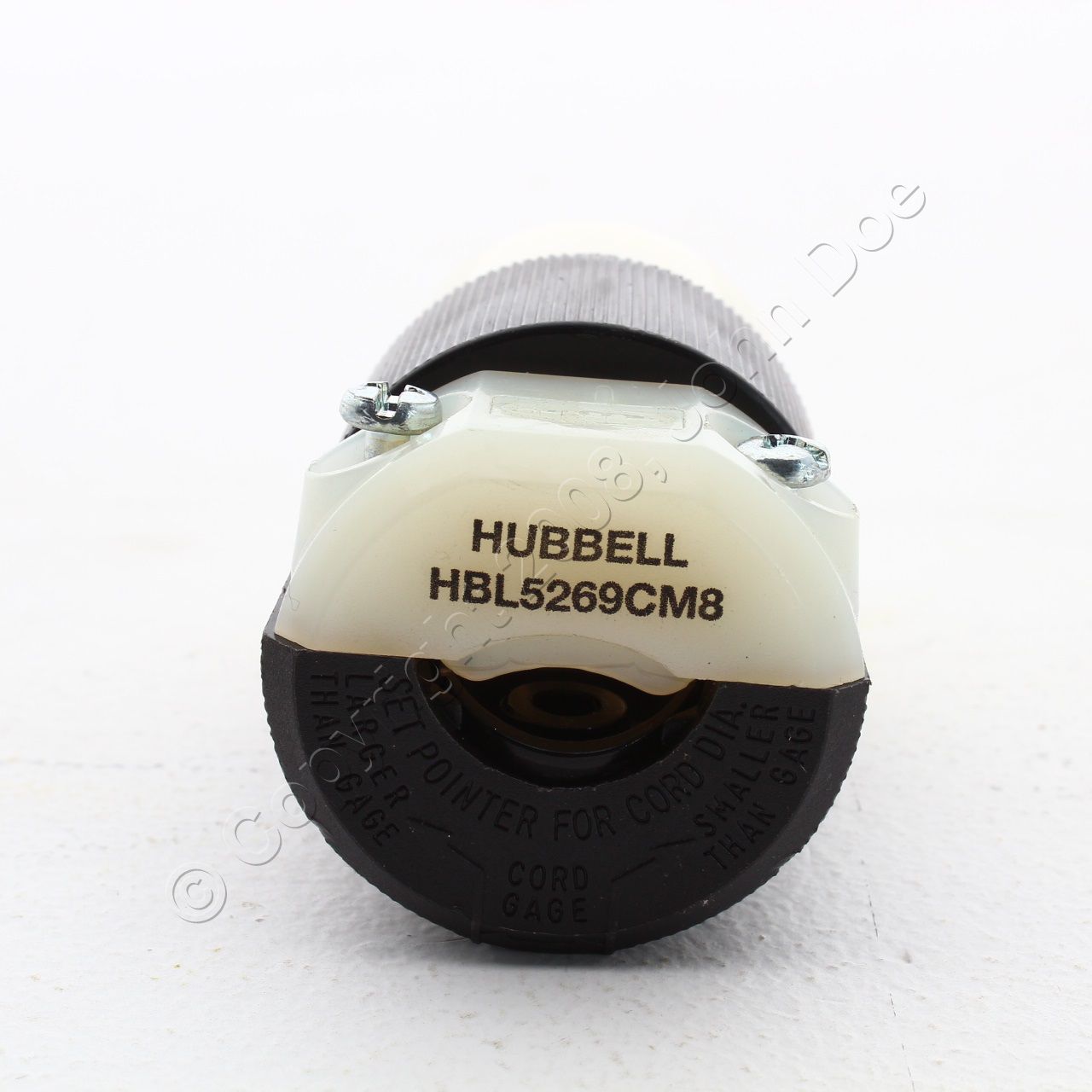

• NEMA configuration and Cat. No. printed on cord clamp; NEMA configuration and rating molded on front
