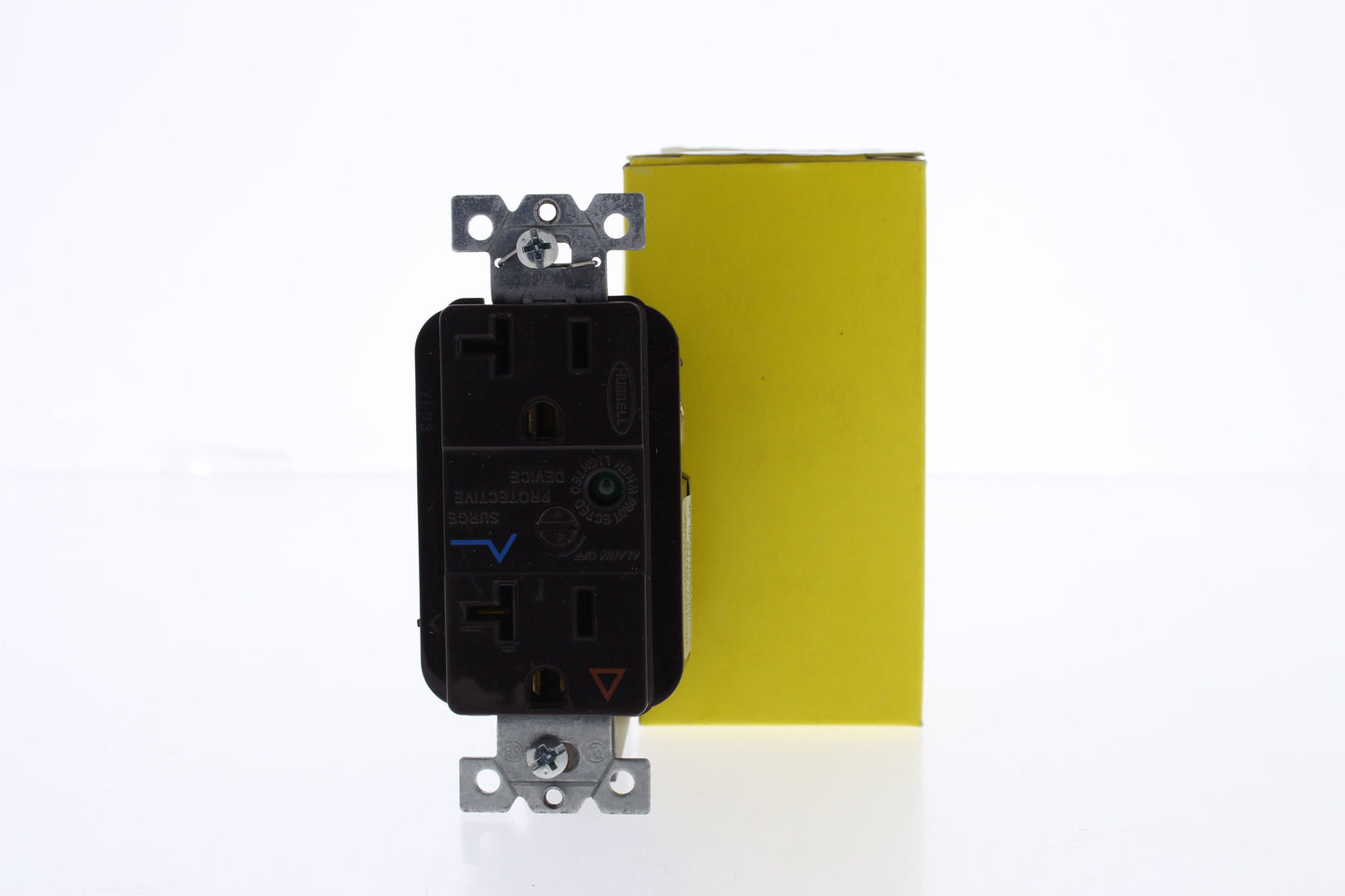

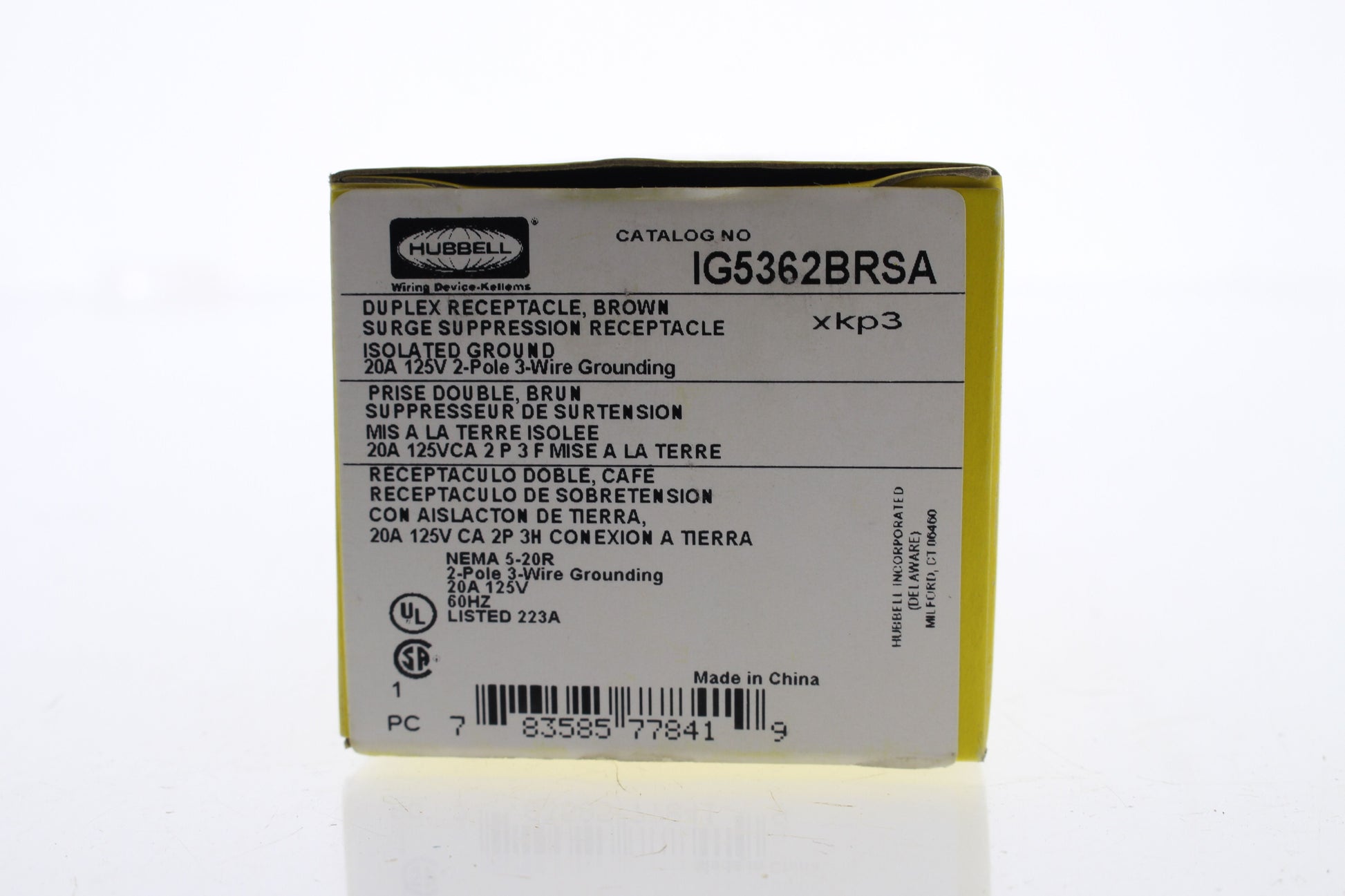

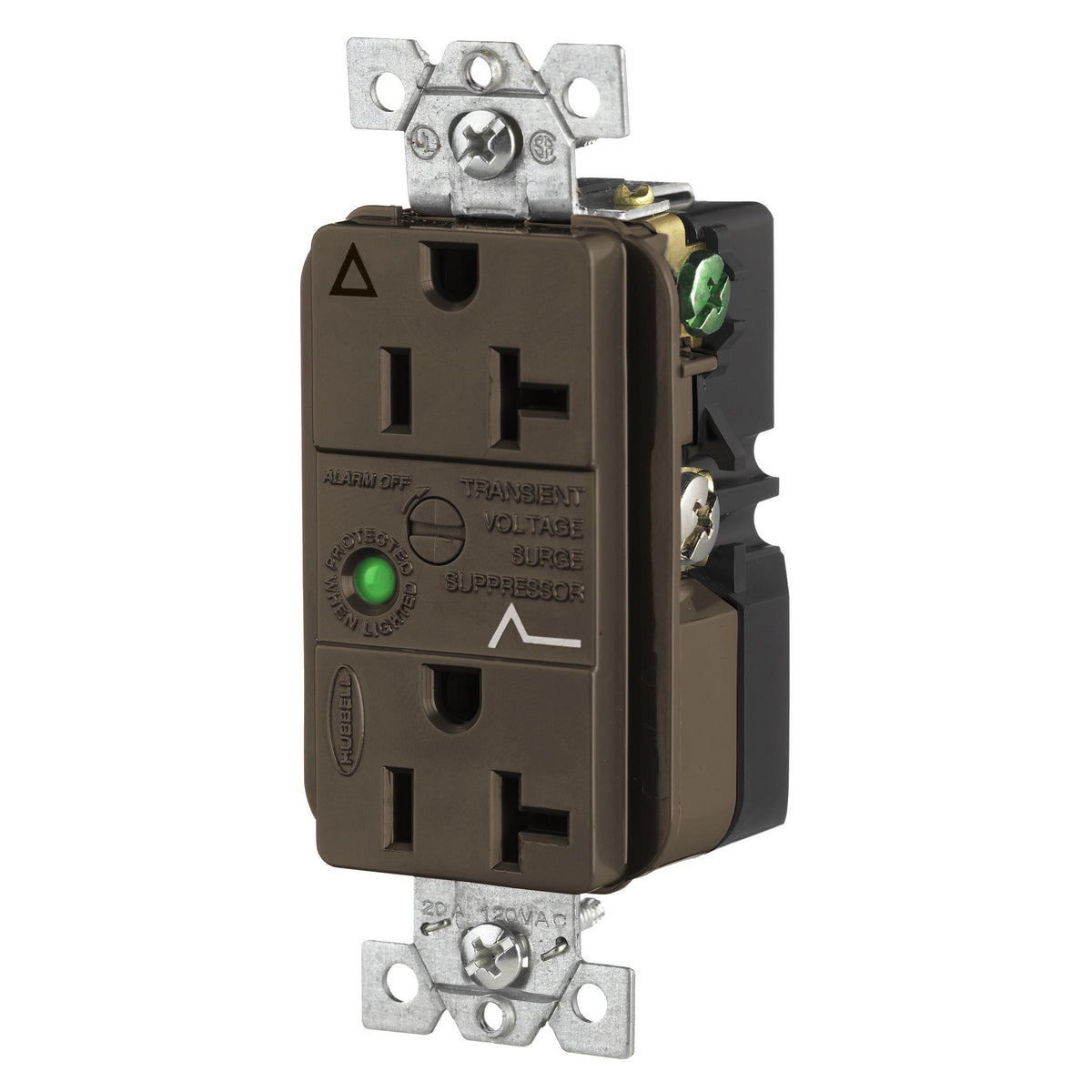

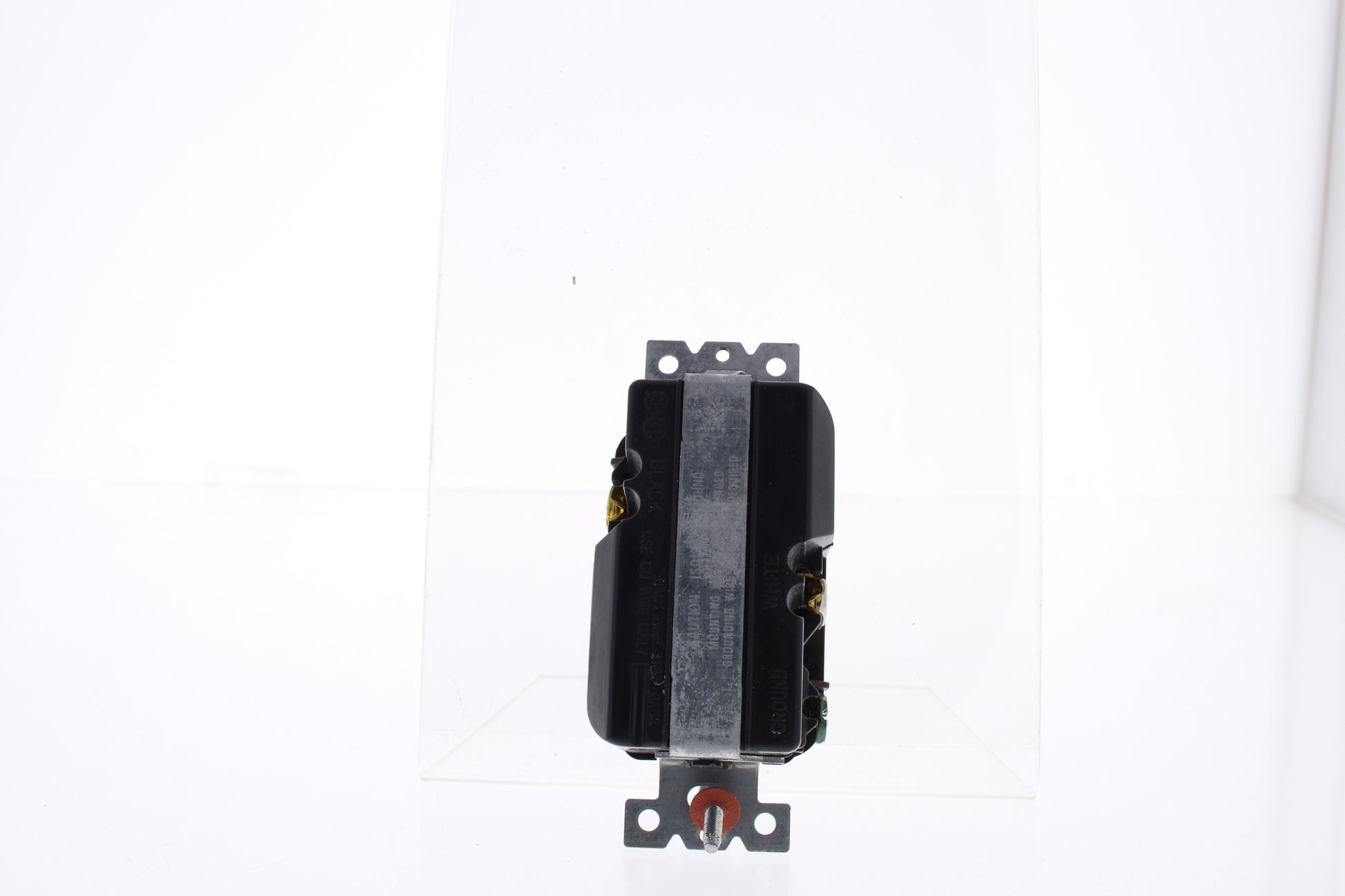

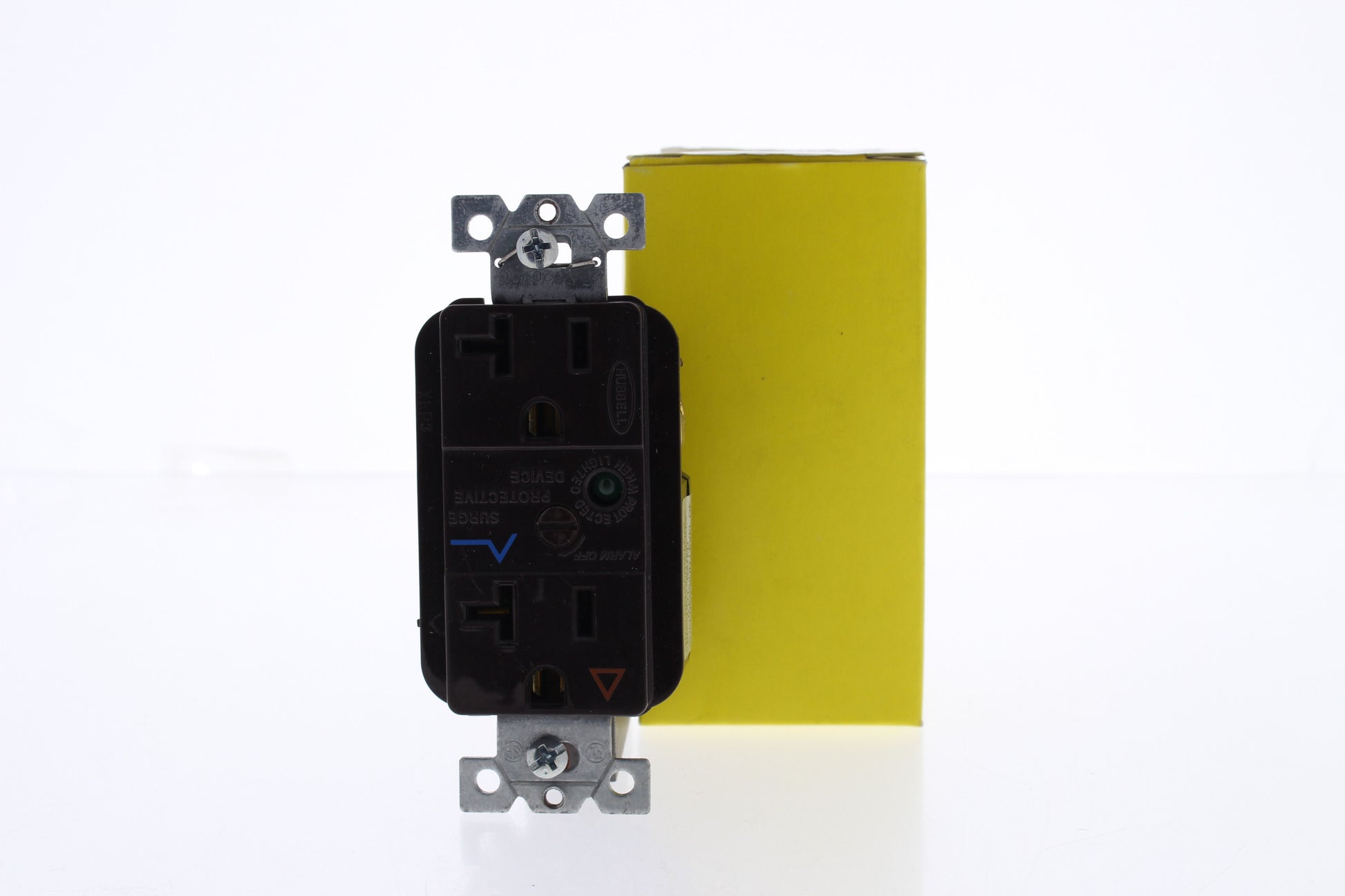

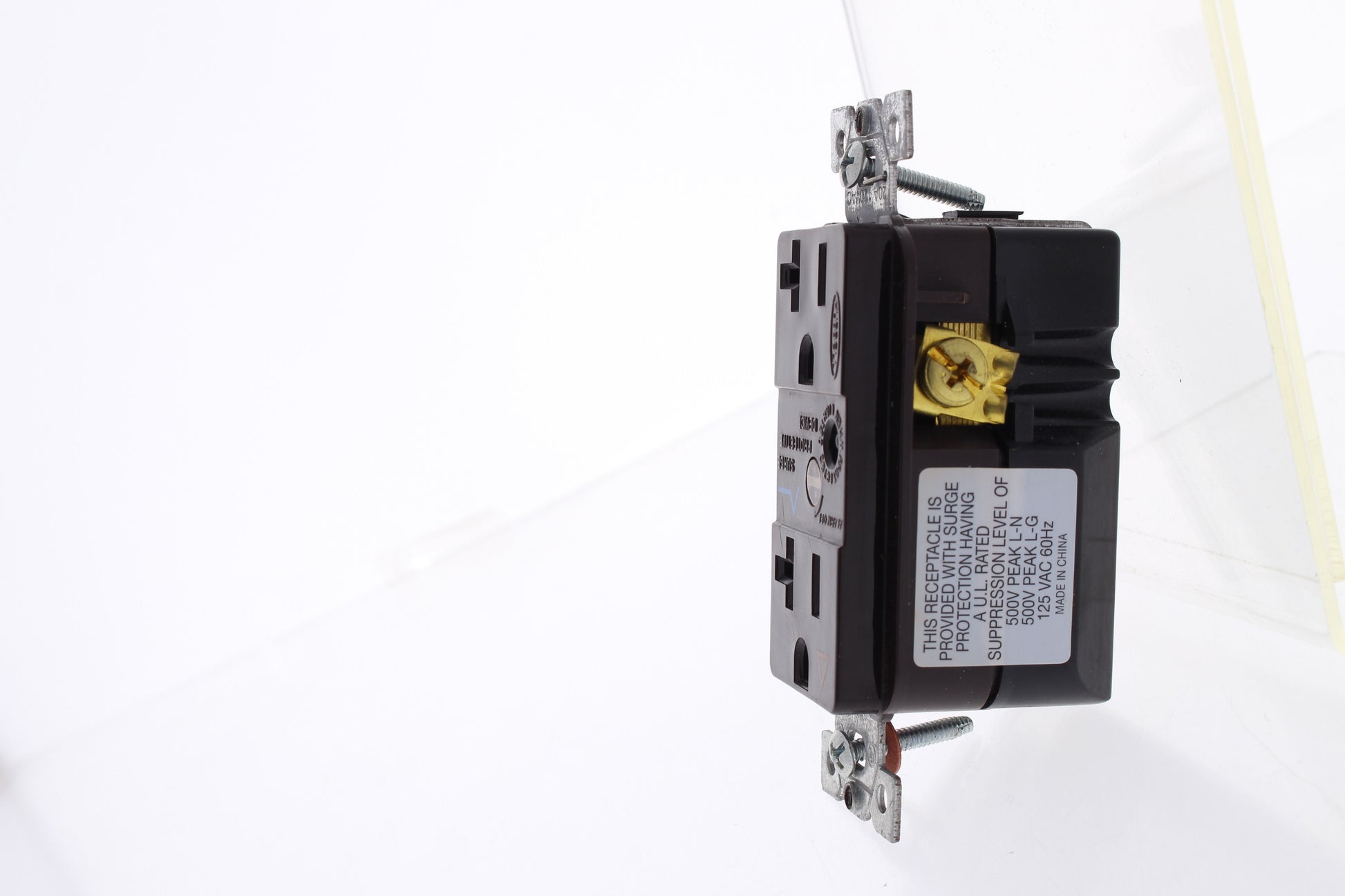

Hubbell IG5362BRSA brown duplex isolated ground surge suppressor receptacle with LED indicator and alarm. Heavy Duty Specification Grade, Isolated Ground, 2-pole, 3-wire, NEMA 5-20R, back & side wired, rated 20A 125V. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Please note: isolated ground wiring requires a separate ground for both the receptacle ground and the mounting strap. Each is individually packaged; packaging may differ from photo. Features include:
Offers 240 joules of protection and 15 kA peak current rating
Distinctive surge symbol provides quick visual identification
Surge protection LED indicator flashes when surge protection is lost
Audible alarm also provides user notification of surge protection loss. Muting screw allows user to turn alarm OFF once replacement has been scheduled
Power-on indicator light
Impact-resistant thermoplastic nylon cover and body
Large, triple-wipe, brass "T" contacts for superior contact and conductivity
Back and side-wiring options
Brass terminal screws to reduce conductor oxidation
Break-off tabs for easy two-circuit conversion
Apron barrier to prevent accidental contact between terminal screw heads and metal box
Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
