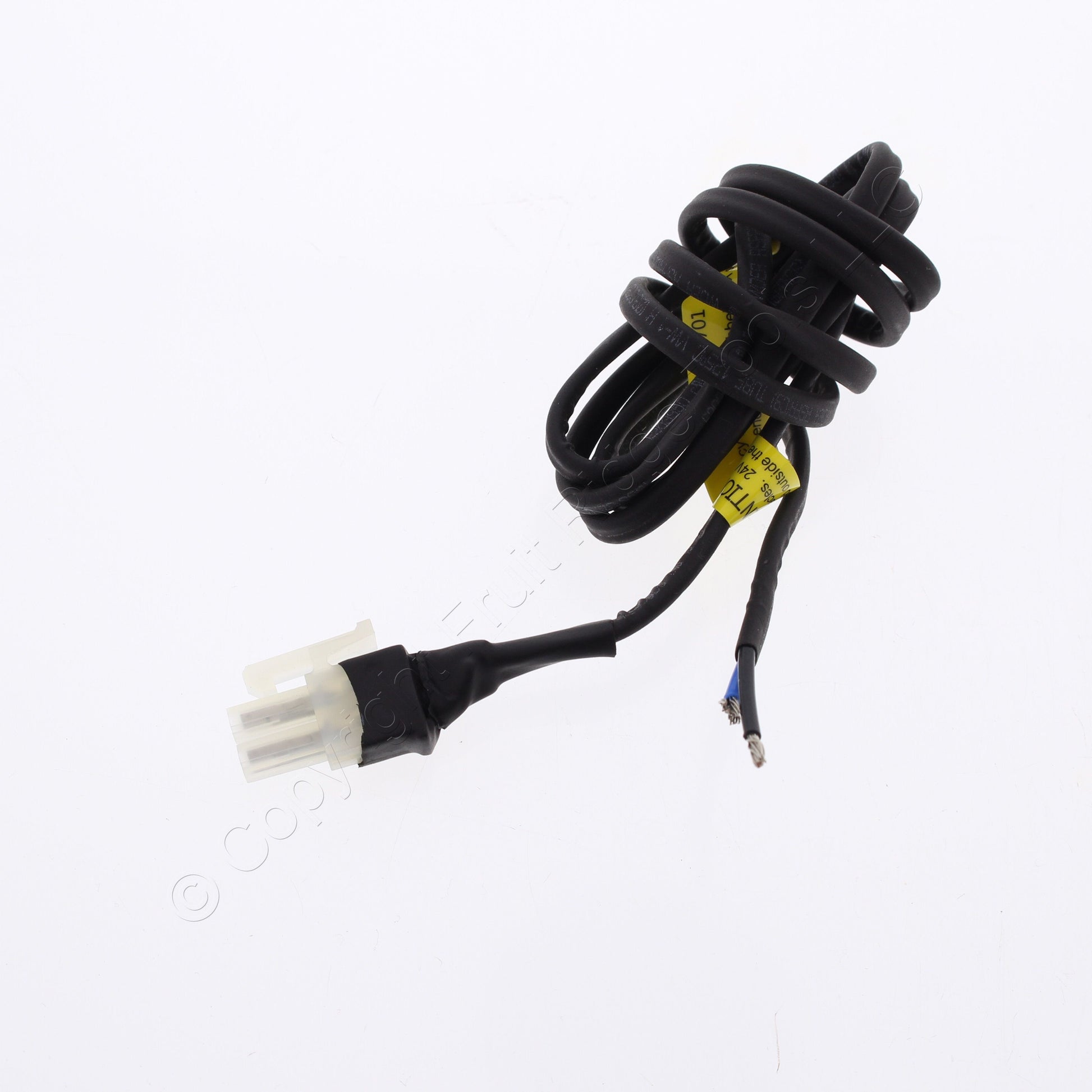

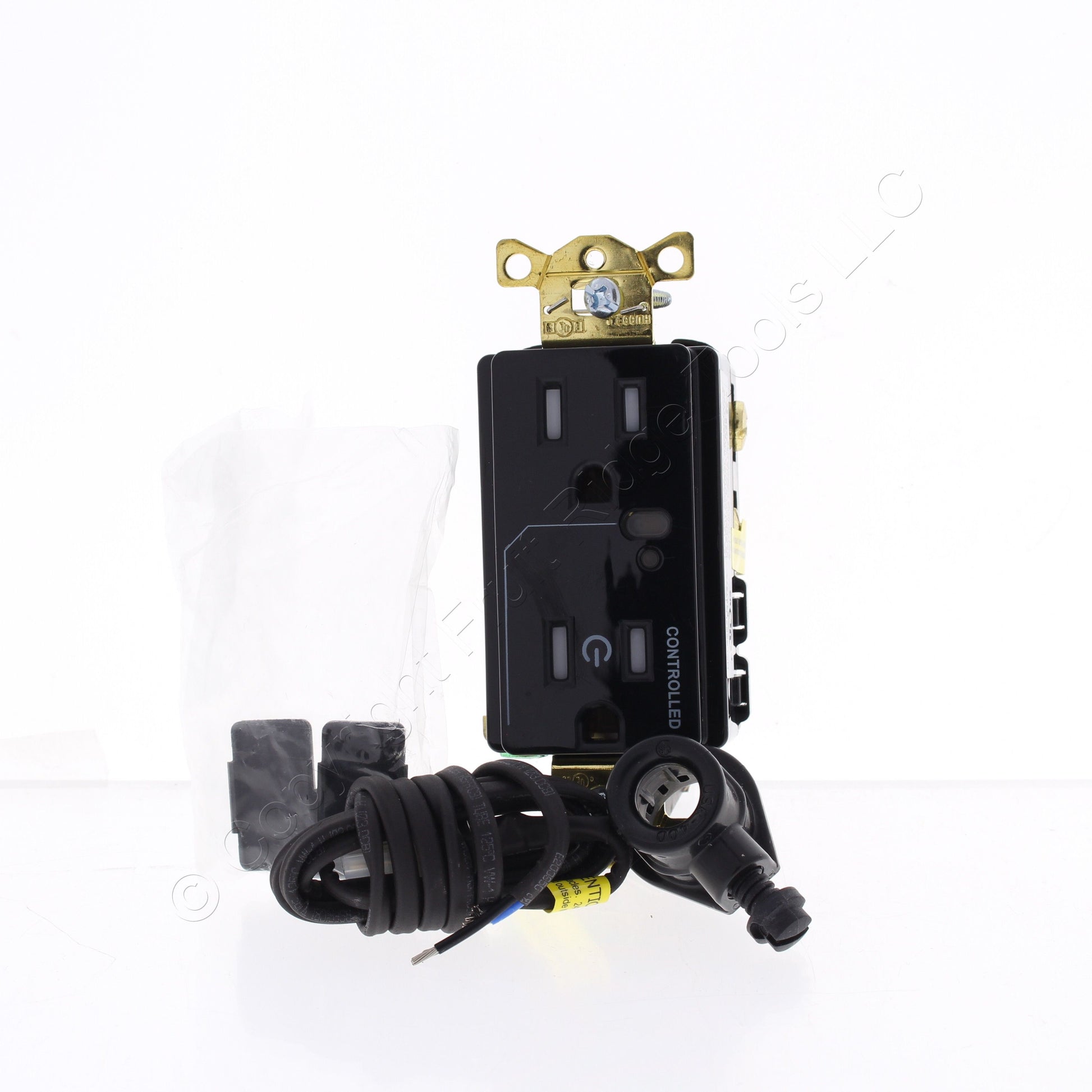

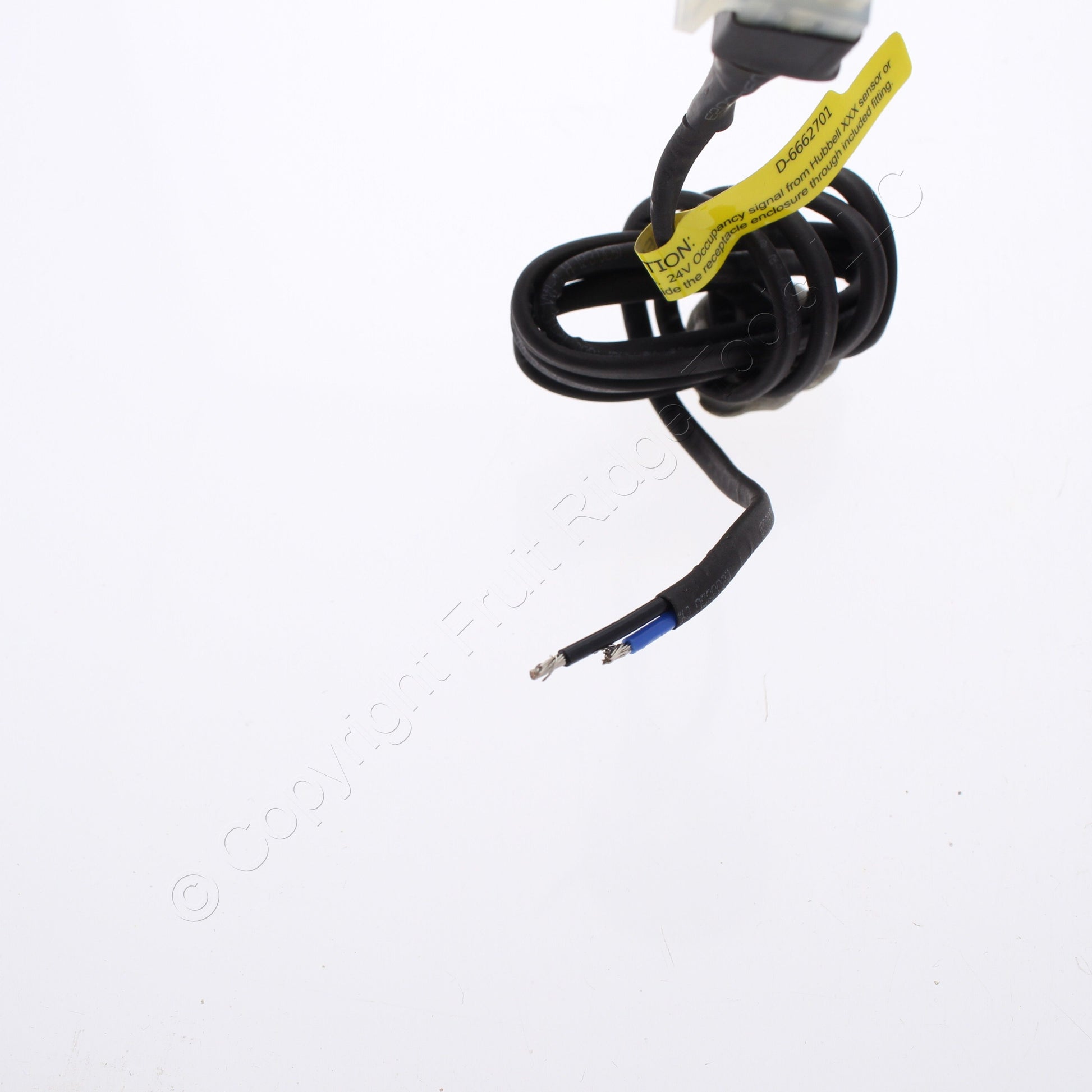

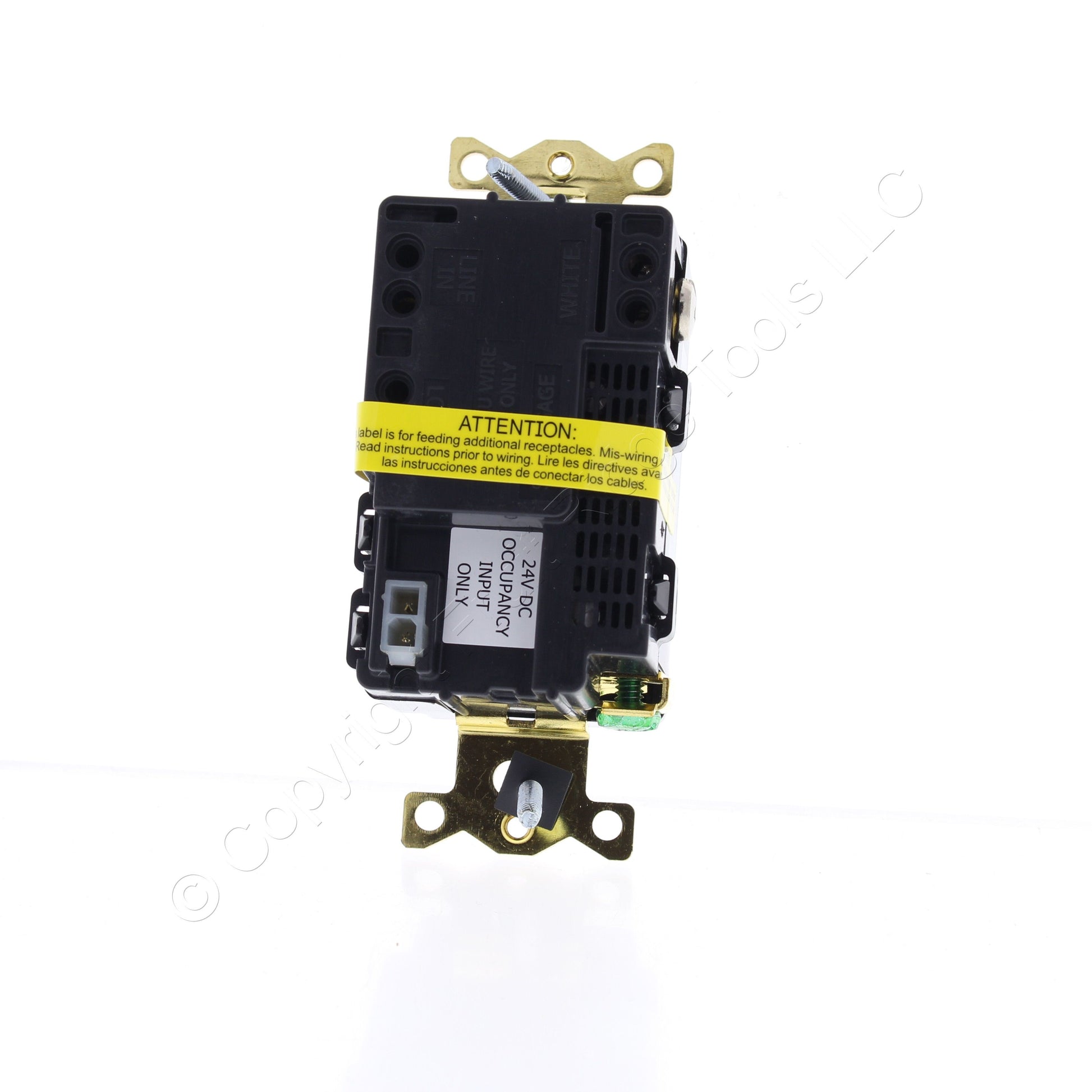

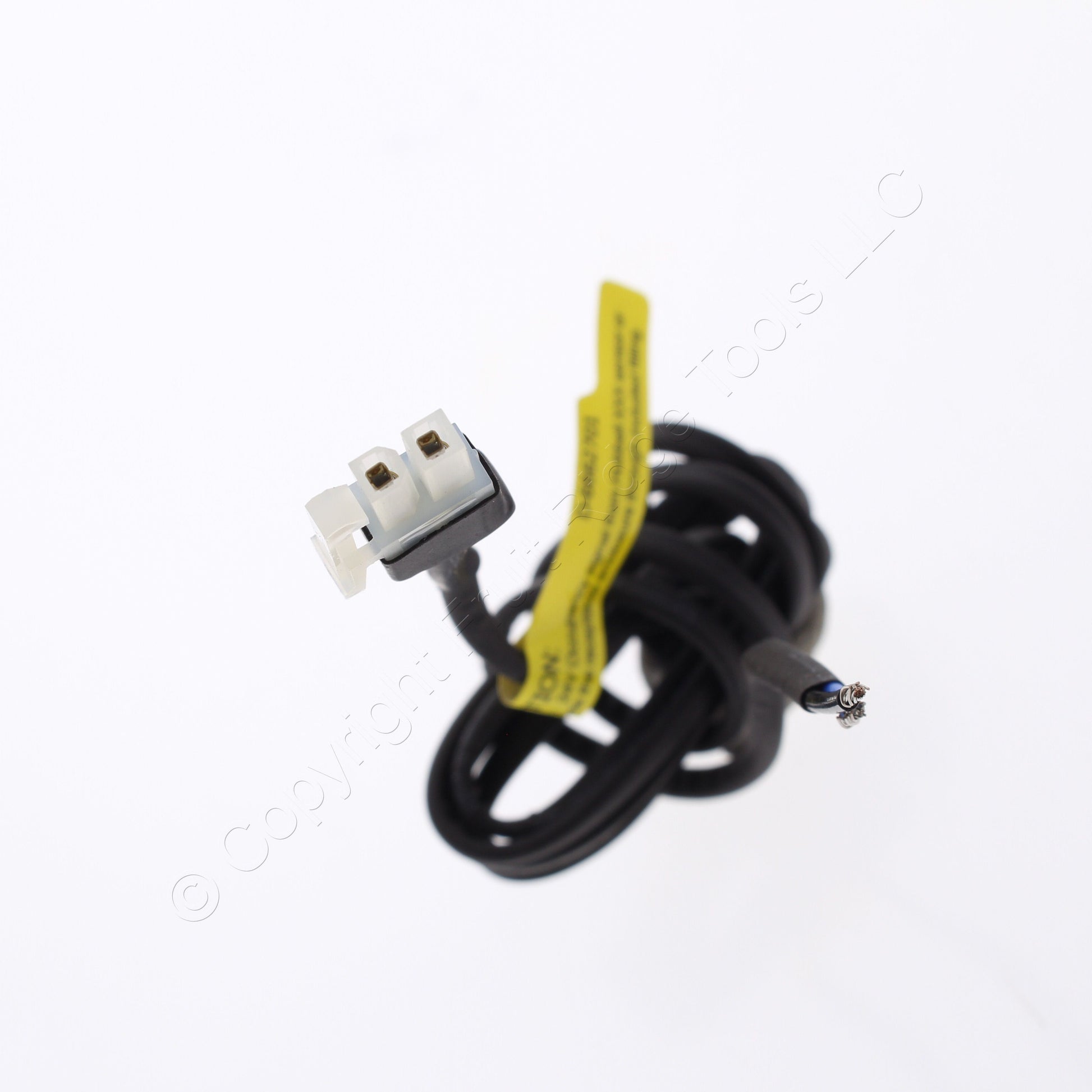

Hubbell HBL5262LC1BK black tamper resistant split circuit CONTROLLED industrial switched receptacle. Switched controlled outlet for use in Hubbell LoadLogic plug control system; typically found in commercial, retail, school, and hotel applications. Designed to be automatically controlled by a 24V low voltage signal from either occupancy sensors, or any other type of control device capable of performing this task, such as a time-of-day control device. Industrial Grade, grounding, back wired, 2-pole, 3-wire, NEMA 5-15R. Rated: Uncontrolled (always hot) - 15A 125VAC; Controlled (switched) - tungsten 8.3A, CFL & LED 3.75A, motor load 1/2 HP. Features include:
Switched controlled outlet for use in Hubbell LoadLogic plug control system; typically found in commercial, retail, school, and hotel applications
Auto ON/Auto OFF control. Capable of controlling additional receptacles downstream
1 of the 2 outlets are controlled; split circuit - 1/2 controlled face and downstream control

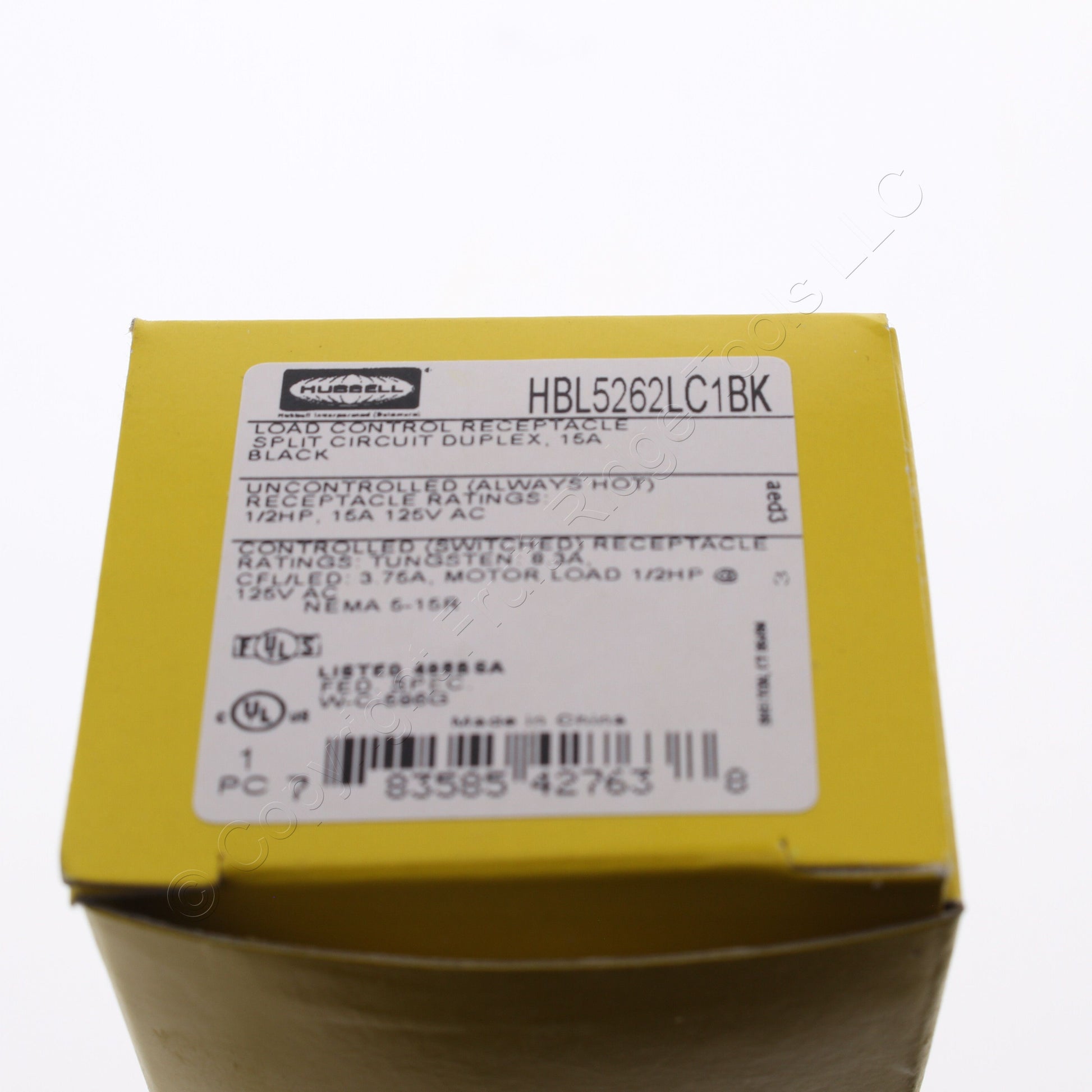

Rated: Uncontrolled (always hot) - 15A 125VAC; Controlled (switched) - tungsten 8.3A, CFL & LED 3.75A, motor load 1/2 HP

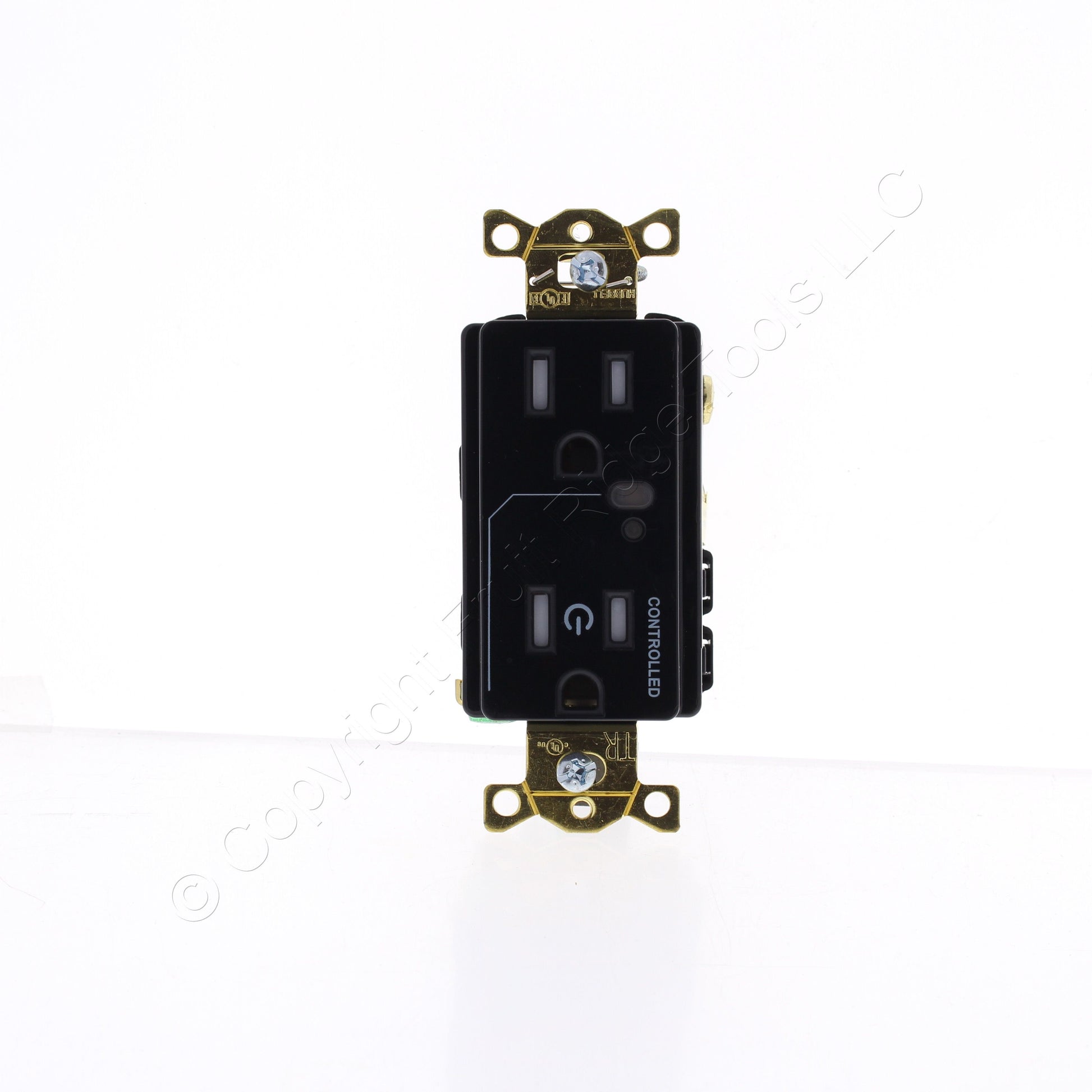

Permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems
Controls one outlet per device for 50% controlled applications
Patented tamper-resistant design eliminates plug-in difficulty and TR complaints: tamper resistant, NOT plug resistant
Markings can be read regardless of mounting orientation
