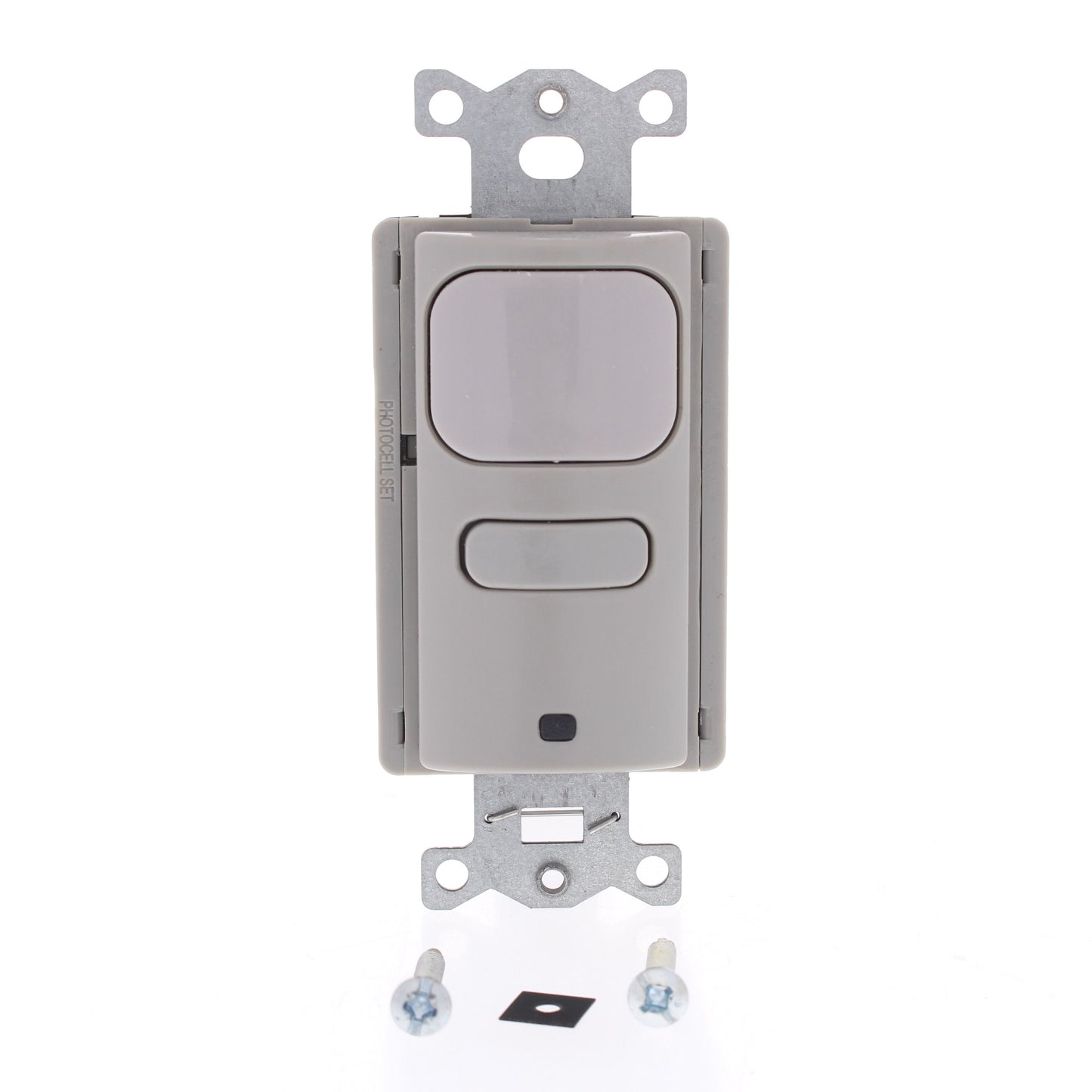

Hubbell AP2000GY1U Gray Occupancy Sensor Switch Adaptive PIR 120/277V 1000ft�

Hubbell AP2000GY1U gray occupancy sensor switch. The "U" suffix on this part number means that it complies with Made in America requirements under certain government programs. Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor�s sensitivity and timer settings to optimize performance based on occupancy patterns. The sensor constantly learns and adjusts appropriately. Features include:

• No neutral required
• Single pole
• Vacancy mode option - can be set to turn on automatically when motion is detected or to turn on only when the manual ON/OFF switch is pressed
• Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor's sensitivity and timer settings to optimize performance based on occupancy patterns.
• Manual or adaptive time delay - the amount of time that the switch will keep the lights on after motion is no longer detected can be set manually (4-30 minutes) or automatically using the built-in Intelli-DAPT technology
• Coverage: 1,000 square feet
• Load ratings: 5A LED; 800W incandescent @ 120V; 1000W fluorescent @ 120V; 1800W fluorescent @ 277V; 1/6 HP @ 120/277V
• Passive infrared sensor - excellent for small room control - requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy
• Built in photocell with manual super saver mode for daylight harvesting - assures that lights are only on while ambient light levels require it; range can be set to 10-500 foot candles
• Impact resistant hard lens is standard and color matched to the switch
• Fits standard decorator/GFCI style wallplates (purchased separately)
