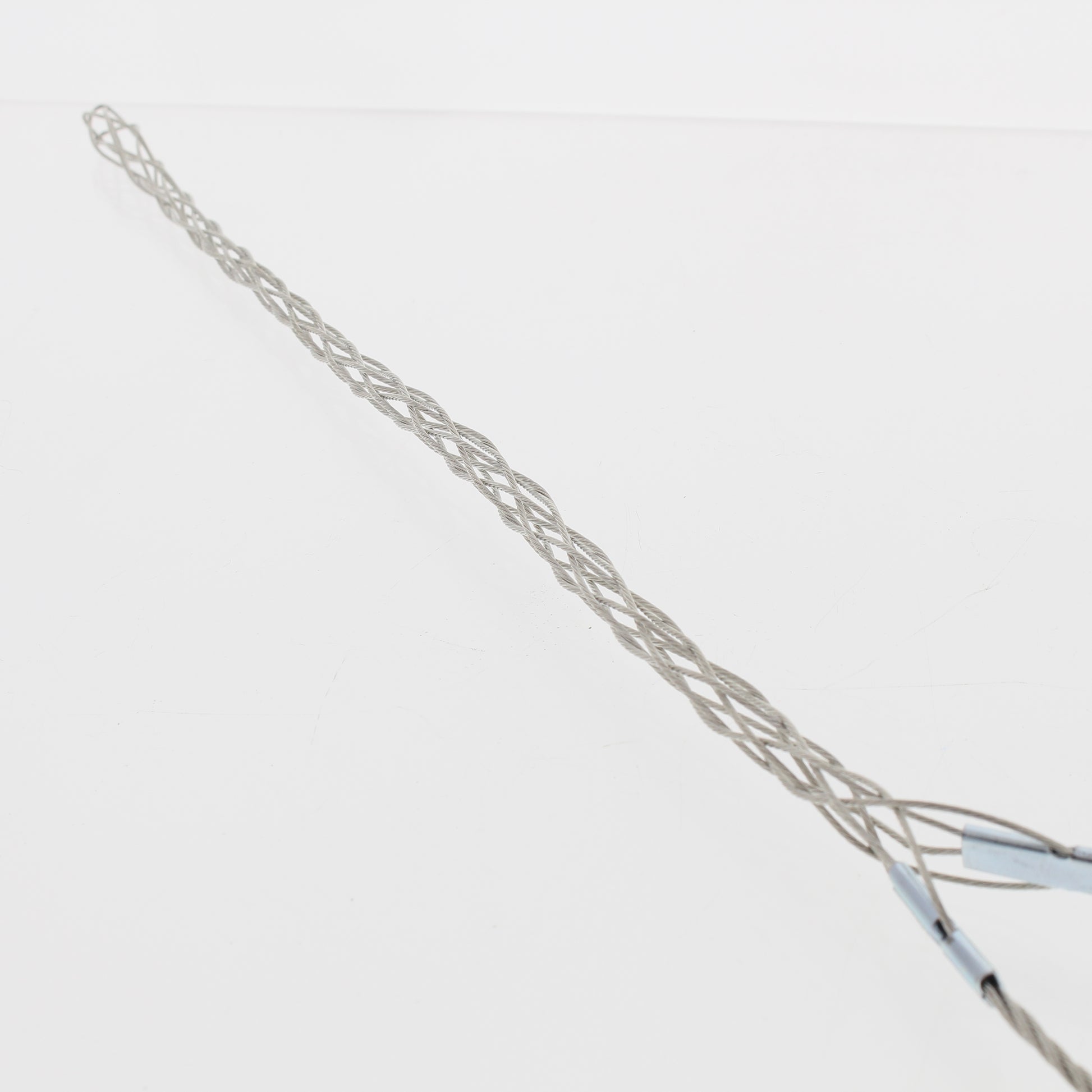

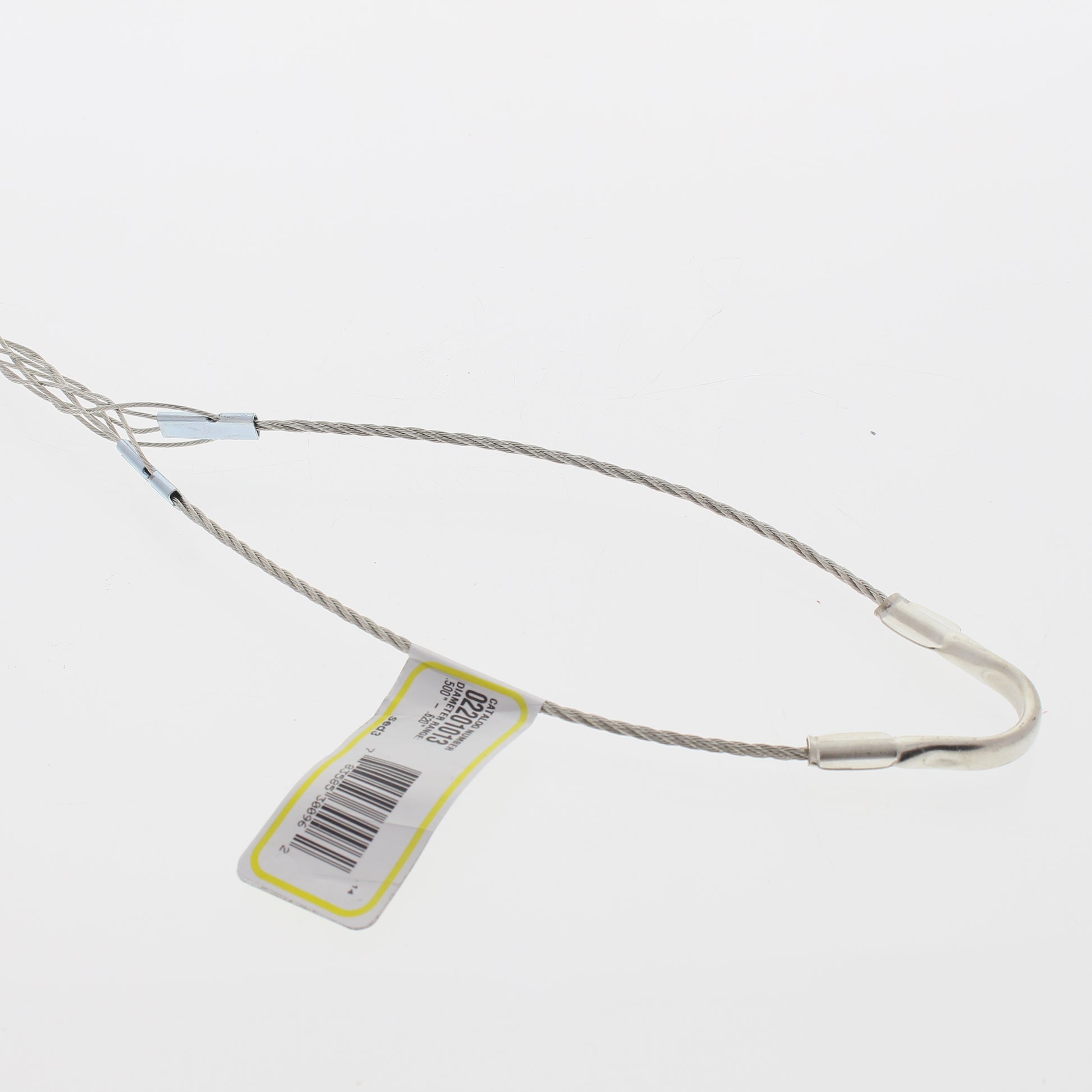

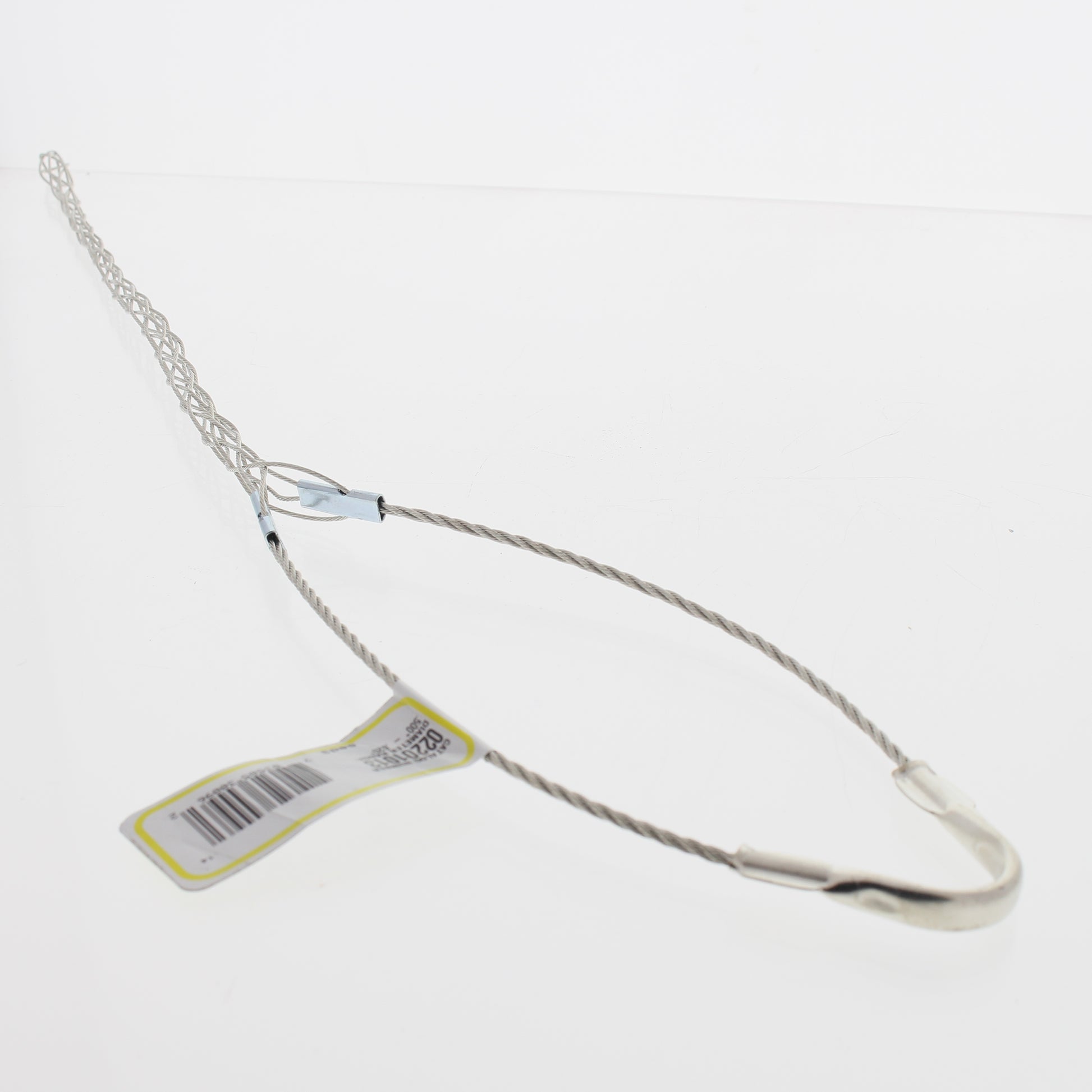

Hubbell 02201013 standard duty, closed eye, closed mesh cable support grip. Used to hold the weight of electrical cable as it hangs in a vertical, sloping, or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion, and contraction. Features include:
Cable diameter range: .50"-.62"
Approximate breaking strength: 530 lbs.
Working load: 53 lbs.
Eye length: 7"
Wire mesh length: 10"
Made of high grade, non-magnetic tin-coated bronze strand
Closed grip fits over cable end
For permanent support when cable end is available to be installed through grip.
Positive action mesh grip
Strand equalizer positions wires for equal loading throughout the entire grip length
