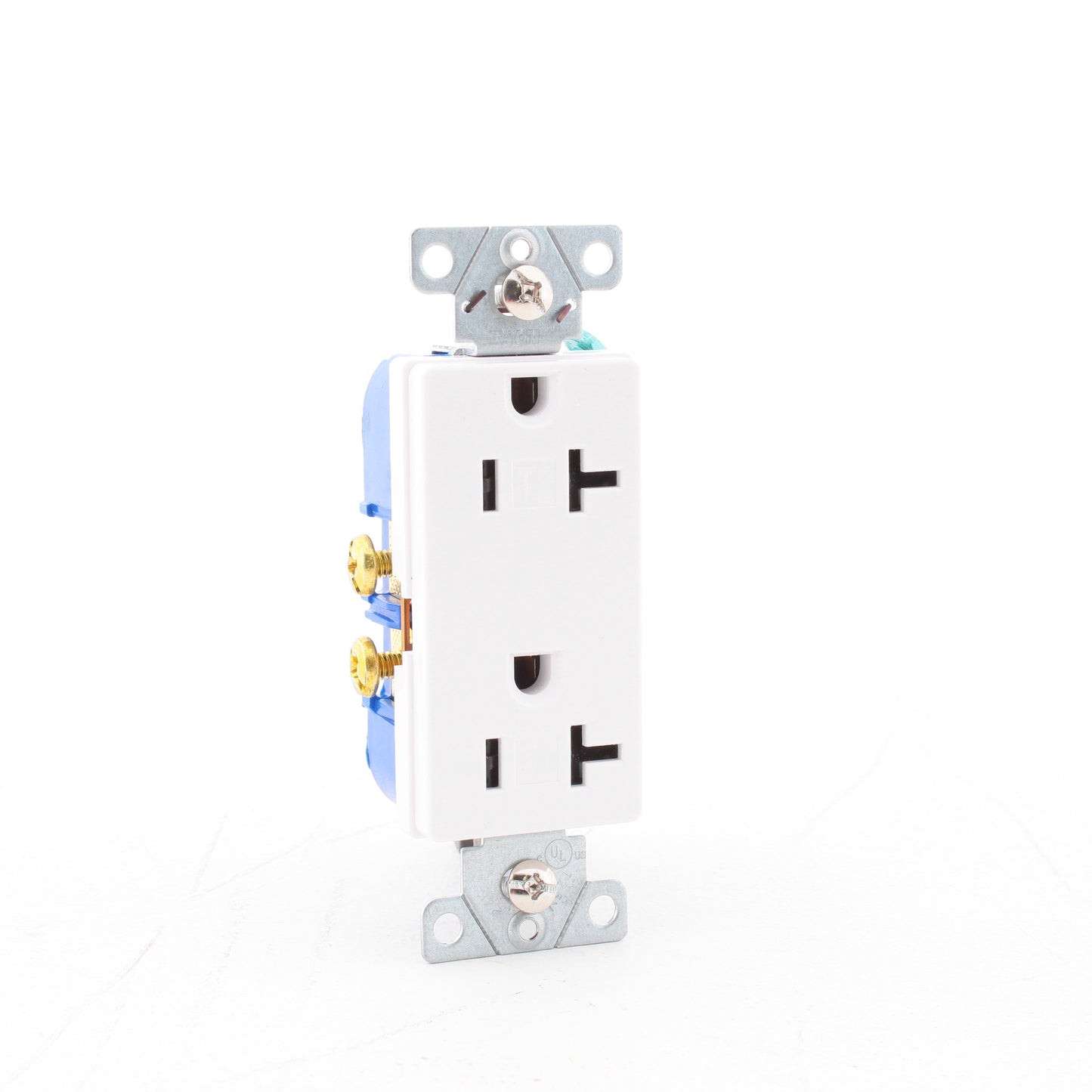

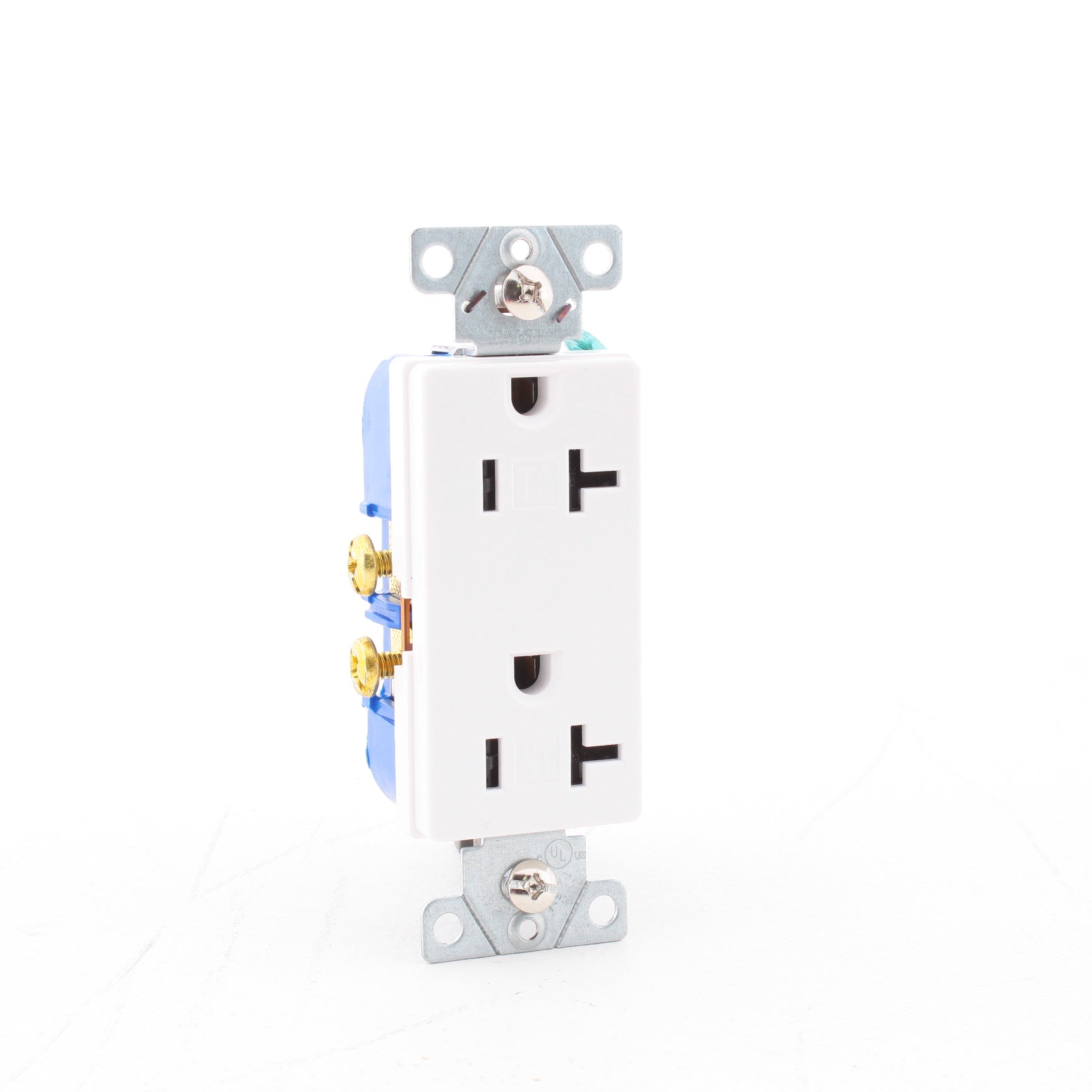

Eaton White Tamper Resistant Duplex Receptacle Outlet Nema 5-20R 20A TR1307W
Eaton White Tamper Resistant Duplex Receptacle Outlet Nema 5-20R 20A TR1307W
Regular price
$3.87 USD
Regular price
Sale price
$3.87 USD
Shipping calculated at checkout.
Eaton TR1307W white tamper resistant decorator receptacle. Standard Grade, NEMA 5-20R, 2-pole, 3-wire, grounding, side wired, rated 20A 125V. Each is individually packaged; packaging may differ from photos. Features include:
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Patented built-in wire looper for pre-looping
- High impact-resistant thermoplastic face and back body eliminates breakage
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Tri-Combo screws accept Slotted-, Phillips, and Robertson-head tools for installation flexibility
- Terminal screws backed out and ready for wiring

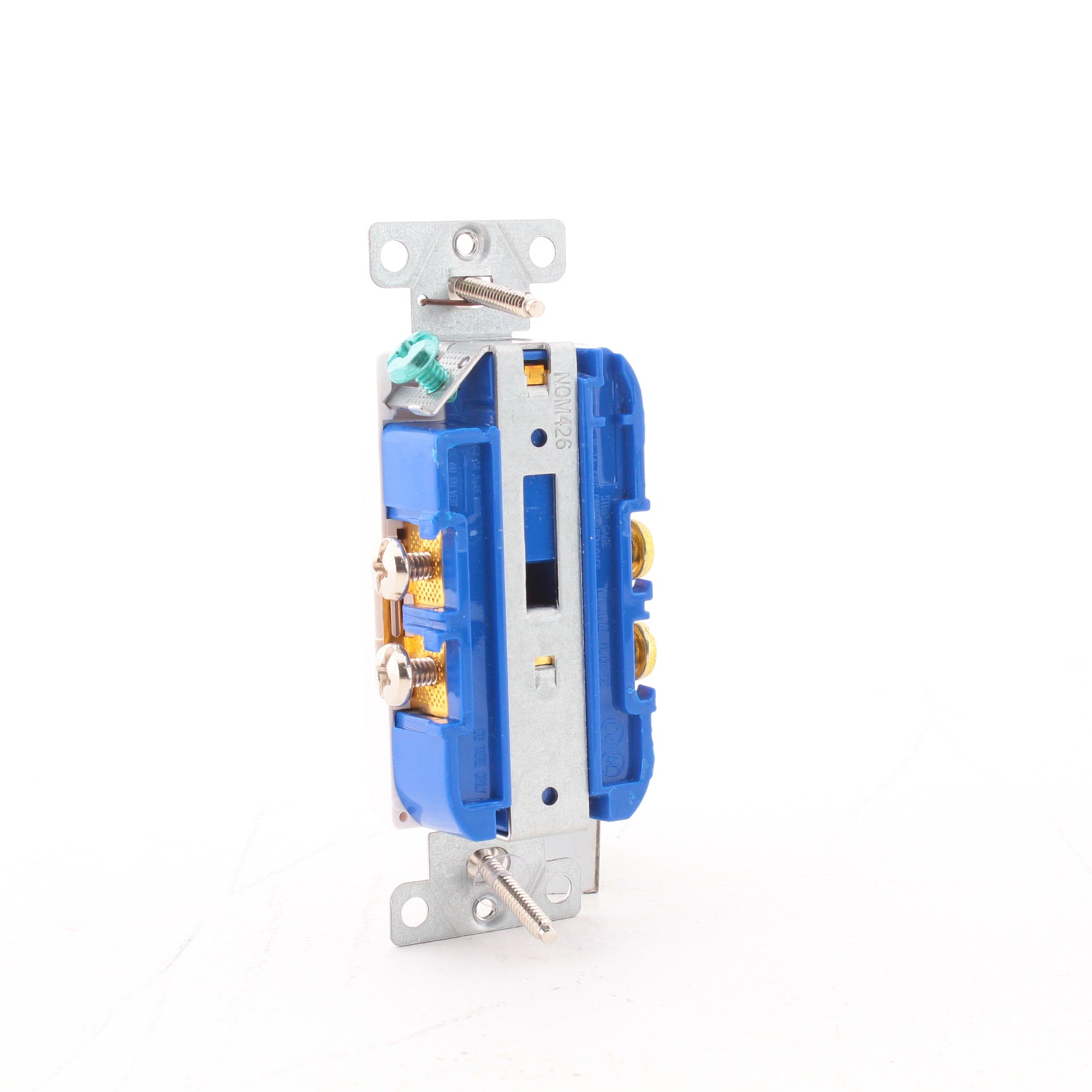

- Side wire terminals accept up to #10 AWG solid wire
