Eaton White Tamp Weather Resistant GFCI Self Test Outlet 15A 125V 5-15 TWRSGF15W

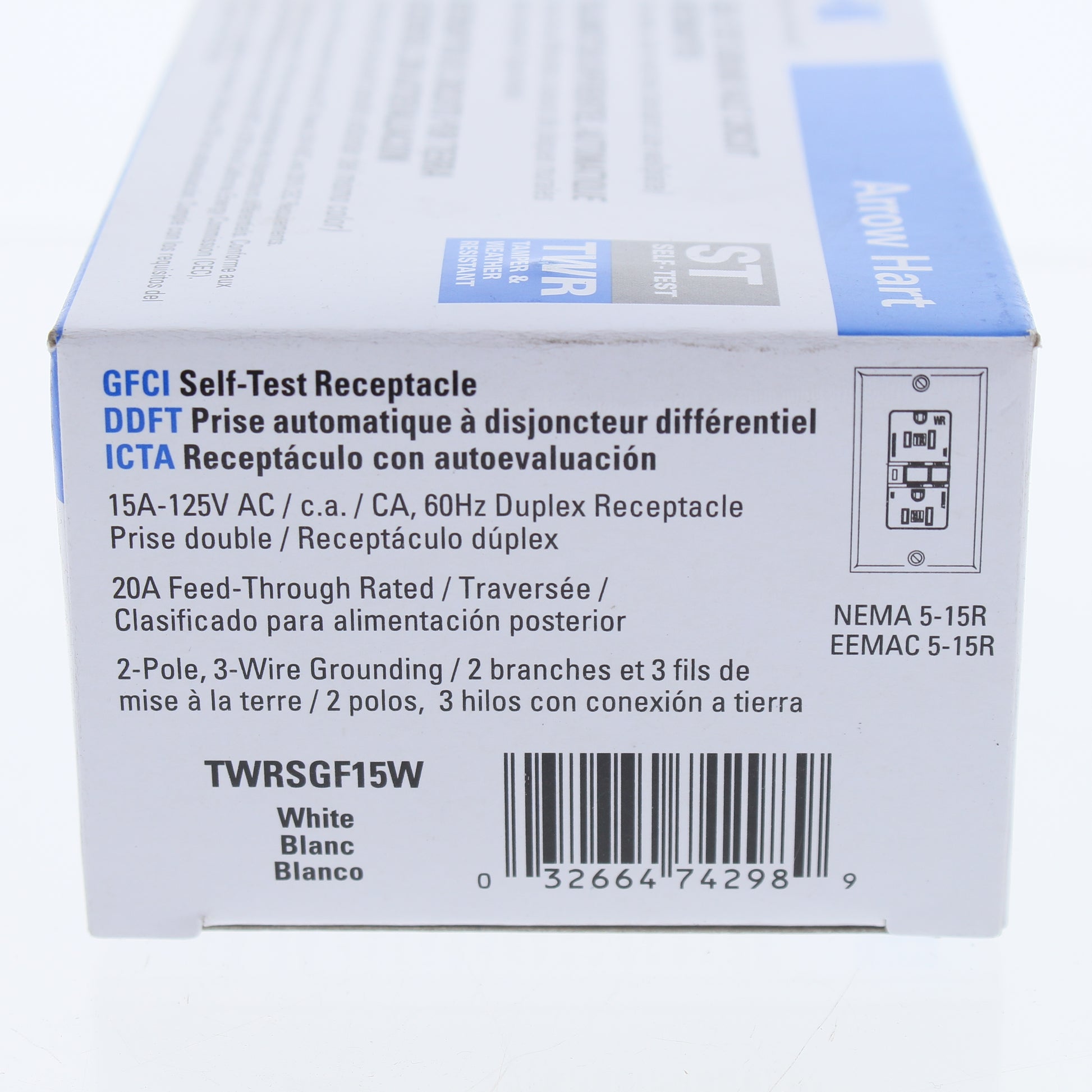

Eaton TWRSGF15W white tamper & weather resistant ground fault circuit interrupter (GFCI) receptacle. The self-testing receptacle is NEMA 5-15R, 2-pole, 3-wire, ground fault, rated 15A 125V at receptacle with a 20A feed thru. Each is individually packaged; packaging may differ from photos. Features include:

• Provides compliance with 2017 NEC Article 406.9 that states that all receptacles installed in wet and damp locations must be weather resistant
• Performs periodic self-tests to ensure integrity of GFCI protection
• Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
• Patented correct wiring/trip indicator light visibly signals proper line-to-load connections - to prevent installation errors
• Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
• 20 amp feed-through allows full protection of downstream receptacles when wired from load side

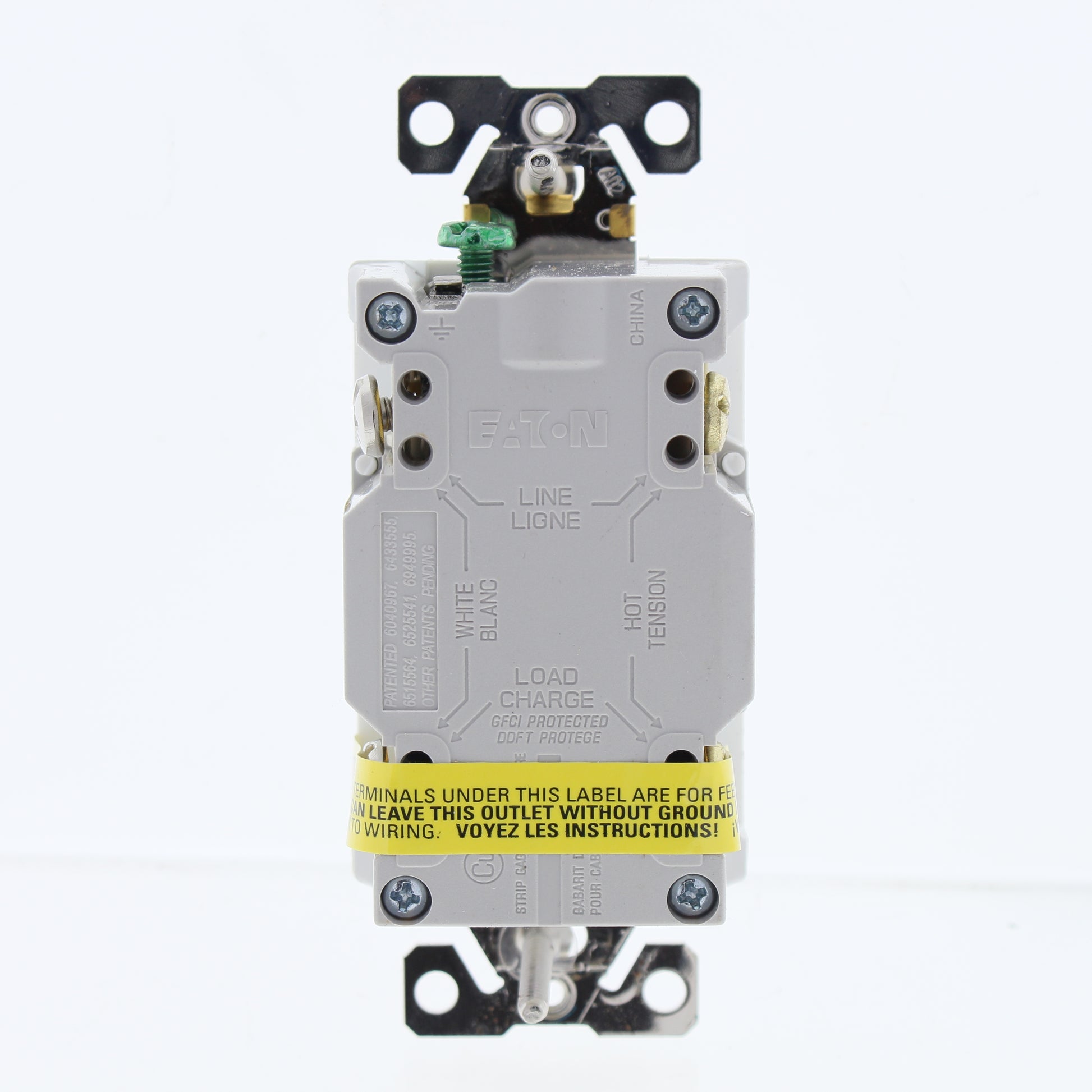

• 8 separate backwiring holes accept up to #10AWG stranded wire, for maximum flexibility
• Durable, impact-resistant thermoplastic construction
• Line terminal screws are backed out, staked, and ready to wire; load side terminals are torqued down for increased prevention of miswiring
• Device and wallplate mounting screws are captive, speeding installation time
• Low overall dimensions makes for more room to wire in "crowded box" situations
• Color-matched and recessed Test & Reset buttons provide uniform appearance
• Exclusive built-in wire stripper, provides backup for misplaced tools

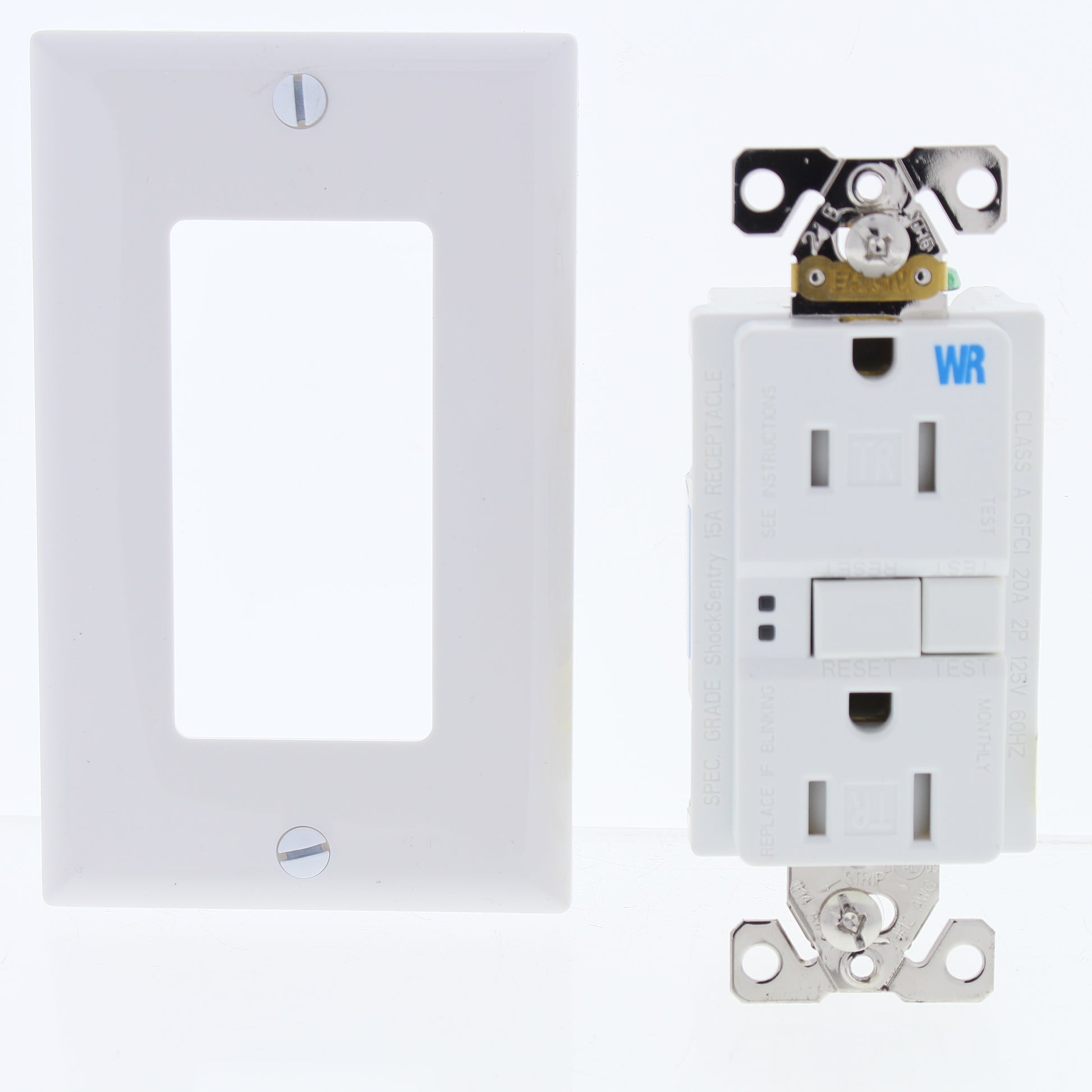

• Includes matching Mid-size wallplate, measuring 3-3/16"x4-15/16". This is an oversize plate for use with larger volume outlet boxes or to hide surface irregularities
• Trip threshold: 5ma - 1ma
• Response time: 0.025 sec.
• "WR" indentifer quickly indicates during inspections that a weather resistant receptacle has been installed
